Place of Origin: |
Tengzhou China |
Brand Name: |
Zhongyou |
Model Number: |
YQ32-100T |
Certification: |
CE ISO |
Minimum Order Quantity: |
1 |
Packaging Details: |
The sample includes a hydraulic press and mold. Please contact us for more details. |
Delivery Time: |
15-45 day |
Payment Terms: |
L/C D/P D/A T/T |
Supply Ability: |
50set/m |

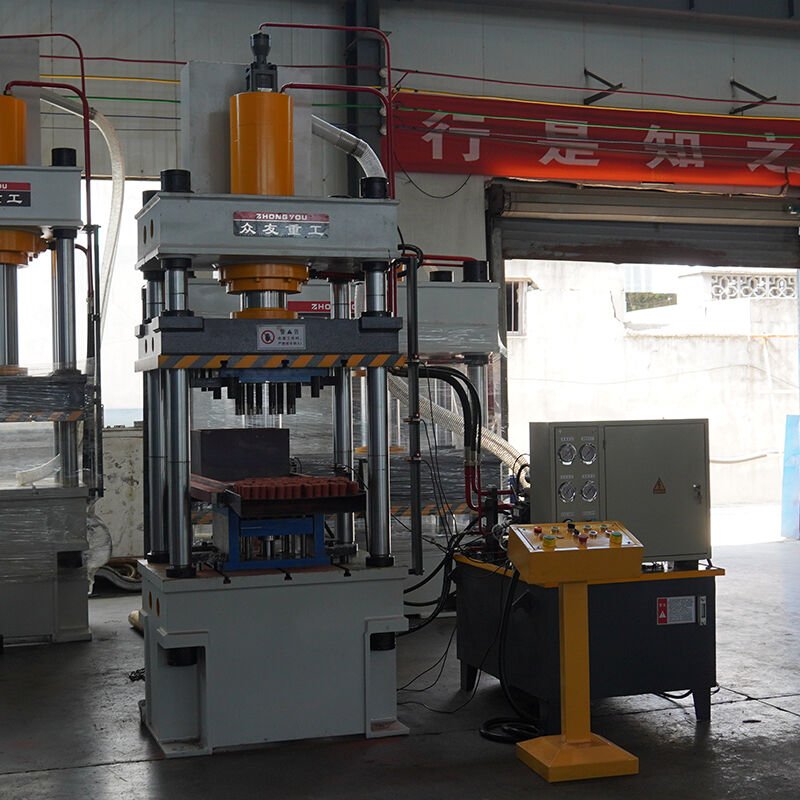

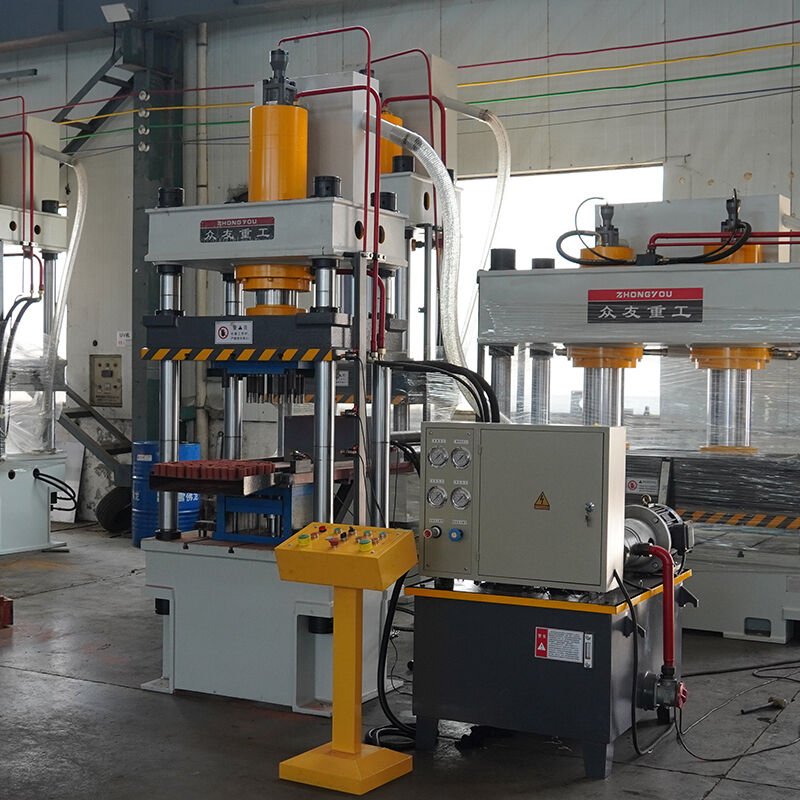

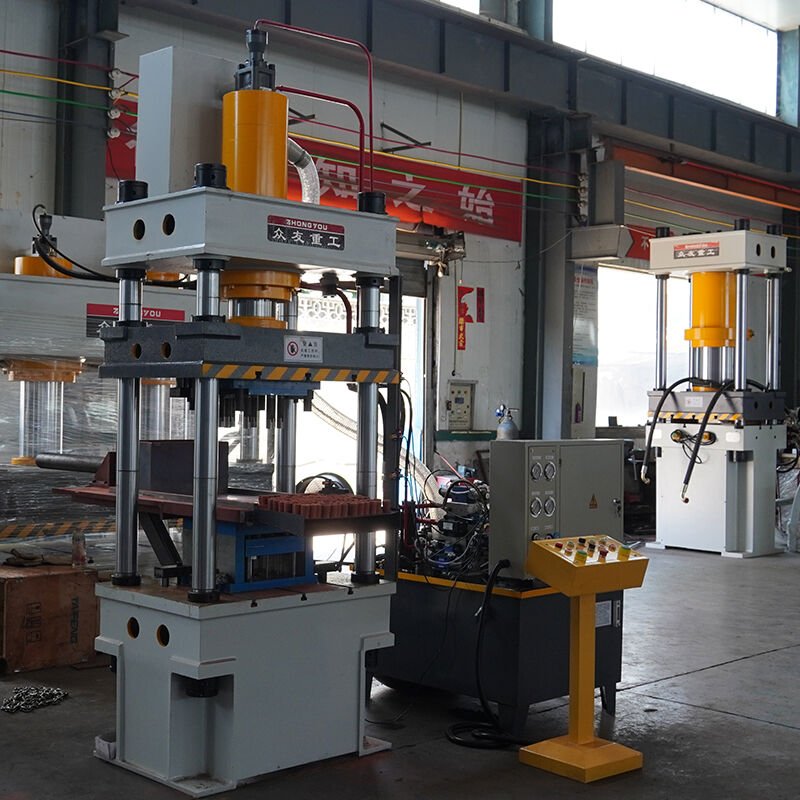

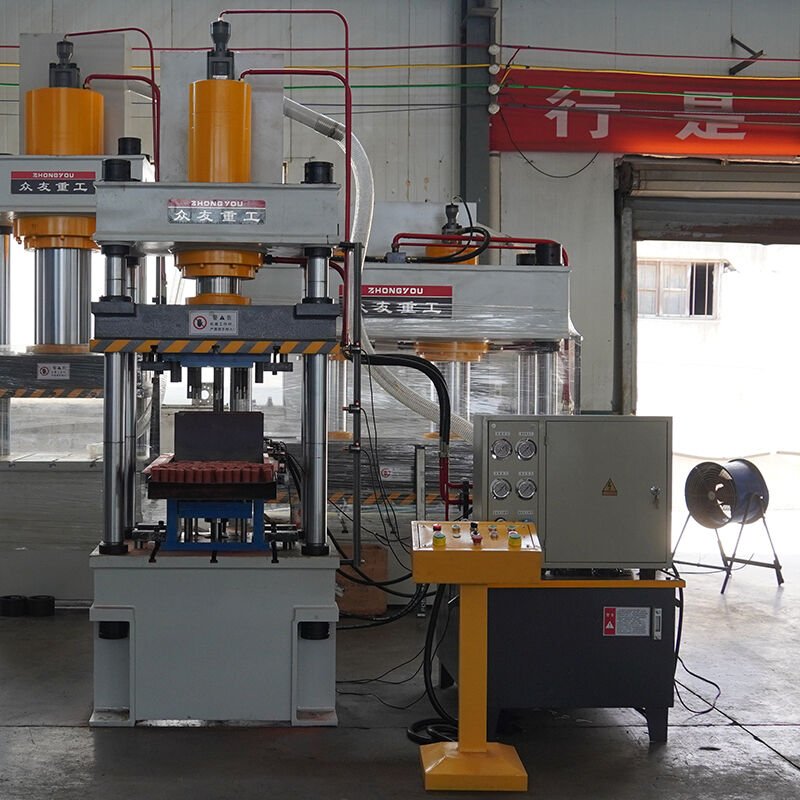

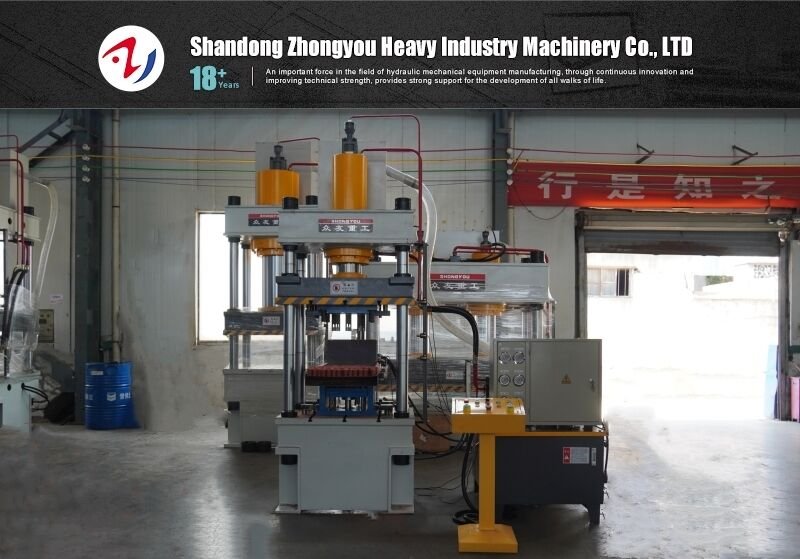

This is a 100T automatic powder molding hydraulic press. The main machine is of three-beam and four-column structure. It is equipped with a molding mold and an automatic distributing device, which can realize automatic pressing. This greatly improves production efficiency and saves labor costs. Regarding the control system, button control is used, which is easy to operate. The pressure, stroke and pressure holding time of the equipment can be adjusted according to your needs. This is a powerful hydraulic press.
YQ32 Technical Parameters |
||||||||
Description/Specificati |
Unit |
YQ32—63 |
YQ32—100A |
YQ32—100B |
YQ32—200A |
YQ32—200B |
YQ32—315A |
YQ32—315B |
Nominal force |
KN |
630 |
1000 |
1000 |
2000 |
2000 |
3150 |
3150 |
Maximun system pressure |
Mpa |
25 |
25 |
25 |
25 |
25 |
25 |
25 |
Max.open height |
mm |
700 |
800 |
900 |
900 |
1100 |
1000 |
1250 |
Max Stroke of Slider |
mm |
400 |
500 |
600 |
600 |
700 |
600 |
800 |
Effective table size |
mm |
610×500 |
630×550 |
750×700 |
800×800 |
1000×1000 |
800×800 |
1260×1160 |
Down speed |
mm/s |
100 |
100 |
100 |
100 |
100 |
100 |
100 |
Pressing speed |
mm/s |
11~22 |
7~15 |
7~15 |
7~18 |
7~18 |
7~12 |
7~12 |
Return speed |
mm/s |
80 |
90 |
90 |
90 |
90 |
90 |
100 |
Ejection cylinder force |
KN |
100 |
200 |
200 |
400 |
400 |
630 |
630 |
Stroke of ejection cylinder |
mm |
160 |
200 |
200 |
200 |
200 |
300 |
300 |
|
|
|
|
|
|
|
|
|
Description/Specificati |
Unit |
YQ32—400 |
YQ32—500 |
YQ32—630 |
YQ32—800 |
YQ32—1000 |
YQ32—1250 |
YQ32—1600 |
Nominal force |
KN |
4000 |
5000 |
6300 |
8000 |
10000 |
12500 |
16000 |
Maximun system pressure |
Mpa |
25 |
25 |
25 |
25 |
25 |
25 |
25 |
Max.open height |
mm |
1250 |
1500 |
1500 |
1500 |
1500 |
1500 |
1500 |
Max Stroke of Slider |
mm |
800 |
900 |
900 |
900 |
900 |
900 |
900 |
Effective table size |
mm |
1260×1160 |
1400×1400 |
1500×1500 |
1600×1600 |
1600×1600 |
1600×1600 |
1600×1600 |
Down speed |
mm/s |
100 |
150 |
150 |
180 |
180 |
180 |
190 |
Pressing speed |
mm/s |
5~11 |
10~18 |
9~18 |
9~18 |
10~18 |
6~15 |
6~14 |
Return speed |
mm/s |
100 |
180 |
200 |
180 |
220 |
200 |
220 |
Ejection cylinder force |
KN |
630 |
1000 |
1000 |
1000 |
1000 |
1000 |
1600 |
Stroke of ejection cylinder |
mm |
300 |
300 |
300 |
300 |
300 |
300 |
300 |
1.Adopting a three-beam and four-column structure, it has stable structure, high precision and good forming effect. Automatic pressing can be realized.
2.The hydraulic system adopts advanced cartridge integrated valves, and the electrical system uses branded accessories. It can achieve high-precision pressing. It has reliable quality and convenient maintenance.
3.Button control, simple operation.
4.Parameters such as pressure, stroke and pressure holding time can be adjusted.
5.Compatible with a variety of molds.
6.Scientific design, simple structure and easy maintenance.
We provide comprehensive after-sales services, including equipment installation, commissioning, and operation training. A hydraulic press user manual is provided to facilitate learning how to operate and maintain the press.

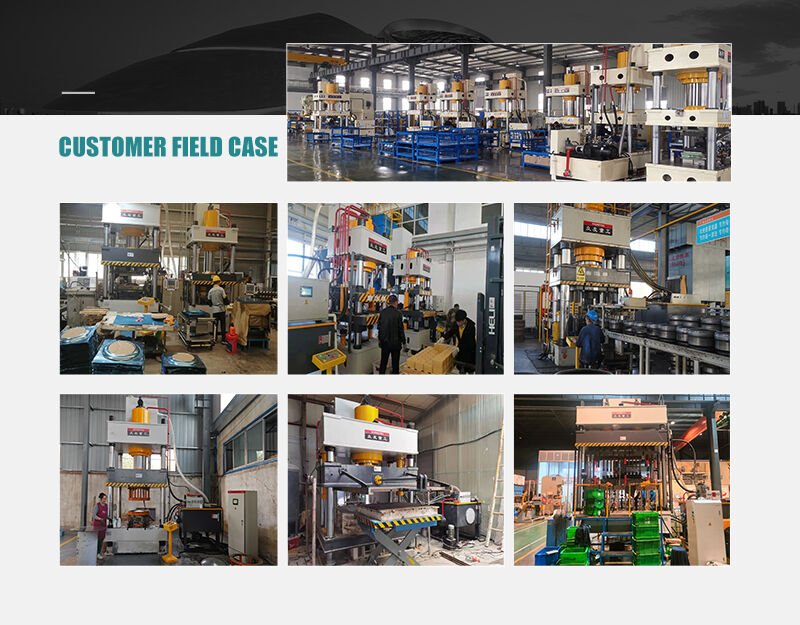

We offer a full range of hydraulic press equipment, with numerous mature design solutions and successful customer cases. We also support customization services, providing forming molds and corresponding production line equipment, offering one-stop service. Feel free to consult us.
