YQ32 Technical Parameters
	Unit	YQ32—63	YQ32—100A	YQ32—100B	YQ32—200A	YQ32—200B	YQ32—315A	YQ32—315B
Nominal force	KN	630	1000	1000	2000	2000	3150	3150
Maximun system pressure	Mpa	25	25	25	25	25	25	25
Max.open height	mm	700	800	900	900	1100	1000	1250
Max Stroke of Slider	mm	400	500	600	600	700	600	800
Effective table size	mm	610×500	630×550	750×700	800×800	1000×1000	800×800	1260×1160
Down speed	mm/s	100	100	100	100	100	100	100
Pressing speed	mm/s	11～22	7～15	7～15	7～18	7～18	7～12	7～12
Return speed	mm/s	80	90	90	90	90	90	100
Ejection cylinder force	KN	100	200	200	400	400	630	630
Stroke of ejection cylinder	mm	160	200	200	200	200	300	300
	Unit	YQ32—400	YQ32—500	YQ32—630	YQ32—800	YQ32—1000	YQ32—1250	YQ32—1600
Nominal force	KN	4000	5000	6300	8000	10000	12500	16000
Maximun system pressure	Mpa	25	25	25	25	25	25	25
Max.open height	mm	1250	1500	1500	1500	1500	1500	1500
Max Stroke of Slider	mm	800	900	900	900	900	900	900
Effective table size	mm	1260×1160	1400×1400	1500×1500	1600×1600	1600×1600	1600×1600	1600×1600
Down speed	mm/s	100	150	150	180	180	180	190
Pressing speed	mm/s	5～11	10～18	9～18	9～18	10～18	6～15	6～14
Return speed	mm/s	100	180	200	180	220	200	220
Ejection cylinder force	KN	630	1000	1000	1000	1000	1000	1600
Stroke of ejection cylinder	mm	300	300	300	300	300	300	300

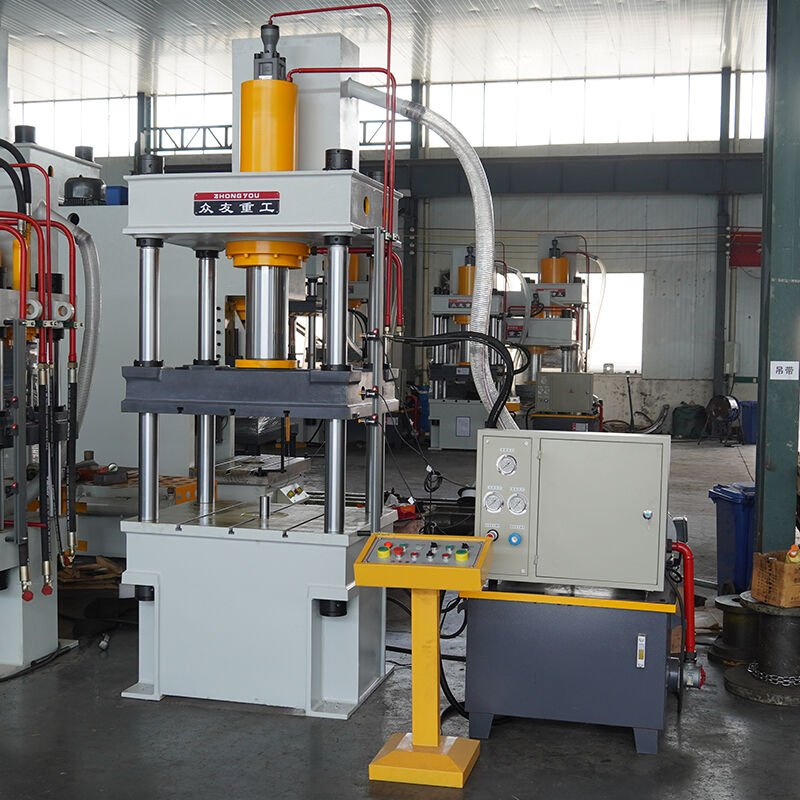

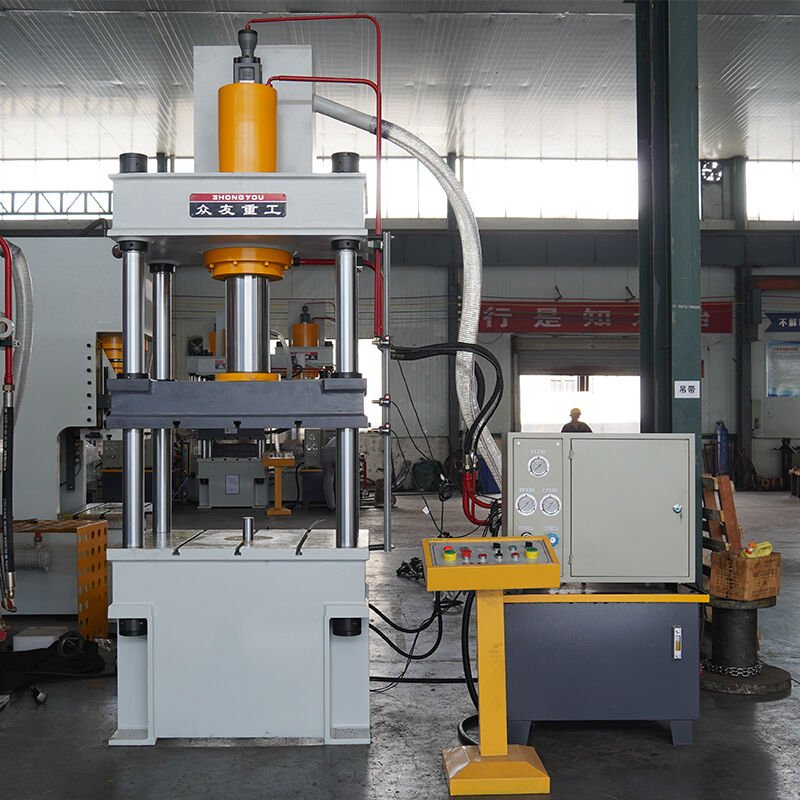

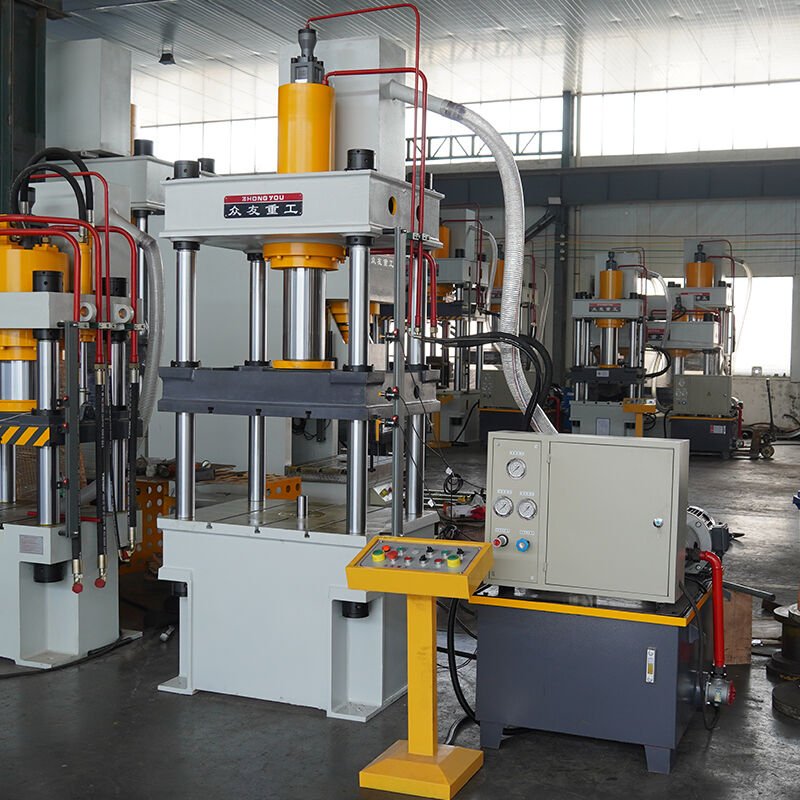

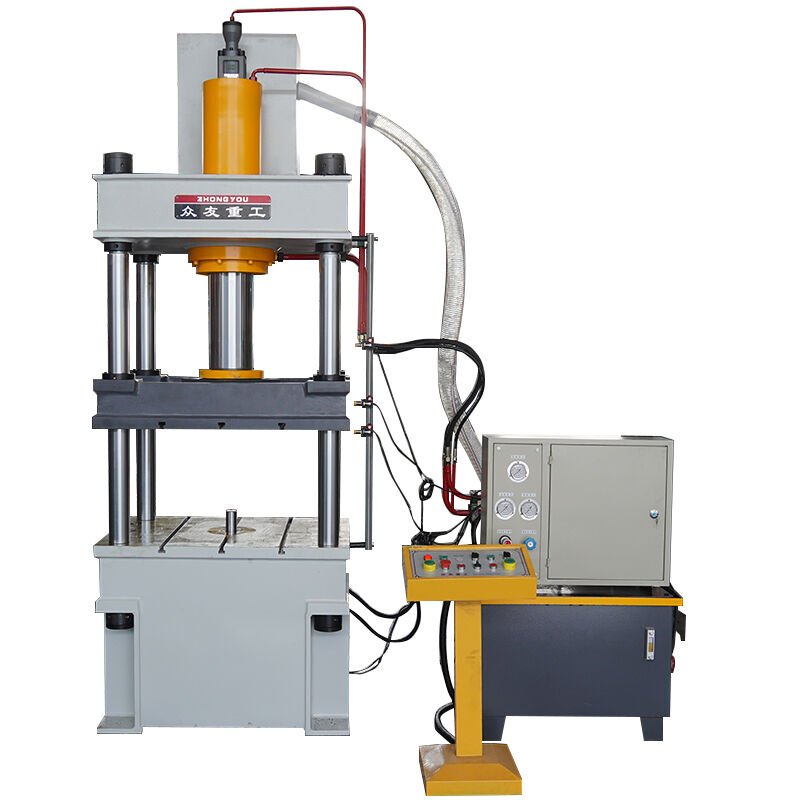

The four-column hydraulic press is widely used in metal pressing, powder metallurgy, rubber and plastic molding, composite material pressing, and axial part pressing. Whether for the production of automotive components, electronic product shells, or precision molds, the four-column hydraulic press can meet production requirements with its superior performance.

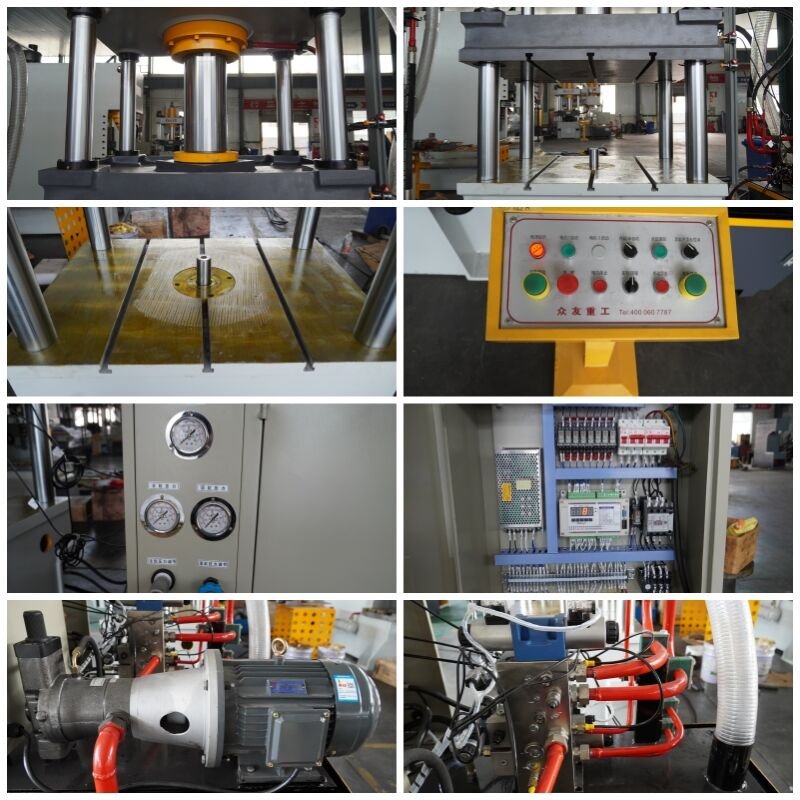

Equipment Details

Performance Characteristics

High Precision: Utilizing a precise hydraulic transmission system and advanced control system, it achieves high-precision processing and pressing. High Efficiency: The hydraulic transmission method allows the equipment to quickly reach the required working pressure, improving production efficiency. Excellent Stability: The four-column design enhances the stability of the equipment during operation, reducing errors caused by vibrations. Easy Maintenance: The rational design and convenient component replacement reduce maintenance costs.

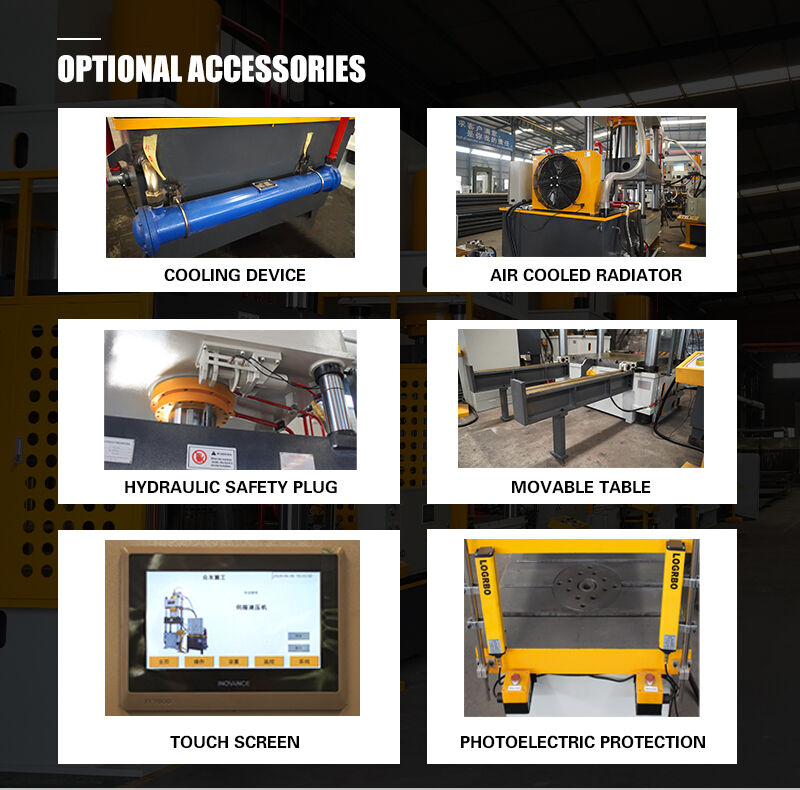

Optional Accessories

After-Sales Service

We provide comprehensive after-sales services, including equipment installation and commissioning, operation training, regular maintenance, and more. Our professional team is always available to provide technical support, ensuring the stable operation of the equipment and meeting your production needs.

High Precision: Utilizing a precise hydraulic transmission system and advanced control system, it achieves high-precision processing and pressing. High Efficiency: The hydraulic transmission method allows the equipment to quickly reach the required working pressure, improving production efficiency. Excellent Stability: The four-column design enhances the stability of the equipment during operation, reducing errors caused by vibrations. Easy Maintenance: The rational design and convenient component replacement reduce maintenance costs.

Optional Accessories

We provide comprehensive after-sales services, including equipment installation and commissioning, operation training, regular maintenance, and more. Our professional team is always available to provide technical support, ensuring the stable operation of the equipment and meeting your production needs.

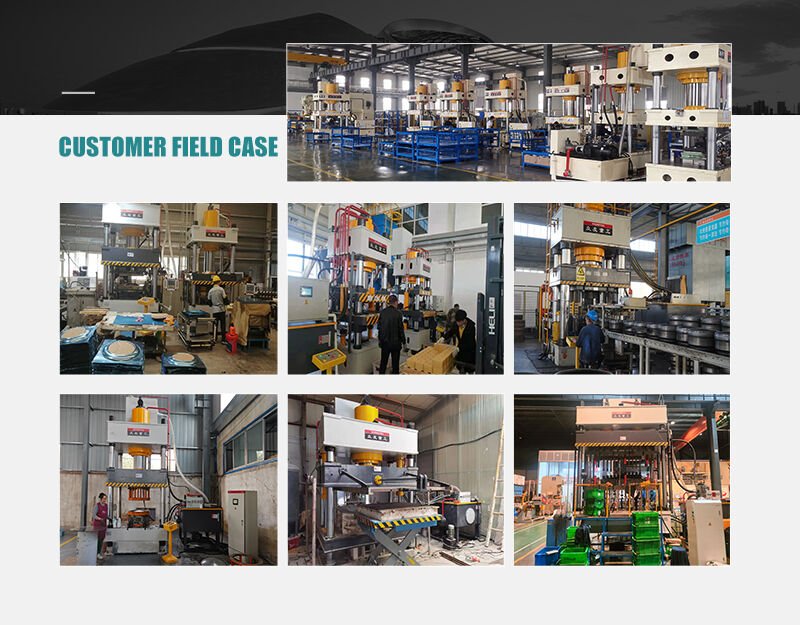

We offer a full range of hydraulic press equipment with numerous mature design solutions and successful customer cases. We also support custom services, providing forming molds and corresponding production line equipment for a one-stop service. Feel free to consult us.
