300 ton 4 column machine hydraulic press

Place of Origin:

 Tengzhou China

Brand Name:

Zhongyou

Model Number:

YQ32-315T

Certification:

CE ISO

Minimum Order Quantity:

1

Packaging Details:

The sample includes a hydraulic press and mold. Please contact us for more details.

Delivery Time:

15-45 day

Payment Terms:

L/C D/P D/A T/T

Supply Ability:

50set/m
Get a Quote Contact Us
Is there a problem? Please contact us to serve you!

Is there a problem? Please contact us to serve you!

+86-13563258817
[email protected]
Inquiry

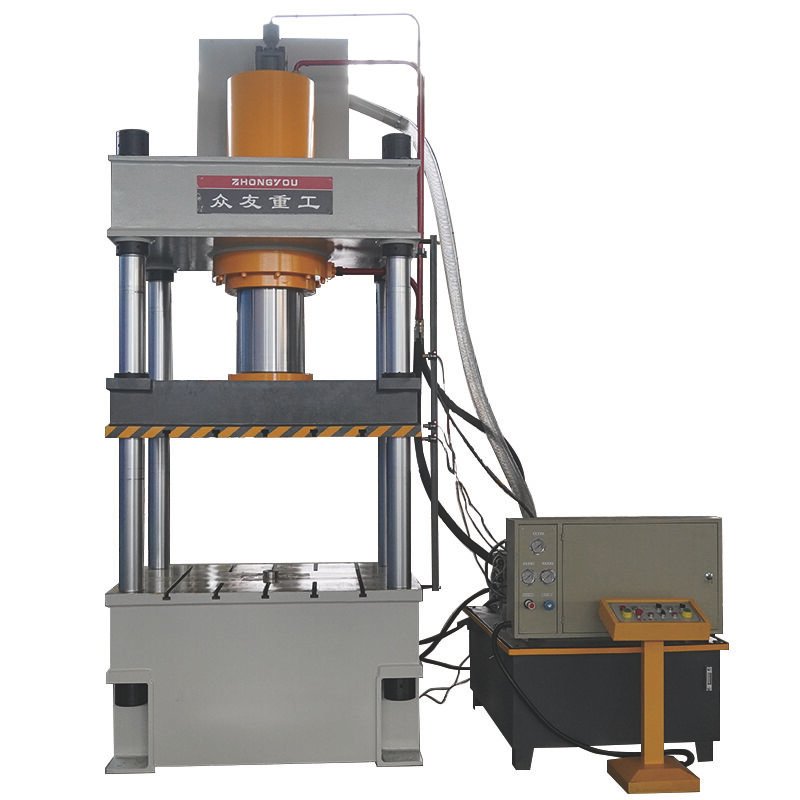

This machine is a three-beam, four-column hydraulic press characterized by precision, stability, high efficiency, and wide applicability. All systems use brand-name components, ensuring reliable quality and easy maintenance. It features button control for simple operation. The four-column hydraulic press is highly versatile and suitable for  various plastic materials molding.

 YQ32 Technical Parameters
Unit YQ32—63 YQ32—100A YQ32—100B YQ32—200A YQ32—200B YQ32—315A YQ32—315B YQ32—400
 Nominal force KN 630 1000 1000 2000 2000 3150 3150 4000
 Maximun system pressure Mpa 25 25 25 25 25 25 25 25
 Max.open height mm 700 800 900 900 1100 1000 1250 1250
 Max Stroke of Slider mm 400 500 600 600 700 600 800 800
 Effective table size mm 610×500 630×550 750×700 800×800 1000×1000 800×800 1260×1160 1260×1160
Down speed mm/s 100 100 100 100 100 100 100 100
Pressing speed mm/s 11～22 7～15 7～15 7～18 7～18 7～12 7～12 5～11
Return speed mm/s 80 90 90 90 90 90 100 100
 Ejection cylinder force KN 100 200 200 400 400 630 630 630
 Stroke of ejection cylinder mm 160 200 200 200 200 300 300 300
Unit YQ32—500 YQ32—630 YQ32—800 YQ32—1000 YQ32—1250 YQ32—1600
 Nominal force KN 5000 6300 8000 10000 12500 16000
 Maximun system pressure Mpa 25 25 25 25 25 25
 Max.open height mm 1500 1500 1500 1500 1500 1500
 Max Stroke of Slider mm 900 900 900 900 900 900
 Effective table size mm 1400×1400 1500×1500 1600×1600 1600×1600 1600×1600 1600×1600
Down speed mm/s 150 150 180 180 180 190
Pressing speed mm/s 10～18 9～18 9～18 10～18 6～15 6～14
Return speed mm/s 180 200 180 220 200 220
 Ejection cylinder force KN 1000 1000 1000 1000 1000 1600
 Stroke of ejection cylinder mm 300 300 300 300 300 300
Metal Cold extrusion molding, stretching molding, hot forging, composite material hot pressing, powder molding, etc. It can perform various processes such as extrusion, bending, stretching, forging, pressing, disassembly, and shaping. Additionally, we offer customized hydraulic presses to meet specific requirements.

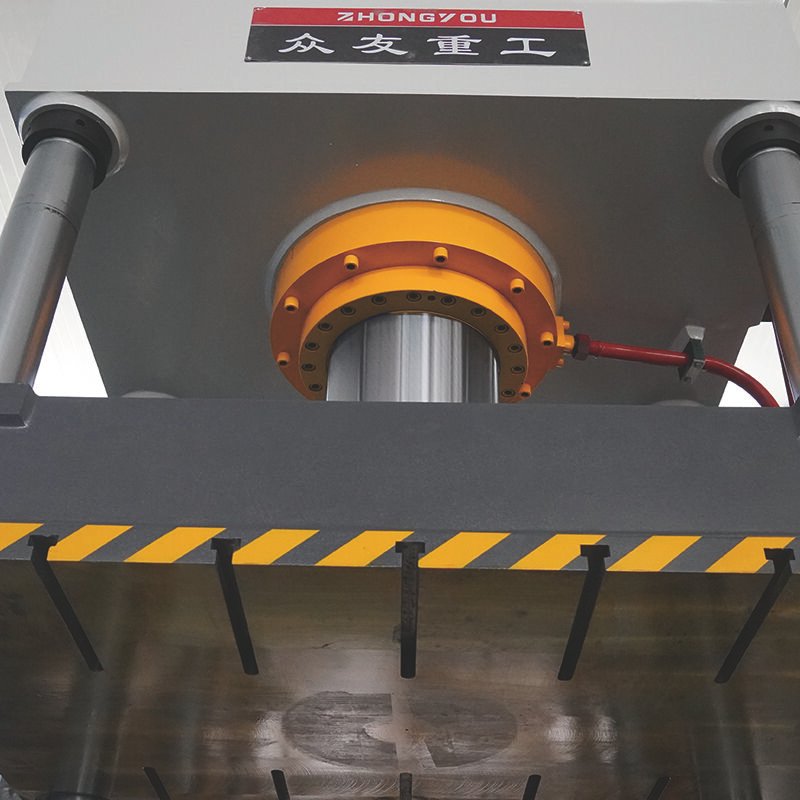

  1. Utilizes a three-beam, four-column structure for stability, high precision, and a large operating space.
  2. The hydraulic system features advanced cartridge integrated valves, and the electrical system uses brand-name components, allowing for high-precision pressing, reliable quality, and easy maintenance.
  3. Simple button control for ease of operation.
  4. Adjustable parameters including pressure, stroke, and holding pressure time.
  5. Scientifically designed with a simple structure for easy maintenance.
We provide comprehensive after-sales services, including installation, debugging, and operational training for the equipment. An instruction manual for the hydraulic press is provided to help users learn how to operate and maintain the machine.
We offer a full range of hydraulic press equipment, with numerous mature design solutions and successful customer cases. We also support customized services, including the provision of molding dies and corresponding production line equipment, offering a one-stop service. Please feel free to consult us.
