Automatic powder forming press

Double action hydraulic press

Place of Origin:	Tengzhou China
Brand Name:	Zhongyou
Model Number:	YD28-315T
Certification:	CE ISO
Minimum Order Quantity:	1
Packaging Details:	The sample includes a hydraulic press and mold. Please contact us for more details.
Delivery Time:	15-45 day
Payment Terms:	L/C D/P D/A T/T
Supply Ability:	50set/m

Inquiry Contact Us

Description
Parameters

Is there a problem?<br>Please contact us to serve you!

Is there a problem?
Please contact us to serve you!

+86-15266165588

[email protected]

Inquiry

Product Overview

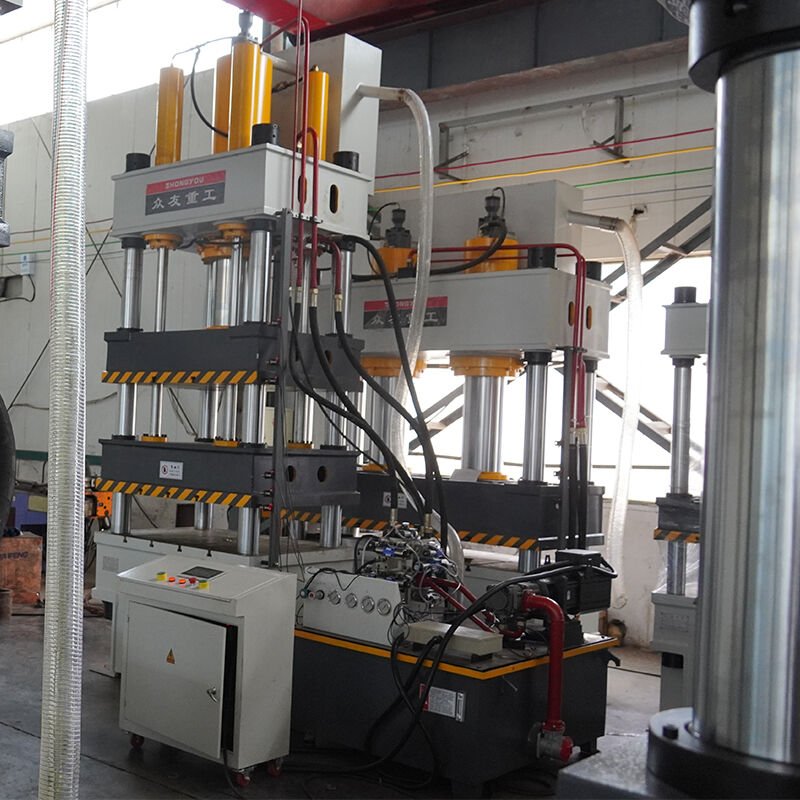

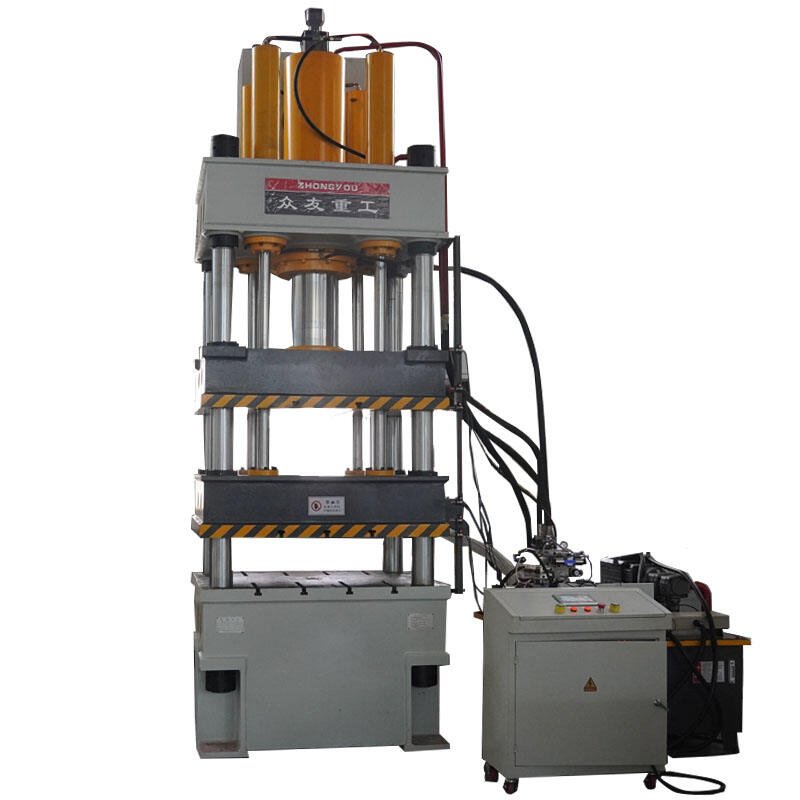

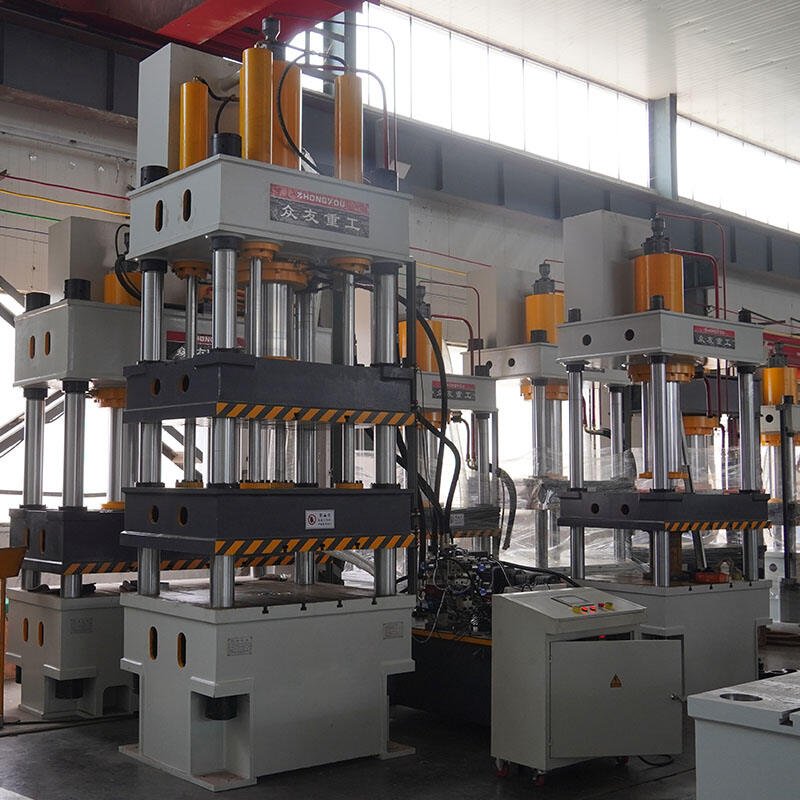

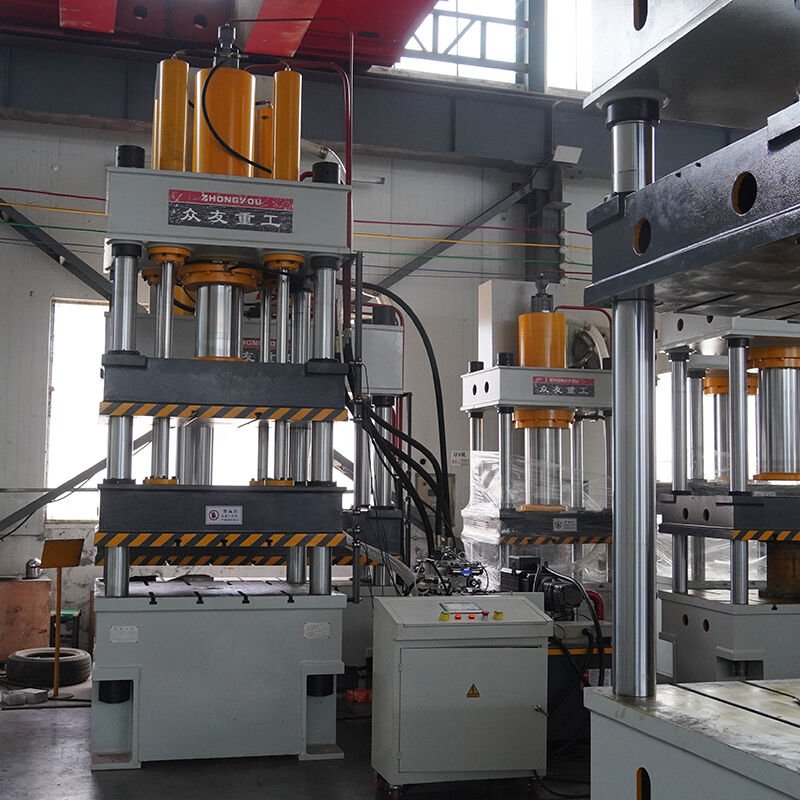

This is a 315T double-action deep drawing hydraulic press, specially used for deep drawing and forming of metal sheets. It has a four-beam and four-column structure, and the fuselage is sturdy. Different molds can be replaced. Equipped with a servo system, it has higher pressing precision and saves energy and reduces noise. It is operated by buttons and touch screens, and is easy to use.

Parameters

YD28-Technical Parameters
Item		Unit	YD28-200/315	YD28-300/500	YD28-400/650	YD28-500/800	YD28-630/1030	YD28-800/1300
Nominal forca		KN	3150	5000	6500	8000	10300	13000
Tensile force		KN	2000	3000	4000	5000	6300	8000
Blarket force		KN	1150	2000	2500	3000	4000	5000
Hydraulic die cushion ejection force		KN	630	1000	1600	3000	4000
0penng height of bocomn side		mm	1500	1600	1800	2100	2300	2200
0pening heigh of uppe slide		mm	1180	1150	1800	2000	2200	2200
Stroke of bomam sider		mm	800	900	1200	1100	1400	1400
Stroke of upper slider		mm	800	900	1100	1000	1300	1400
Ejecti0nstroke of hydauhc cushion		mm	300	350	300	300	300	300
Slider speed（Stroke/press）	Descending speed	mm/s	120/120	150/150	250/250	200/200	200/200	250/250
	press	mm/s	10-20/12-30	5-12/10-20	8-20/12-30	12-25/16-35	12-25/16-40	10-20/12-30
	Return	mm/s	190/130	120/120	150/150	200/200	200/200	200/200
Size of bottom slider	L-R	mm	840	1000	1100	2100	2400	2600
Size of bottom slider	F-B	mm	800	700	1100	1250	1400	1600
Size of upper slider	L-f	mm	1200	1400	1600	3000	3200	4200
Size of upper slider	F-B	mm	1200	1400	1600	2000	2200	2400
Workiable size	L-R	mm	1200	1400	1600	3000	3200	4500
Workiable size	F-B	mm	1200	1400	1600	2000	2200	2500

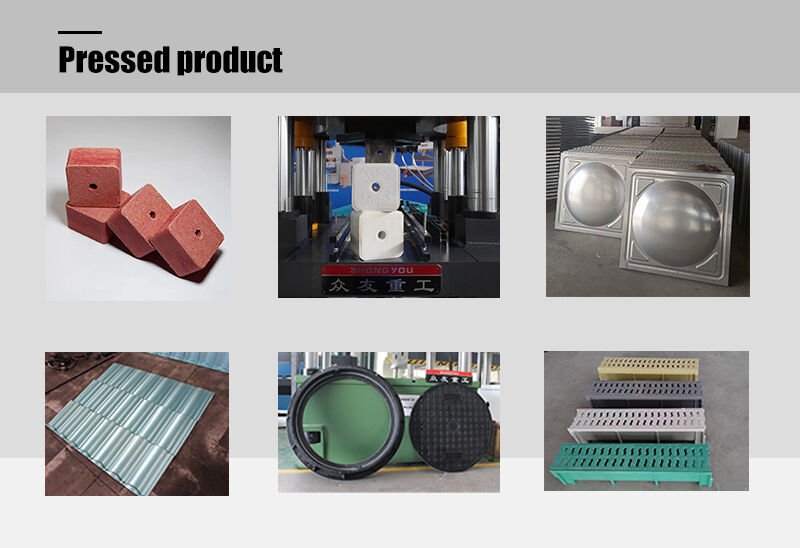

Pressed Product


Applications

The double action thin plate deep drawing hydraulic press is mainly used for thick and thin metal plate deep drawing and Blanking, punching and other forming processes, at the same time, it also has the conventional functions of general hydraulic presses. After deep drawing can be done with hydraulic buffer The re-punching process or the flanging process after punching is widely used in automobiles, motorcycles,Household appliances, petrochemical, rail transit, aerospace and other fields. The hvdraulic press has two structural forms: four-column and H frame.According to the needs of users, it can be equipped with Top Mounted Hydraulic Cushion , micro-moving die setting devices, and fast mould changing device, etc.

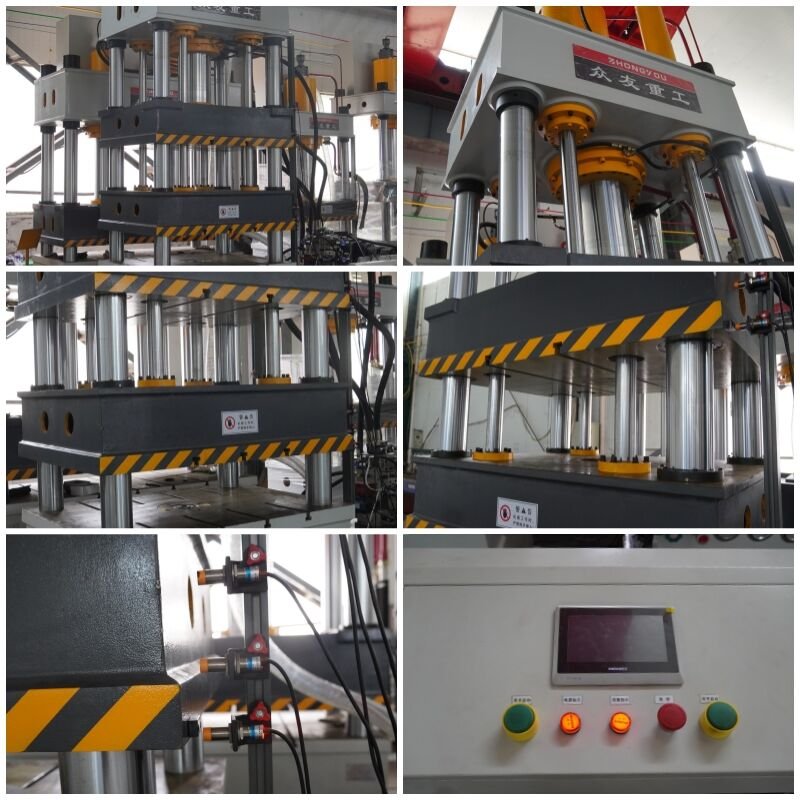

Detailed pictures


Performance Characteristics

I. Structural advantages

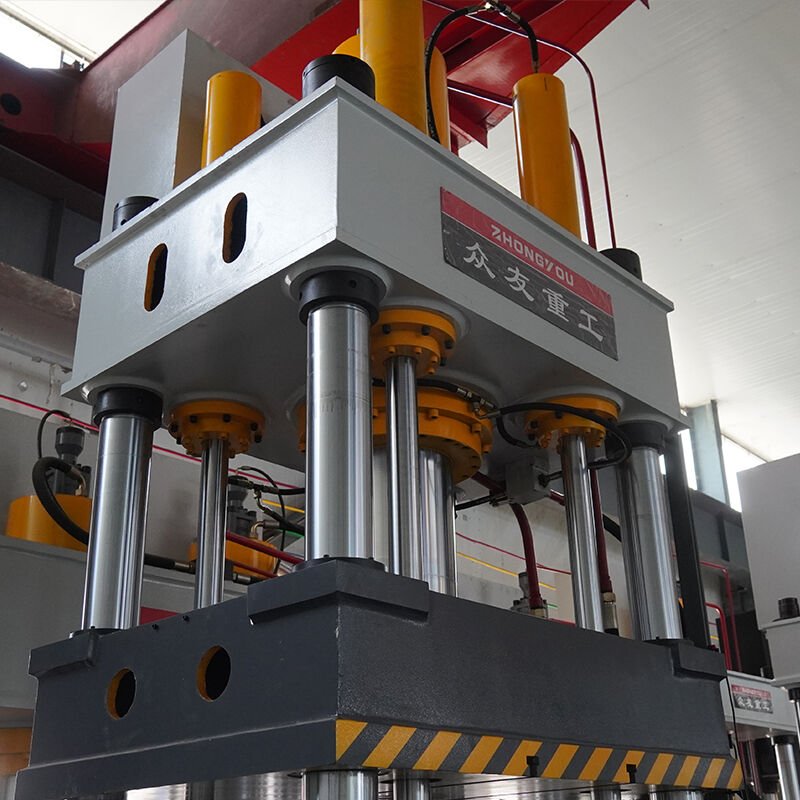

The four-beam and four-column structure design makes the fuselage extremely sturdy and stable. It can withstand large working pressure and impact force, ensuring no deformation during long-term working process and providing a reliable infrastructure for high-precision processing.

II. Powerful functions

Specially used for deep drawing and forming of metal sheets, it shows excellent performance in this field. It can stretch metal sheets into workpieces of various complex shapes to meet the needs of different industries for metal formed parts.
Different molds can be replaced, greatly improving the universality and flexibility of the equipment. According to different production tasks, molds can be quickly replaced to realize the production of multiple products and reduce the equipment investment cost of enterprises.

III. Supported by servo system

Equipped with a servo system, the pressing precision is higher. It can precisely control parameters such as pressure, speed and stroke, ensuring the dimensional accuracy and quality stability of each workpiece. Especially for some products with high precision requirements, such as automotive parts and electronic product casings, the double-action drawing hydraulic press can meet their strict processing requirements.
Energy saving and noise reduction. The servo system can automatically adjust the power output according to the actual working needs, avoiding the energy waste of traditional hydraulic presses when idling or under light load, thereby achieving energy-saving effects. At the same time, it reduces the noise during equipment operation and improves the working environment.

IV. Easy operation

Operated by buttons and touch screens, it is simple to use. Operators can intuitively set various working parameters and monitor the equipment running status through the touch screen, greatly improving the convenience and accuracy of operation. Even operators without rich experience can master the operation method of the equipment in a short time.

Optional Configurations


Packing&Shipping


After-Sales Service

We provide comprehensive after-sales service including equipment installation, debugging, and operation training. We offer a hydraulic press user manual for convenient operation and maintenance.

About The Company

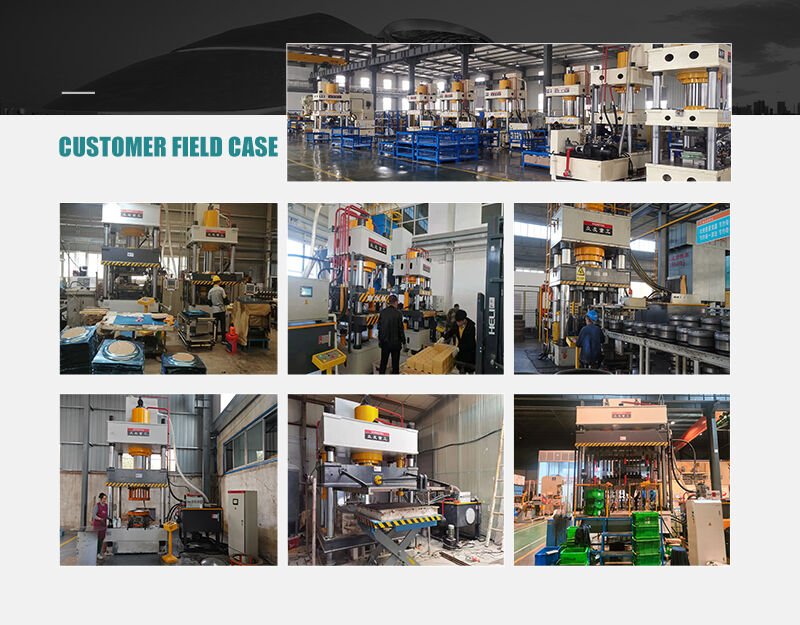

We offer a full range of hydraulic press equipment with numerous mature design solutions and successful customer cases. We also support custom services, providing forming molds and corresponding production line equipment for a one-stop service. Feel free to consult us. 丁庄_05.jpg 丁庄_08.jpg 丁庄_10.jpg 丁庄_07.jpg 丁庄_06.jpg
