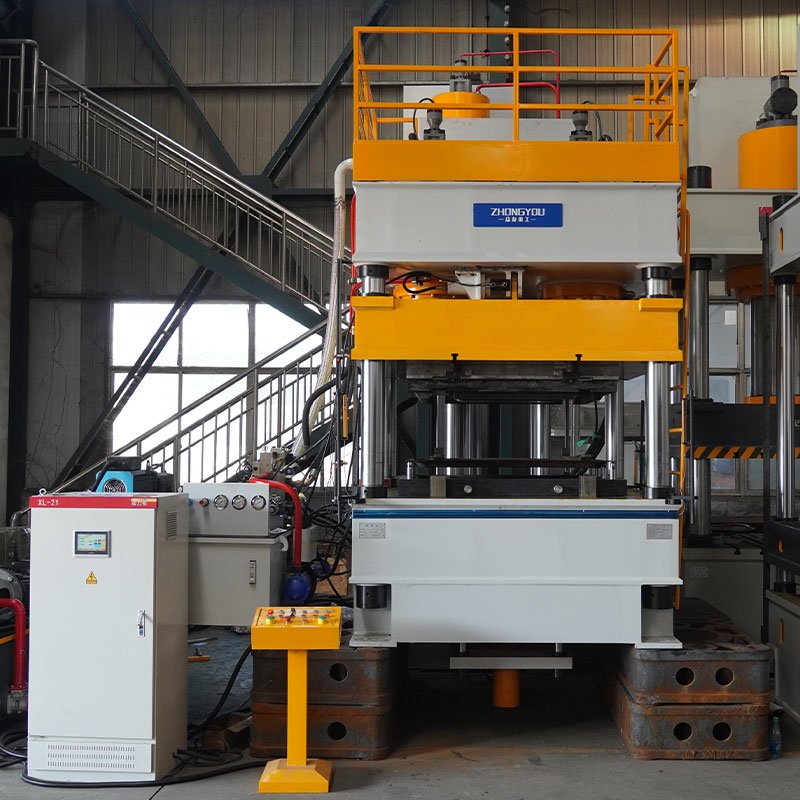

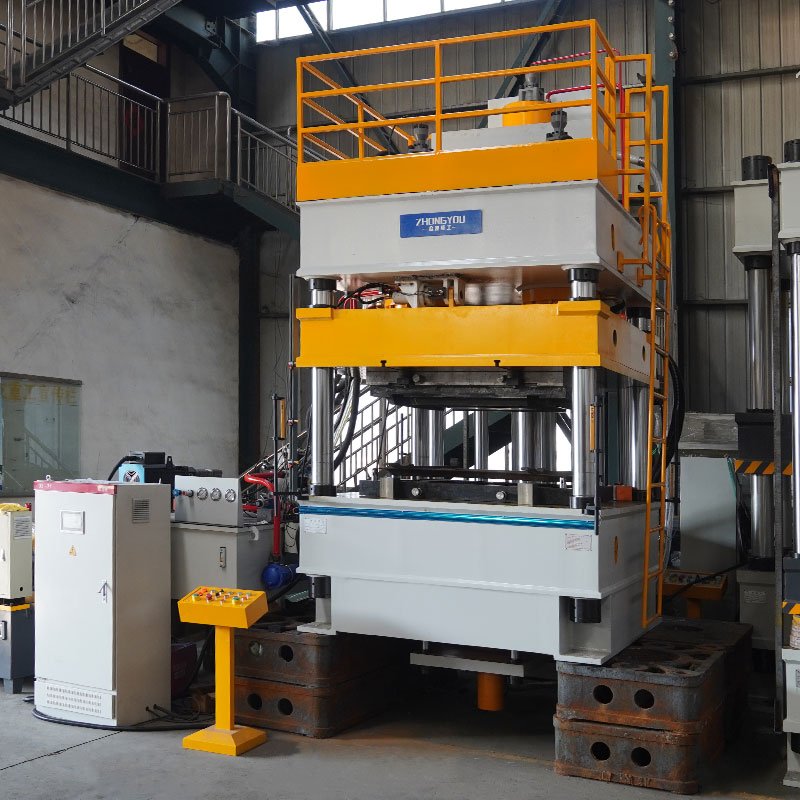

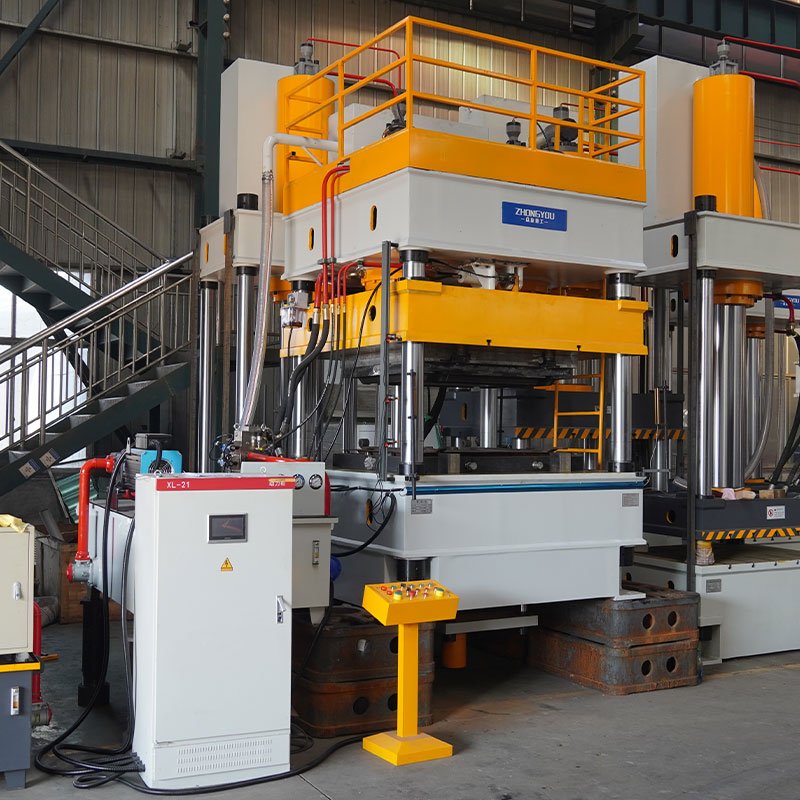

Four‑Column Train Door Panel Forming & Straightening Hydraulic Machine

Place of Origin:	Tengzhou China
Brand Name:	Zhongyou
Model Number:	YQ32-400T
Certification:	CE ISO
Minimum Order Quantity:	1
Packaging Details:	The sample includes a hydraulic press and mold. Please contact us for more details.
Delivery Time:	15-45 day
Payment Terms:	L/C D/P D/A T/T
Supply Ability:	50set/m

Get a Quote Contact Us

Is there a problem? Please contact us to serve you!

+86-13563258817

zhongyoupress@foxmail.com

Inquiry

Description

This four‑column hydraulic press is specially developed for straightening, reshaping and calibration of train door panels, subway door plates and rail transit sheet metal components. It is mainly used to eliminate deformation, warpage and unevenness generated after welding and forming of large thin‑wall door panels.

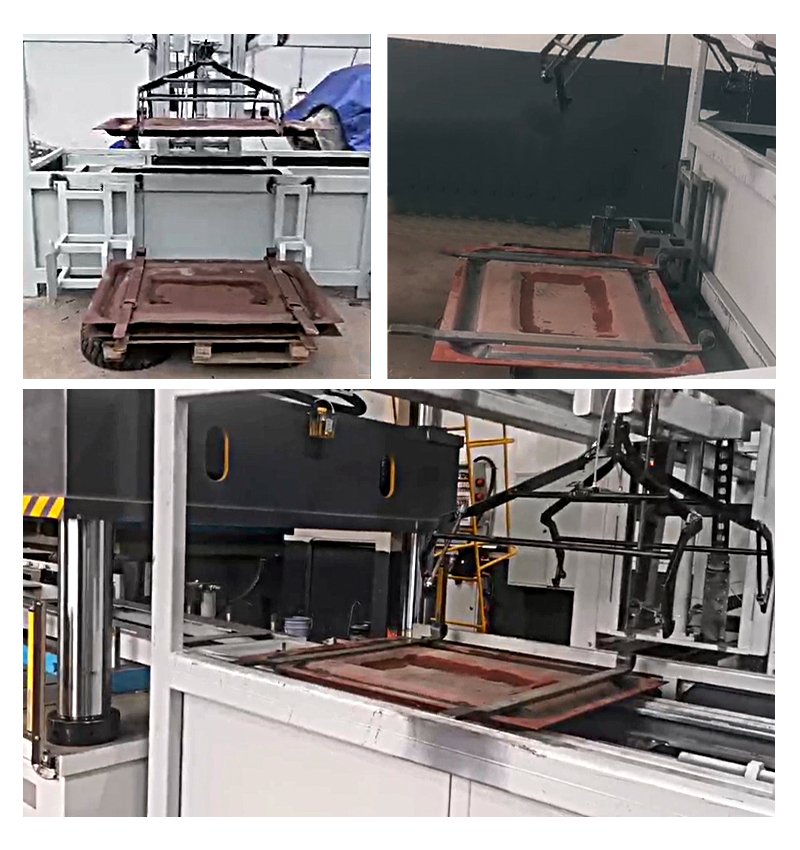

Processed Products

Applications

Widely applied in the production and maintenance of train door panels, subway vehicle door plates, urban rail transit car body sheet metal parts, and also suitable for straightening and reshaping of other large metal sheet structural parts.

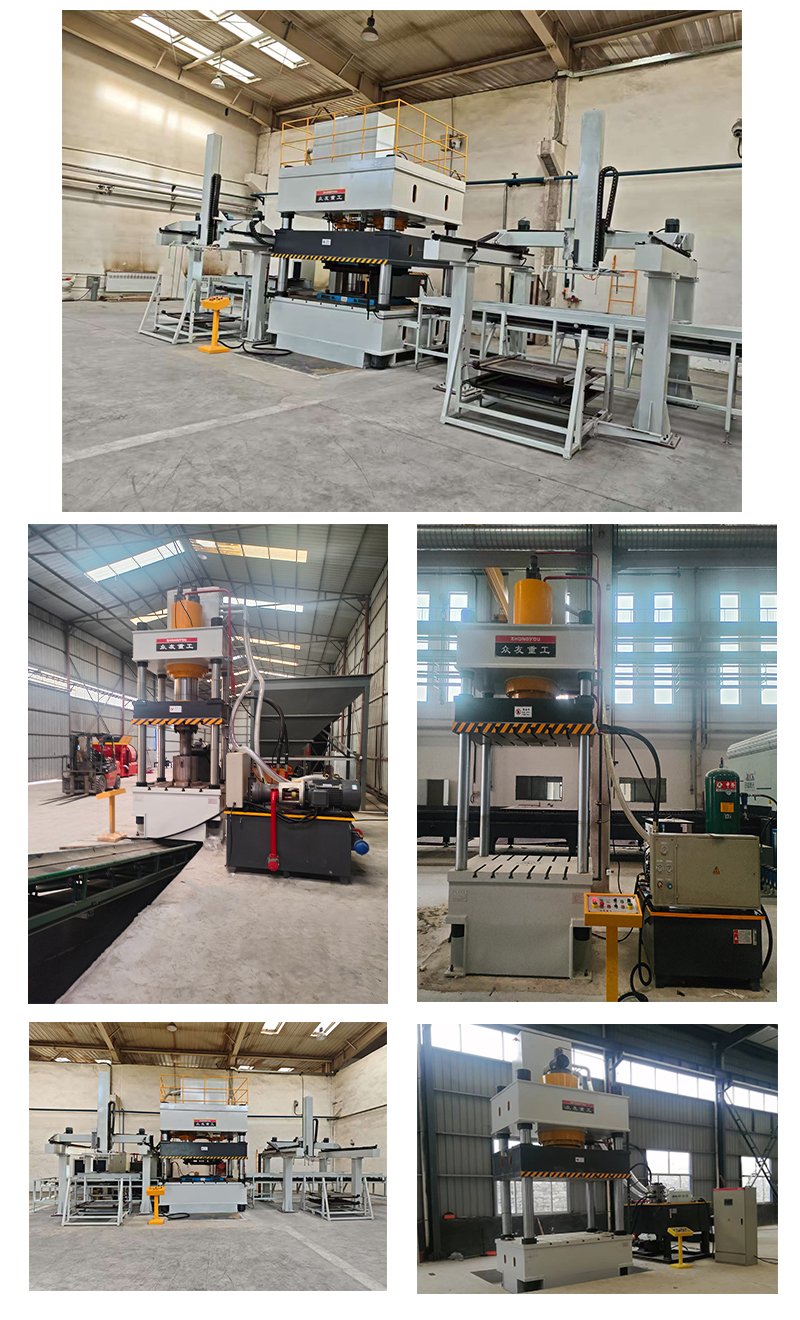

Application Cases

Optional Configurations

Performance Characteristics

Adopting three‑beam four‑column structure with high‑rigidity welded frame, the machine features strong anti‑eccentric‑load capacity and high working‑table flatness. The hydraulic system adopts cartridge valve integrated circuit, with stable pressure output, stepless pressure adjustment and low impact. It supports manual, jog and semi‑automatic operation modes. The pressing stroke, pressure and holding time can be set according to workpiece requirements.

Packing & Shipping

After Sales Service

We offer comprehensive after-sales services, including installation, commissioning, and operation training; providing hydraulic press user manuals to facilitate user learning on how to operate and maintain the hydraulic press

About The Company

We offer a full range of hydraulic press equipment, with numerous mature design solutions and successful customer cases. Custom services are also available, providing forming molds and corresponding production line equipment, offering one-stop service. Welcome to consult with us.
