Home / CNC Vertical lathe / High Precision VTC125 Vertical Turning Center for Stainless Steel Flanges
|
Place of Origin: |
Tengzhou China |
|
Brand Name: |
Zhongyou |
|
Model Number: |
VTC-125 |
|
Certification: |
CE ISO |
|
Minimum Order Quantity: |
1 |
|
Packaging Details: |
The sample includes a hydraulic press and mold. Please contact us for more details. |
|
Delivery Time: |
15-45 day |
|
Payment Terms: |
L/C D/P D/A T/T |
|
Supply Ability: |
50set/m |

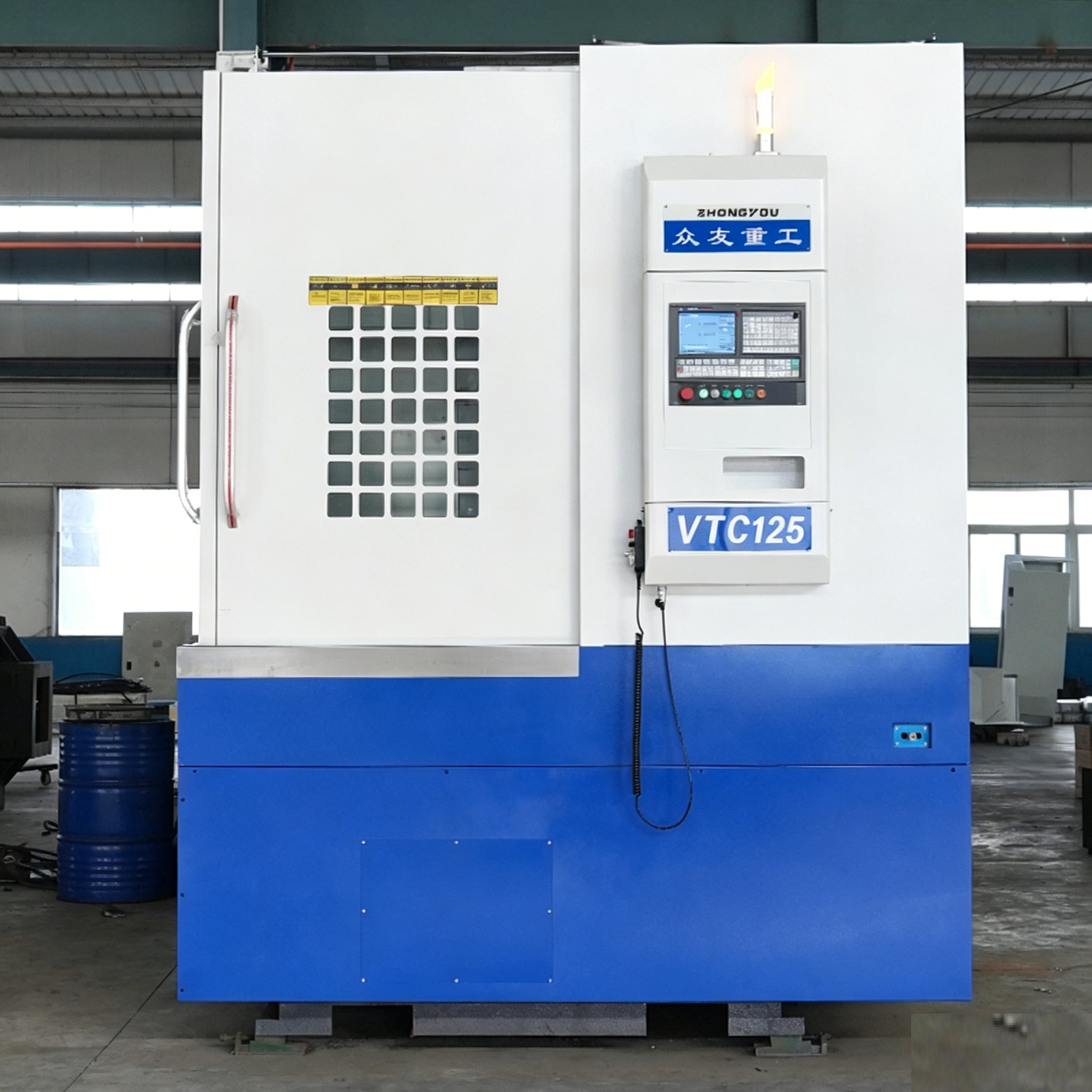

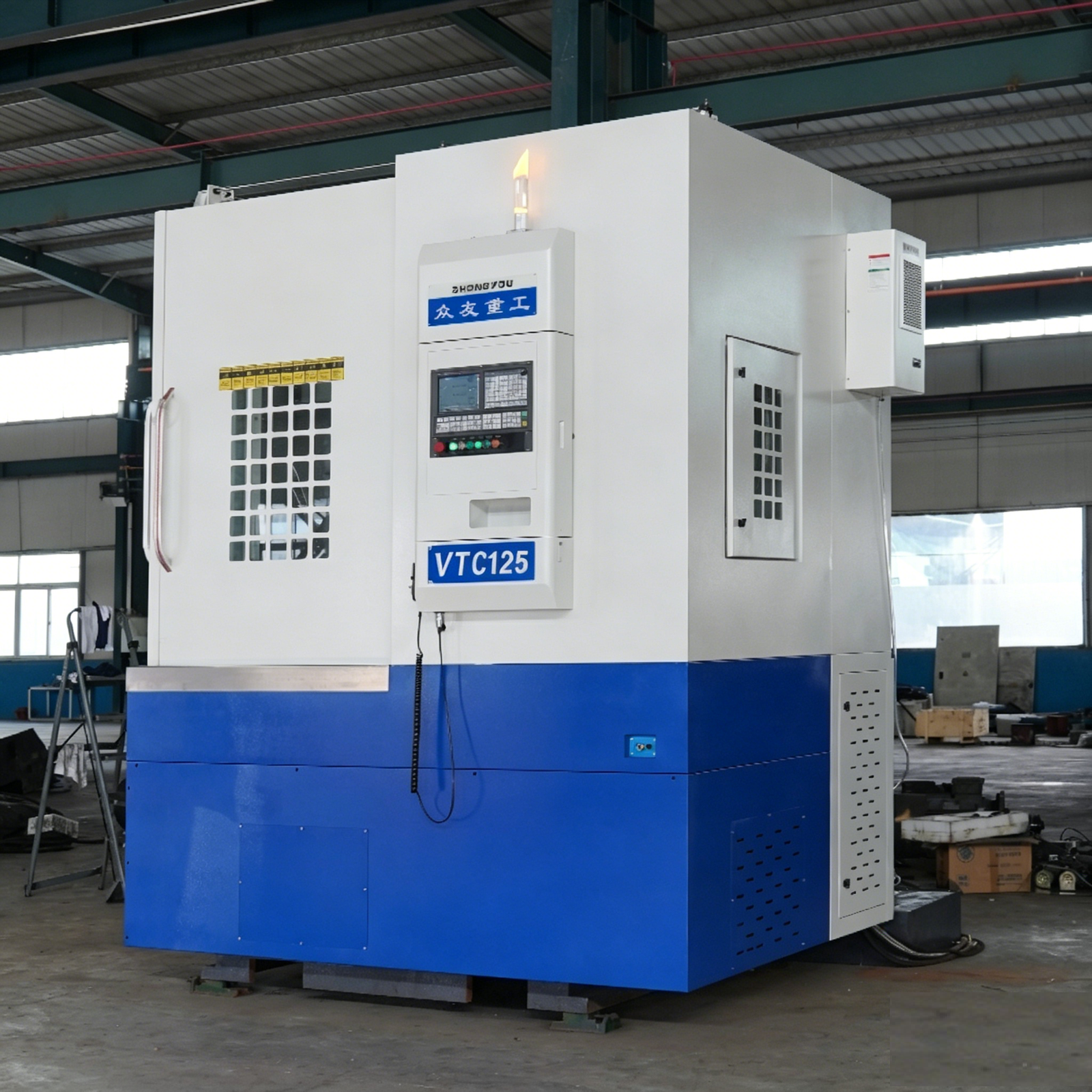

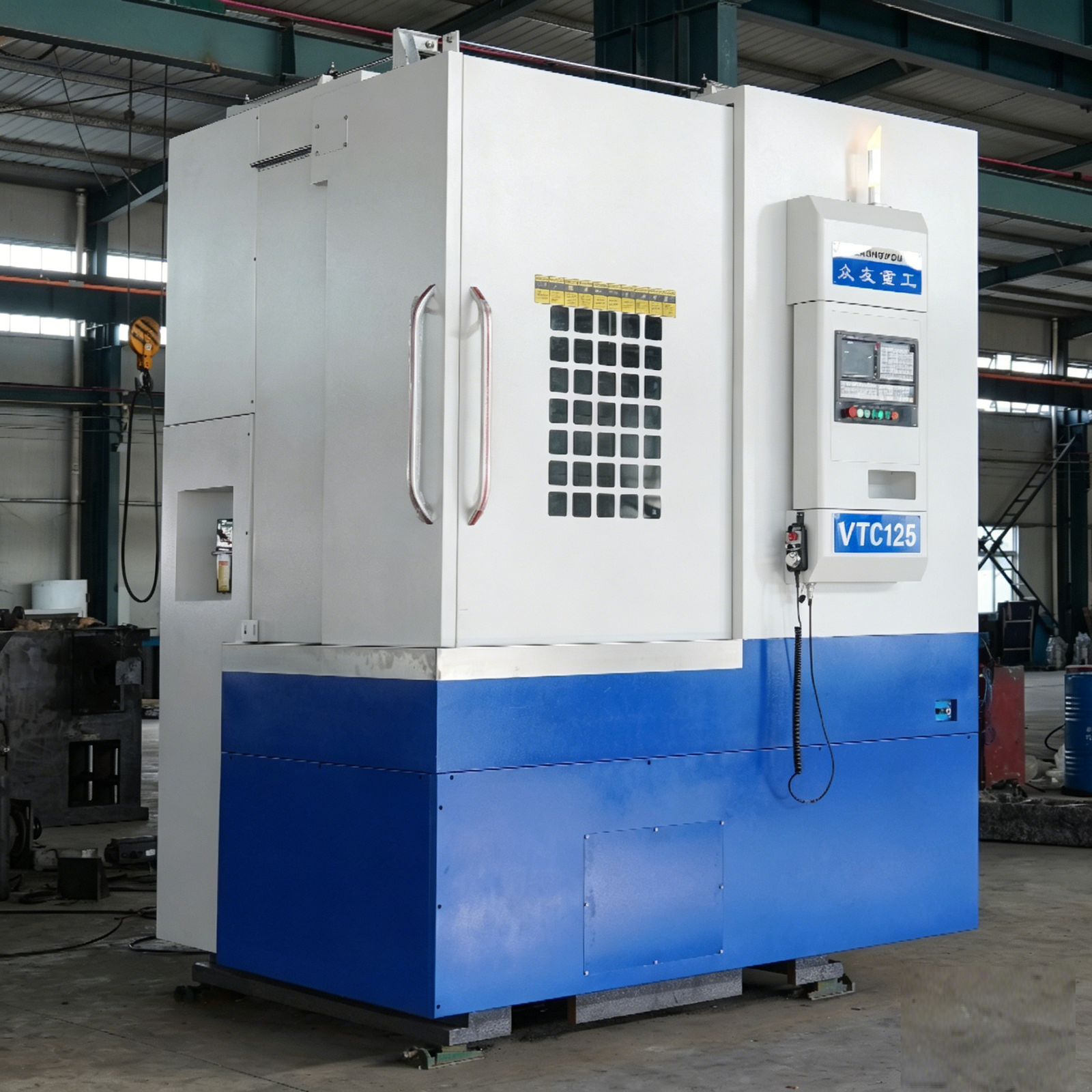

The VTC125 CNC Vertical Lathe is a classic model of large-scale single-column/single-column moving-crossbeam CNC vertical lathes, featuring a 1250mm worktable in the VTC (Vertical Turning Center) series. With a worktable diameter of Φ1250mm as its defining feature, it is specifically designed for high-efficiency, high-precision turning, boring, and face milling of medium-to-large-sized discs, housings, and ring-shaped workpieces.
| specifications | unit | VT45 | VT65 | VT75 | VTS525 | VTS527 |
| Max.rotating diameter | mm | ∮560 | ∮650 | ∮750 | ∮750 | ∮750 |
| Max.turning diameter of workpiece | mm | ∮450 | ∮600 | ∮700 | ∮550 | ∮700 |
| Spindle end face form | Straight | Straight | Straight | Straight | Straight | |
| Spindle speed | rpm | 3000 | 100-1000 | 50-1500 | 50-1000 | 500-1000 |
| Hydraulic chuck diameter | mm | 500 | 500 | 630 | 500 | 630 |
| Tool post type | pcs | eight-station | eight-station | eight-station | eight-station | eight-station |
| Tool shank diameter | mm | 32 | 32 | 32 | 32 | 32 |
| Inner diameter tool holder | mm | ∮40 | ∮40 | ∮50 | ∮50 | |
| Center tool holder | mm | 160 | ||||
| X axis travel | mm | 400 | 450 | 700 | 280 | 450 |
| Z axis travel | mm | 500 | 600 | 700 | 500 | 700 |
| Oil tank capacity | L | 50 | 50 | 50 | 50 | 50 |
| Oil pressure motor | kw | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 |
| Water Capacity | L | 180 | 200 | 200 | 200 | 200 |
| Rotating water motor | w | 250 | 450 | 450 | 450 | 450 |
| Flush motor | kw | 250 | 450 | 450 | 450 | 450 |
| X axis servo motor torque | NM | 12 | 18 | 18 | 15 | 15 |
| Z axis servo motor torque | NM | 22 | 30 | 18 | 15 | 15 |
| Main Servo motor power | kw | 11/15 | 18.5 | 22 | 18.5 | 22 |
| Repeat positioning accuracy | mm | ±0.005 | ±0.005 | ±0.005 | ±0.005 | ±0.005 |
| Positioning accuracy | mm | ±0.008 | ±0.008 | ±0.008 | ±0.008 | ±0.008 |
| Dimension | mm | 1700X1880X2500 | 2000X1950X3000 | 2450X1900X3200 | 3000X2400X2700 | 3200X2400X3200 |
| Weight | kg | 5500 | 8000 | 9500 | 7000 | 9000 |
| Voltage | 3￠-AC 380V 50Hz±5% | 3￠-AC 380V 50Hz±5% | 3￠-AC 380V 50Hz±5% | 3￠-AC 380V 50Hz±5% | 3￠-AC 380V 50Hz±5% | |
| Electricity Leakage/outage protection | √ | √ | √ | √ | √ | |
| Three-color light indication | √ | √ | √ | √ | √ | |
| Long-term stable working conditions | environment Temperature 5～38°, humidity <85％ | environment Temperature 5～38°, humidity <85％ | environment Temperature 5～38°, humidity <85％ | environment Temperature 5～38°, humidity <85％ | environment Temperature 5～38°, humidity <85％ | |
| Noise meets national standards | √ | √ | √ | √ | √ | |
| ☆The equipment adopts fully enclosed protection, and the protective device is safe and reliable and should comply with GB15760-1995 General Technical Regulations on Safety Protection of Metal Cutting Machine Tools. ☆Equipped with various hydraulic, gas and water pipeline direction signs, marking the working range of various instruments, and marking the grade of the medium used. ☆The diameter of the hydraulic chuck and the tool holder station can be selected according to the processing requirements | ||||||
