mechanical punching press machine for metalworking

Place of Origin:	Tengzhou China
Brand Name:	Zhongyou
Model Number:	YC21-160T
Certification:	CE ISO
Minimum Order Quantity:	1
Packaging Details:	The sample includes a hydraulic press and mold. Please contact us for more details.
Delivery Time:	15-45 day
Payment Terms:	L/C D/P D/A T/T
Supply Ability:	50set/m

Get a Quote Contact Us

Is there a problem? Please contact us to serve you!

+86-13563258817

zhongyoupress@foxmail.com

Inquiry

Description

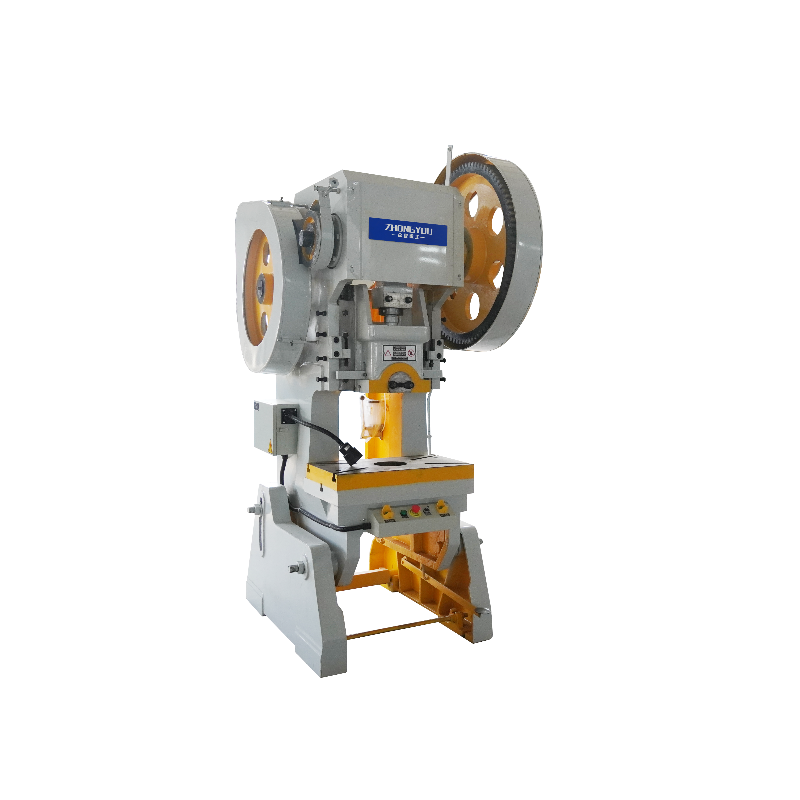

mechanical punching press machine for metalworking (2).png

This mechanical power punch is designed for metal working applications This product is suitable for a variety of applications, including punching, cutting, embossing, and molding. It is distinguished by its straightforward operation and exceptional working efficiency. We are able to provide you with the suitable model as well as molds according to your needs.

Parameters

Parameters of Mechanical Punching Machines
Model	YC21-10	YC21-16	YC21-25	YC21-40	YC21-63	YC21-80	YC21-100	YC21-125	YC21-160
Nominal Force	100KN	160KN	250KN	400KN	630KN	800KN	1000KN	1250KN	1600KN
Nominal Force Stroke	2MM	3MM	3MM	4MM	4MM	5MM	6MM	8MM	10MM
Stroke of Slider	50MM	60MM	70MM	100MM	100MM	120MM	130MM	130MM	140MM
Frequency of slide stroke (times/minute)	140	130	70	45	55	50	45	45	40
Max. closed height	155mm	200mm	220mm	235mm	245mm	270mm	270mm	310mm	330mm
Closed Height Adjustment	30mm	40mm	40mm	50mm	50mm	60mm	60mm	60mm	70mm
Throat Depth	120mm	170mm	170mm	230mm	230mm	260mm	280mm	280mm	320mm
Effective Size of Worktable (LR x FB)	350*220mm	450*280mm	520*320mm	640*410mm	700*430mm	750*460mm	900*580mm	1000*580mm	1100*700
Size of Slider (LR x FB)	145*100mm	175*135mm	195*175mm	235*200mm	315*220mm	320*230mm	345*260mm	400*320mm	500*380
Diameter of the die hole (diameter×depth)	30*40mm	40*50mm	40*60mm	50*60mm	50*60mm	60*70mm	60*70mm	70*70mm	70*70mm
Motor Power	1.1kw	1.5kw	2.2kw	3.0kw	4.0kw	7.5kw	7.5kw	11kw	15kw
Overall Dimension (L×W×H)	0.80.61.5m	0.90.71.7m	1.10.82m	1.51.12.3m	1.61.12.5m	1.61.32.6m	1.91.32.7m	1.91.42.9m	2.11.93.1m
Machine Weight	300kg	600kg	1000kg	2050kg	2700kg	3700kg	5000kg	6900kg	9800kg

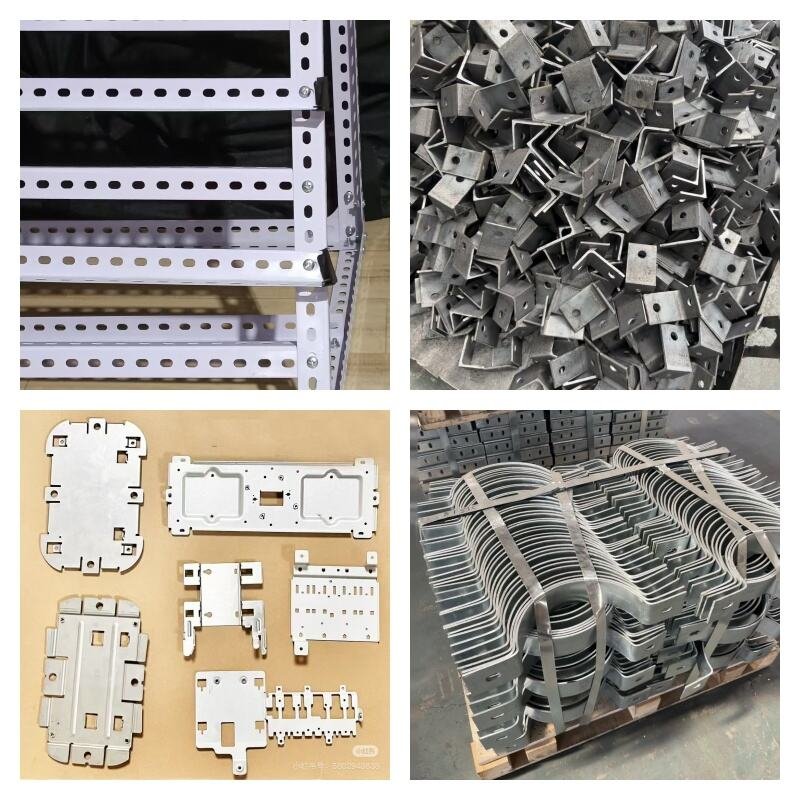

Processed Products

mechanical punching press machine for metalworking (1).jpg

Applications

Sheet metal processing Used for punching, dropping and molding processes, such as the production of automotive parts and electronic component housings. High Precision Stamping Combined with precision molds, punching of tiny apertures (e.g. 0.1mm) and high dimensional accuracy can be achieved, e.g. the manufacture of SIM card holders for cell phones. Mass production Suitable for the continuous production of standardized parts, such as the stamping of hardware parts and household appliance shells.

Detailed Pictures

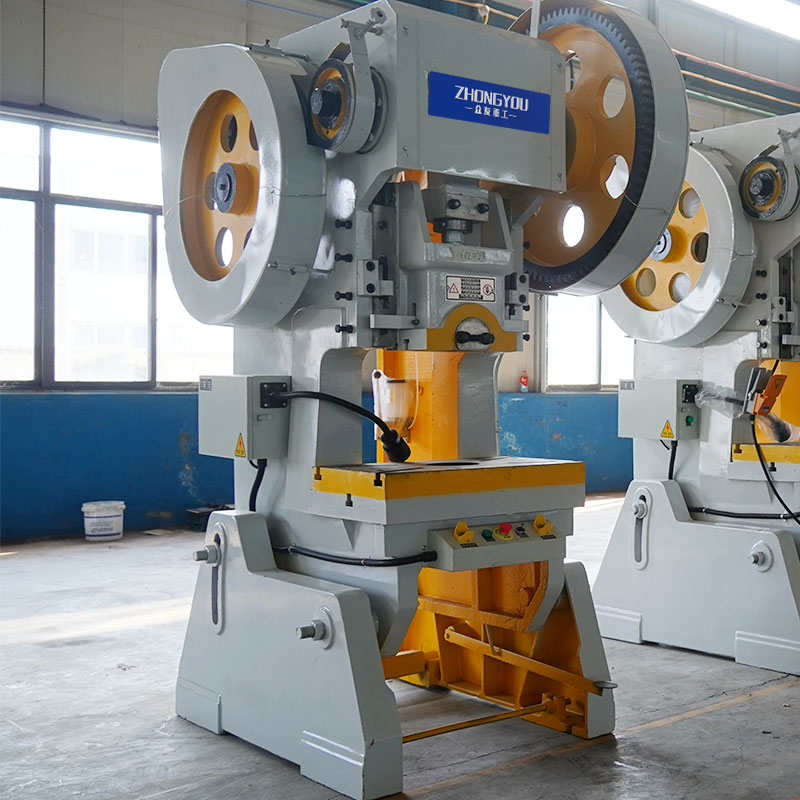

mechanical punching press machine for metalworking (6).png

Performance Characteristics

Performance Characteristics High Efficiency Mechanical presses are suitable for high volume production as the slider can move at speeds of up to several hundred times per minute.For example, small mechanical presses can press 300-500 times per minute, significantly increasing productivity. Stability The adoption of a rigid machine body and a precision drive system ensures stamping accuracy and repetitive positioning precision.For example, the C-shaped body design reduces vibration and deformation by optimizing structural rigidity. Economy Lower equipment cost and simple maintenance make it suitable for small and medium-sized enterprises.

Packing & Shipping


After Sales Service

We offer comprehensive after-sales services, including installation, commissioning, and operation training; providing press machine user manuals to facilitate user learning on how to operate and maintain the press machine.

About The Company

We provide a full set of hydraulic press equipment with many mature design solutions and successful customer cases. We also provide customized service with molding tooling and corresponding production line equipment, providing one-stop service for customers. Welcome to call us for consultation.
