Place of Origin: |
Tengzhou China |
|
Brand Name: |
Zhongyou |
|
Model Number: |
YQ32-315T |
|
Certification: |
CE ISO |
|
Minimum Order Quantity: |
1 |
|
Packaging Details: |
The sample includes a hydraulic press and mold. Please contact us for more details. |
|
Delivery Time: |
15-45 day |
|
Payment Terms: |
L/C D/P D/A T/T |
|
Supply Ability: |
50set/m |

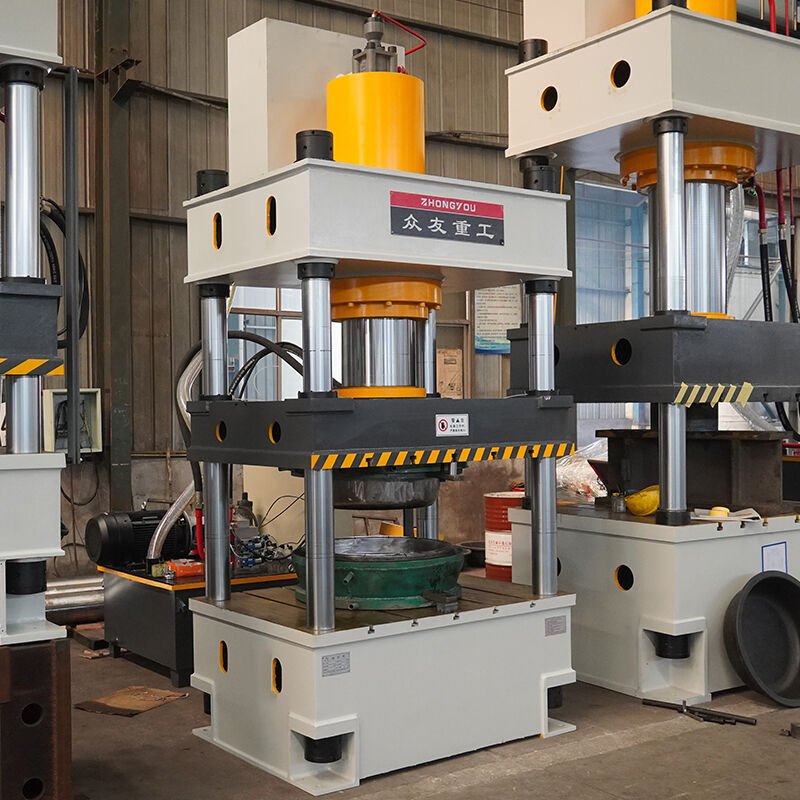

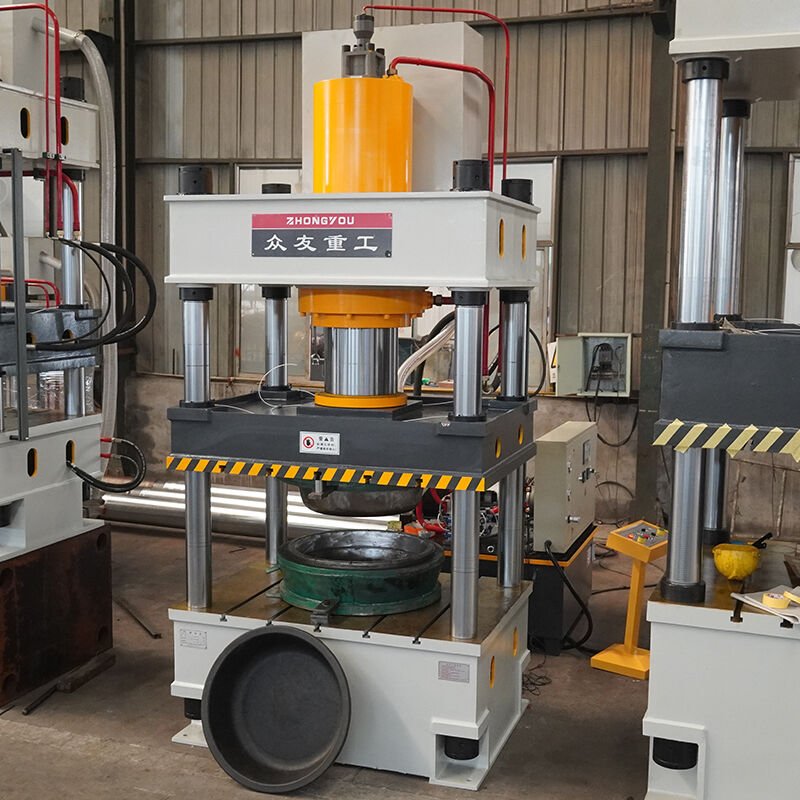

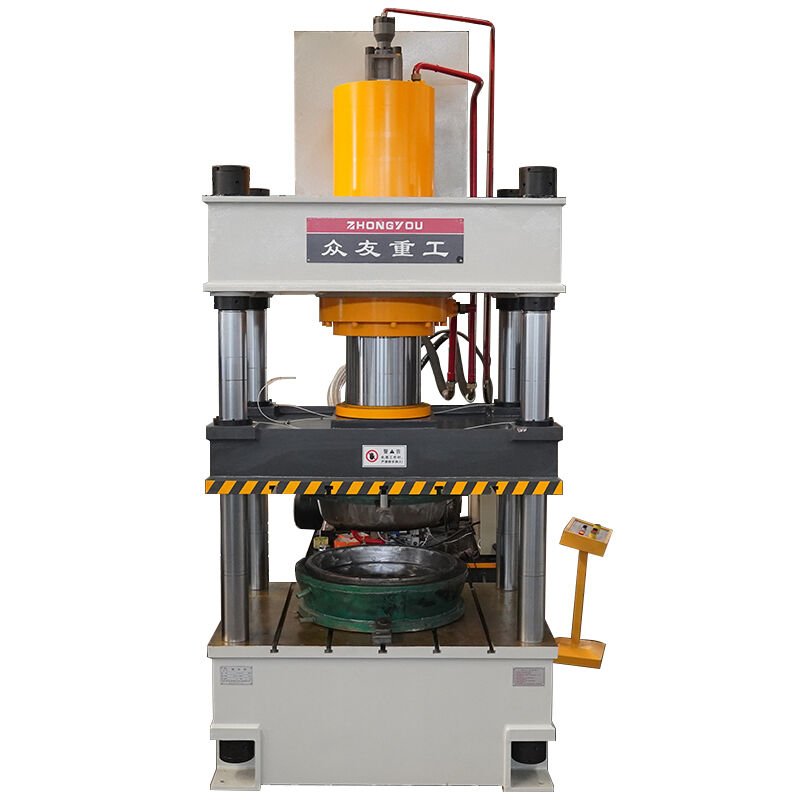

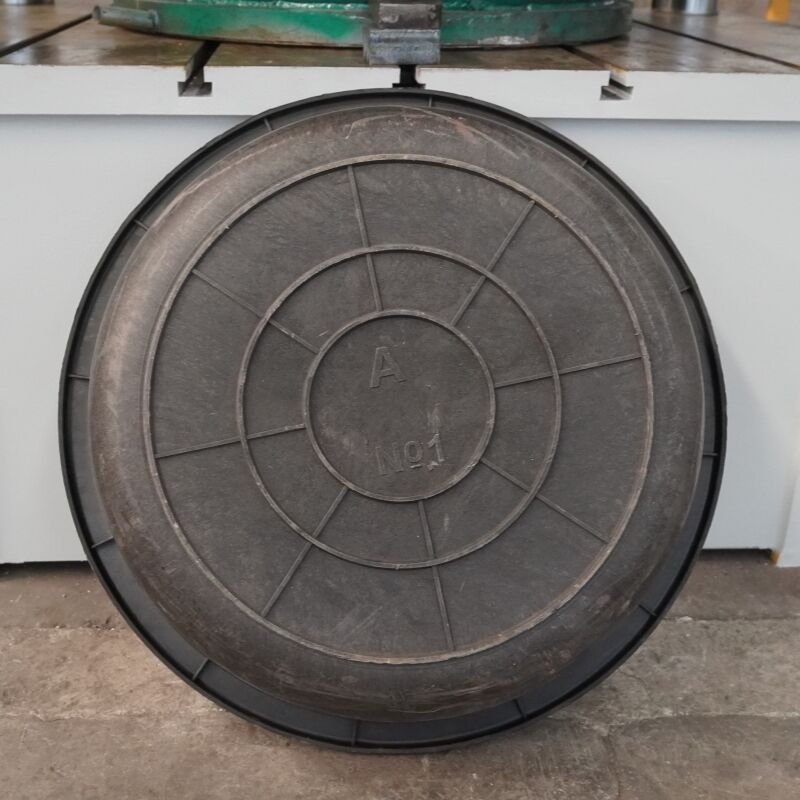

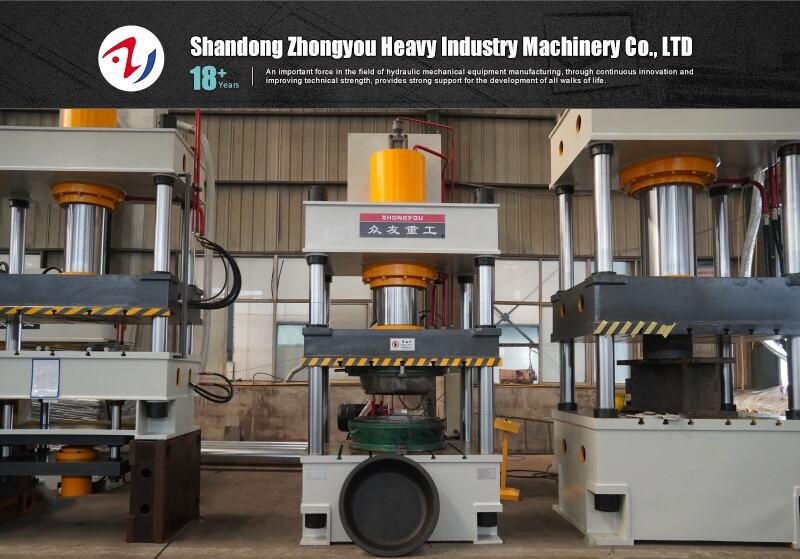

This is a 315T four-column hydraulic press, which is used for the hot pressing and molding of plastic basins.
The equipment is equipped with molds, a touch screen, a PLC (Programmable Logic Controller), and a temperature controller. Through button operation.
The equipment has high pressing accuracy and can precisely control the mold temperature. The products pressed have a high density and good molding effect.

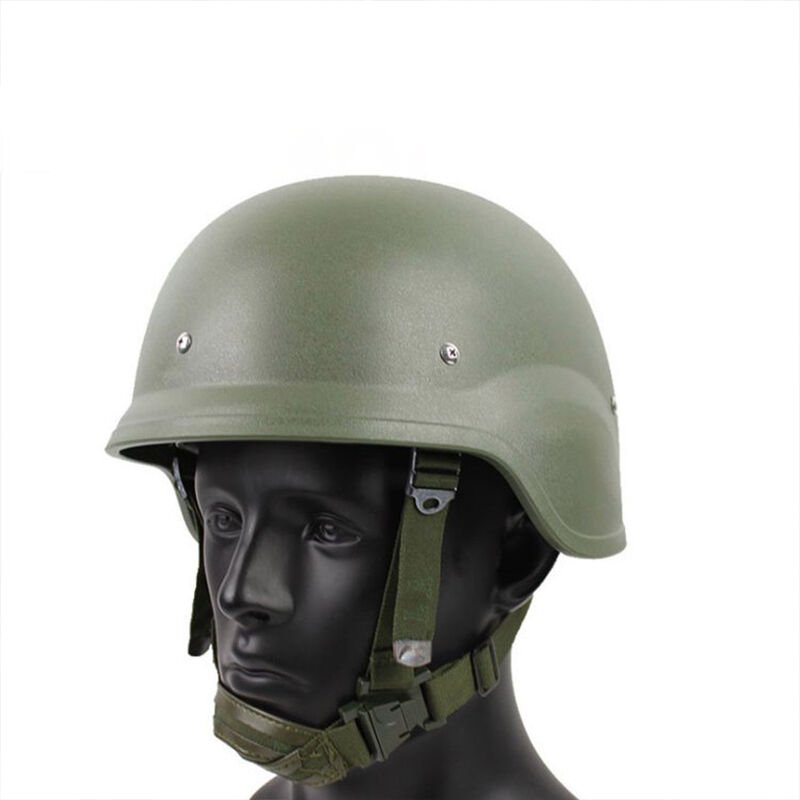

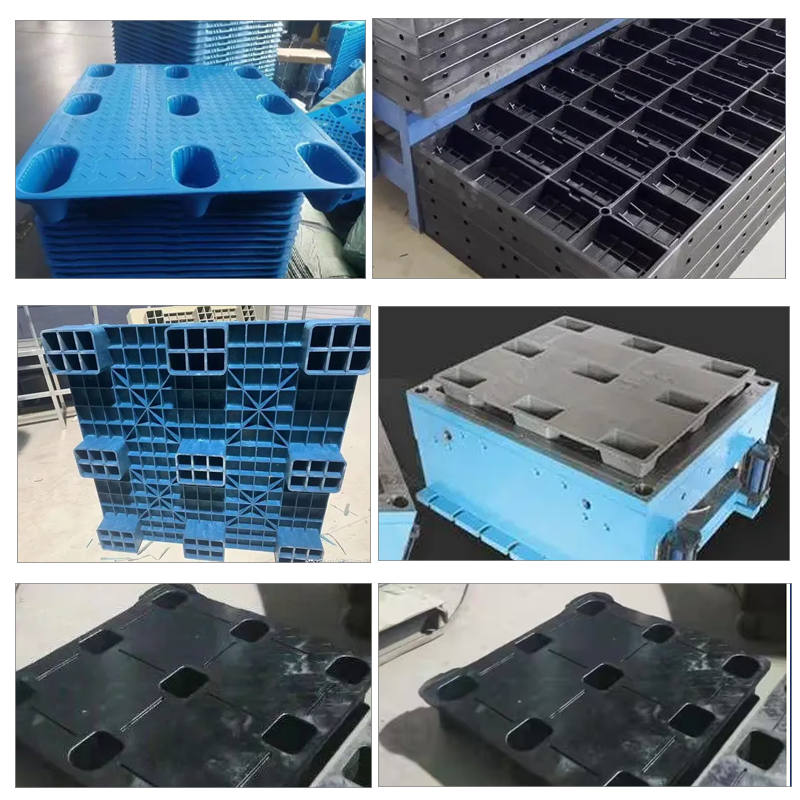

This equipment is also applicable to the hot pressing and molding of other composite materials, such as Kevlar, carbon fiber, SMC (Sheet Molding Compound), BMC (Bulk Molding Compound), resin, etc.
We support special customization.
|
YQ32 Technical Parameters |
|||||||||
|
|
Unit |
YQ32—63 |
YQ32—100A |
YQ32—100B |
YQ32—200A |
YQ32—200B |
YQ32—315A |
YQ32—315B |
YQ32—400 |
|
Nominal force |
KN |
630 |
1000 |
1000 |
2000 |
2000 |
3150 |
3150 |
4000 |
|
Maximun system pressure |
Mpa |
25 |
25 |
25 |
25 |
25 |
25 |
25 |
25 |
|
Max.open height |
mm |
700 |
800 |
900 |
900 |
1100 |
1000 |
1250 |
1250 |
|
Max Stroke of Slider |
mm |
400 |
500 |
600 |
600 |
700 |
600 |
800 |
800 |
|
Effective table size |
mm |
610×500 |
630×550 |
750×700 |
800×800 |
1000×1000 |
800×800 |
1260×1160 |
1260×1160 |
|
Down speed |
mm/s |
100 |
100 |
100 |
100 |
100 |
100 |
100 |
100 |
|
Pressing speed |
mm/s |
11～22 |
7～15 |
7～15 |
7～18 |
7～18 |
7～12 |
7～12 |
5～11 |
|
Return speed |
mm/s |
80 |
90 |
90 |
90 |
90 |
90 |
100 |
100 |
|
Ejection cylinder force |
KN |
100 |
200 |
200 |
400 |
400 |
630 |
630 |
630 |
|
Stroke of ejection cylinder |
mm |
160 |
200 |
200 |
200 |
200 |
300 |
300 |
300 |
|
|
|
|
|
|
|
|
|
|
|
|
|
Unit |
YQ32—500 |
YQ32—630 |
YQ32—800 |
YQ32—1000 |
YQ32—1250 |
YQ32—1600 |
|
|
|
Nominal force |
KN |
5000 |
6300 |
8000 |
10000 |
12500 |
16000 |
|
|
|
Maximun system pressure |
Mpa |
25 |
25 |
25 |
25 |
25 |
25 |
|
|
|
Max.open height |
mm |
1500 |
1500 |
1500 |
1500 |
1500 |
1500 |
|
|
|
Max Stroke of Slider |
mm |
900 |
900 |
900 |
900 |
900 |
900 |
|
|
|
Effective table size |
mm |
1400×1400 |
1500×1500 |
1600×1600 |
1600×1600 |
1600×1600 |
1600×1600 |
|
|
|
Down speed |
mm/s |
150 |
150 |
180 |
180 |
180 |
190 |
|
|
|
Pressing speed |
mm/s |
10～18 |
9～18 |
9～18 |
10～18 |
6～15 |
6～14 |
|
|
|
Return speed |
mm/s |
180 |
200 |
180 |
220 |
200 |
220 |
|
|
|
Ejection cylinder force |
KN |
1000 |
1000 |
1000 |
1000 |
1000 |
1600 |
|
|
|
Stroke of ejection cylinder |
mm |
300 |
300 |
300 |
300 |
300 |
300 |
|
|
1.Three-beam, four-column structure: Provides stable structure, high precision, and ample operational space.
2.Advanced hydraulic system: Features integrated cartridge valves, and the electrical system uses brand-name components for high-precision pressing, reliable quality, and easy maintenance.
3.Equipped with a PLC (Programmable Logic Controller) and a temperature controller, it can precisely control the pressing accuracy and the mold temperature.
4.Button control: Simple to operate.
5.Adjustable parameters: Pressure, stroke, and holding time can be adjusted.
6.Scientific design: Simple structure, easy to maintain.
We provide comprehensive after-sales services, including equipment installation, debugging, and operation training. Hydraulic press operation manuals are provided to facilitate user learning and maintenance.

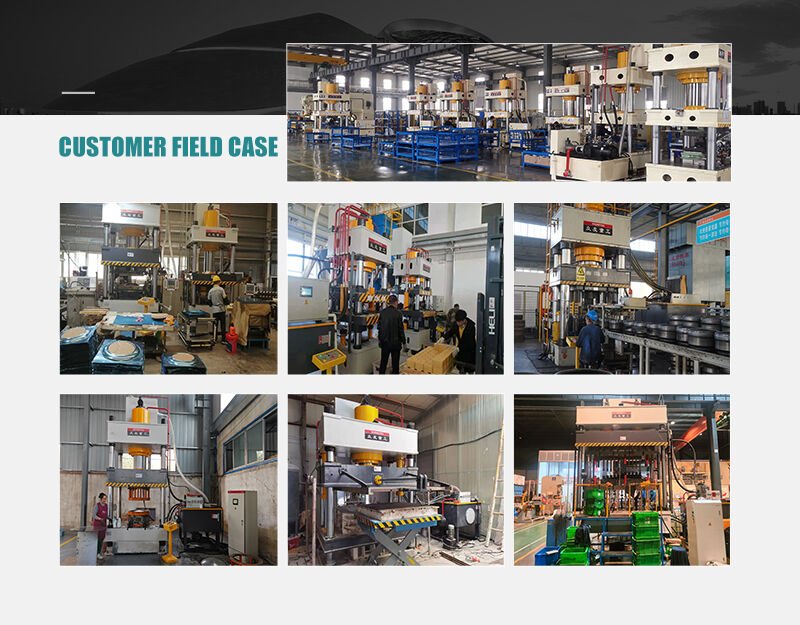

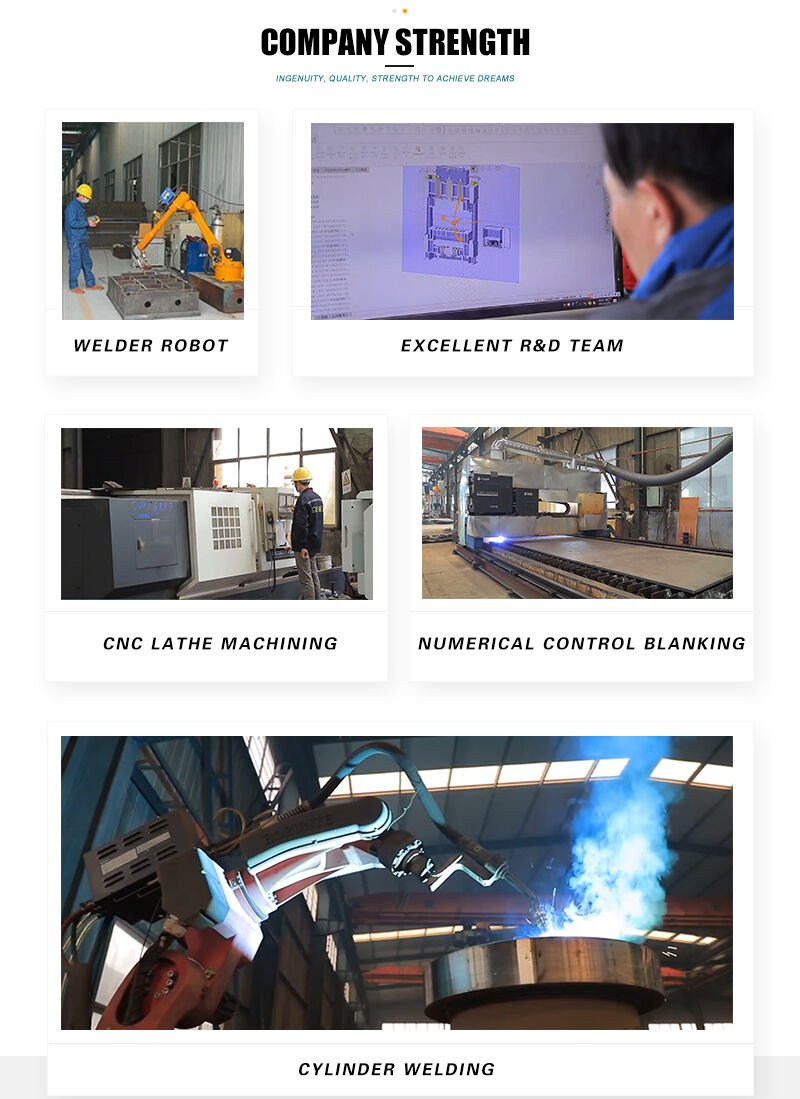

Zhongyou Machinery has more than 20 years of experience in the production of hydraulic presses. We offer a full range of hydraulic press equipment with numerous mature design solutions and successful customer cases. We also provide customized services, including molding dies and associated production line equipment, offering one-stop solutions. Feel free to contact us for more information.
