Sheet metal punching press for refrigerated trucks

Place of Origin:	Tengzhou China
Brand Name:	Zhongyou
Model Number:	YK-200T
Certification:	CE ISO
Minimum Order Quantity:	1
Packaging Details:	The sample includes a hydraulic press and mold. Please contact us for more details.
Delivery Time:	15-45 day
Payment Terms:	L/C D/P D/A T/T
Supply Ability:	50set/m

Get a Quote Contact Us

Is there a problem? Please contact us to serve you!

+86-13563258817

zhongyoupress@foxmail.com

Inquiry

Description

Sheet metal punching press for refrigerated trucks (3).jpg

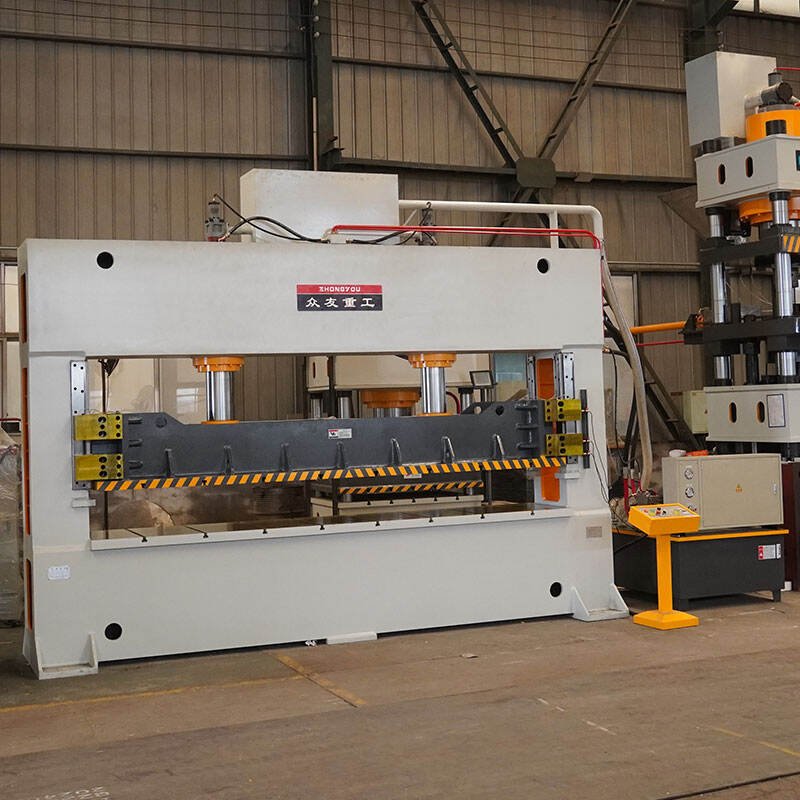

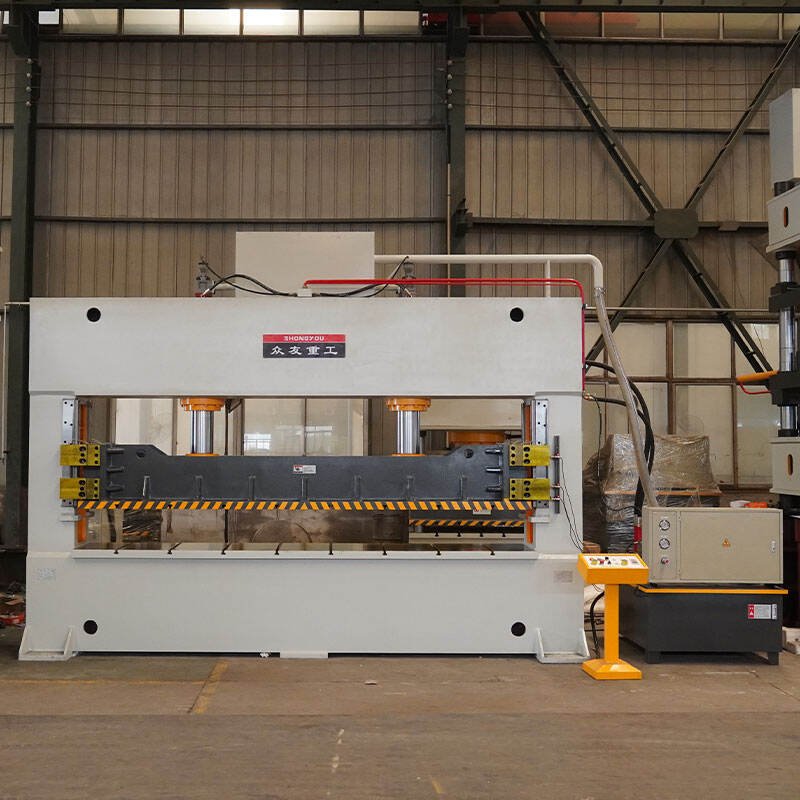

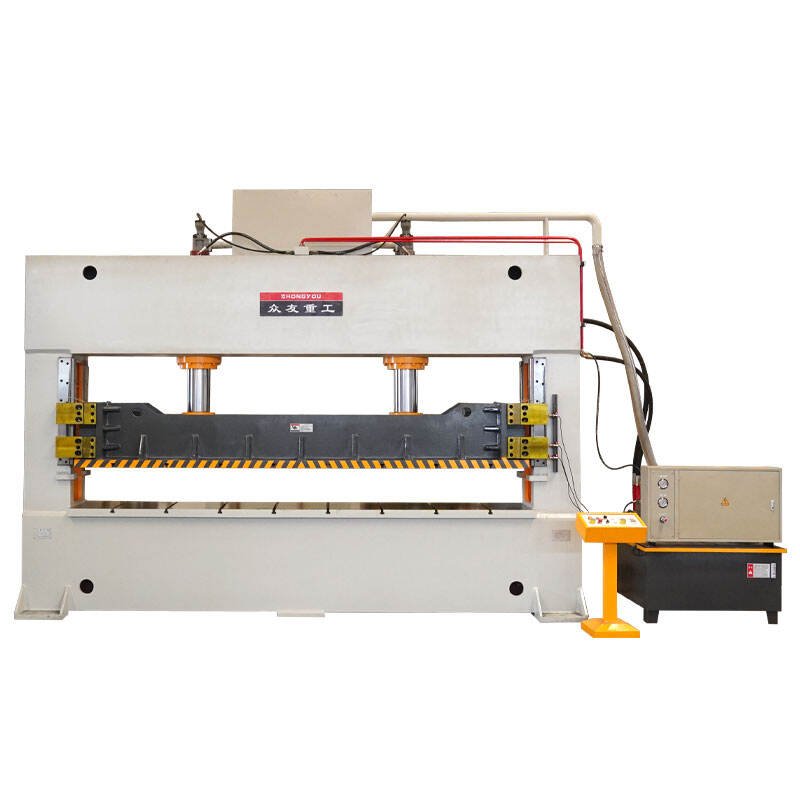

This 200-ton frame hydraulic press is a kind of hydraulic equipment supported by a frame structure with 200-ton nominal pressure, which is specially used for punching and processing of sheet metal parts of refrigerated trucks (such as side panels, roof panels, bottom panels, door panels, etc.).

Processed Products

Sheet metal punching press for refrigerated trucks (2).jpg

Applications

Refrigerated truck sheet metal punching press is a special equipment specially used for punching sheet metal parts of refrigerated trucks (such as compartment side panels, roof panels, bottom panels, door panels, etc.), which is mainly used for rapid processing of ventilation holes, mounting holes, fixing holes, etc. on stainless steel, carbon steel and other plates to ensure accurate installation of the subsequent parts (such as refrigeration unit brackets, ventilation devices, wiring harness interfaces, etc.).

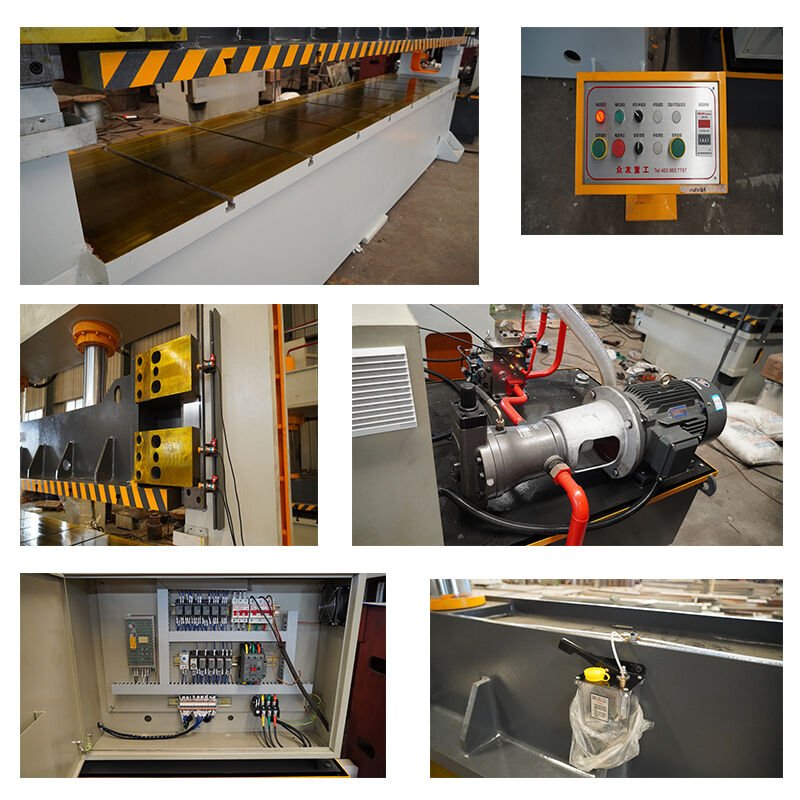

Detailed Pictures

Sheet metal punching press for refrigerated trucks.jpg

Performance Characteristics

Rigid frame structure Adopting integral welded or cast frame, it is more resistant to partial loads than the traditional four-column structure and is suitable for high-precision machining. Multi-directional guideway and guiding accuracy Equipped with eight-face guide rails or X-type slide guiding system, this design is especially important in composite material molding to avoid material delamination or uneven thickness caused by slide offset. Hydraulic system integration Integrated control with 2-way cartridge valves for fast response time.

Packing & Shipping


After Sales Service

We offer comprehensive after-sales services, including installation, commissioning, and operation training; providing press machine user manuals to facilitate user learning on how to operate and maintain the press machine.

About The Company

We provide a full set of hydraulic press equipment with many mature design solutions and successful customer cases. We also provide customized service with molding tooling and corresponding production line equipment, providing one-stop service for customers. Welcome to call us for consultation. 丁庄_07.jpg
