Single-column c frame power press machine for metal products

Place of Origin:

 Tengzhou China

Brand Name:

Zhongyou

Model Number:

YQ41

Certification:

CE ISO

Minimum Order Quantity:

1

Packaging Details:

The sample includes a hydraulic press and mold. Please contact us for more details.

Delivery Time:

15-45 day

Payment Terms:

L/C D/P D/A T/T

Supply Ability:

50set/m

  • Description
  • Parameters
Is there a problem?<br>Please contact us to serve you!

Is there a problem?
Please contact us to serve you!

Inquiry

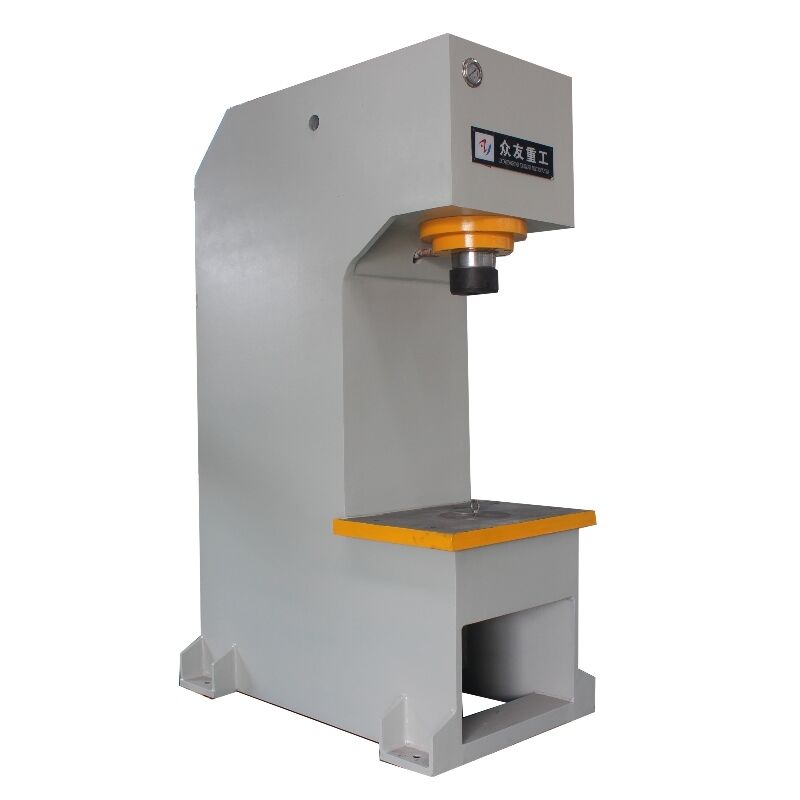

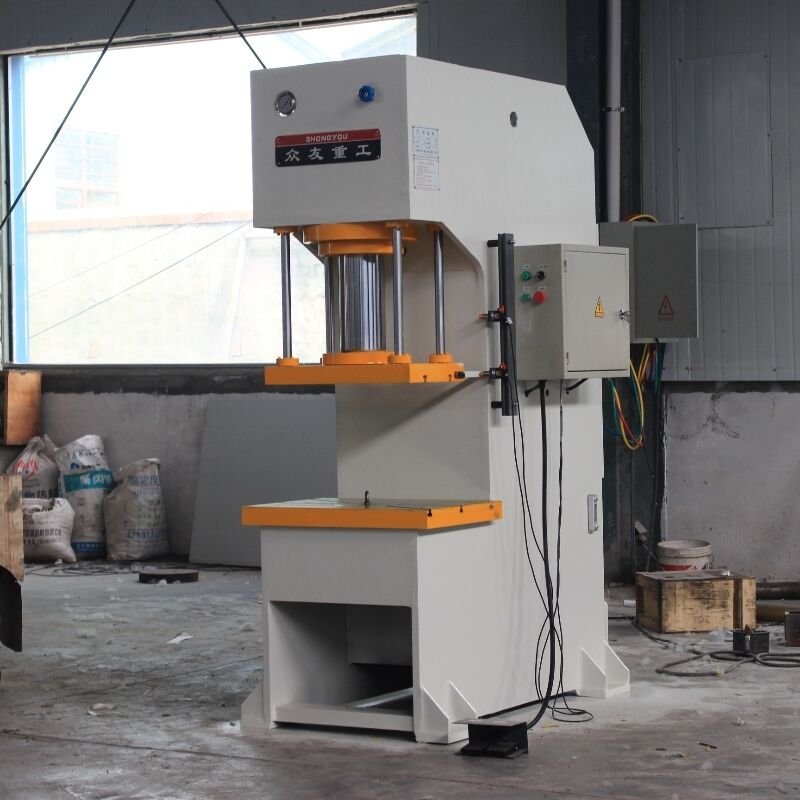

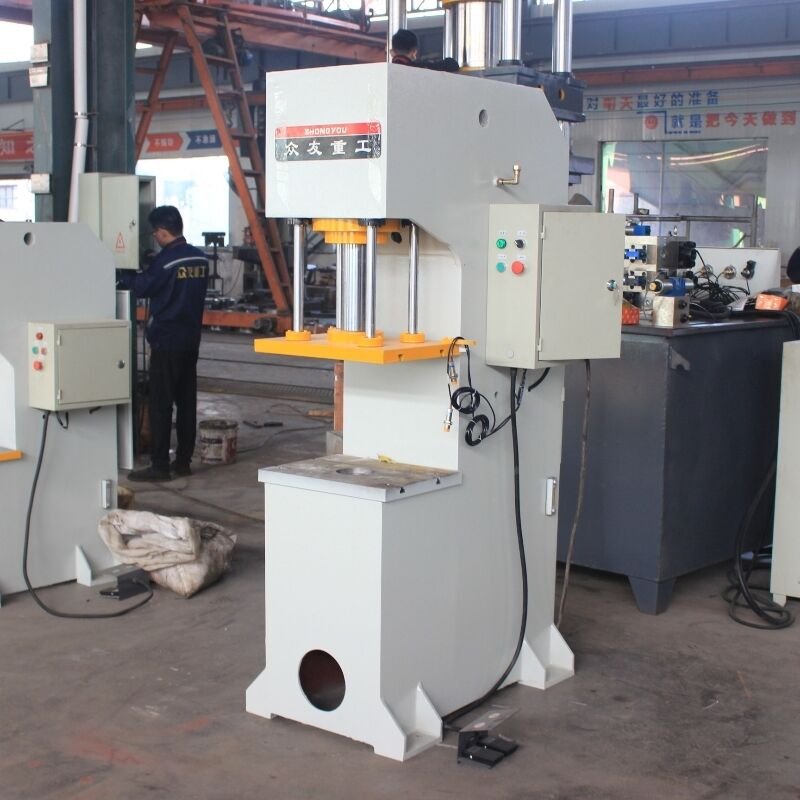

Single Arm Hydraulic Press

Introduction

The Single Arm Hydraulic Press, also known as the C-frame hydraulic press, is a precision machine tool designed for various metalworking applications. Its unique C-shaped single-arm structure, coupled with the use of submerged arc welding and subsequent vibration treatment, ensures maximum rigidity and stability during operation.


Structure and Design

The machine's body is constructed using high-strength steel and welded using the submerged arc welding method. This welding technique ensures a strong and durable structure that can withstand the rigors of heavy-duty metalworking. The welding is followed by vibration treatment to eliminate any residual stress and maintain the integrity of the machine's frame.

The single arm design offers several advantages. Firstly, it provides excellent accessibility to the workspace, making it easier for operators to load and unload workpieces. Secondly, the C-frame configuration offers excellent stability, reducing vibrations and ensuring precise control during the pressing process.

SPECIFICATION UNIT YQ41-20 YQ41-40 YQ41-63 YQ41-100 YQ41-160 YQ41-200 YQ41-250 YQ41-315 YQ41-500
Nominal pressure KN 200 400 630 1000 1600 2000 2500 3150 5000
Effective stroke mm 200 200 300 300 400 500 500 500 500
Opening height mm 600 600 700 700 800 1000 1000 1200 1200
Throat depth mm 200 220 240 280 320 360 420 500 600
Down speed mm/s 16 19 13 10 13 15 15 50 50
Return speed mm/s 19 25 17 13 20 20 20 60 55
Table sine L-R mm 500 500 600 700 700 800 900 1050 1200
Table size F-B mm 400 400 450 500 600 700 800 900 1050
Blanking hole diameter mm 80 100 120 200 200 220 220 240 240

Applications:

The Single Arm Hydraulic Press is primarily used for metal forming operations such as pressing, punching, and stretching. It is widely used in the manufacturing of automotive parts, electronic components, and various other metal products. The machine's precision and reliability make it a valuable asset in any metalworking shop.

Operational Features

The hydraulic press is equipped with a powerful hydraulic system that provides smooth and controllable pressure. This allows for precise adjustment of the pressing force, ensuring consistent and repeatable results. The machine also features a user-friendly control panel that allows operators to easily adjust the pressing parameters and monitor the machine's status.

Safety and Maintenance

The Single Arm Hydraulic Press is designed with safety as a top priority. It includes safety guards and features that prevent operators from getting too close to the pressing area during operation. Additionally, regular maintenance and lubrication of the machine ensure its longevity and peak performance.

Conclusion

The Single Arm Hydraulic Press is a versatile and reliable machine that offers precision and efficiency in metalworking applications. Its unique design and robust construction make it a valuable addition to any workshop or manufacturing facility. With its user-friendly controls and safety features, it is an excellent choice for both experienced operators and those new to the field of metalworking.
