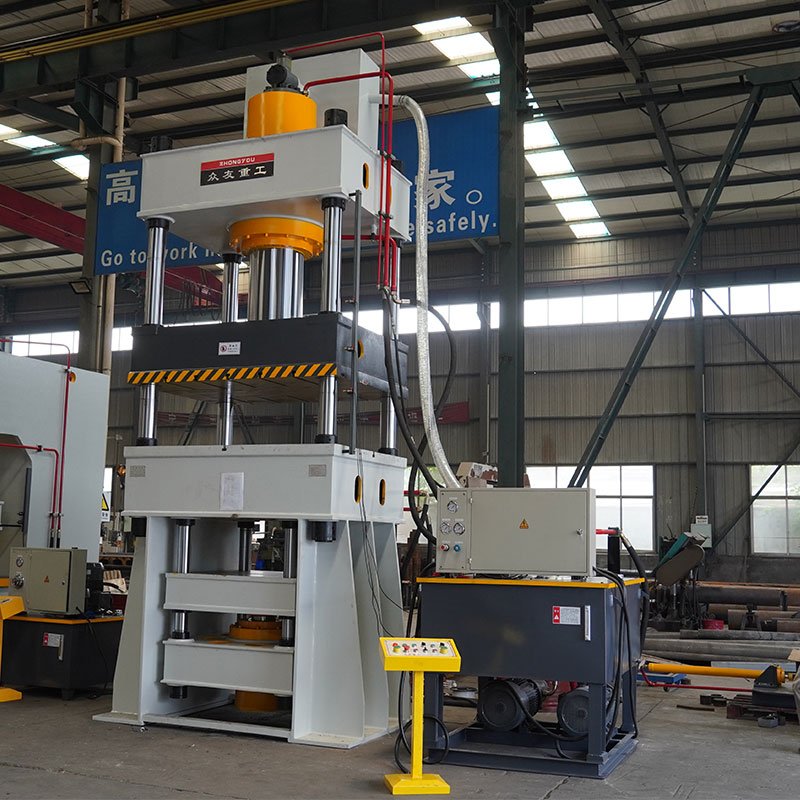

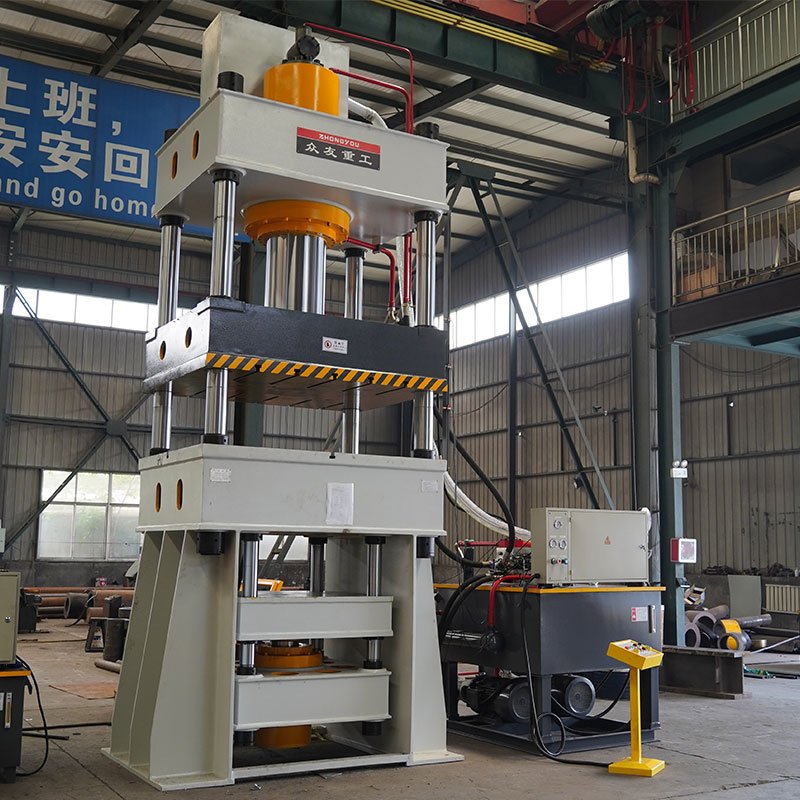

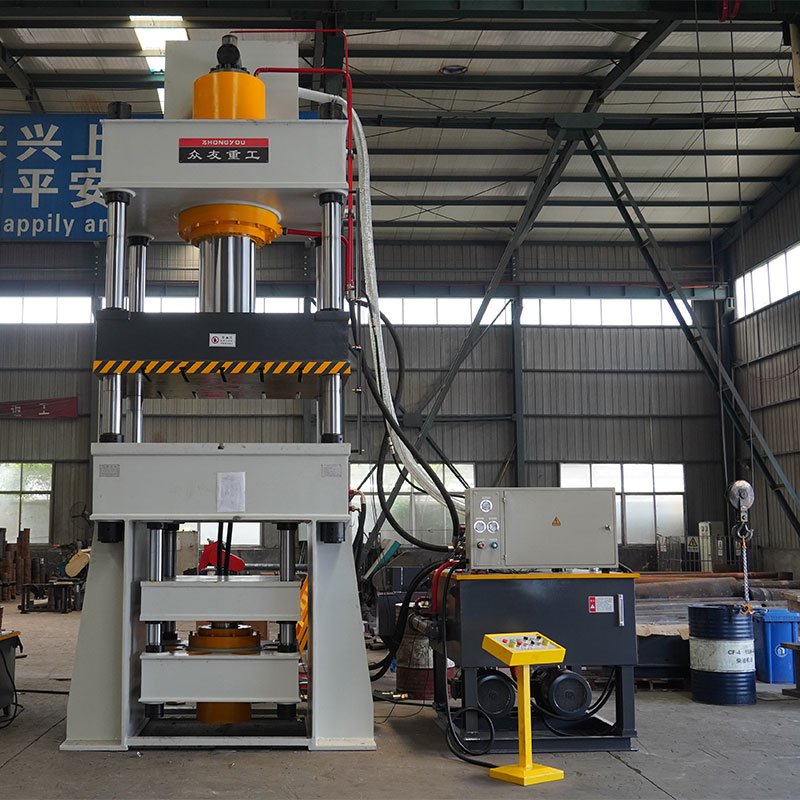

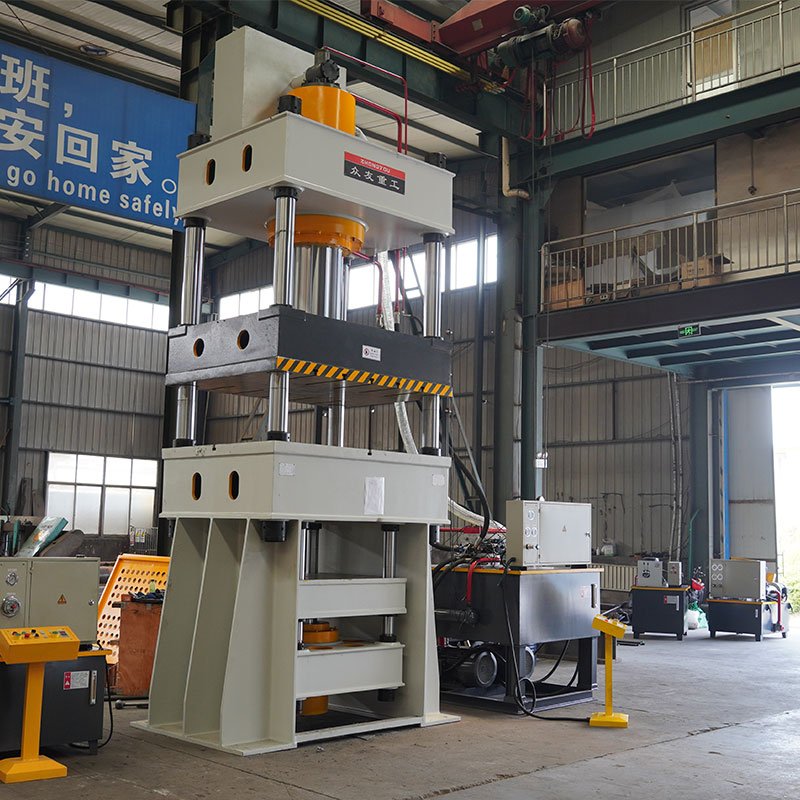

Stainless Steel Water Tank Head Stretching Hydraulic Press, Tank End Forming Machine

Place of Origin:	Tengzhou China
Brand Name:	Zhongyou
Model Number:	YD27-500T
Certification:	CE ISO
Minimum Order Quantity:	1
Packaging Details:	The sample includes a hydraulic press and mold. Please contact us for more details.
Delivery Time:	15-45 day
Payment Terms:	L/C D/P D/A T/T
Supply Ability:	50set/m

Get a Quote Contact Us

Is there a problem? Please contact us to serve you!

+86-13563258817

zhongyoupress@foxmail.com

Inquiry

Description

A head drawing machine, also known as a head hydraulic press or head stamping machine, is specialised deep-drawing equipment used in the pressure vessel and tank manufacturing industry. It utilises hydraulic power to draw circular steel plates into elliptical, dish-shaped, spherical or conical heads in a single operation,

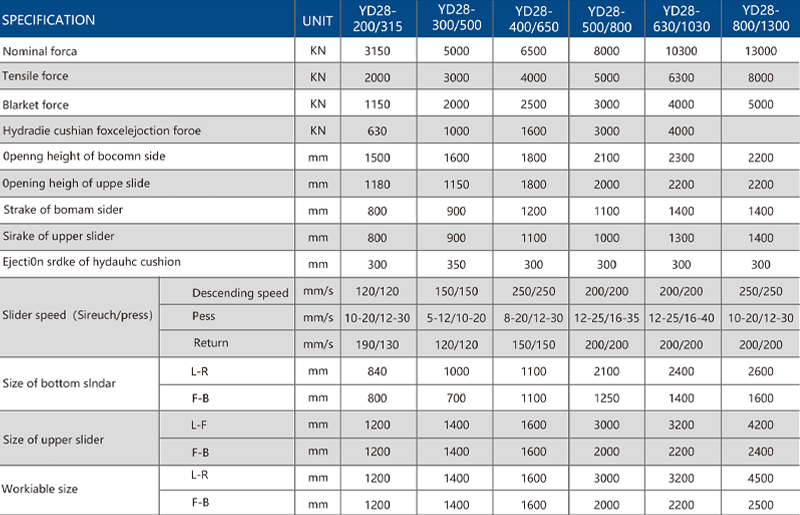

Parameters

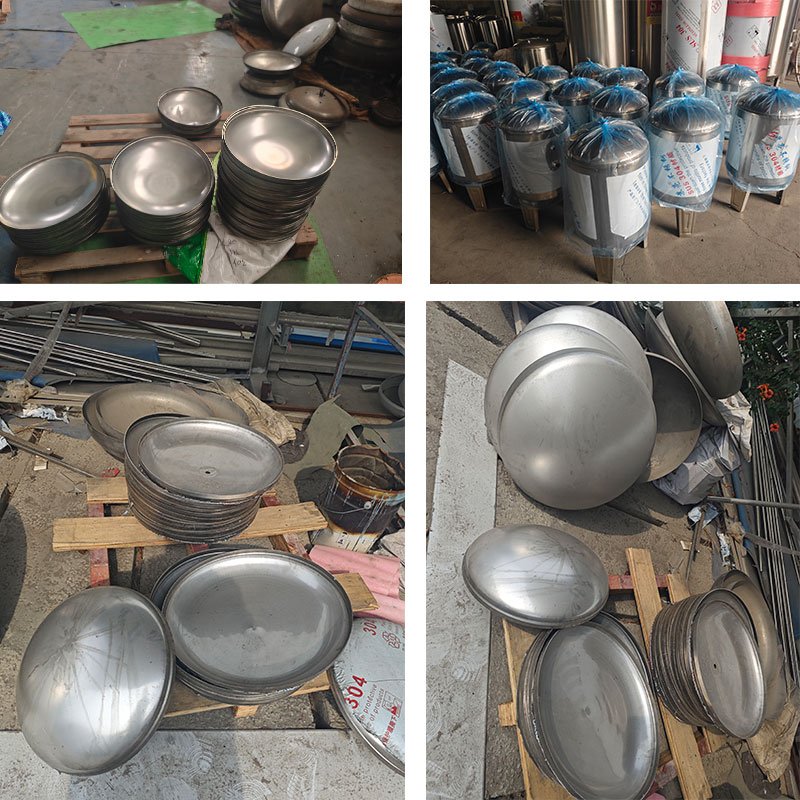

Processed Products

Applications

Applications: Pressure vessel factories, boiler manufacturing, chemical storage tanks, new energy storage tanks, water treatment equipment, tanks for refuse collection and street-cleaning lorries, oil and gas pipelines, stainless steel water tanks, and components for food and pharmaceutical tanks.

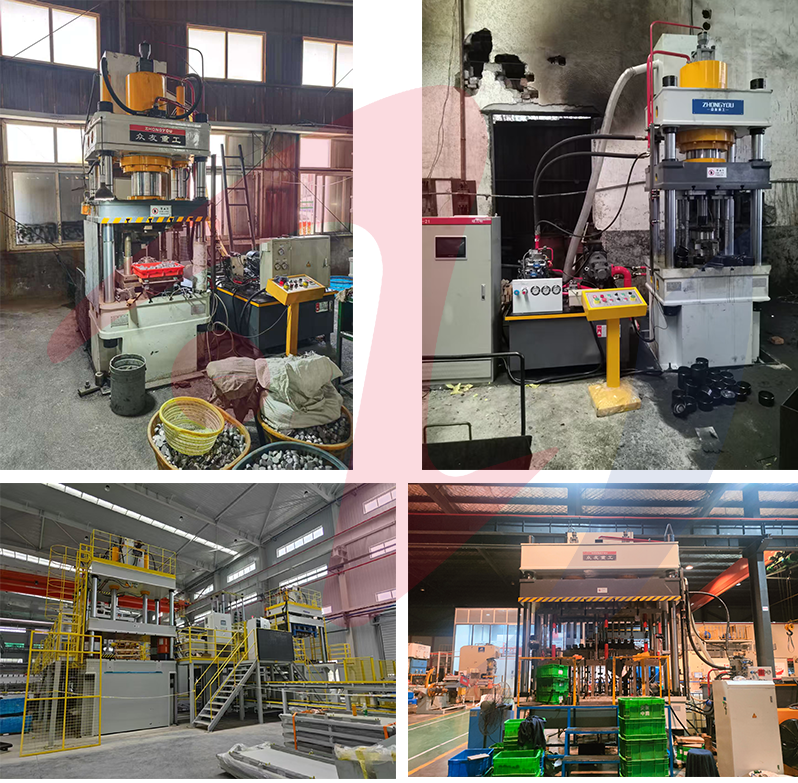

Application Cases

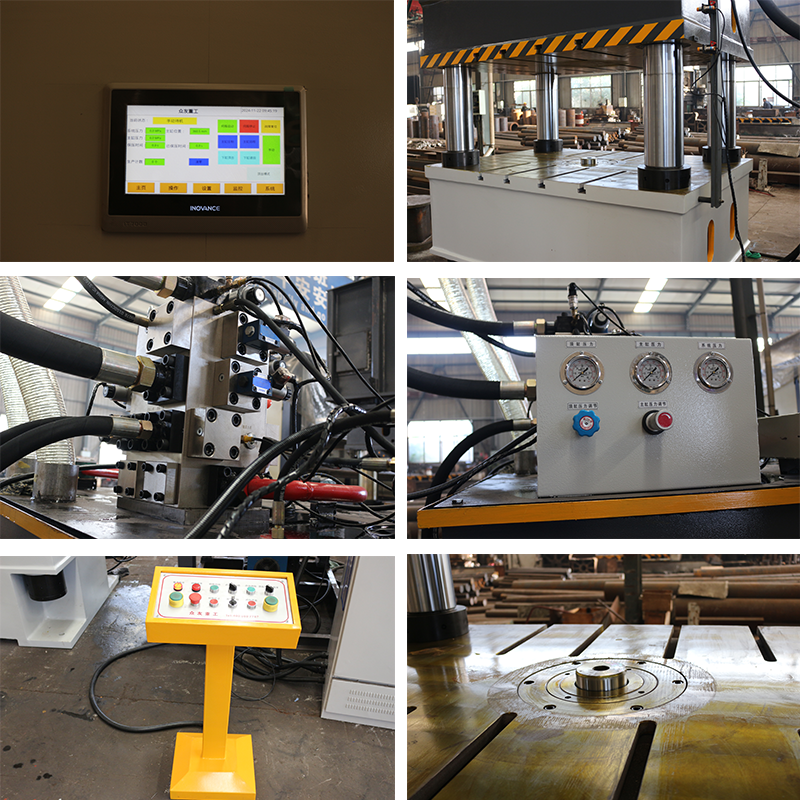

Detailed Pictures

Optional Configurations

Performance Characteristics

The machine’s four main systems: Main frame: Welded thick steel plate + stress-relieved through ageing treatment, designed to withstand high pressure Hydraulic power system: Cartridge valve-integrated oil circuit, standard oil pressure of 25 MPa, with three independent circuits for the main cylinder, flange-holding cylinder and ejector cylinder PLC electrical control system: Touchscreen settings for pressure, speed and pressure hold time; manual, semi-automatic and fully automatic modes Auxiliary mechanisms: movable worktable, blank centring, automatic oil application, ejection rotation, and integrated loading/unloading conveyor system

Packing & Shipping

After Sales Service

We offer comprehensive after-sales services, including installation, commissioning, and operation training; providing hydraulic press user manuals to facilitate user learning on how to operate and maintain the hydraulic press

About The Company

We offer a full range of hydraulic press equipment, with numerous mature design solutions and successful customer cases. Custom services are also available, providing forming molds and corresponding production line equipment, offering one-stop service. Welcome to consult with us.
