Home / Composite material press / 315T Manhole Cover Making Machine BMC SMC Composite Material Hydraulic Press
|
Place of Origin: |
Tengzhou China |
|
Brand Name: |
Zhongyou |
|
Model Number: |
YQ32-315T |
|
Certification: |
CE ISO |
|
Minimum Order Quantity: |
1 |
|
Packaging Details: |
The sample includes a hydraulic press and mold. Please contact us for more details. |
|
Delivery Time: |
15-45 day |
|
Payment Terms: |
L/C D/P D/A T/T |
|
Supply Ability: |
50set/m |
Is there a problem? Please contact us to serve you!

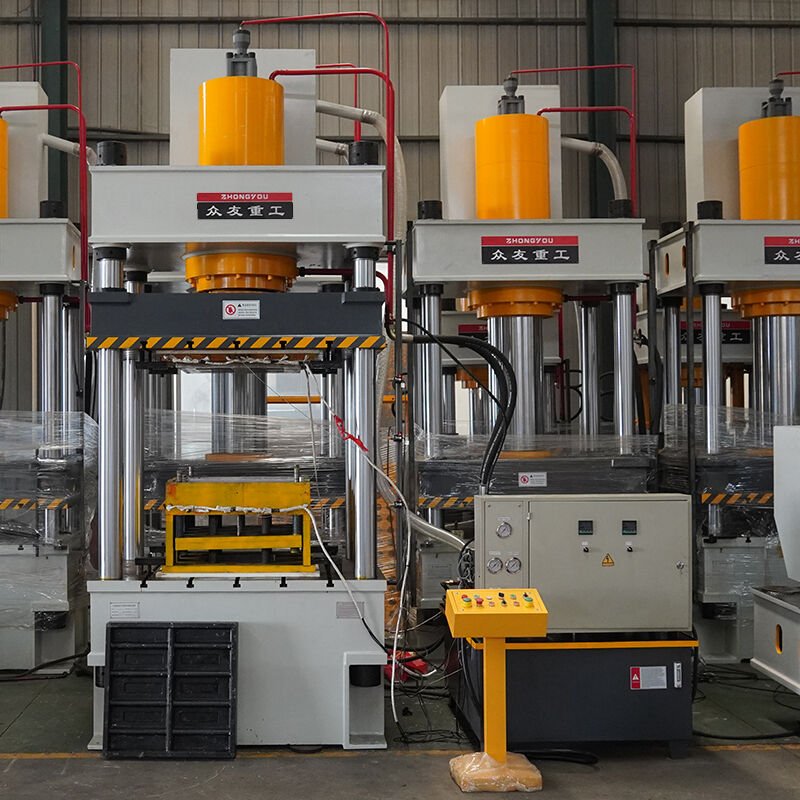

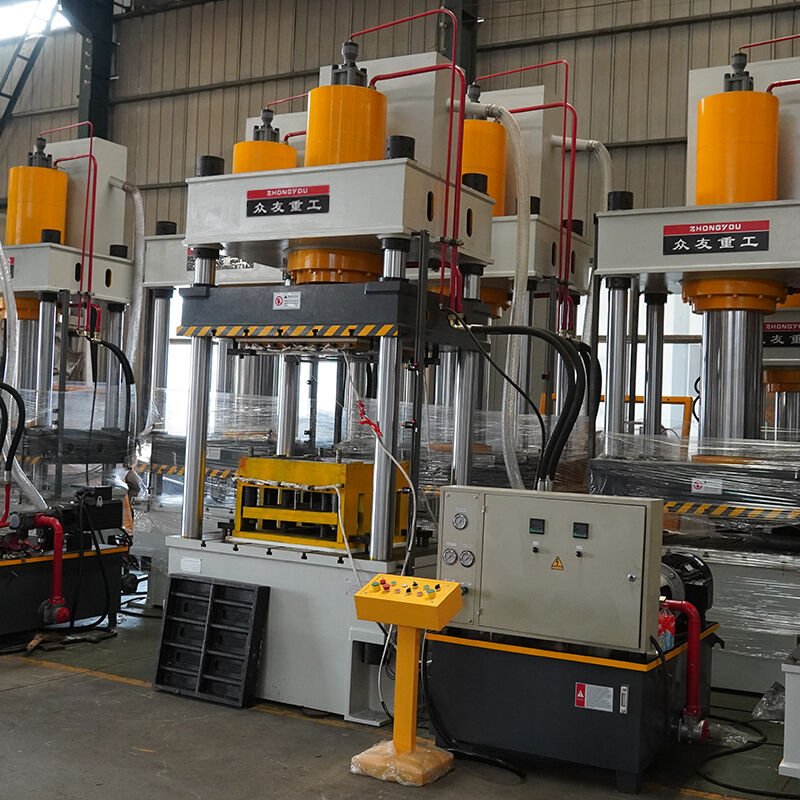

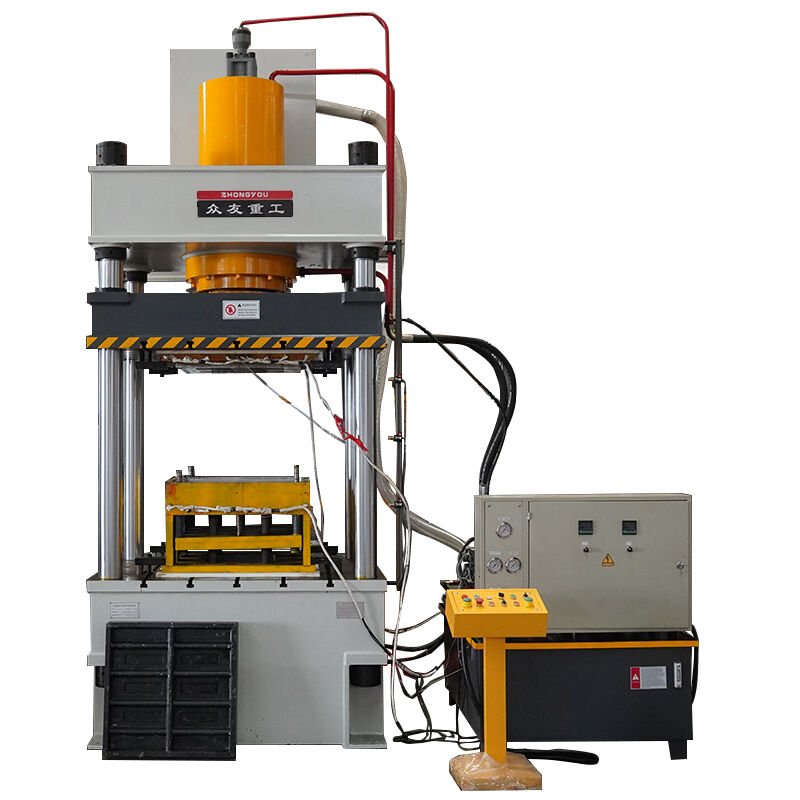

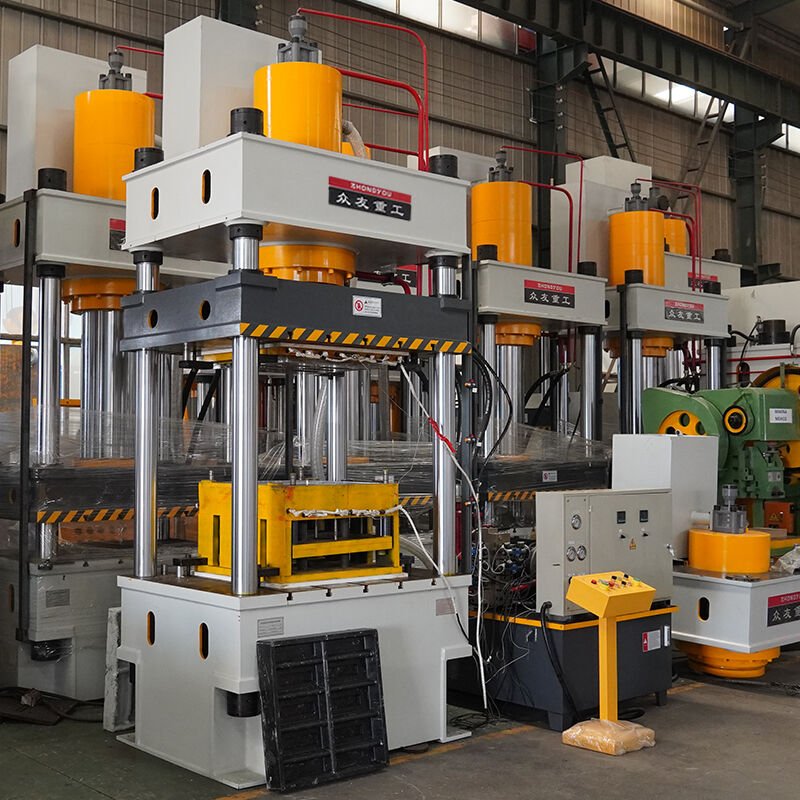

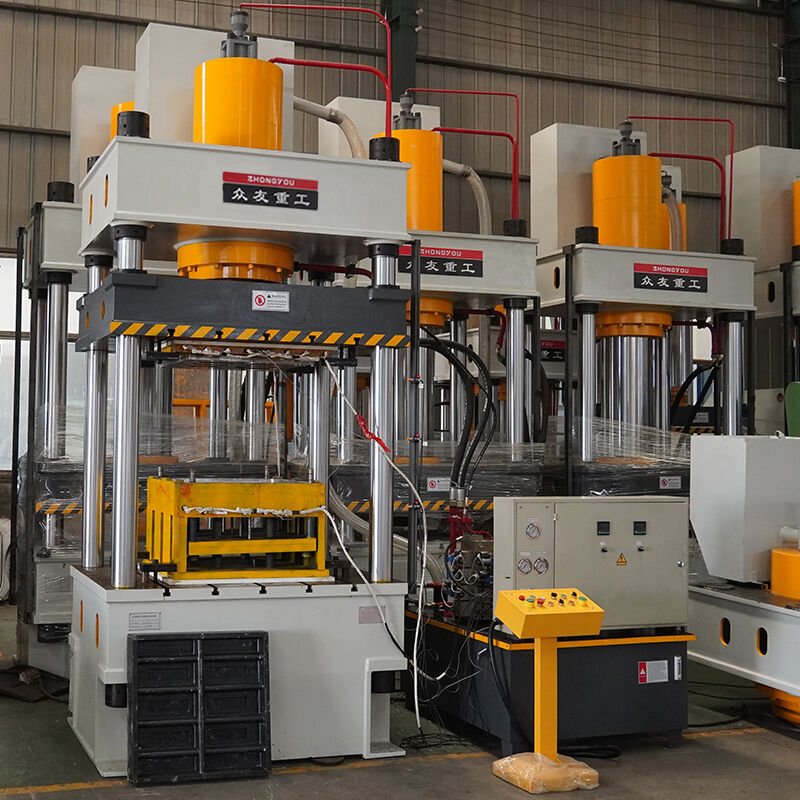

InquiryThis machine is a three-beam, four-column hot press hydraulic press characterized by precision, stability, efficiency, and versatility. All systems utilize brand-name components, ensuring reliable quality and convenient maintenance. It features button control for easy operation. The four-column hydraulic press is highly versatile, suitable for molding various plastic materials.
| Description /Specificati on | Unit | YQ32—63 | YQ32—100A | YQ32—100B | YQ32—200A | YQ32—200B | YQ32—315A | YQ32—315B | YQ32—400 |
| Nominal force | KN | 630 | 1000 | 1000 | 2000 | 2000 | 3150 | 3150 | 4000 |
| Maximun system pressure | Mpa | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| Max.open height | mm | 700 | 800 | 900 | 900 | 1100 | 1000 | 1250 | 1250 |
| Max Stroke of Slider | mm | 400 | 500 | 600 | 600 | 700 | 600 | 800 | 800 |
| Effective table size | mm | 610×500 | 630×550 | 750×700 | 800×800 | 1000×1000 | 800×800 | 1260×1160 | 1260×1160 |
| Down speed | mm/s | 100 | 100 | 100 | 100 | 100 | 100 | 100 | 100 |
| Pressing speed | mm/s | 11～22 | 7～15 | 7～15 | 7～18 | 7～18 | 7～12 | 7～12 | 5～11 |
| Return speed | mm/s | 80 | 90 | 90 | 90 | 90 | 90 | 100 | 100 |
| Ejection cylinder force | KN | 100 | 200 | 200 | 400 | 400 | 630 | 630 | 630 |
| Stroke of ejection cylinder | mm | 160 | 200 | 200 | 200 | 200 | 300 | 300 | 300 |
| Description /Specificati on | Unit | YQ32—500 | YQ32—630 | YQ32—800 | YQ32—1000 | YQ32—1250 | YQ32—1600 |
| Nominal force | KN | 5000 | 6300 | 8000 | 10000 | 12500 | 16000 |
| Maximun system pressure | Mpa | 25 | 25 | 25 | 25 | 25 | 25 |
| Max.open height | mm | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 |
| Max Stroke of Slider | mm | 900 | 900 | 900 | 900 | 900 | 900 |
| Effective table size | mm | 1400×1400 | 1500×1500 | 1600×1600 | 1600×1600 | 1600×1600 | 1600×1600 |
| Down speed | mm/s | 150 | 150 | 180 | 180 | 180 | 190 |
| Pressing speed | mm/s | 10～18 | 9～18 | 9～18 | 10～18 | 6～15 | 6～14 |
| Return speed | mm/s | 180 | 200 | 180 | 220 | 200 | 220 |
| Ejection cylinder force | KN | 1000 | 1000 | 1000 | 1000 | 1000 | 1600 |
| Stroke of ejection cylinder | mm | 300 | 300 | 300 | 300 | 300 | 300 |
Hot pressing of composite materials such as carbon fiber, resin, BMC, and SMC fiberglass. Additionally, we offer customized hydraulic presses and matching molding dies as per customer requirements.
We provide comprehensive after-sales services, including equipment installation, debugging, and operation training. Hydraulic press operation manuals are provided to facilitate user learning and maintenance.
We offer a full range of hydraulic press equipment with numerous mature design solutions and successful customer cases. We also provide customized services, including molding dies and associated production line equipment, offering one-stop solutions. Feel free to contact us for more information.
