Home / Water tank making press machine / 400 Hydraulic press for one-piece steel plate water tank
|
Place of Origin: |
Tengzhou China |
|
Brand Name: |
Zhongyou |
|
Model Number: |
YQ32-400T |
|
Certification: |
CE ISO |
|
Minimum Order Quantity: |
1 |
|
Packaging Details: |
The sample includes a hydraulic press and mold. Please contact us for more details. |
|
Delivery Time: |
15-45 day |
|
Payment Terms: |
L/C D/P D/A T/T |
|
Supply Ability: |
50set/m |

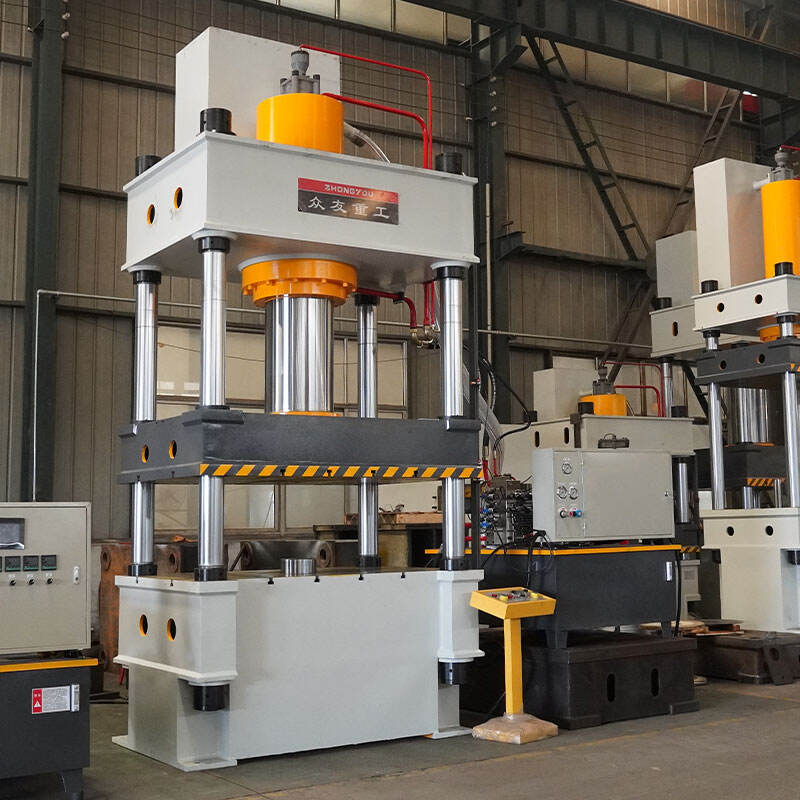

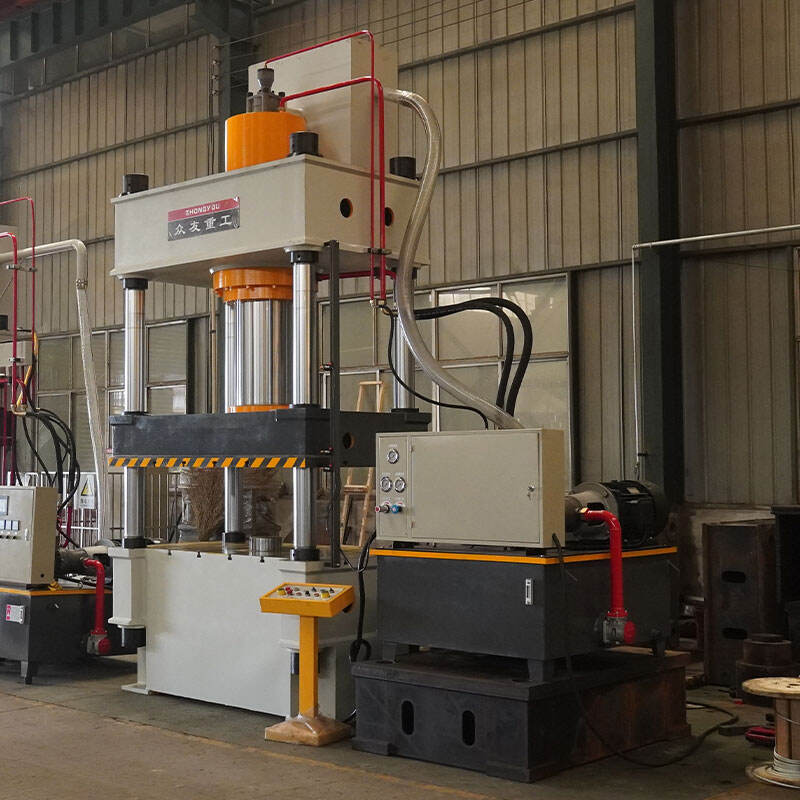

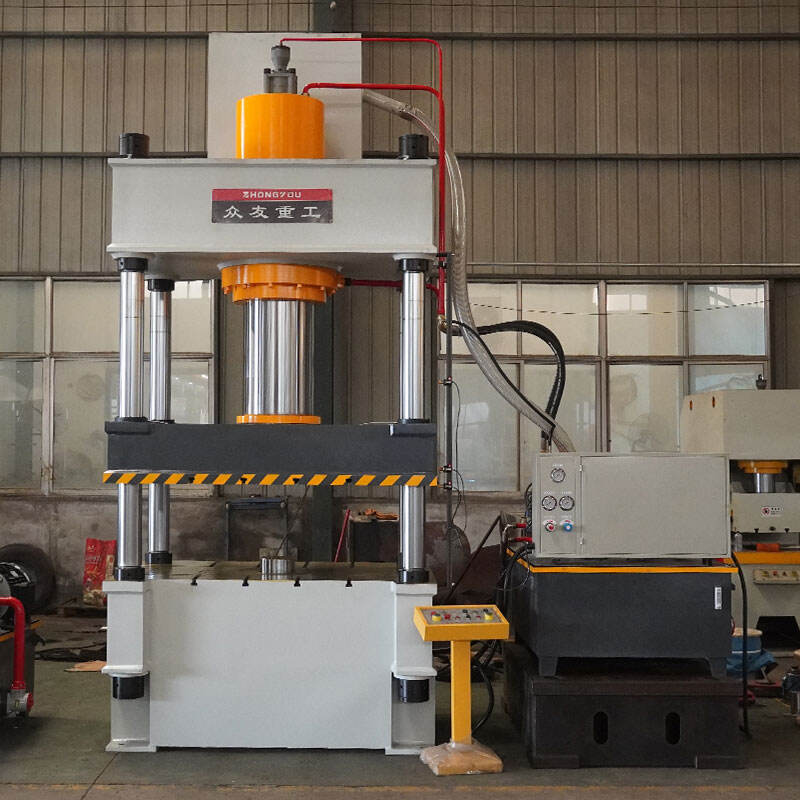

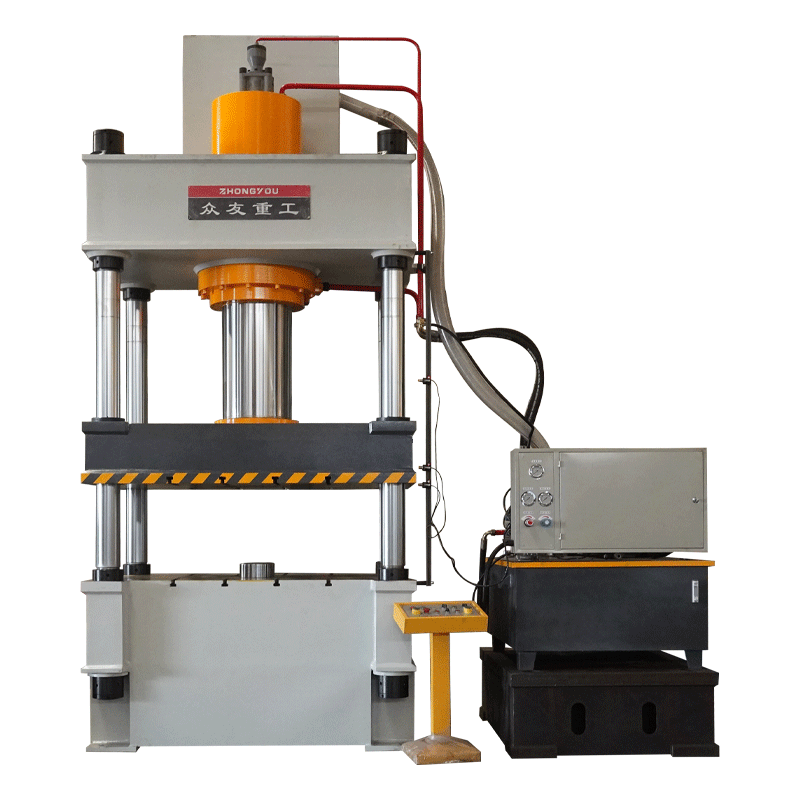

This 400-ton three-beam, four-column hydraulic press is the core forming equipment designed for manufacturing large-scale continuous steel plate water tanks (such as fire-fighting water tanks, industrial water storage tanks, building water supply and drainage tanks, etc.).Through the hydraulic pressure will be processed into the steel plate water tank required curved surface, flat or shaped structural components(e.g. side plate, top plate, bottom plate, flange edge, etc.), laying the foundation for subsequent welding and assembly into a whole water tank.
YQ32 Technical Parameters | ||||||||
| Unit | YQ32—63 | YQ32—100A | YQ32—100B | YQ32—200A | YQ32—200B | YQ32—315A | YQ32—315B |
Nominal force | KN | 630 | 1000 | 1000 | 2000 | 2000 | 3150 | 3150 |
Maximun system pressure | Mpa | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
Max.open height | mm | 700 | 800 | 900 | 900 | 1100 | 1000 | 1250 |
Max Stroke of Slider | mm | 400 | 500 | 600 | 600 | 700 | 600 | 800 |
Effective table size | mm | 610×500 | 630×550 | 750×700 | 800×800 | 1000×1000 | 800×800 | 1260×1160 |
Down speed | mm/s | 100 | 100 | 100 | 100 | 100 | 100 | 100 |
Pressing speed | mm/s | 11～22 | 7～15 | 7～15 | 7～18 | 7～18 | 7～12 | 7～12 |
Return speed | mm/s | 80 | 90 | 90 | 90 | 90 | 90 | 100 |
Ejection cylinder force | KN | 100 | 200 | 200 | 400 | 400 | 630 | 630 |
Stroke of ejection cylinder | mm | 160 | 200 | 200 | 200 | 200 | 300 | 300 |
|
|
|
|
|
|
|
|
|
| Unit | YQ32—400 | YQ32—500 | YQ32—630 | YQ32—800 | YQ32—1000 | YQ32—1250 | YQ32—1600 |
Nominal force | KN | 4000 | 5000 | 6300 | 8000 | 10000 | 12500 | 16000 |
Maximun system pressure | Mpa | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
Max.open height | mm | 1250 | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 |
Max Stroke of Slider | mm | 800 | 900 | 900 | 900 | 900 | 900 | 900 |
Effective table size | mm | 1260×1160 | 1400×1400 | 1500×1500 | 1600×1600 | 1600×1600 | 1600×1600 | 1600×1600 |
Down speed | mm/s | 100 | 150 | 150 | 180 | 180 | 180 | 190 |
Pressing speed | mm/s | 5～11 | 10～18 | 9～18 | 9～18 | 10～18 | 6～15 | 6～14 |
Return speed | mm/s | 100 | 180 | 200 | 180 | 220 | 200 | 220 |
Ejection cylinder force | KN | 630 | 1000 | 1000 | 1000 | 1000 | 1000 | 1600 |
Stroke of ejection cylinder | mm | 300 | 300 | 300 | 300 | 300 | 300 | 300 |
Metal plate processing: stainless steel water tank plate stamping, automotive parts stretching: suitable for deep cavity parts such as buckets, fuel tanks, etc. stretching, the
Composite materials and special process: SMC molding can produce FRP water tanks, car bumpers and other products, fiber content uniformity of more than 95%.
Powder metallurgy pressing: applicable to magnetic materials, hard alloy and other high-precision pressing.
Processing of non-metallic materials: hot pressing of plastic products to produce PP, PE and other plastic plates, rubber products vulcanization

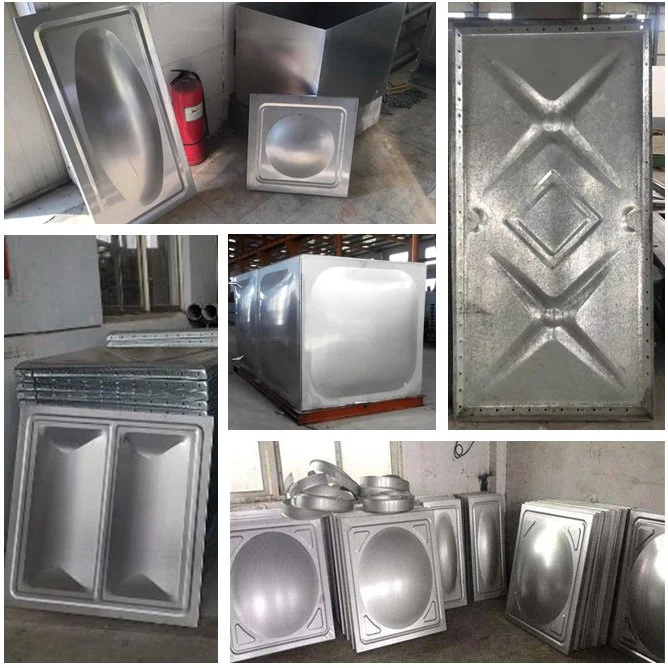

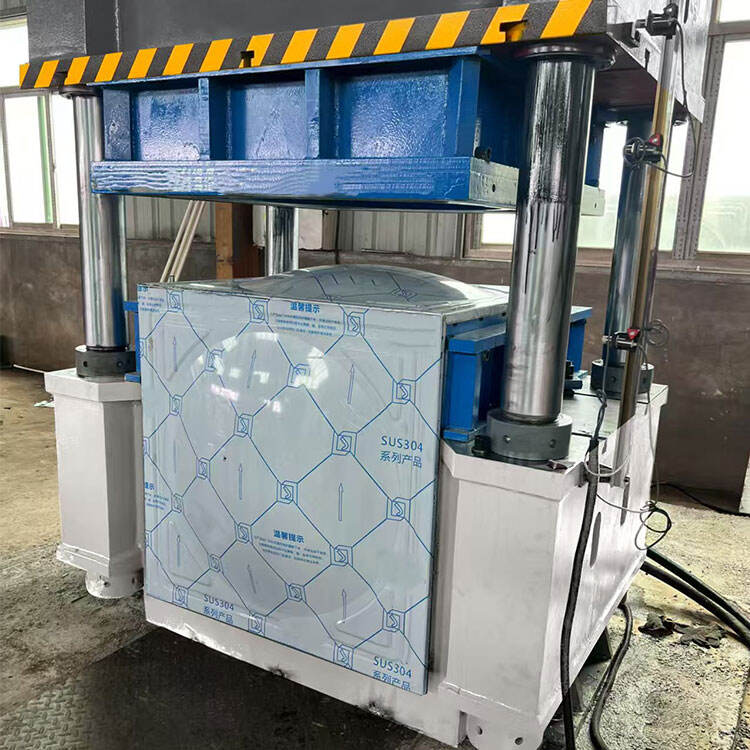

Use: Stamping the stainless steel plate into the side, top, bottom and other parts of the water tank through the mould.
Applicable scenes: stamping hydraulic press: used for mass production of standard size water tanks (such asDomestic roof water tank, fire water tank).
Hydraulic Expansion Machine: for manufacturing cylindrical water tanks (e.g. industrial water storage tanks), where the plates are shaped to fit the mould by internal pressure.
2. Welding and shaping
Purpose: correction and shaping after welding, eliminating welding deformation and ensuring the flatness of water tanks.
Applicable scenes: welding and shaping hydraulic press: for large water tanks (such as industrial circulatingwater tanks) for post-welding levelling.
Bending hydraulic press: bending the edge of the plate to form the reinforcement or connection structure of the water tank.
We offer comprehensive after-sales services, including installation, commissioning, and operation training; providing hydraulic press user manuals to facilitate user learning on how to operate and maintain the hydraulic press.
We offer a full range of hydraulic press equipment, with numerous mature design solutions and successful customer cases. Custom services are also available, providing forming molds and corresponding production line equipment, offering one-stop service. Welcome to consult with us.
