Home / Metal stamping press machine / 400-ton four-column press Metal stamping presses for ro-ro ship lashing bowls
|
Place of Origin: |
Tengzhou China |
|
Brand Name: |
Zhongyou |
|
Model Number: |
YQ32-400T |
|
Certification: |
CE ISO |
|
Minimum Order Quantity: |
1 |
|
Packaging Details: |
The sample includes a hydraulic press and mold. Please contact us for more details. |
|
Delivery Time: |
15-45 day |
|
Payment Terms: |
L/C D/P D/A T/T |
|
Supply Ability: |
50set/m |

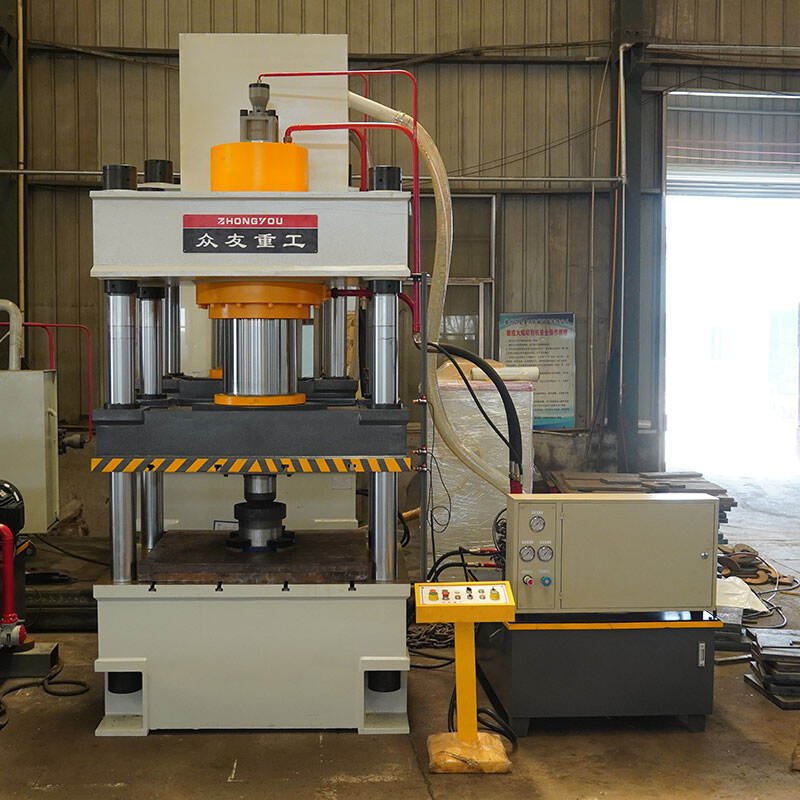

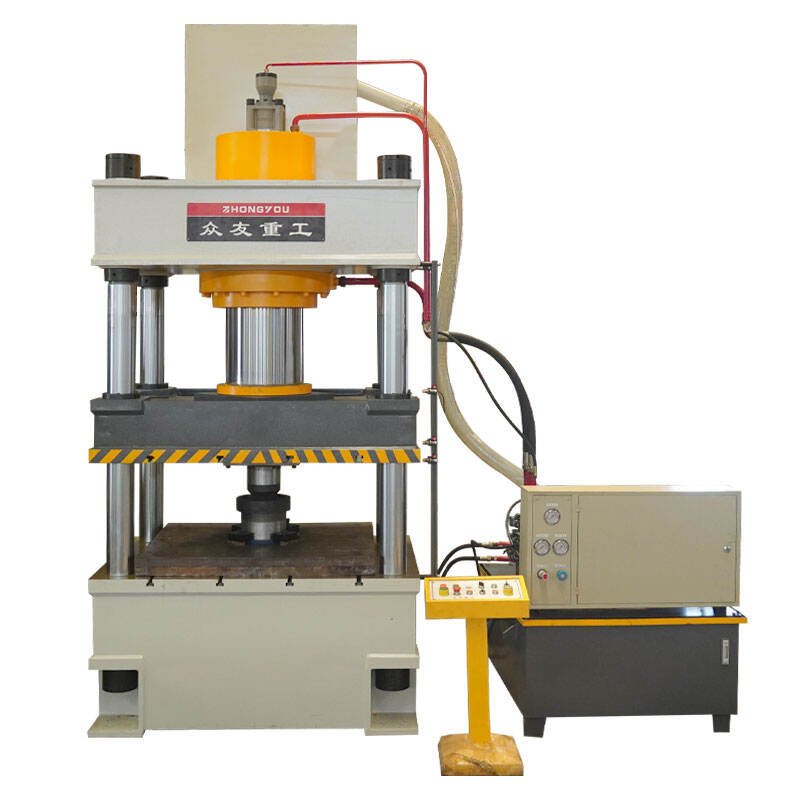

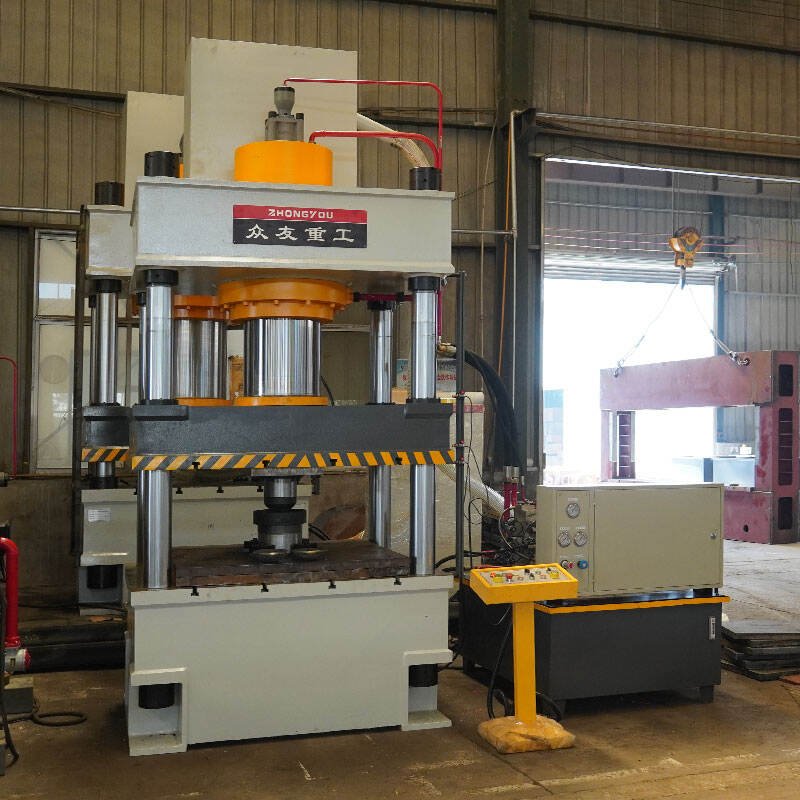

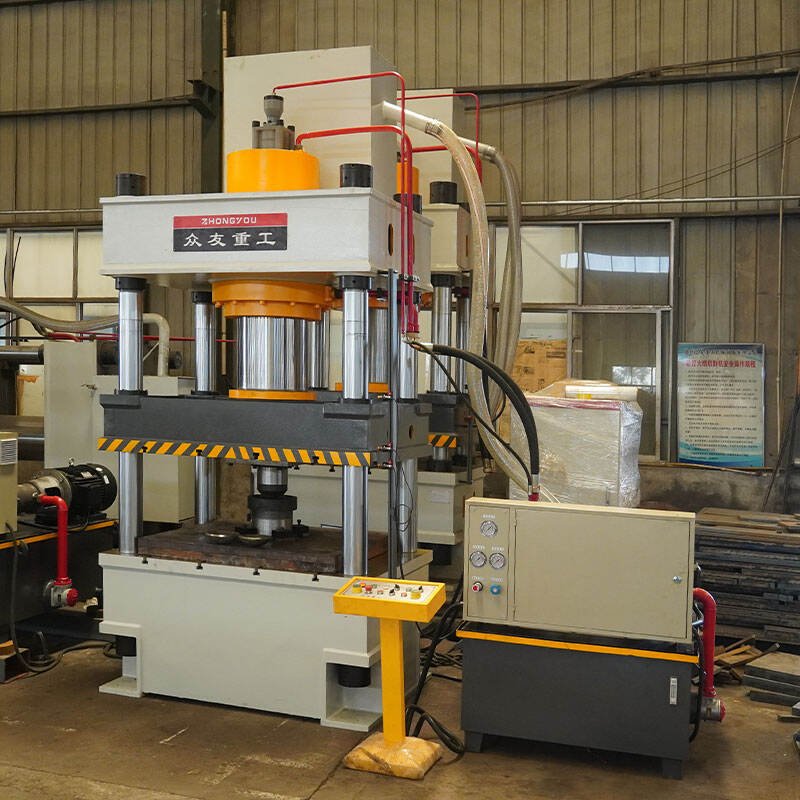

The 400 ton Ro-Ro lashing bowl hydraulic press is a high-precision and high-efficiency pressure molding equipment, which provides strong pressure through the hydraulic system to press and mold the raw materials such as metal sheets into the lashing bowls required for Ro-Ro ships.The lashing bowl is an important part for fixing the vehicle on the ro-ro ship, and its quality and precision directly affect the safety and stability of ship transportation.
YQ32 Technical Parameters | ||||||||
| Unit | YQ32—63 | YQ32—100A | YQ32—100B | YQ32—200A | YQ32—200B | YQ32—315A | YQ32—315B |
Nominal force | KN | 630 | 1000 | 1000 | 2000 | 2000 | 3150 | 3150 |
Maximun system pressure | Mpa | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
Max.open height | mm | 700 | 800 | 900 | 900 | 1100 | 1000 | 1250 |
Max Stroke of Slider | mm | 400 | 500 | 600 | 600 | 700 | 600 | 800 |
Effective table size | mm | 610×500 | 630×550 | 750×700 | 800×800 | 1000×1000 | 800×800 | 1260×1160 |
Down speed | mm/s | 100 | 100 | 100 | 100 | 100 | 100 | 100 |
Pressing speed | mm/s | 11～22 | 7～15 | 7～15 | 7～18 | 7～18 | 7～12 | 7～12 |
Return speed | mm/s | 80 | 90 | 90 | 90 | 90 | 90 | 100 |
Ejection cylinder force | KN | 100 | 200 | 200 | 400 | 400 | 630 | 630 |
Stroke of ejection cylinder | mm | 160 | 200 | 200 | 200 | 200 | 300 | 300 |
|
|
|
|
|
|
|
|
|
| Unit | YQ32—400 | YQ32—500 | YQ32—630 | YQ32—800 | YQ32—1000 | YQ32—1250 | YQ32—1600 |
Nominal force | KN | 4000 | 5000 | 6300 | 8000 | 10000 | 12500 | 16000 |
Maximun system pressure | Mpa | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
Max.open height | mm | 1250 | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 |
Max Stroke of Slider | mm | 800 | 900 | 900 | 900 | 900 | 900 | 900 |
Effective table size | mm | 1260×1160 | 1400×1400 | 1500×1500 | 1600×1600 | 1600×1600 | 1600×1600 | 1600×1600 |
Down speed | mm/s | 100 | 150 | 150 | 180 | 180 | 180 | 190 |
Pressing speed | mm/s | 5～11 | 10～18 | 9～18 | 9～18 | 10～18 | 6～15 | 6～14 |
Return speed | mm/s | 100 | 180 | 200 | 180 | 220 | 200 | 220 |
Ejection cylinder force | KN | 630 | 1000 | 1000 | 1000 | 1000 | 1000 | 1600 |
Stroke of ejection cylinder | mm | 300 | 300 | 300 | 300 | 300 | 300 | 300 |

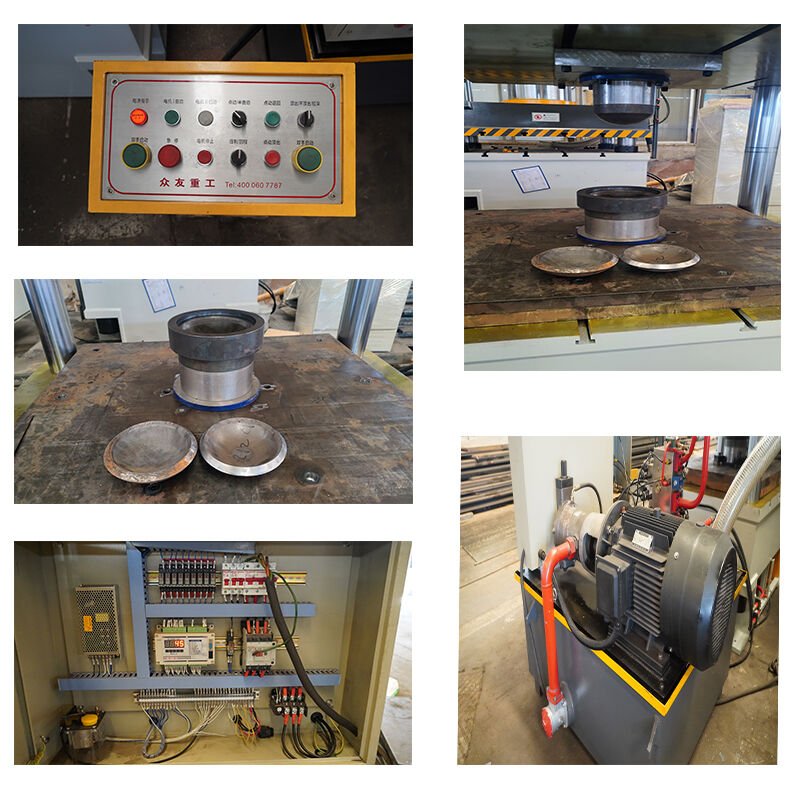

The 400 tons ro-ro ship lashing bowl hydraulic press is mainly used in the field of ro-ro ship manufacturing and maintenance.During the manufacturing process of Ro-Ro ships, the hydraulic press is used to press and mold sheet metal into lashing bowls to provide reliable fixtures for the ships.In the process of ship maintenance, the hydraulic press can also be used to replace damaged lashing bowls or carry out partial repair.
High pressure and precision: the hydraulic pressure of 400 tons can ensure that the lashing bowl obtains sufficient compactness and strength during the molding process, while the high-precision control system can ensure the dimensional accuracy and shape consistency of the lashing bowl.
Stable structure and easy operation: Hydraulic presses usually adopt a stable frame structure, which can withstand large working pressure without deformation.At the same time, modern hydraulic presses are also equipped with user-friendly operation interface and control system, making the operation easier and faster.
Strong adaptability and high production efficiency: the hydraulic press can adapt to the production needs of different specifications and materials of the tying bowls, and the rapid conversion of different products can be realized by replacing the molds.In addition, the hydraulic press has fast working speed and high production efficiency, which can meet the demand of mass production.
We offer comprehensive after-sales services, including installation, commissioning, and operation training; providing hydraulic press user manuals to facilitate user learning on how to operate and maintain the hydraulic press.
We offer a full range of hydraulic press equipment, with numerous mature design solutions and successful customer cases. Custom services are also available, providing forming molds and corresponding production line equipment, offering one-stop service. Welcome to consult with us.
