400-ton Straightening Single Column Hydraulic Press C Frame

Place of Origin:	Tengzhou China
Brand Name:	Zhongyou
Model Number:	YQ41-400T
Certification:	CE ISO
Minimum Order Quantity:	1
Packaging Details:	The sample includes a hydraulic press and mold. Please contact us for more details.
Delivery Time:	15-45 day
Payment Terms:	L/C D/P D/A T/T
Supply Ability:	50set/m

Get a Quote Contact Us

Is there a problem? Please contact us to serve you!

+86-13563258817

[email protected]

Inquiry

Description

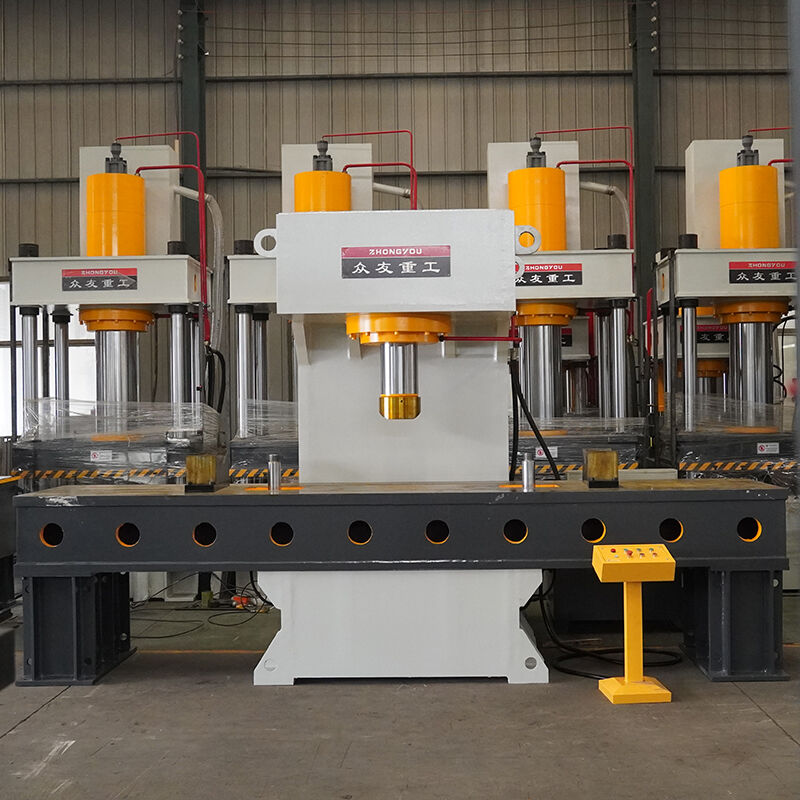

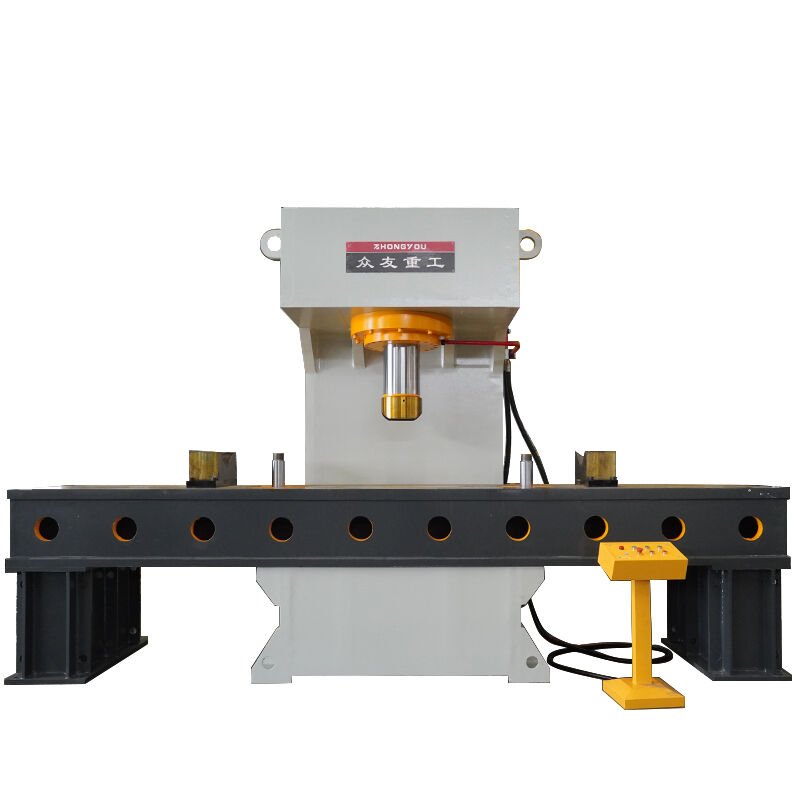

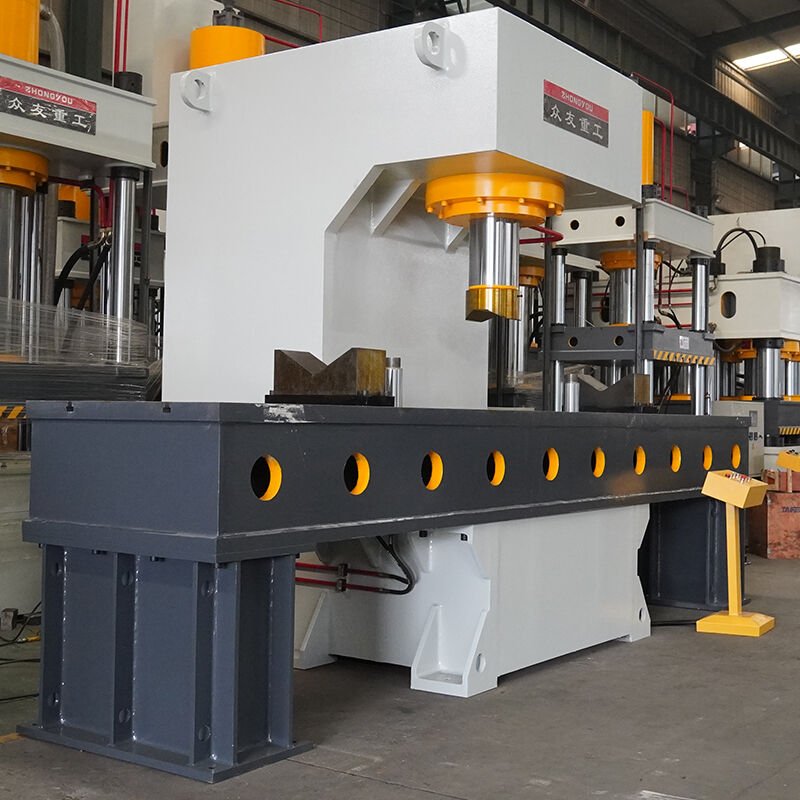

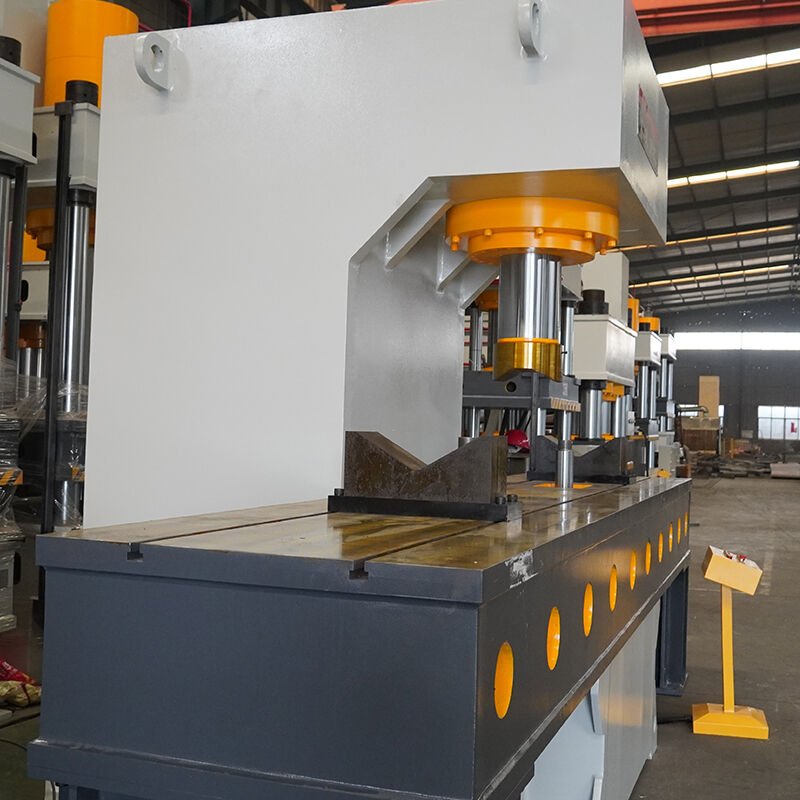

This machine is a C-type single-column straightening hydraulic press, characterized by large operating space, high cost performance, precision, stability, efficiency, and wide applicability. All systems use branded components, ensuring reliable quality and easy maintenance. The machine is controlled by buttons, making operation simple. It is suitable for straightening and reshaping long shaft parts, round steel, and other components.

Parameters

SPECIFICATION	UNIT	YQ41-20	YQ41-40	YQ41-63	YQ41-100	YQ41-160	YQ41-200	YQ41-250	YQ41-315	YQ41-500
Nominal pressure	KN	200	400	630	1000	1600	2000	2500	3150	5000
Effective stroke	mm	200	200	300	300	400	500	500	500	500
Opening height	mm	600	600	700	700	800	1000	1000	1200	1200
Throat depth	mm	200	220	240	280	320	360	420	500	600
Down speed	mm/s	16	19	13	10	13	15	15	50	50
Return speed	mm/s	19	25	17	13	20	20	20	60	55
Table size L-R	mm	500	500	600	700	700	800	900	1050	1200
Table size F-B	mm	400	400	450	500	600	700	800	900	1050
Blanking hole diameter	mm	80	100	120	200	200	220	220	240	240

Applications

Suitable for straightening and reshaping processes of various long shaft parts, round steel, and other components.

Optional Configurations

The C-frame structure is stable and offers a large operating space.
The hydraulic system uses advanced cartridge integrated valves, and the electrical system uses branded components, achieving high-precision pressing with reliable quality and easy maintenance.
Simple operation with button control.
Adjustable parameters such as pressure and stroke.
Compatible with various molds.
Scientifically designed, simple structure, and easy maintenance.

After Sales Service

We provide comprehensive after-sales services including installation, commissioning, and operation training of the equipment. We also provide a hydraulic press user manual for users to learn how to operate and maintain the hydraulic press.

About The Company

We offer a full range of hydraulic press equipment with many mature design solutions and successful customer cases. Customization services are available, including the provision of forming molds and corresponding production line equipment, offering one-stop service. Welcome to consult us.
