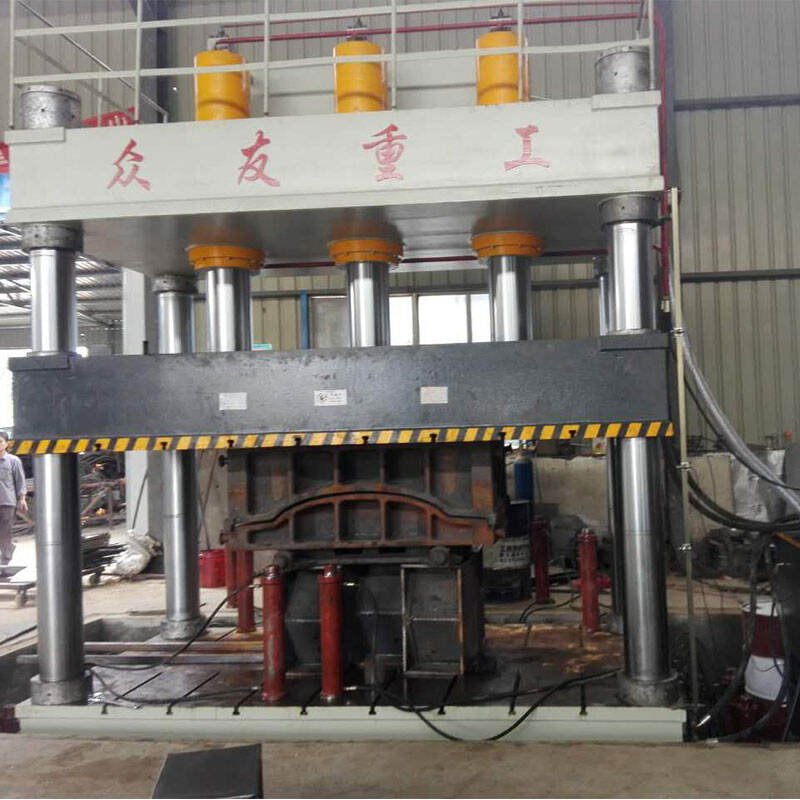

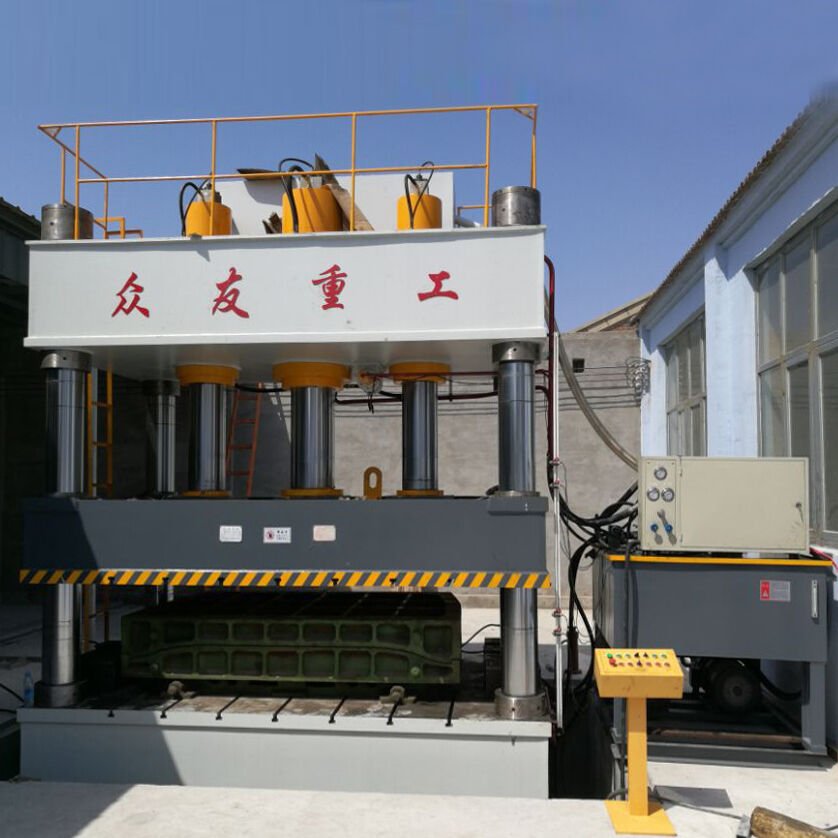

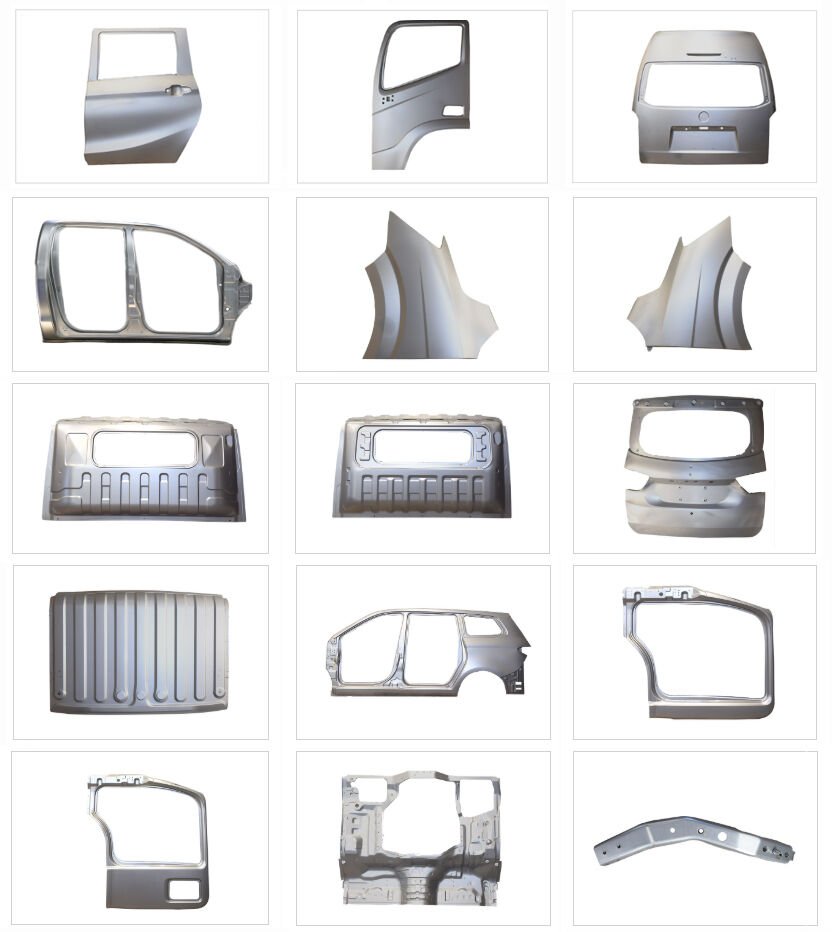

Home / Four column press / 800-ton four-column press car body pressing machine hydraulic press for auto spare parts stamping
|
Place of Origin: |
Tengzhou China |
|
Brand Name: |
Zhongyou |
|
Model Number: |
YQ32-1000T |
|
Certification: |
CE ISO |
|
Minimum Order Quantity: |
1 |
|
Packaging Details: |
The sample includes a hydraulic press and mold. Please contact us for more details. |
|
Delivery Time: |
15-45 day |
|
Payment Terms: |
L/C D/P D/A T/T |
|
Supply Ability: |
50set/m |
Is there a problem? Please contact us to serve you!
Inquiry

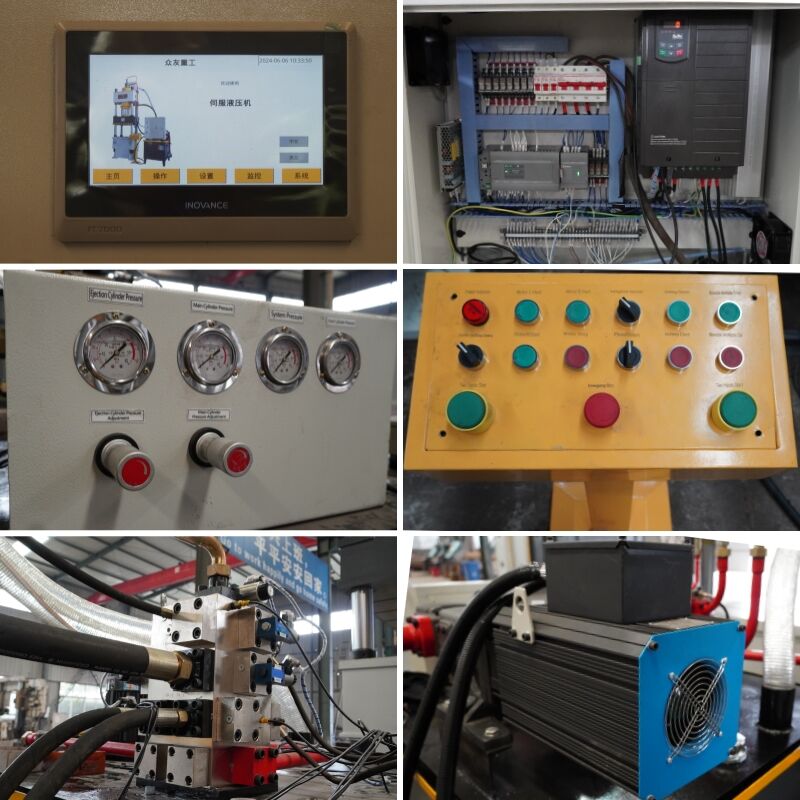

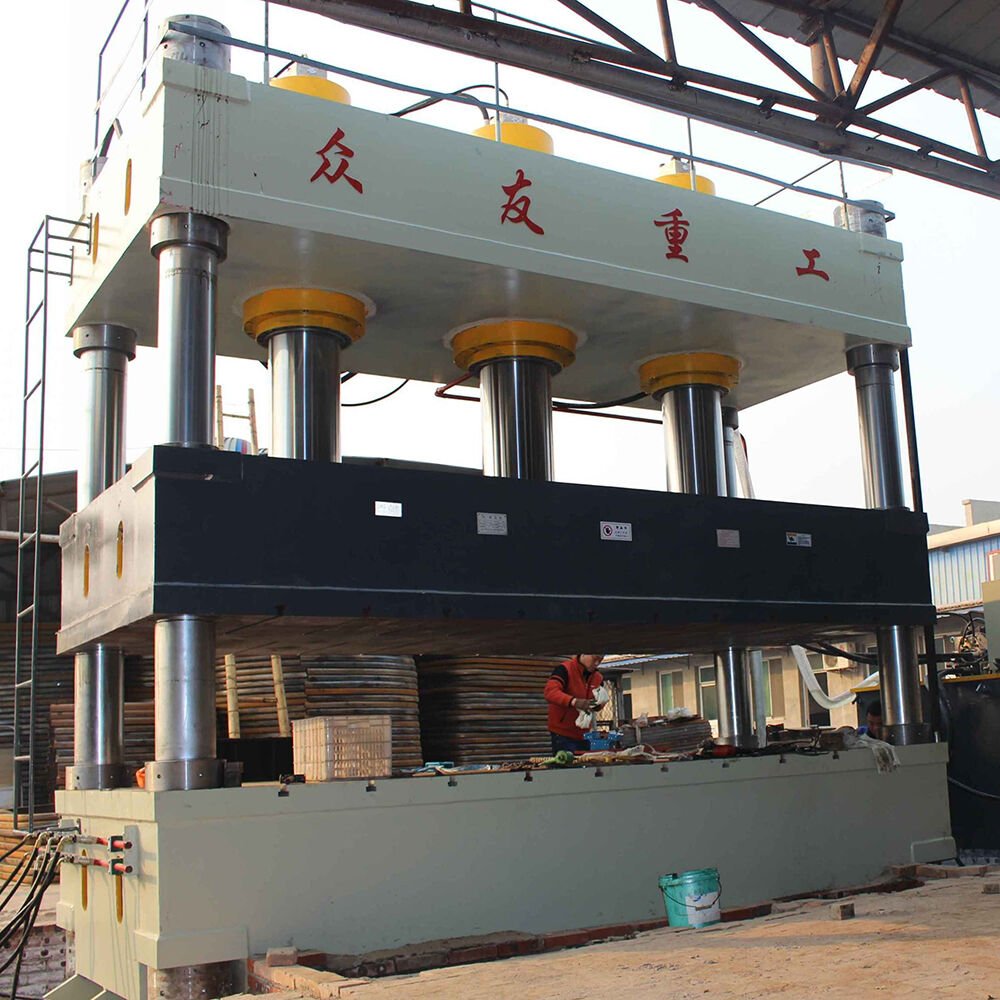

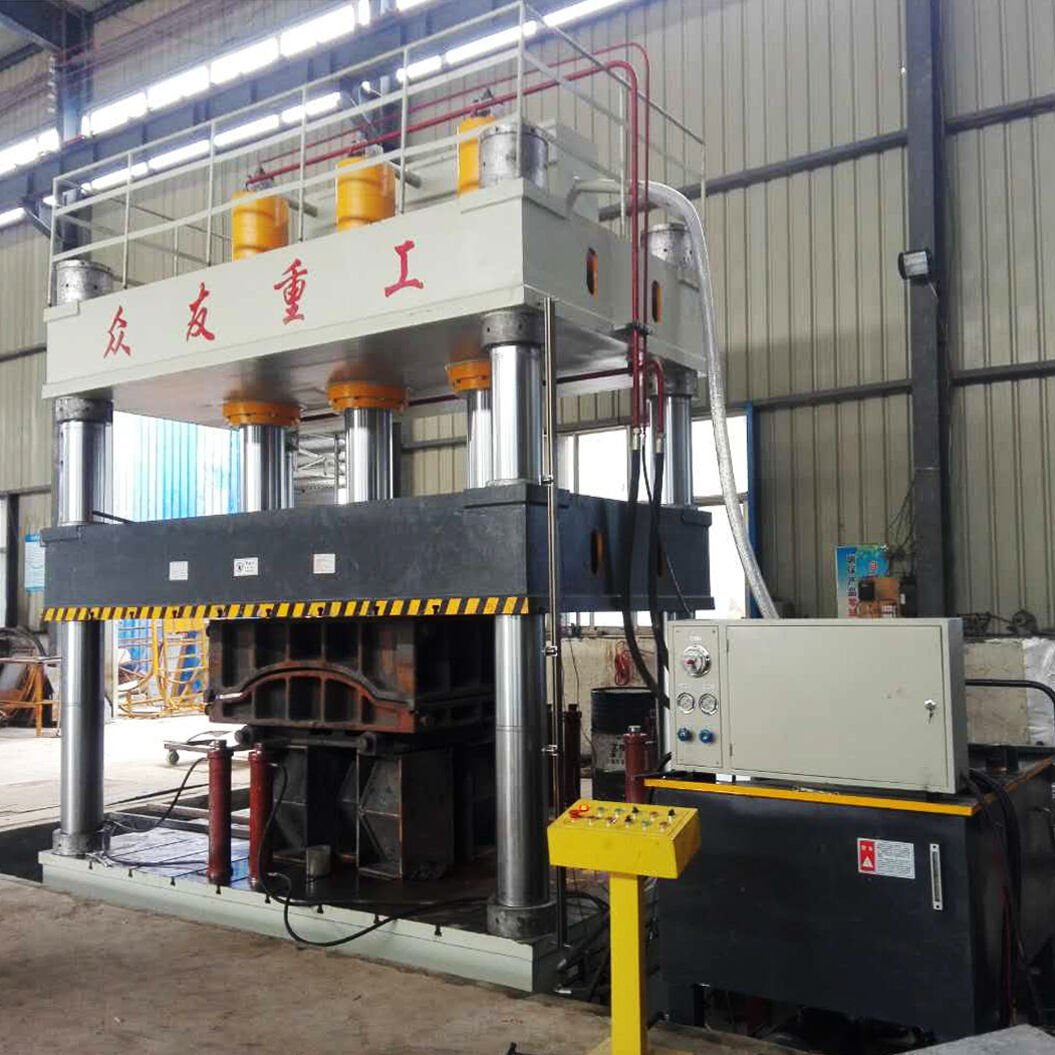

Zhongyou Automotive Parts Stamping Hydraulic Press is a highly customized hydraulic press with a large body size and strong pressure. The control system is equipped with PLC or servo system and servo motor. The intelligent system can be integrated with other systems and embedded in the automotive automated production line to improve production efficiency.
|
YQ32 Technical Parameters |
||||||||
|
|
Unit |
YQ32—63 |
YQ32—100A |
YQ32—100B |
YQ32—200A |
YQ32—200B |
YQ32—315A |
YQ32—315B |
|
Nominal force |
KN |
630 |
1000 |
1000 |
2000 |
2000 |
3150 |
3150 |
|
Maximun system pressure |
Mpa |
25 |
25 |
25 |
25 |
25 |
25 |
25 |
|
Max.open height |
mm |
700 |
800 |
900 |
900 |
1100 |
1000 |
1250 |
|
Max Stroke of Slider |
mm |
400 |
500 |
600 |
600 |
700 |
600 |
800 |
|
Effective table size |
mm |
610×500 |
630×550 |
750×700 |
800×800 |
1000×1000 |
800×800 |
1260×1160 |
|
Down speed |
mm/s |
100 |
100 |
100 |
100 |
100 |
100 |
100 |
|
Pressing speed |
mm/s |
11～22 |
7～15 |
7～15 |
7～18 |
7～18 |
7～12 |
7～12 |
|
Return speed |
mm/s |
80 |
90 |
90 |
90 |
90 |
90 |
100 |
|
Ejection cylinder force |
KN |
100 |
200 |
200 |
400 |
400 |
630 |
630 |
|
Stroke of ejection cylinder |
mm |
160 |
200 |
200 |
200 |
200 |
300 |
300 |
|
|
|
|
|
|
|
|
|
|
|
|
Unit |
YQ32—400 |
YQ32—500 |
YQ32—630 |
YQ32—800 |
YQ32—1000 |
YQ32—1250 |
YQ32—1600 |
|
Nominal force |
KN |
4000 |
5000 |
6300 |
8000 |
10000 |
12500 |
16000 |
|
Maximun system pressure |
Mpa |
25 |
25 |
25 |
25 |
25 |
25 |
25 |
|
Max.open height |
mm |
1250 |
1500 |
1500 |
1500 |
1500 |
1500 |
1500 |
|
Max Stroke of Slider |
mm |
800 |
900 |
900 |
900 |
900 |
900 |
900 |
|
Effective table size |
mm |
1260×1160 |
1400×1400 |
1500×1500 |
1600×1600 |
1600×1600 |
1600×1600 |
1600×1600 |
|
Down speed |
mm/s |
100 |
150 |
150 |
180 |
180 |
180 |
190 |
|
Pressing speed |
mm/s |
5～11 |
10～18 |
9～18 |
9～18 |
10～18 |
6～15 |
6～14 |
|
Return speed |
mm/s |
100 |
180 |
200 |
180 |
220 |
200 |
220 |
|
Ejection cylinder force |
KN |
630 |
1000 |
1000 |
1000 |
1000 |
1000 |
1600 |
|
Stroke of ejection cylinder |
mm |
300 |
300 |
300 |
300 |
300 |
300 |
300 |
This is the standard model parameter, for reference only. We can customize the equipment you need
We provide comprehensive after-sales service including equipment installation, debugging, and operation training. We offer a hydraulic press user manual for convenient operation and maintenance.

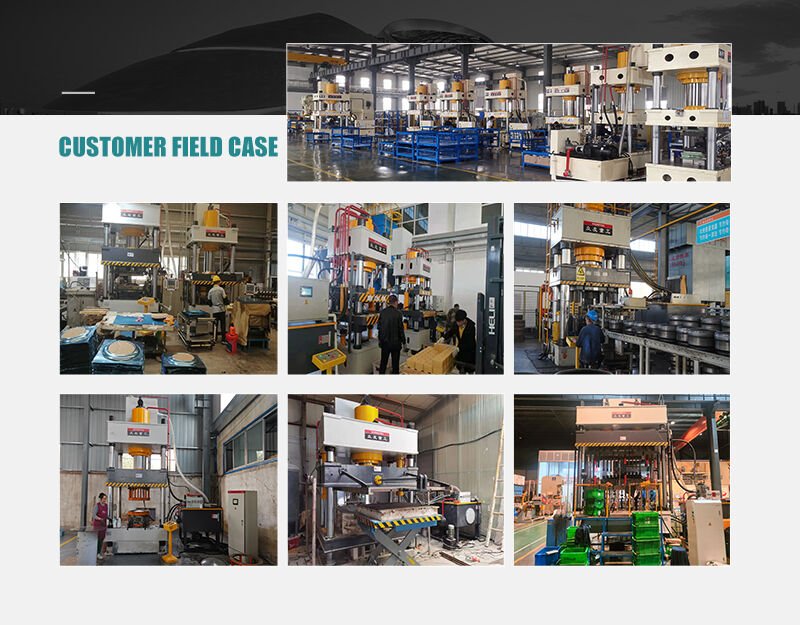

We offer a full range of hydraulic press equipment with numerous mature design solutions and successful customer cases. We also support custom services, providing forming molds and corresponding production line equipment for a one-stop service. Feel free to consult us.
