Home / CNC Vertical lathe / CNC Vertical Turning Lathe Automation Line VTL Lathe Machine Manufacturer
|
Place of Origin: |
Tengzhou China |
|
Brand Name: |
Zhongyou |
|
Model Number: |
VTC75 |
|
Certification: |
CE ISO |
|
Minimum Order Quantity: |
1 |
|
Packaging Details: |
The sample includes a hydraulic press and mold. Please contact us for more details. |
|
Delivery Time: |
15-45 day |
|
Payment Terms: |
L/C D/P D/A T/T |
|
Supply Ability: |
50set/m |
Is there a problem? Please contact us to serve you!
Inquiry

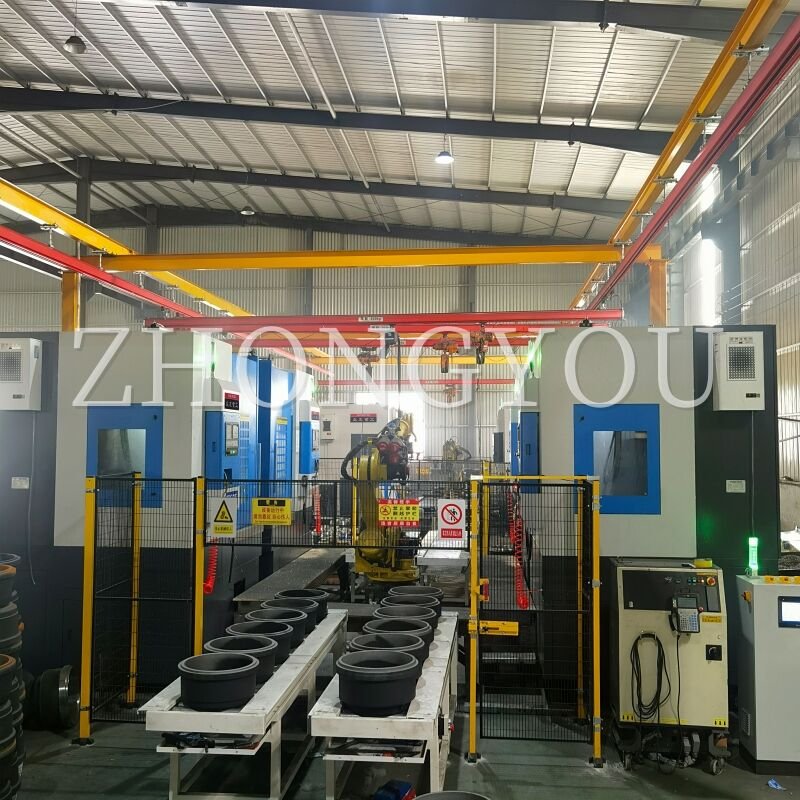

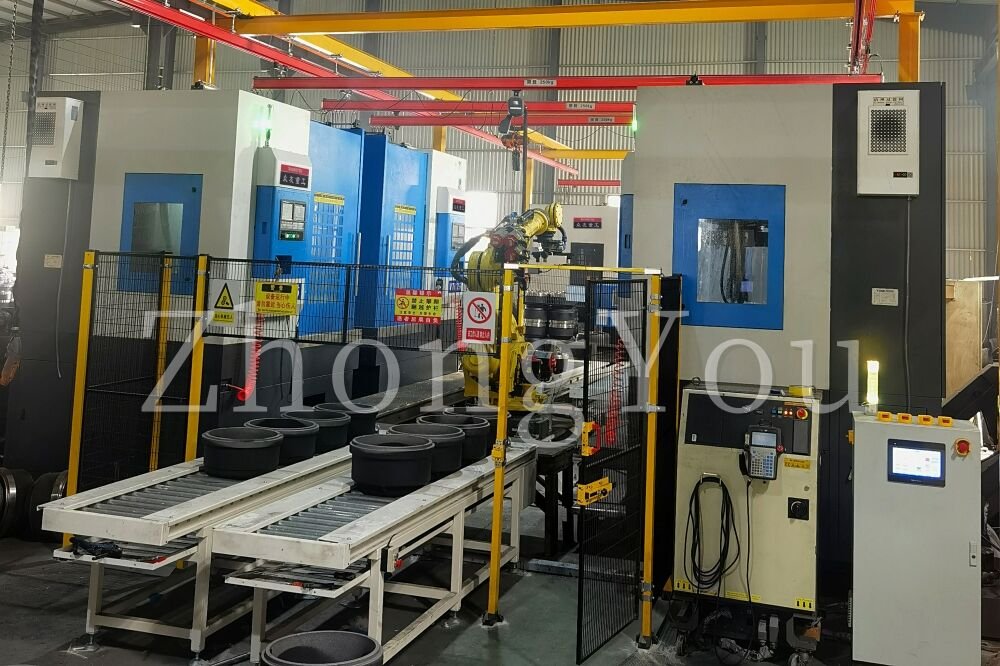

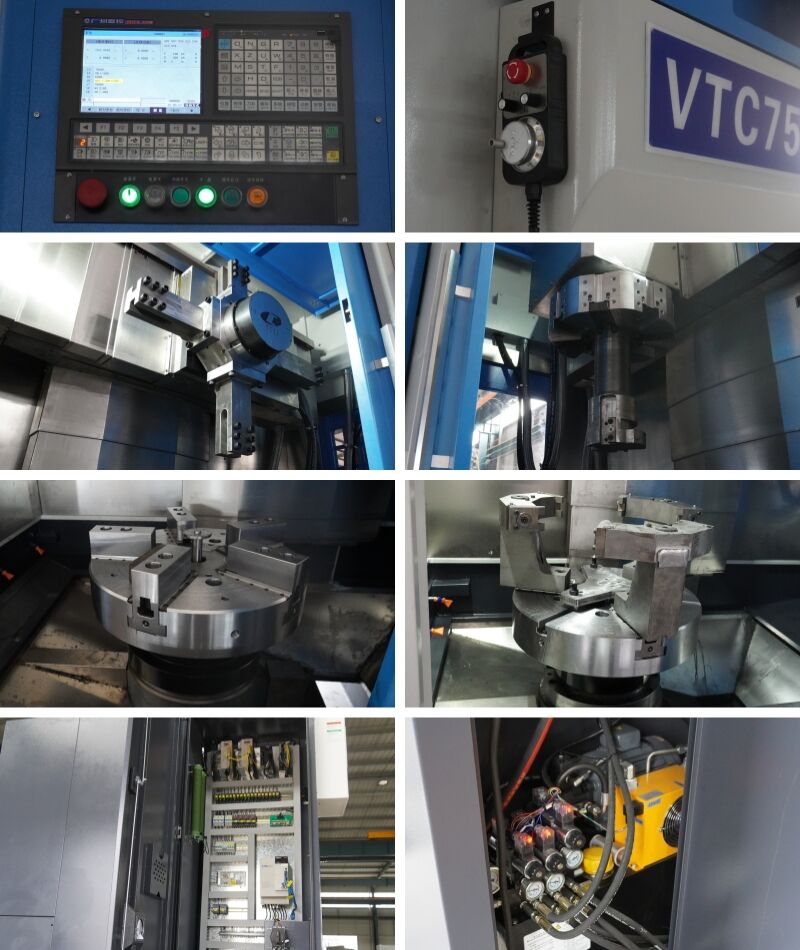

ZHONGYOU CNC Vertical Lathe Manufacturer from China, we are good at providing customers with CNC Vertical Lathe automated production linesfor real high efficiency production. We design and manufacture high-speed and high-precision vertical machining lathes for turning internal and external cylindrical surfaces, conical surfaces, end surfaces, grooves, etc. of various metal workpieces. More machining processes can be realized by setting programs. The precision and roughness requirements of the machined surface can be ensured by precisely controlling the movement trajectory of the tool and cutting parameters.
| Vertical Lathe Parameters | |||||
| Item | Specification | Unit | VT45 | VT65 | VT75 |
| Machining Capacity | Maximum Swing Diameter | mm | ∮560 | ∮650 | ∮750 |
| Maximum Cutting Diameter | mm | ∮450 | ∮600 | ∮700 | |
| Spindle | Spindle End Face Type | Plain | Plain | Plain | |
| Spindle Speed | rpm | 100-2000 | 100-1000 | 100-1000 | |
| Chuck Outer Diameter | mm | 500 | 500 | 610 | |
| Tool Turret | Tool Capacity | pc | Horizontal Eight-Position | Horizontal Eight-Position | Horizontal Eight-Position |
| Travel | X-Axis Travel | mm | 400 | 420 | 700 |
| Z-Axis Travel | mm | 500 | 500 | 700 | |
| Hydraulic Unit | Oil Tank Capacity | L | 40 | 40 | 40 |
| Hydraulic Motor | kw | 2.2 | 2.2 | 2.2 | |
| Motor | Spindle Servo Motor | kw | 15 | 18.5 | 22 |
| Accuracy | Repetition Accuracy | mm | ±0.008 | ±0.005 | ±0.005 |
| Positioning Accuracy | mm | ±0.008 | ±0.008 | ±0.008 | |
| Machine Dimensions (LWH) | Length Width Height | mm | 2200*2300*2600 | 2150*2210*2970 | 2700*2100*3200 |
| Weight (Including Accessories) | kg | 5000 | 7000 | 9500 | |
| Power Requirements | Power Supply | 3￠-AC 380V 50HZ±5% | |||
| The machine has leakage protection and power-off protection | √ | ||||
| Machine Work Status Indicator (Three-Color Light) | √ | ||||
| The machine operates stably under the following conditions | Ambient Temperature 5～38° | ||||
| bient Humidity＜85% | |||||
| Machine Noise Complies with National Standards | √ | ||||
| Remarks | ☆The equipment uses fully enclosed protection; the protective devices are safe and reliable, and should comply with GB15760-1995 General Technical Regulations for Safety Protection of Metal Cutting Machine Tools. ☆Various hydraulic, pneumatic, and water pipe directions are marked, along with the working range of various instruments and the medium type. ☆The diameter of the hydraulic chuck and the tool turret positions can be selected according to machining requirements. |
||||
Vertical lathes are primarily used for machining large, short, heavy workpieces' external cylindrical surfaces, end faces, conical surfaces, cylindrical holes, or conical holes. They can also be equipped with auxiliary devices for threading, spherical turning, profiling, milling, and grinding. The primary characteristic of vertical lathes is that the spindle is upright, with the worktable positioned in a horizontal plane. The workpiece is clamped on a large worktable driven by the spindle's rotational motion. Due to the workpiece being mounted on a horizontal worktable, clamping is relatively convenient. The quality of the workpiece and cutting forces are supported by the rotational guide rails between the worktable and base, reducing the load on the spindle and bearings, ensuring stable operation and maintaining machining accuracy over extended periods.
For more information about CNC vertical lathes, please contact us.
