PE helmet hot press molding hydraulic press

Place of Origin:

 Tengzhou China

Brand Name:

Zhongyou

Model Number:

YQ32-315T

Certification:

CE ISO

Minimum Order Quantity:

1

Packaging Details:

The sample includes a hydraulic press and mold. Please contact us for more details.

Delivery Time:

15-45 day

Payment Terms:

L/C D/P D/A T/T

Supply Ability:

50set/m
Get a Quote Contact Us
Is there a problem? Please contact us to serve you!

Is there a problem? Please contact us to serve you!

+86-13563258817
zhongyoupress@foxmail.com
Inquiry

pe helmet hot press molding hydraulic press (1).png

In the process of PE helmet hot compression molding, the hydraulic press is one of the core equipment, its role is to promote the flow of PE resin through the high temperature, high pressure environment and with fibers (such as fiberglass, aramid) or filler uniform composite, and ultimately molded into a helmet shell with high resistance to impact. The final molding is a helmet shell with high impact resistance.

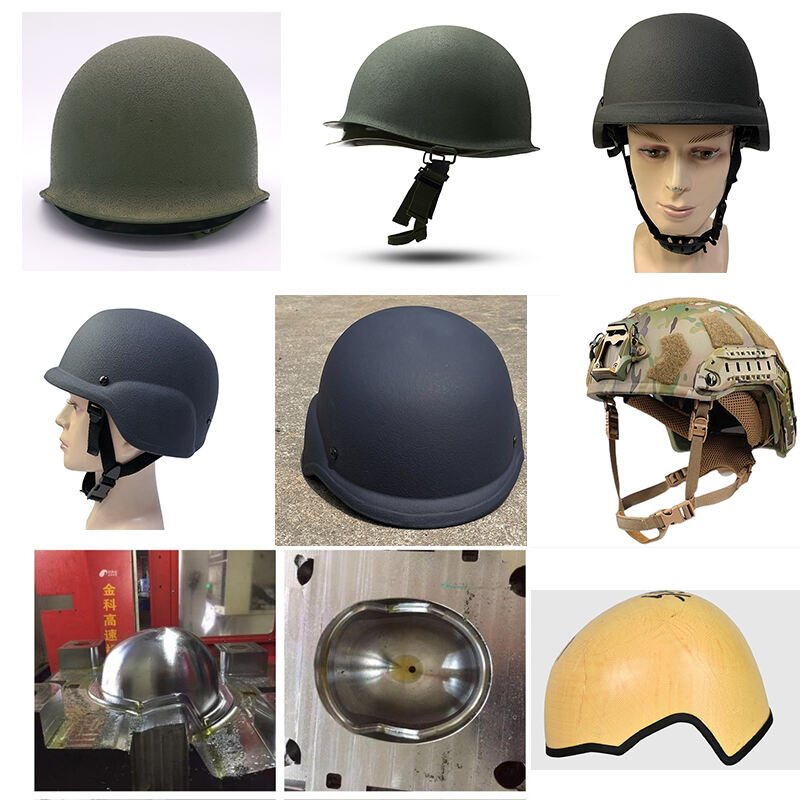

pe helmet hot press molding hydraulic press (6).jpg

Bulletproof helmet molding hydraulic press is widely used in military, police equipment and civil protection fields, typical applications include:
Military bulletproof helmets: using Kevlar or aramid fiber composite materials, with 500 tons of hydraulic press molding, to meet the NIJ standard ⅢA level bulletproof requirements.
Police riot helmet: using PE material hot press molding, equipment pressure 200-315 tons, taking into account the performance of bulletproof and impact resistance.
Titanium alloy lightweight helmet: through the cold-drawing molding process, the equipment needs to support two times stretching, the weight of the finished product is 30% lower than the traditional helmet.

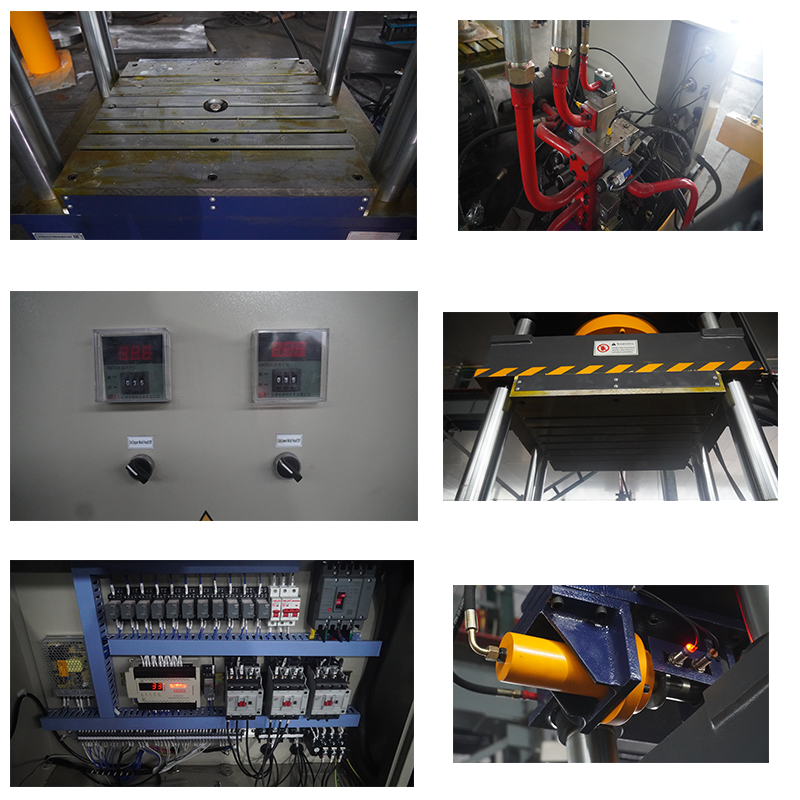

PE helmet hot press molding hydraulic press.png

Three beams and four columns design: Good rigidity: made of high-strength alloy steel, strong resistance to partial load, suitable for convex bag helmet molding to avoid local cracking. High precision: four-column guiding structure with professional cylinder sealing element ensures smooth movement of the slider and small error of product thickness uniformity. Optimized hydraulic system: Servo control: servo motor driven cartridge valve integrated system, reliable action, high cleanliness, low leakage rate, pressure fluctuation ≤ ±1%. Energy saving and high efficiency: Compared with the traditional hydraulic press, the energy consumption is reduced by 20%-30%, and the production efficiency is increased by 15%-20%.


We offer comprehensive after-sales services, including installation, commissioning, and operation training; providing hydraulic press user manuals to facilitate user learning on how to operate and maintain the hydraulic press.
We offer a full range of hydraulic press equipment, with numerous mature design solutions and successful customer cases. Custom services are also available, providing forming molds and corresponding production line equipment, offering one-stop service. Welcome to consult with us.  丁庄_07.jpg丁庄_06.jpg丁庄_02.jpg
