Home / Water tank making press machine / Stainless Steel Water Tank Making Hydraulic Press Machine
|
Place of Origin: |
Tengzhou China |
|
Brand Name: |
Zhongyou |
|
Model Number: |
YQ32-800T |
|
Certification: |
CE ISO |
|
Minimum Order Quantity: |
1 |
|
Packaging Details: |
The sample includes a hydraulic press and mold. Please contact us for more details. |
|
Delivery Time: |
15-45 day |
|
Payment Terms: |
L/C D/P D/A T/T |
|
Supply Ability: |
50set/m |

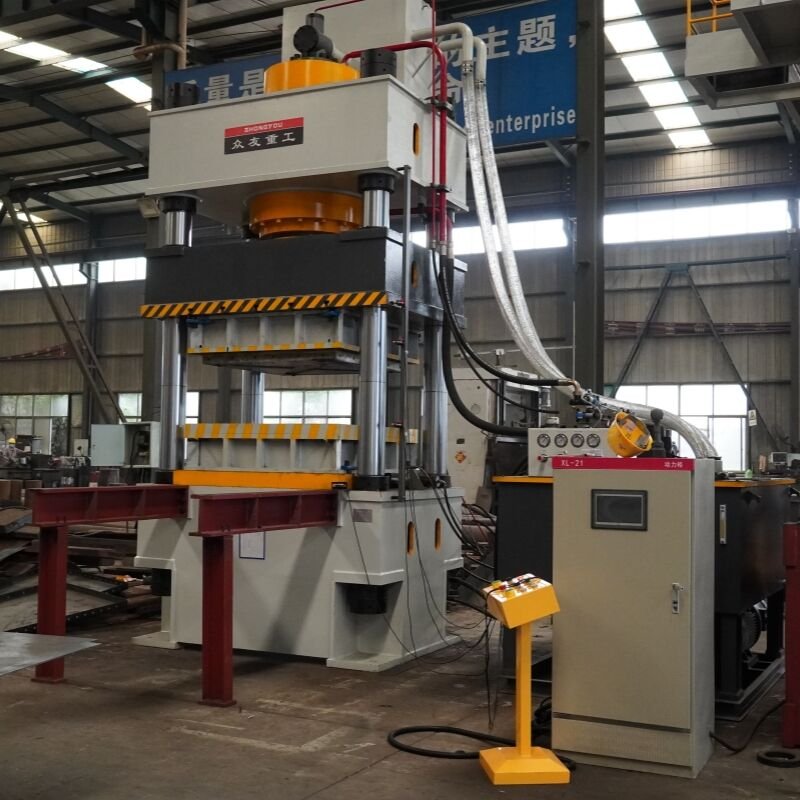

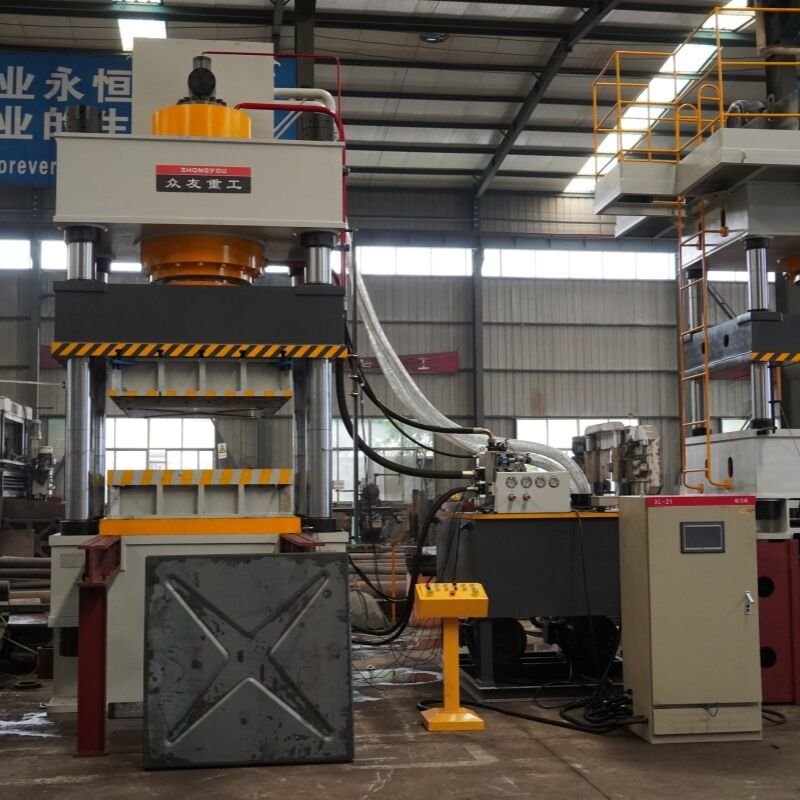

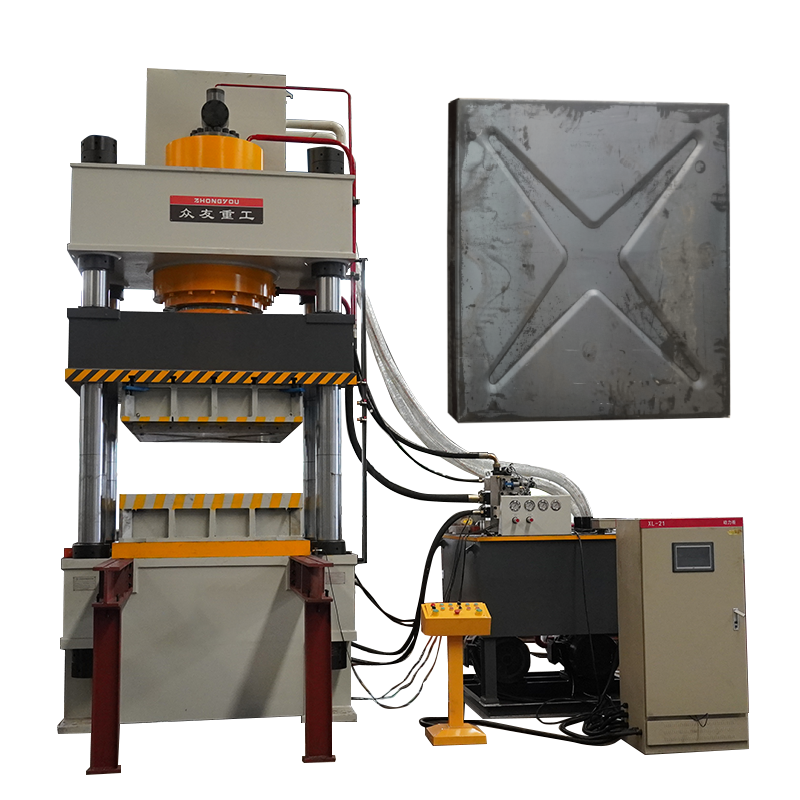

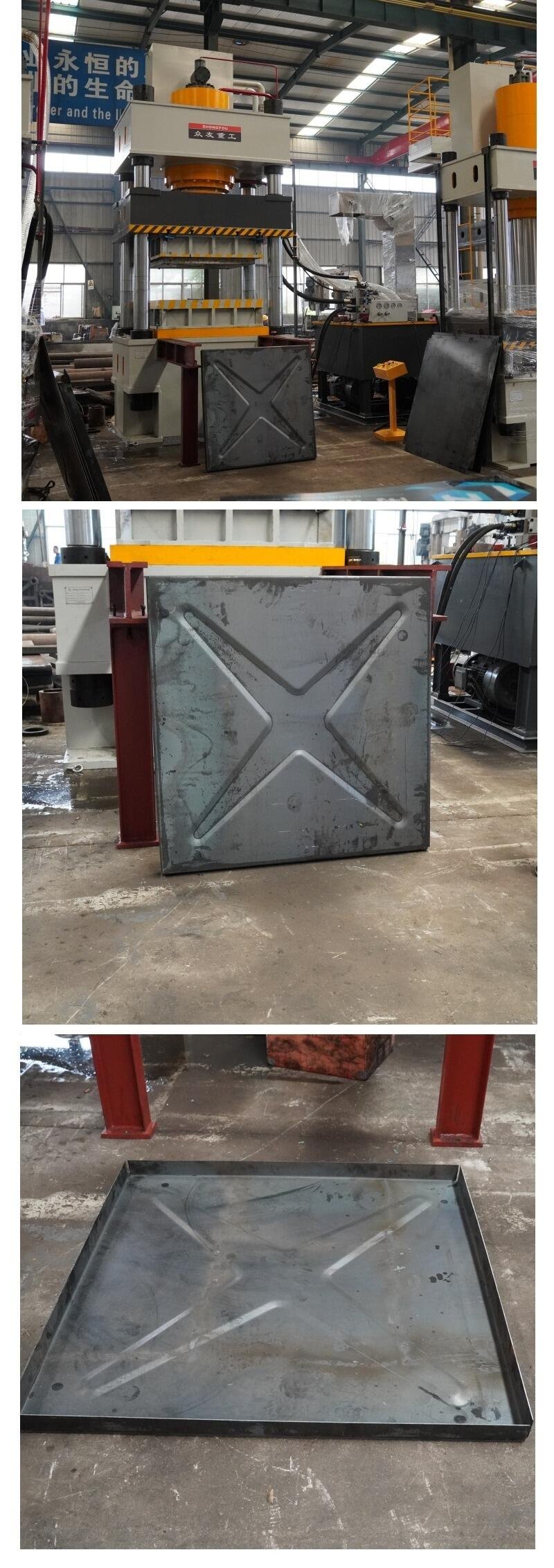

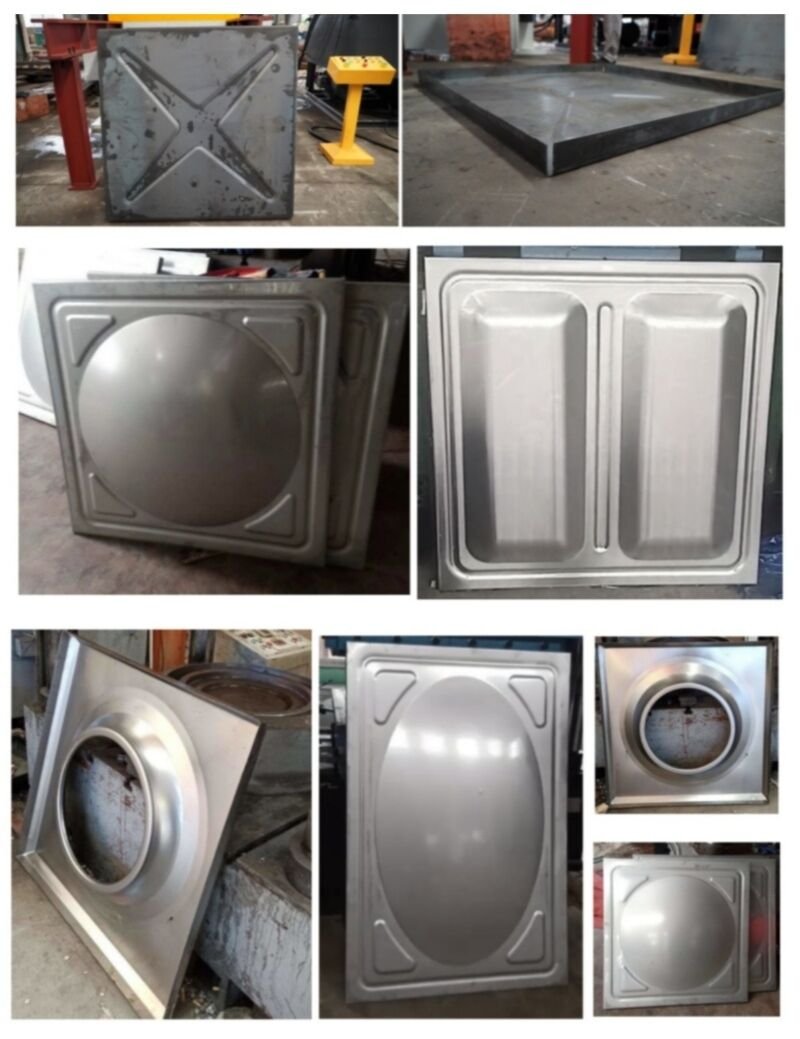

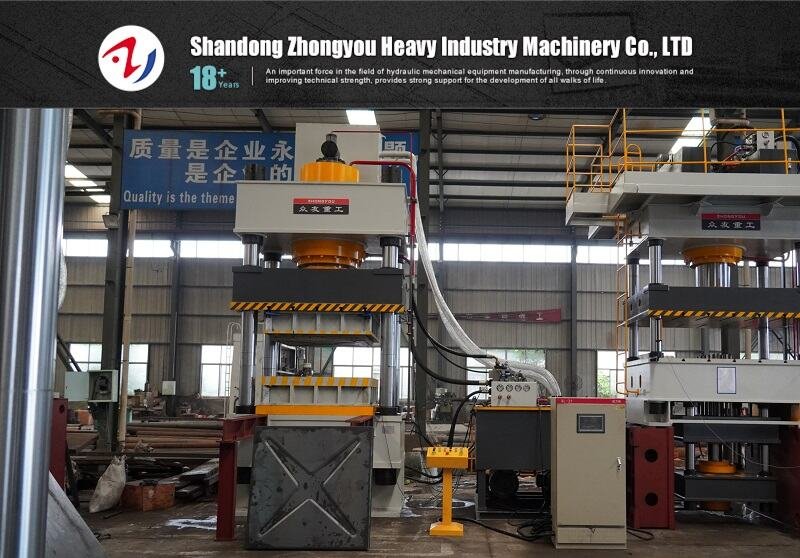

This is a hydraulic press used for the manufacturing of stainless steel water tanks, with a pressure of 800 tons. If you need a more powerful pressure, we can also provide it for you. This hydraulic press is equipped with a servo system, which enables higher pressing accuracy. It can press water tanks of different specifications by adjusting the program.Whether it’s an underground water tank, a stainless steel water tank or a galvanised steel water tank, it can complete the pressing task excellently.
YQ32 Technical Parameters | ||||||||
| Unit | YQ32—63 | YQ32—100A | YQ32—100B | YQ32—200A | YQ32—200B | YQ32—315A | YQ32—315B |
Nominal force | KN | 630 | 1000 | 1000 | 2000 | 2000 | 3150 | 3150 |
Maximun system pressure | Mpa | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
Max.open height | mm | 700 | 800 | 900 | 900 | 1100 | 1000 | 1250 |
Max Stroke of Slider | mm | 400 | 500 | 600 | 600 | 700 | 600 | 800 |
Effective table size | mm | 610×500 | 630×550 | 750×700 | 800×800 | 1000×1000 | 800×800 | 1260×1160 |
Down speed | mm/s | 100 | 100 | 100 | 100 | 100 | 100 | 100 |
Pressing speed | mm/s | 11～22 | 7～15 | 7～15 | 7～18 | 7～18 | 7～12 | 7～12 |
Return speed | mm/s | 80 | 90 | 90 | 90 | 90 | 90 | 100 |
Ejection cylinder force | KN | 100 | 200 | 200 | 400 | 400 | 630 | 630 |
Stroke of ejection cylinder | mm | 160 | 200 | 200 | 200 | 200 | 300 | 300 |
|
|
|
|
|
|
|
|
|
| Unit | YQ32—400 | YQ32—500 | YQ32—630 | YQ32—800 | YQ32—1000 | YQ32—1250 | YQ32—1600 |
Nominal force | KN | 4000 | 5000 | 6300 | 8000 | 10000 | 12500 | 16000 |
Maximun system pressure | Mpa | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
Max.open height | mm | 1250 | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 |
Max Stroke of Slider | mm | 800 | 900 | 900 | 900 | 900 | 900 | 900 |
Effective table size | mm | 1260×1160 | 1400×1400 | 1500×1500 | 1600×1600 | 1600×1600 | 1600×1600 | 1600×1600 |
Down speed | mm/s | 100 | 150 | 150 | 180 | 180 | 180 | 190 |
Pressing speed | mm/s | 5～11 | 10～18 | 9～18 | 9～18 | 10～18 | 6～15 | 6～14 |
Return speed | mm/s | 100 | 180 | 200 | 180 | 220 | 200 | 220 |
Ejection cylinder force | KN | 630 | 1000 | 1000 | 1000 | 1000 | 1000 | 1600 |
Stroke of ejection cylinder | mm | 300 | 300 | 300 | 300 | 300 | 300 | 300 |
The above parameter table is for reference only. We can provide you with specially customized models.

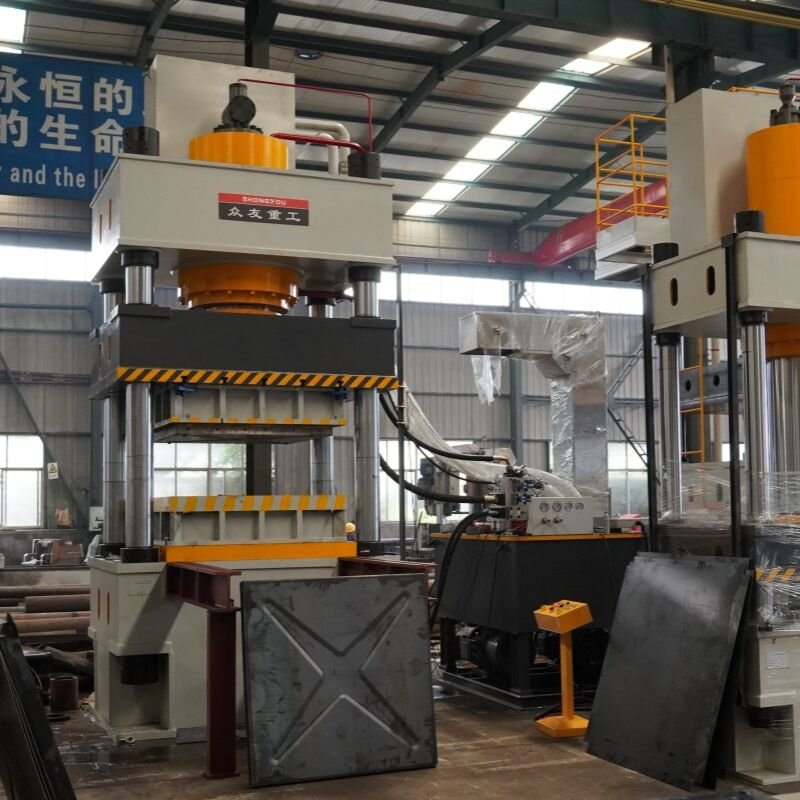

We have installed molds and guide rails for the hydraulic press. The molds can move in and out along the guide rails, which facilitates the operation.

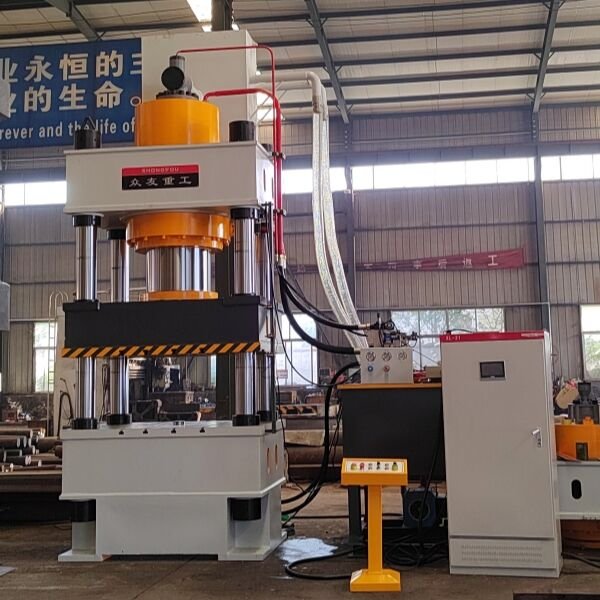

Three beams and four columns structure, stable structure, high precision, spacious operating space.
The guide rail is installed, and the mold can enter and exit along the guide rail, which is easy to operate
The hydraulic system uses advanced cartridge-type integrated valves, and the electrical system uses branded components to achieve high-precision pressing, reliable quality, and convenient maintenance.
Equipped with a servo system, it saves power, makes less noise, and has higher pressing accuracy.
Adjustable parameters include pressure, stroke, and holding time.
Simple button control for easy operation.
Scientifically designed, simple structure, easy to maintain.
We provide comprehensive after-sales service including equipment installation, debugging, and operation training. We offer a hydraulic press user manual for convenient operation and maintenance.
We offer a full range of hydraulic press equipment with numerous mature design solutions and successful customer cases. We also support custom services, providing forming molds and corresponding production line equipment for a one-stop service. Feel free to consult us.
