Home / CNC Vertical lathe / vertical turret lathe for sale
|
Place of Origin: |
Tengzhou China |
|
Brand Name: |
Zhongyou |
|
Model Number: |
VTC75 |
|
Certification: |
CE ISO |
|
Minimum Order Quantity: |
1 |
|
Packaging Details: |

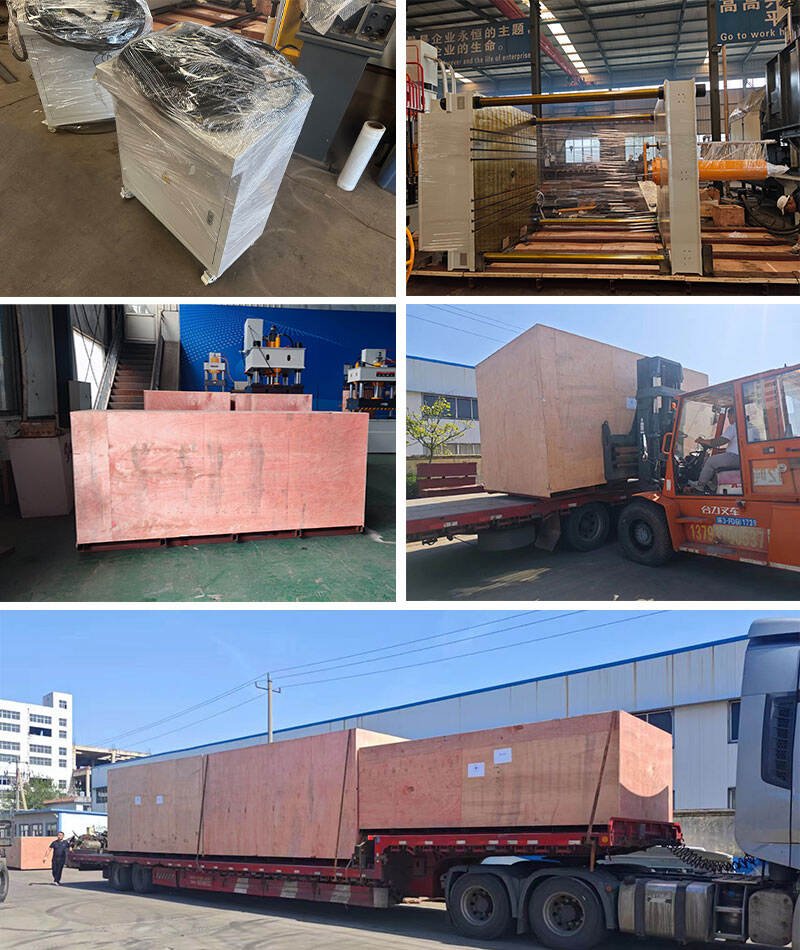

The sample includes a hydraulic press and mold. Please contact us for more details. |
|
Delivery Time: |
15-45 day |
|
Payment Terms: |
L/C D/P D/A T/T |
|
Supply Ability: |
50set/m |

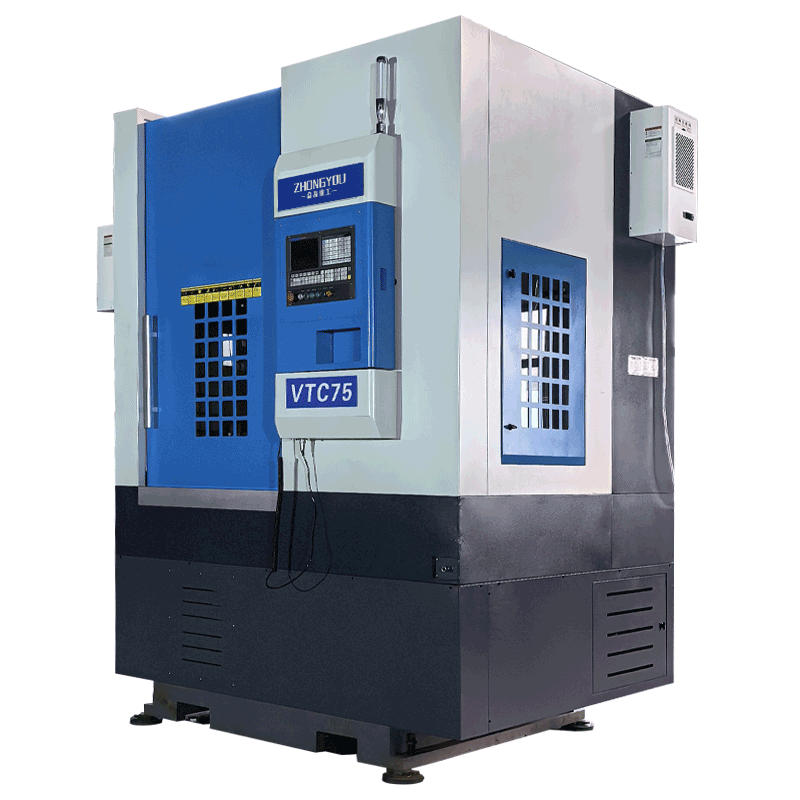

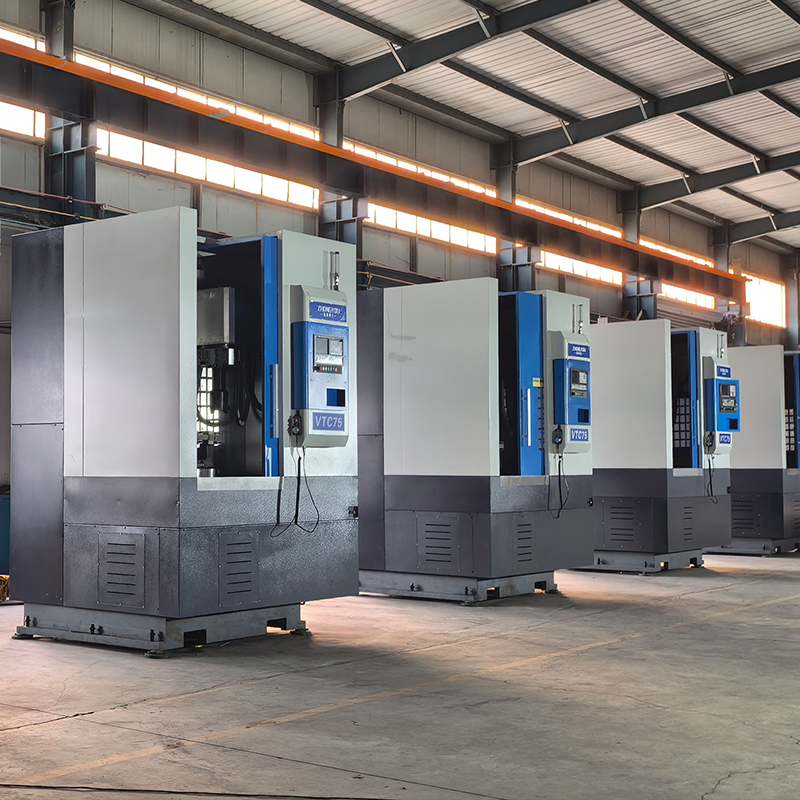

The VTC75 CNC vertical lathe is a high-precision CNC machine tool specifically designed for machining large disk-shaped and ring-shaped parts.
| specifications | unit | VT45 | VT65 | VT75 | VTS525 | VTS527 |
| Max.rotating diameter | mm | ∮560 | ∮650 | ∮750 | ∮750 | ∮750 |
| Max.turning diameter of workpiece | mm | ∮450 | ∮600 | ∮700 | ∮550 | ∮700 |
| Spindle end face form | Straight | Straight | Straight | Straight | Straight | |
| Spindle speed | rpm | 3000 | 100-1000 | 50-1500 | 50-1000 | 500-1000 |
| Hydraulic chuck diameter | mm | 500 | 500 | 630 | 500 | 630 |
| Tool post type | pcs | eight-station | eight-station | eight-station | eight-station | eight-station |
| Tool shank diameter | mm | 32 | 32 | 32 | 32 | 32 |
| Inner diameter tool holder | mm | ∮40 | ∮40 | ∮50 | ∮50 | |
| Center tool holder | mm | 160 | ||||
| X axis travel | mm | 400 | 450 | 700 | 280 | 450 |
| Z axis travel | mm | 500 | 600 | 700 | 500 | 700 |
| Oil tank capacity | L | 50 | 50 | 50 | 50 | 50 |
| Oil pressure motor | kw | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 |
| Water Capacity | L | 180 | 200 | 200 | 200 | 200 |
| Rotating water motor | w | 250 | 450 | 450 | 450 | 450 |
| Flush motor | kw | 250 | 450 | 450 | 450 | 450 |
| X axis servo motor torque | NM | 12 | 18 | 18 | 15 | 15 |
| Z axis servo motor torque | NM | 22 | 30 | 18 | 15 | 15 |
| Main Servo motor power | kw | 11/15 | 18.5 | 22 | 18.5 | 22 |
| Repeat positioning accuracy | mm | ±0.005 | ±0.005 | ±0.005 | ±0.005 | ±0.005 |
| Positioning accuracy | mm | ±0.008 | ±0.008 | ±0.008 | ±0.008 | ±0.008 |
| Dimension | mm | 1700X1880X2500 | 2000X1950X3000 | 2450X1900X3200 | 3000X2400X2700 | 3200X2400X3200 |
| Weight | kg | 5500 | 8000 | 9500 | 7000 | 9000 |
| Voltage | 3￠-AC 380V 50Hz±5% | 3￠-AC 380V 50Hz±5% | 3￠-AC 380V 50Hz±5% | 3￠-AC 380V 50Hz±5% | 3￠-AC 380V 50Hz±5% | |
| Electricity Leakage/outage protection | √ | √ | √ | √ | √ | |
| Three-color light indication | √ | √ | √ | √ | √ | |
| Long-term stable working conditions | environment Temperature 5～38°, humidity <85％ | environment Temperature 5～38°, humidity <85％ | environment Temperature 5～38°, humidity <85％ | environment Temperature 5～38°, humidity <85％ | environment Temperature 5～38°, humidity <85％ | |
| Noise meets national standards | √ | √ | √ | √ | √ | |
| ☆The equipment adopts fully enclosed protection, and the protective device is safe and reliable and should comply with GB15760-1995 General Technical Regulations on Safety Protection of Metal Cutting Machine Tools. ☆Equipped with various hydraulic, gas and water pipeline direction signs, marking the working range of various instruments, and marking the grade of the medium used. ☆The diameter of the hydraulic chuck and the tool holder station can be selected according to the processing requirements. | ||||||

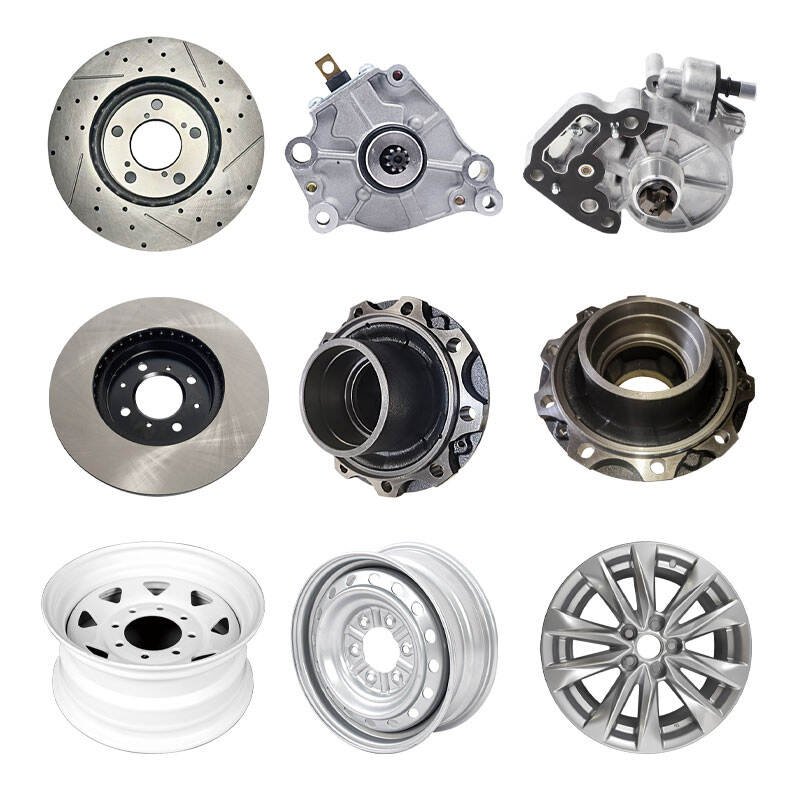

Automotive Manufacturing: Machining disc-shaped parts such as wheel hubs, brake drums, and flywheel housings.
Energy Equipment: Machining large ring-shaped parts (such as wind turbine flanges and nuclear power equipment components).
Aerospace: Machining high-precision disc-shaped structural components (such as aircraft engine discs).
Heavy Machinery: Machining heavy-duty parts such as large gearbox housings and differential housings.
Automotive Manufacturing: Machining disc-shaped parts such as wheel hubs, brake drums, and flywheel housings.
Energy Equipment: Machining large ring-shaped parts (such as wind turbine flanges and nuclear power equipment components).
Aerospace: Machining high-precision disc-shaped structural components (such as aircraft engine discs).
Heavy Machinery: Machining heavy-duty parts such as large gearbox housings and differential housings.

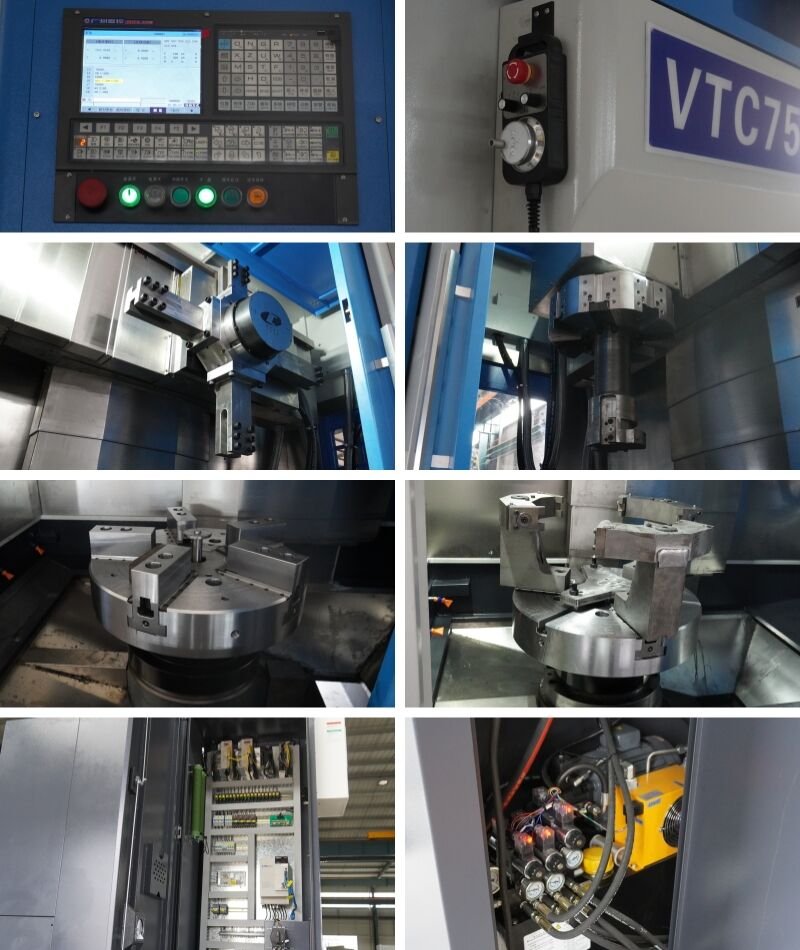

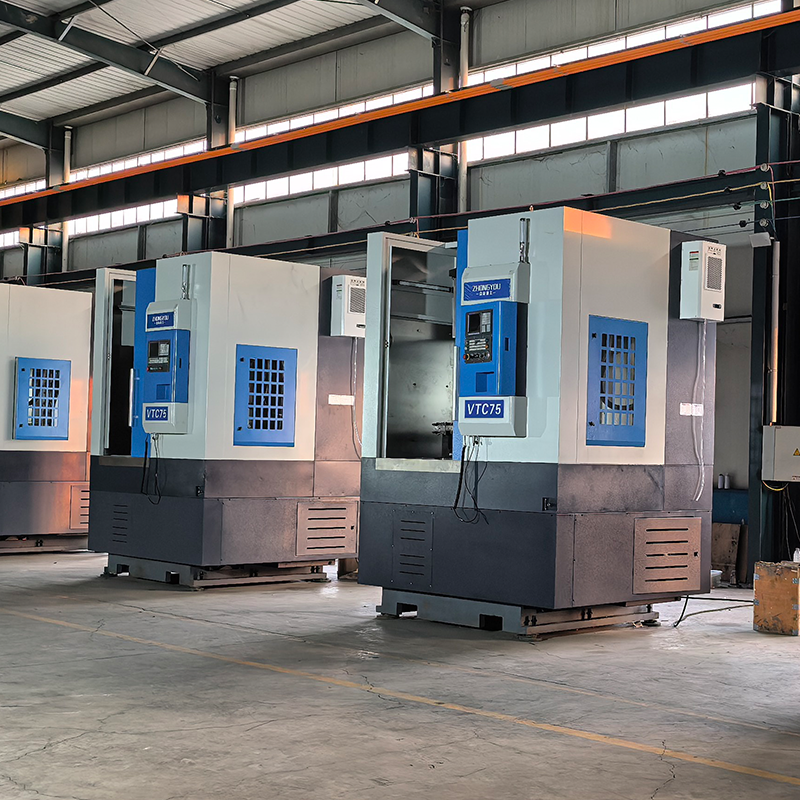

The machine bed and column feature a high-rigidity design made of high-strength cast iron, combined with a ribbed structure, ensuring excellent vibration resistance. The tool holder utilizes a powered turret, offering high rigidity and fast, reliable tool changes.
High-efficiency machining capabilities support combined turning, milling, drilling, and grinding operations (such as vertical internal grinding and integrated turning-grinding). Equipped with a 6-station vertical electric tool turret, it reduces tool change time and enhances production efficiency.
Stability and precision are ensured by the spindle, which features fully enclosed lubrication with imported high-grade grease and a maintenance-free design. The X and Z axes utilize high-precision ball screws and specialized bearings to ensure long-term precision stability.
We offer comprehensive after-sales services, including installation, commissioning, and operation training; providing hydraulic press user manuals to facilitate user learning on how to operate and maintain the hydraulic press.
We provide a full set of hydraulic press equipment and CNC vertical lathe, with many mature design solutions and successful customer cases. We can also provide customized service, provide molding tooling and corresponding production line equipment, providing one-stop service for customers. Welcome to call us for consultation.
