Home / Composite material press / 1000 Ton Rubber Press Machine Hot Hydraulic Press Machine
|
Place of Origin: |
Tengzhou China |
|
Brand Name: |
Zhongyou |
|
Model Number: |
YQ32-1000T |
|
Certification: |
CE ISO |
|
Minimum Order Quantity: |
1 |
|
Packaging Details: |
The sample includes a hydraulic press and mold. Please contact us for more details. |
|
Delivery Time: |
15-45 day |
|
Payment Terms: |
L/C D/P D/A T/T |
|
Supply Ability: |
50set/m |
Is there a problem? Please contact us to serve you!
Inquiry

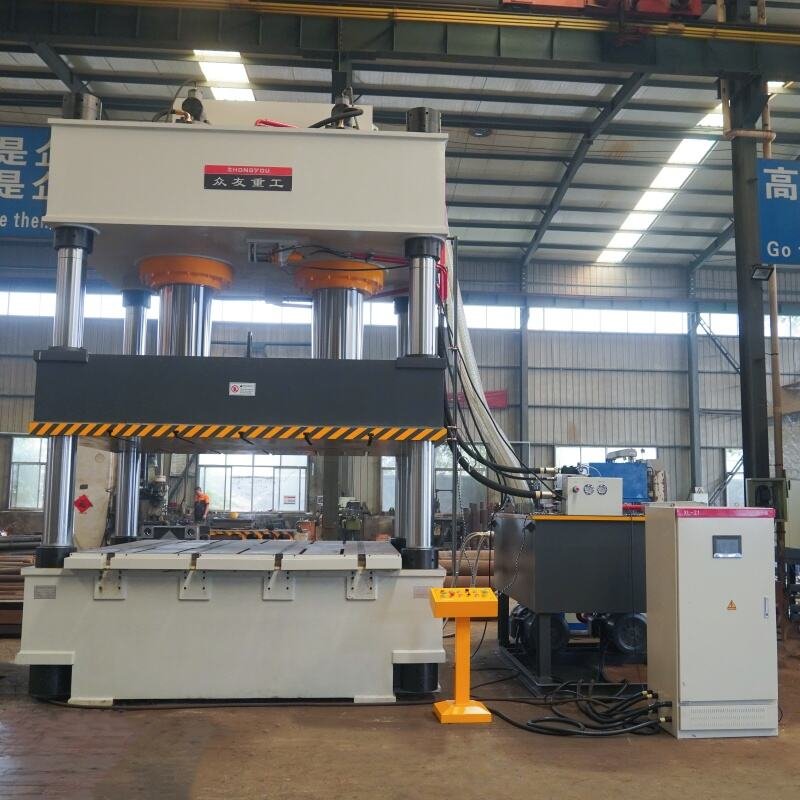

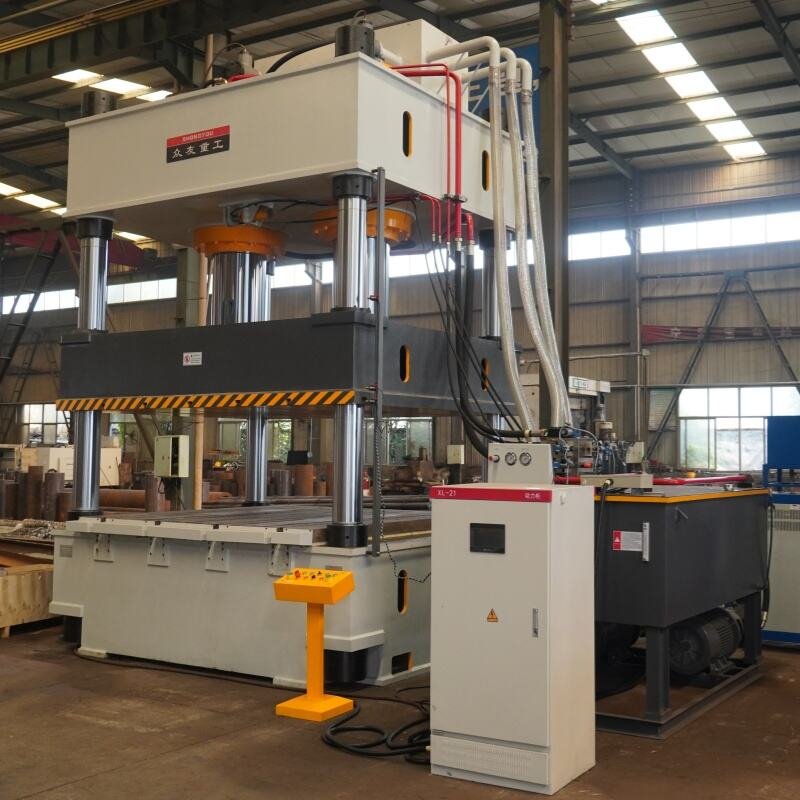

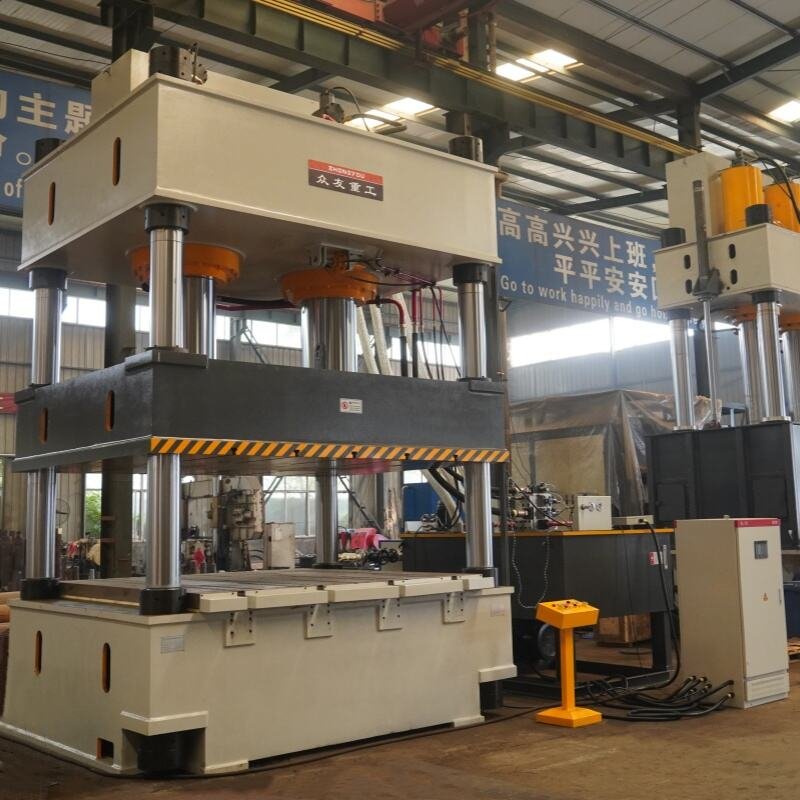

Zhongyou 1000 tonne four column hot hydraulic press is used for pressing rubber products, as well as other composite materials for hot press moulding.The machine has a large size working table, suitable for pressing large scale products.The double hydraulic cylinders are designed for more balanced pressure distribution.We have equipped the machine with slide rails for moving moulds.The control system is installed with PLC programmable controller to help the machine set up different pressing programmes and adapt to more different pressing processes.
|
YQ32 Technical Parameters |
||||||||
|
|
Unit |
YQ32—63 |
YQ32—100A |
YQ32—100B |
YQ32—200A |
YQ32—200B |
YQ32—315A |
YQ32—315B |
|
Nominal force |
KN |
630 |
1000 |
1000 |
2000 |
2000 |
3150 |
3150 |
|
Maximun system pressure |
Mpa |
25 |
25 |
25 |
25 |
25 |
25 |
25 |
|
Max.open height |
mm |
700 |
800 |
900 |
900 |
1100 |
1000 |
1250 |
|
Max Stroke of Slider |
mm |
400 |
500 |
600 |
600 |
700 |
600 |
800 |
|
Effective table size |
mm |
610×500 |
630×550 |
750×700 |
800×800 |
1000×1000 |
800×800 |
1260×1160 |
|
Down speed |
mm/s |
100 |
100 |
100 |
100 |
100 |
100 |
100 |
|
Pressing speed |
mm/s |
11～22 |
7～15 |
7～15 |
7～18 |
7～18 |
7～12 |
7～12 |
|
Return speed |
mm/s |
80 |
90 |
90 |
90 |
90 |
90 |
100 |
|
Ejection cylinder force |
KN |
100 |
200 |
200 |
400 |
400 |
630 |
630 |
|
Stroke of ejection cylinder |
mm |
160 |
200 |
200 |
200 |
200 |
300 |
300 |
|
|
|
|
|
|
|
|
|
|
|
|
Unit |
YQ32—400 |
YQ32—500 |
YQ32—630 |
YQ32—800 |
YQ32—1000 |
YQ32—1250 |
YQ32—1600 |
|
Nominal force |
KN |
4000 |
5000 |
6300 |
8000 |
10000 |
12500 |
16000 |
|
Maximun system pressure |
Mpa |
25 |
25 |
25 |
25 |
25 |
25 |
25 |
|
Max.open height |
mm |
1250 |
1500 |
1500 |
1500 |
1500 |
1500 |
1500 |
|
Max Stroke of Slider |
mm |
800 |
900 |
900 |
900 |
900 |
900 |
900 |
|
Effective table size |
mm |
1260×1160 |
1400×1400 |
1500×1500 |
1600×1600 |
1600×1600 |
1600×1600 |
1600×1600 |
|
Down speed |
mm/s |
100 |
150 |
150 |
180 |
180 |
180 |
190 |
|
Pressing speed |
mm/s |
5～11 |
10～18 |
9～18 |
9～18 |
10～18 |
6～15 |
6～14 |
|
Return speed |
mm/s |
100 |
180 |
200 |
180 |
220 |
200 |
220 |
|
Ejection cylinder force |
KN |
630 |
1000 |
1000 |
1000 |
1000 |
1000 |
1600 |
|
Stroke of ejection cylinder |
mm |
300 |
300 |
300 |
300 |
300 |
300 |
300 |
Suitable for hot pressing of various composite materials: rubber, FRP, SMC, BMC, resin, carbon fibre, plastic, Kevlar, etc.
1.Three-beam, four-column structure: Provides stable structure, high precision, and ample operational space.
2.Advanced hydraulic system: Features integrated cartridge valves, and the electrical system uses brand-name components for high-precision pressing, reliable quality, and easy maintenance.

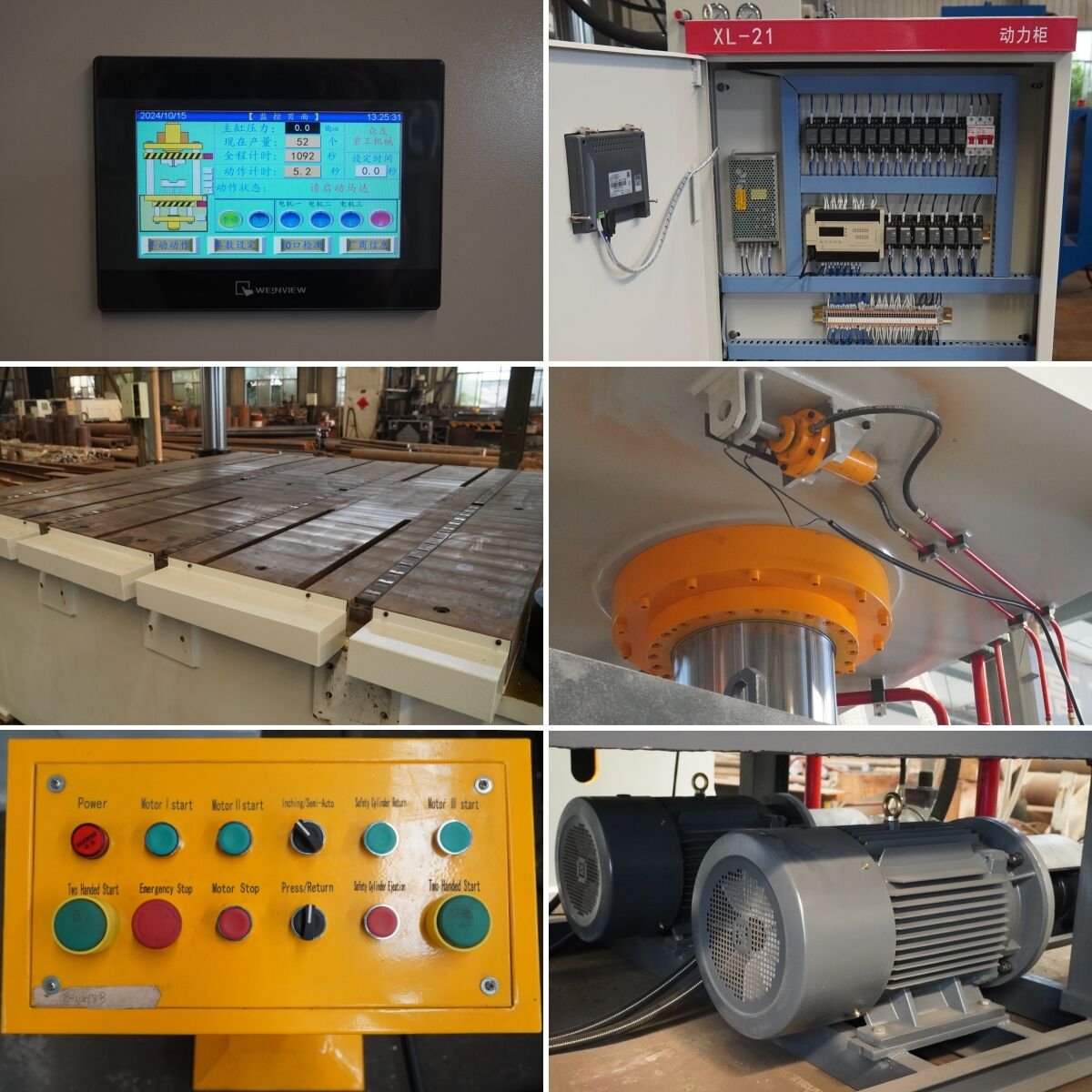

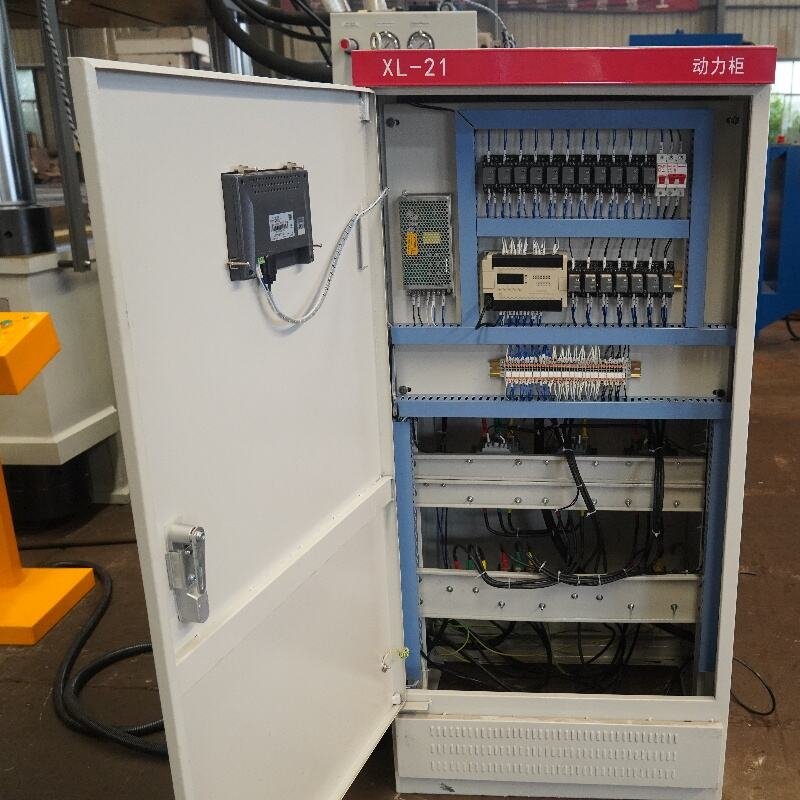

3.Equipped with a PLC (Programmable Logic Controller) and a temperature controller：it can precisely control the pressing accuracy and the mold temperature.
4.Button control: Simple to operate.
5.Adjustable parameters: Pressure, stroke, and holding time can be adjusted.
6.Scientific design: Simple structure, easy to maintain.
