    1250-Ton BMC SMC FRP Composite Material Hot Press Hydraulic Machine

    Place of Origin:

     Tengzhou China

    Brand Name:

    Zhongyou

    Model Number:

    YQ32-1250T

    Certification:

    CE ISO

    Minimum Order Quantity:

    1

    Packaging Details:

    The sample includes a hydraulic press and mold. Please contact us for more details.

    Delivery Time:

    15-45 day

    Payment Terms:

    L/C D/P D/A T/T

    Supply Ability:

    50set/m
    Get a Quote Contact Us
    Is there a problem? Please contact us to serve you!

    Is there a problem? Please contact us to serve you!

    +86-13563258817
    [email protected]
    Inquiry

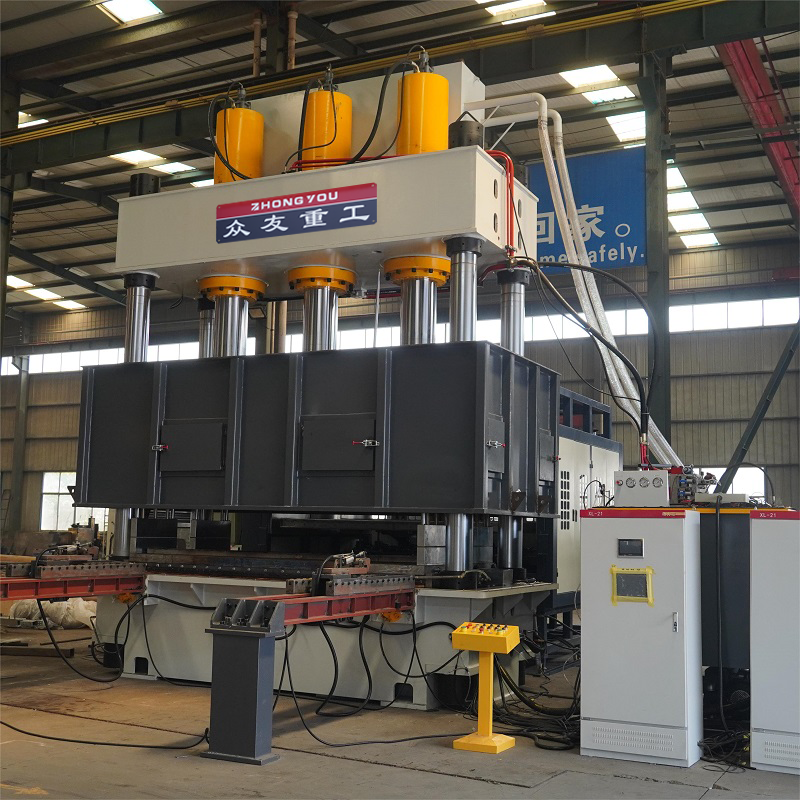

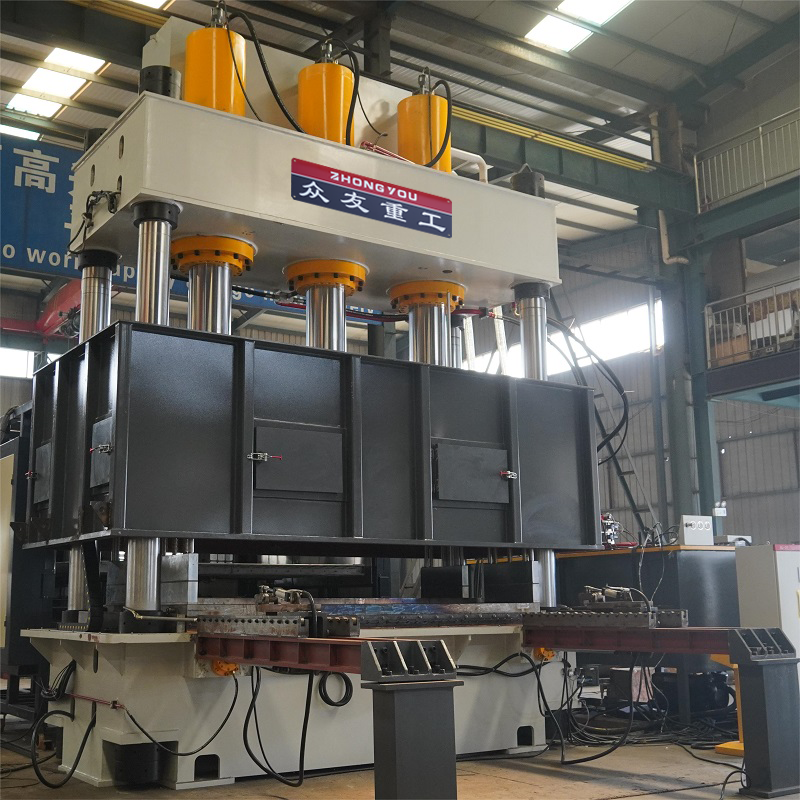

    This machine is a three-beam four-column hydraulic press known for its precision, stability, efficiency, and wide applicability. All systems use branded components, ensuring reliable quality and easy maintenance. The button control system makes operation simple. The four-column hydraulic press has extensive versatility and is suitable for molding various plastic materials.

          Description /Specificati on Unit YQ32—63 YQ32—100A YQ32—100B YQ32—200A YQ32—200B YQ32—315A YQ32—315B YQ32—400
    Nominal force KN 630 1000 1000 2000 2000 3150 3150 4000
    Maximun system pressure Mpa 25 25 25 25 25 25 25 25
    Max.open height mm 700 800 900 900 1100 1000 1250 1250
    Max Stroke of Slider mm 400 500 600 600 700 600 800 800
     Effective table size mm 610×500 630×550 750×700 800×800 1000×1000 800×800 1260×1160 1260×1160
    Down speed mm/s 100 100 100 100 100 100 100 100
    Pressing speed mm/s 11～22 7～15 7～15 7～18 7～18 7～12 7～12 5～11
    Return speed mm/s 80 90 90 90 90 90 100 100
    Ejection cylinder force KN 100 200 200 400 400 630 630 630
    Stroke of ejection cylinder mm 160 200 200 200 200 300 300 300
          Description /Specificati on Unit YQ32—500 YQ32—630 YQ32—800 YQ32—1000 YQ32—1250 YQ32—1600
    Nominal force KN 5000 6300 8000 10000 12500 16000
    Maximun system pressure Mpa 25 25 25 25 25 25
    Max.open height mm 1500 1500 1500 1500 1500 1500
    Max Stroke of Slider mm 900 900 900 900 900 900
    Effective table size mm 1400×1400 1500×1500 1600×1600 1600×1600 1600×1600 1600×1600
    Down speed mm/s 150 150 180 180 180 190
    Pressing speed mm/s 10～18 9～18 9～18 10～18 6～15 6～14
    Return speed mm/s 180 200 180 220 200 220
    Ejection cylinder force KN 1000 1000 1000 1000 1000 1600
    Stroke of ejection cylinder mm 300 300 300 300 300 300
    Hot press molding of fiberglass, carbon fiber, resin, plastic, and various composite materials. We also offer customized hydraulic presses and matching molding dies based on specific needs.
    • Utilizes a three-beam four-column structure, providing stable construction, high precision, and ample operating space.
    • The hydraulic system features advanced cartridge integrated valves, and the electrical system uses branded components to achieve high-precision pressing, reliable quality, and easy maintenance.

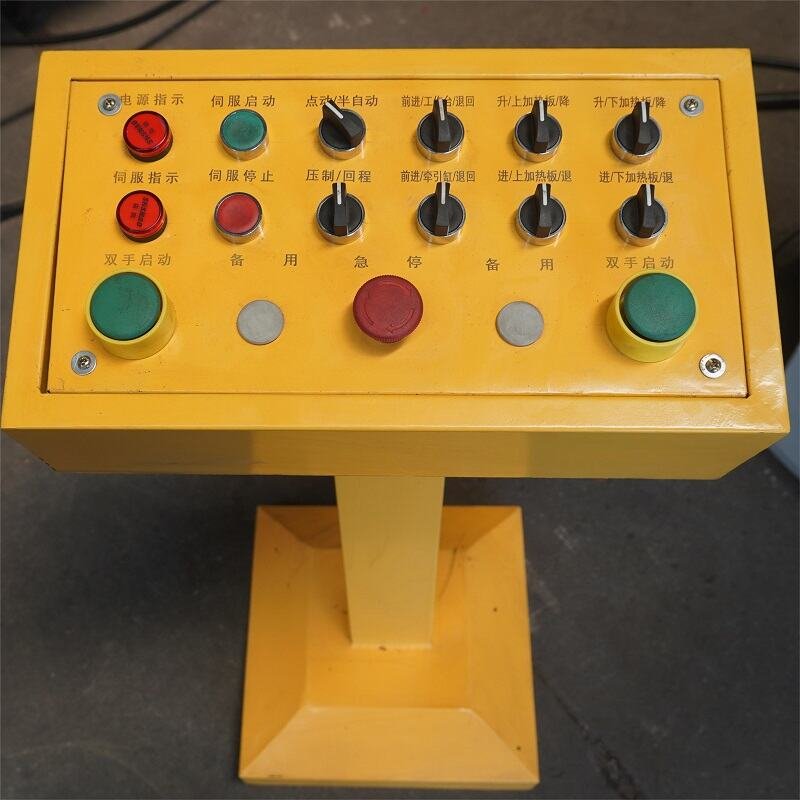

    • Simple button control for easy operation.
    • Adjustable parameters including pressure, stroke, and holding time.
    • Scientifically designed, simple structure, and easy to maintain.
    We provide comprehensive after-sales services, including equipment installation, commissioning, and operation training. We also supply a hydraulic press user manual to assist users in learning how to operate and maintain the machine.
    We offer a full range of hydraulic press equipment with numerous mature design solutions and successful customer cases. Customization services, molding dies, and related production line equipment are also available, providing a one-stop service. Feel free to consult us.
