Home / Composite material press / 315-Ton Multi-Layer Hot Press Forming Hydraulic Press
|
Place of Origin: |
Tengzhou China |
|
Brand Name: |
Zhongyou |
|
Model Number: |
YQ32-315T |
|
Certification: |
CE ISO |
|
Minimum Order Quantity: |
1 |
|
Packaging Details: |
The sample includes a hydraulic press and mold. Please contact us for more details. |
|
Delivery Time: |
15-45 day |
|
Payment Terms: |
L/C D/P D/A T/T |
|
Supply Ability: |
50set/m |
Is there a problem? Please contact us to serve you!

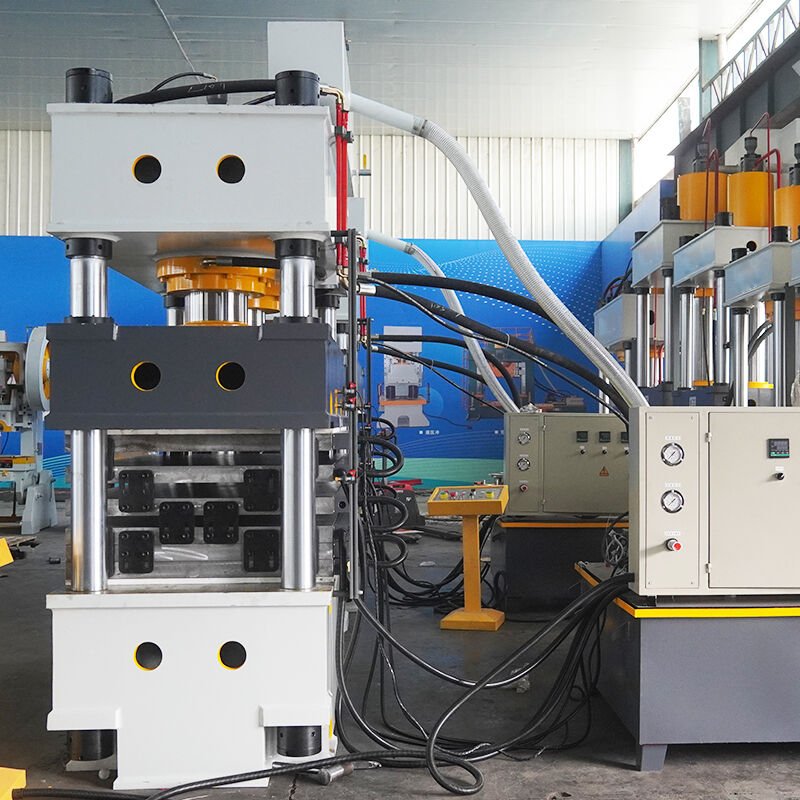

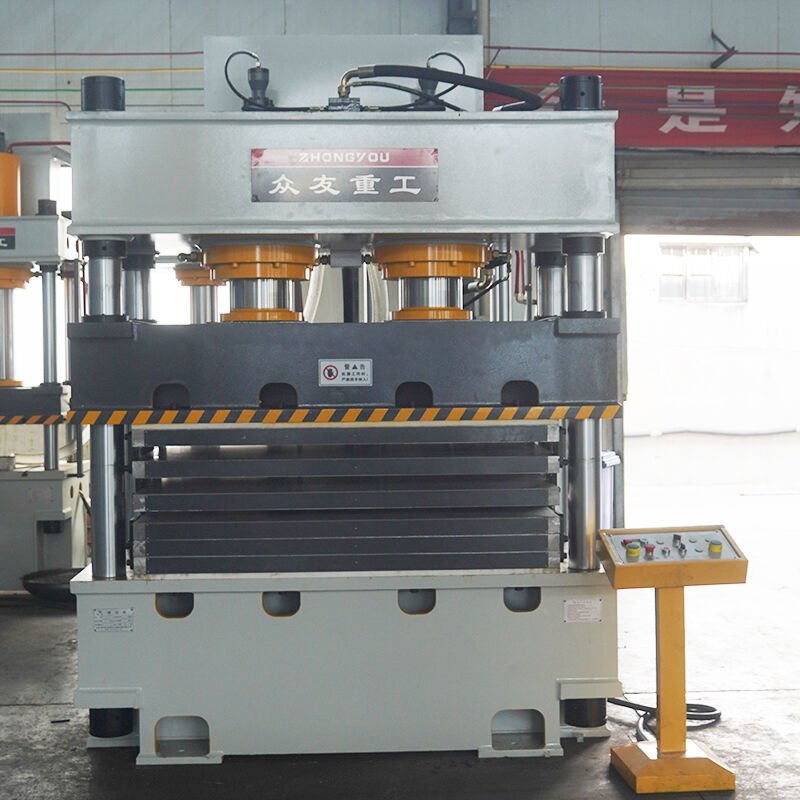

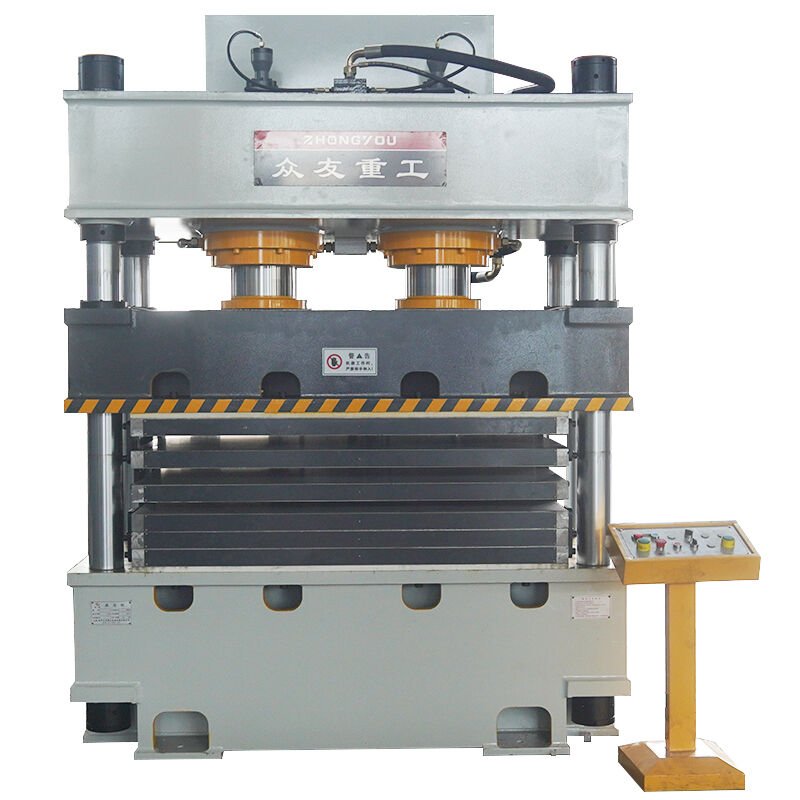

InquiryThis machine is a three-beam, four-column hot press forming hydraulic press characterized by precision, stability, efficiency, and wide applicability. All systems utilize branded components, ensuring reliable quality and easy maintenance. It features button control for straightforward operation. The four-column hydraulic press is highly versatile and suitable for the pressing and forming of various plastic materials.
| Description /Specificati on | Unit | YQ32—63 | YQ32—100A | YQ32—100B | YQ32—200A | YQ32—200B | YQ32—315A | YQ32—315B | YQ32—400 |
| Nominal force | KN | 630 | 1000 | 1000 | 2000 | 2000 | 3150 | 3150 | 4000 |
| Maximun system pressure | Mpa | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| Max.open height | mm | 700 | 800 | 900 | 900 | 1100 | 1000 | 1250 | 1250 |
| Max Stroke of Slider | mm | 400 | 500 | 600 | 600 | 700 | 600 | 800 | 800 |
| Effective table size | mm | 610×500 | 630×550 | 750×700 | 800×800 | 1000×1000 | 800×800 | 1260×1160 | 1260×1160 |
| Down speed | mm/s | 100 | 100 | 100 | 100 | 100 | 100 | 100 | 100 |
| Pressing speed | mm/s | 11～22 | 7～15 | 7～15 | 7～18 | 7～18 | 7～12 | 7～12 | 5～11 |
| Return speed | mm/s | 80 | 90 | 90 | 90 | 90 | 90 | 100 | 100 |
| Ejection cylinder force | KN | 100 | 200 | 200 | 400 | 400 | 630 | 630 | 630 |
| Stroke of ejection cylinder | mm | 160 | 200 | 200 | 200 | 200 | 300 | 300 | 300 |
| Description /Specificati on | Unit | YQ32—500 | YQ32—630 | YQ32—800 | YQ32—1000 | YQ32—1250 | YQ32—1600 |
| Nominal force | KN | 5000 | 6300 | 8000 | 10000 | 12500 | 16000 |
| Maximun system pressure | Mpa | 25 | 25 | 25 | 25 | 25 | 25 |
| Max.open height | mm | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 |
| Max Stroke of Slider | mm | 900 | 900 | 900 | 900 | 900 | 900 |
| Effective table size | mm | 1400×1400 | 1500×1500 | 1600×1600 | 1600×1600 | 1600×1600 | 1600×1600 |
| Down speed | mm/s | 150 | 150 | 180 | 180 | 180 | 190 |
| Pressing speed | mm/s | 10～18 | 9～18 | 9～18 | 10～18 | 6～15 | 6～14 |
| Return speed | mm/s | 180 | 200 | 180 | 220 | 200 | 220 |
| Ejection cylinder force | KN | 1000 | 1000 | 1000 | 1000 | 1000 | 1600 |
| Stroke of ejection cylinder | mm | 300 | 300 | 300 | 300 | 300 | 300 |
We provide comprehensive after-sales services, including installation, commissioning, and operation training. A hydraulic press operation manual is provided to assist users in learning how to operate and maintain the machine.
We offer a full range of hydraulic press equipment, with numerous mature design solutions and successful customer cases. We also support customization, provide forming molds, and supply corresponding production line equipment for a one-stop service. Feel free to consult us.
