Home / Composite material press / 500T Hot Press Molding Hydraulic Press
|
Place of Origin: |
Tengzhou China |
|
Brand Name: |
Zhongyou |
|
Model Number: |
YQ32-500T |
|
Certification: |
CE ISO |
|
Minimum Order Quantity: |
1 |
|
Packaging Details: |
The sample includes a hydraulic press and mold. Please contact us for more details. |
|
Delivery Time: |
15-45 day |
|
Payment Terms: |
L/C D/P D/A T/T |
|
Supply Ability: |
50set/m |
Is there a problem? Please contact us to serve you!

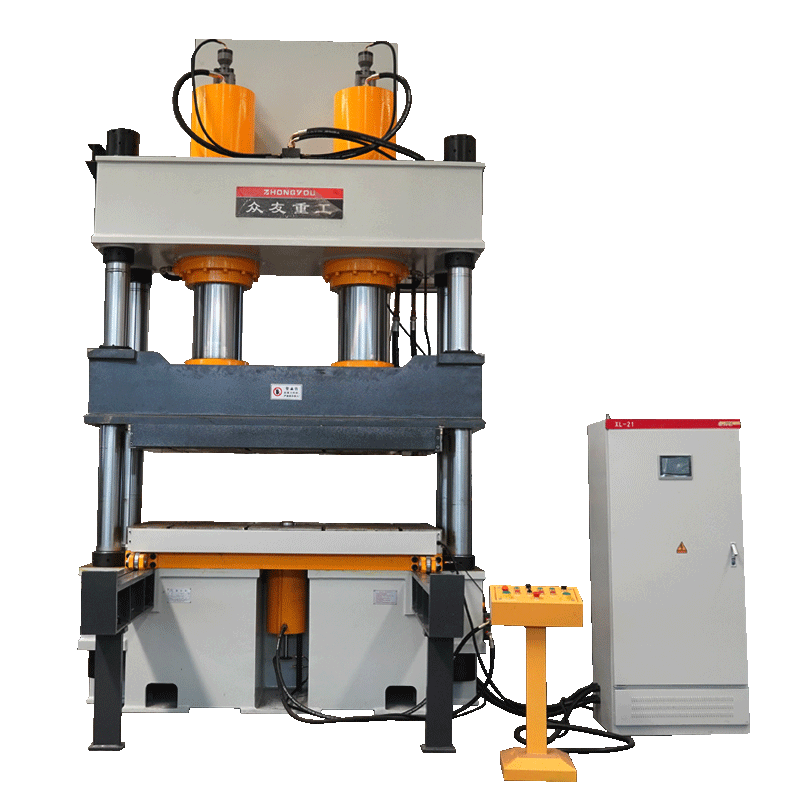

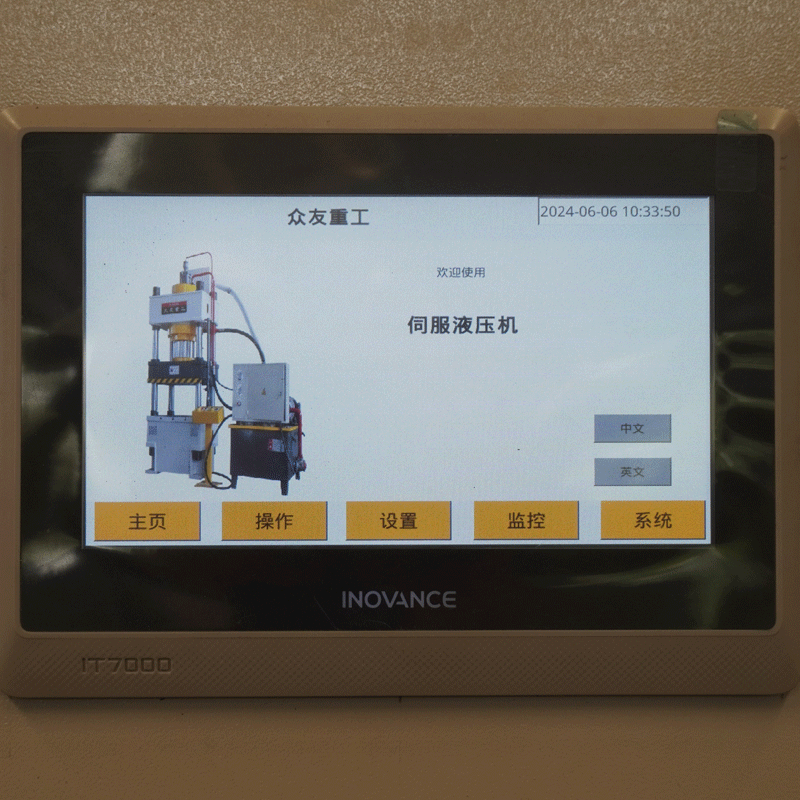

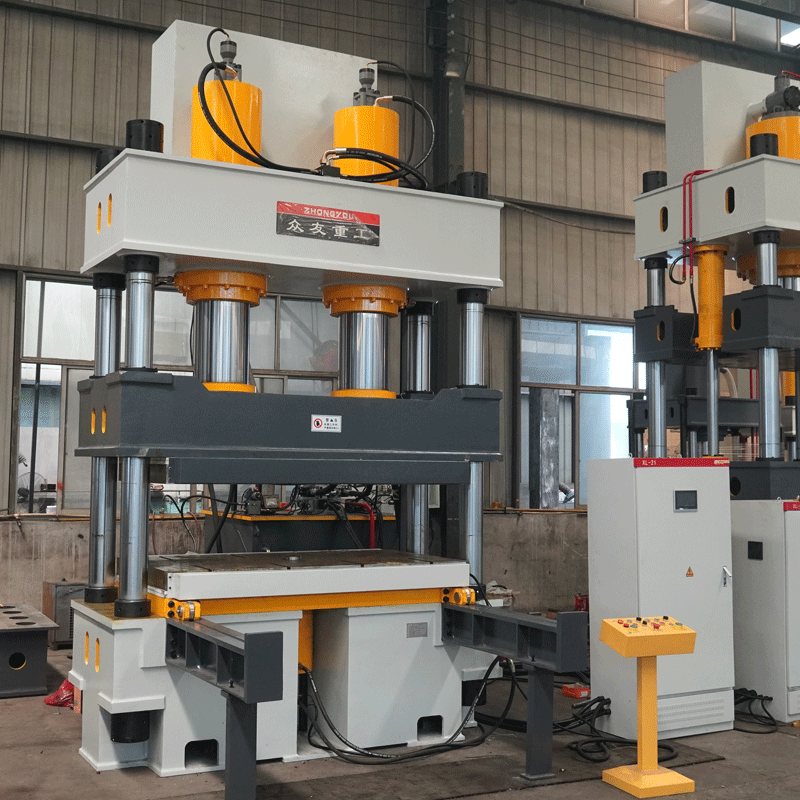

InquiryThis machine is a three-beam, four-column hot press molding hydraulic press, characterized by its precision, stability, efficiency, and wide applicability. All systems use brand-name components, ensuring reliable quality and easy maintenance. Button control makes operation simple. The four-column hydraulic press is versatile and suitable for pressing and molding various plastic materials.
| Description /Specificati on | Unit | YQ32—63 | YQ32—100A | YQ32—100B | YQ32—200A | YQ32—200B | YQ32—315A | YQ32—315B | YQ32—400 |
| Nominal force | KN | 630 | 1000 | 1000 | 2000 | 2000 | 3150 | 3150 | 4000 |
| Maximun system pressure | Mpa | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| Max.open height | mm | 700 | 800 | 900 | 900 | 1100 | 1000 | 1250 | 1250 |
| Max Stroke of Slider | mm | 400 | 500 | 600 | 600 | 700 | 600 | 800 | 800 |
| Effective table size | mm | 610×500 | 630×550 | 750×700 | 800×800 | 1000×1000 | 800×800 | 1260×1160 | 1260×1160 |
| Down speed | mm/s | 100 | 100 | 100 | 100 | 100 | 100 | 100 | 100 |
| Pressing speed | mm/s | 11～22 | 7～15 | 7～15 | 7～18 | 7～18 | 7～12 | 7～12 | 5～11 |
| Return speed | mm/s | 80 | 90 | 90 | 90 | 90 | 90 | 100 | 100 |
| Ejection cylinder force | KN | 100 | 200 | 200 | 400 | 400 | 630 | 630 | 630 |
| Stroke of ejection cylinder | mm | 160 | 200 | 200 | 200 | 200 | 300 | 300 | 300 |
| Description /Specificati on | Unit | YQ32—500 | YQ32—630 | YQ32—800 | YQ32—1000 | YQ32—1250 | YQ32—1600 |
| Nominal force | KN | 5000 | 6300 | 8000 | 10000 | 12500 | 16000 |
| Maximun system pressure | Mpa | 25 | 25 | 25 | 25 | 25 | 25 |
| Max.open height | mm | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 |
| Max Stroke of Slider | mm | 900 | 900 | 900 | 900 | 900 | 900 |
| Effective table size | mm | 1400×1400 | 1500×1500 | 1600×1600 | 1600×1600 | 1600×1600 | 1600×1600 |
| Down speed | mm/s | 150 | 150 | 180 | 180 | 180 | 190 |
| Pressing speed | mm/s | 10～18 | 9～18 | 9～18 | 10～18 | 6～15 | 6～14 |
| Return speed | mm/s | 180 | 200 | 180 | 220 | 200 | 220 |
| Ejection cylinder force | KN | 1000 | 1000 | 1000 | 1000 | 1000 | 1600 |
| Stroke of ejection cylinder | mm | 300 | 300 | 300 | 300 | 300 | 300 |
Suitable for pressing and molding of SMC composite materials, plastics, carbon fibers, fiberglass, resins, and wood shavings. Examples include SMC water tanks, fan covers, plastic pallets, wood shavings pallets, plastic sand tiles, carbon fiber automotive body panels, resin manhole covers, etc. Custom hydraulic presses and matching molding molds are also available upon request.
We provide comprehensive after-sales services including equipment installation, commissioning, and operational training. Hydraulic press manuals are provided to help users learn how to operate and maintain the equipment.
We offer a full range of hydraulic press equipment, with numerous mature design solutions and successful customer cases. We also support customization, provide molding molds, and related production line equipment, offering one-stop service. Feel free to contact us for inquiries.
