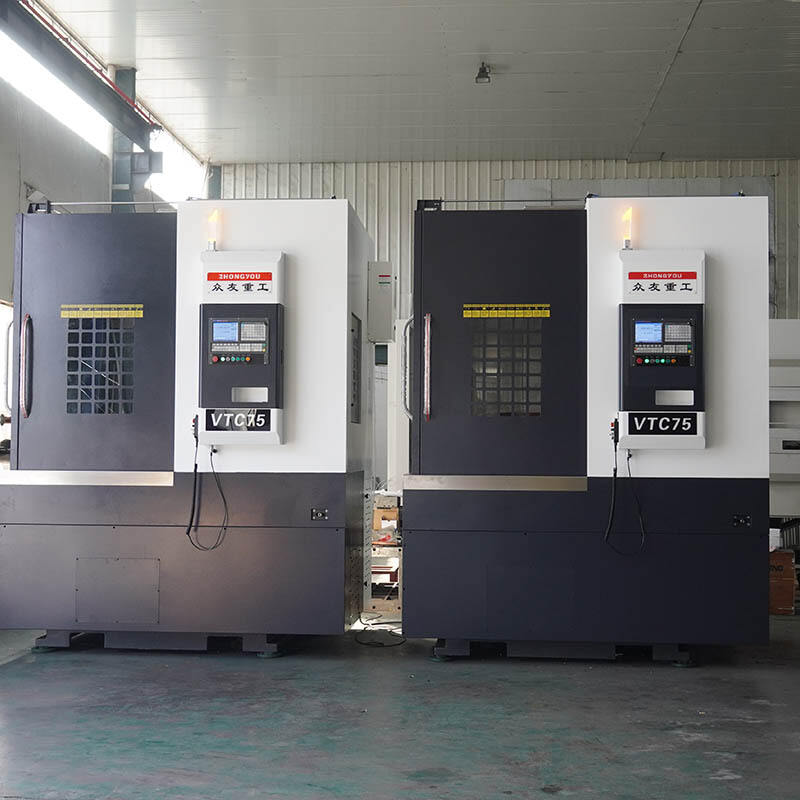

Home / CNC Vertical lathe / CNC High Speed Vertical Turning Lathe CNC Vertical Milling Machine Centre
|
Place of Origin: |
Tengzhou China |
|
Brand Name: |
Zhongyou |
|
Model Number: |
VTC75 |
|
Certification: |
CE ISO |
|
Minimum Order Quantity: |
1 |
|
Packaging Details: |
The sample includes a hydraulic press and mold. Please contact us for more details. |
|
Delivery Time: |
15-45 day |
|
Payment Terms: |
L/C D/P D/A T/T |
|
Supply Ability: |
50set/m |

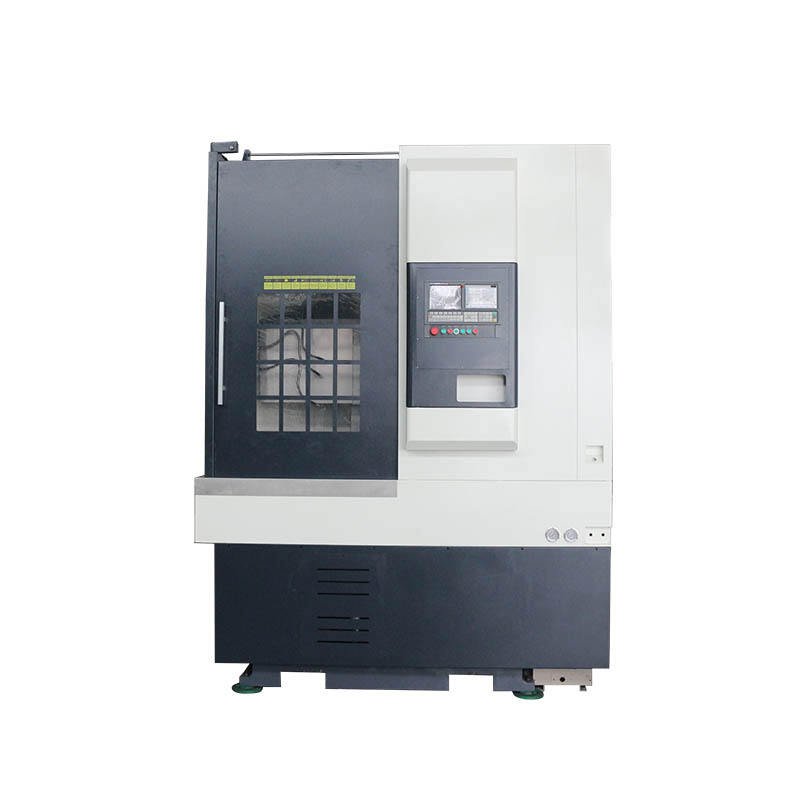

The CNC Vertical Lathe is a high-precision, high-efficiency machine tool designed for various machining operations in the metalworking industry. Incorporating the latest computer numerical control technology, this machine offers unprecedented accuracy, repeatability, and flexibility, making it an ideal choice for both small-scale workshops and large-scale manufacturing facilities.
| Vertical Lathe Parameters | |||||
| Item | Specification | Unit | VT45 | VT65 | VT75 |
| Machining Capacity | Maximum Swing Diameter | mm | ∮560 | ∮650 | ∮750 |
| Maximum Cutting Diameter | mm | ∮450 | ∮600 | ∮700 | |
| Spindle | Spindle End Face Type | Plain | Plain | Plain | |
| Spindle Speed | rpm | 100-2000 | 100-1000 | 100-1000 | |
| Chuck Outer Diameter | mm | 500 | 500 | 610 | |
| Tool Turret | Tool Capacity | pc | Horizontal Eight-Position | Horizontal Eight-Position | Horizontal Eight-Position |
| Travel | X-Axis Travel | mm | 400 | 420 | 700 |
| Z-Axis Travel | mm | 500 | 500 | 700 | |
| Hydraulic Unit | Oil Tank Capacity | L | 40 | 40 | 40 |
| Hydraulic Motor | kw | 2.2 | 2.2 | 2.2 | |
| Motor | Spindle Servo Motor | kw | 15 | 18.5 | 22 |
| Accuracy | Repetition Accuracy | mm | ±0.008 | ±0.005 | ±0.005 |
| Positioning Accuracy | mm | ±0.008 | ±0.008 | ±0.008 | |
| Machine Dimensions (LWH) | Length Width Height | mm | 2200*2300*2600 | 2150*2210*2970 | 2700*2100*3200 |
| Weight (Including Accessories) | kg | 5000 | 7000 | 9500 | |
| Power Requirements | Power Supply | 3￠-AC 380V 50HZ±5% | |||
| The machine has leakage protection and power-off protection | √ | ||||
| Machine Work Status Indicator (Three-Color Light) | √ | ||||
| The machine operates stably under the following conditions | Ambient Temperature 5～38° | ||||
| bient Humidity＜85% | |||||
| Machine Noise Complies with National Standards | √ | ||||
| Remarks | ☆The equipment uses fully enclosed protection; the protective devices are safe and reliable, and should comply with GB15760-1995 General Technical Regulations for Safety Protection of Metal Cutting Machine Tools. ☆Various hydraulic, pneumatic, and water pipe directions are marked, along with the working range of various instruments and the medium type. ☆The diameter of the hydraulic chuck and the tool turret positions can be selected according to machining requirements. | ||||
Core Scenario:

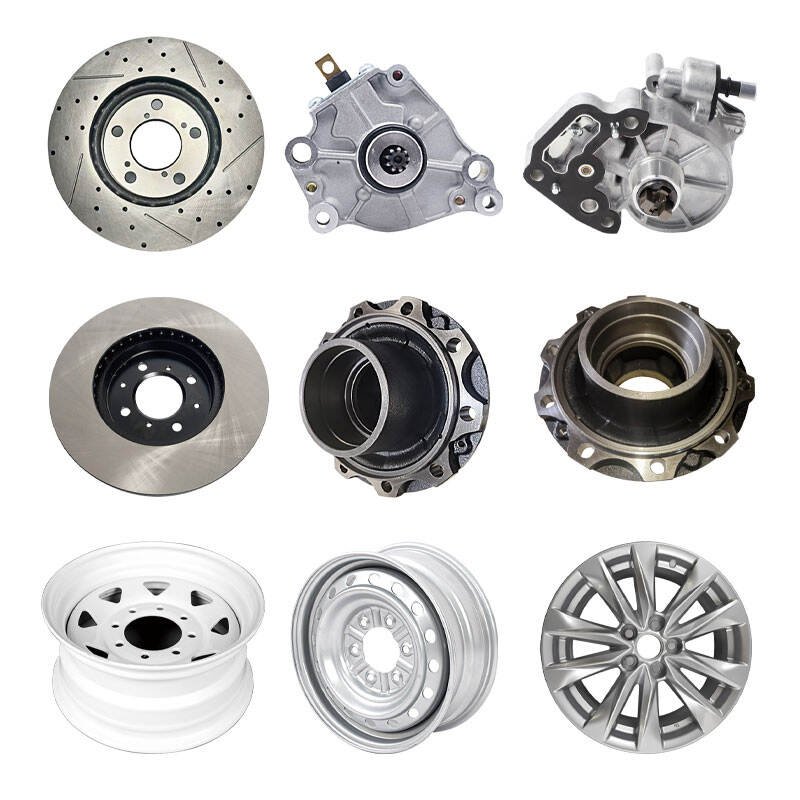

Automotive parts: rough and finish machining of brake discs, wheel hubs, brake drums, flywheel housings, clutch housings and other disk parts.
Industrial field: aerospace (e.g. engine parts), rail transportation (e.g. wheel rims), construction machinery (e.g. slewing bearings), etc.
Machining capability:
It can complete the machining of internal and external cylindrical surfaces, taper surfaces, end face grooving, chamfering, threads and complex rotary surfaces (such as hyperbolic surfaces), and supports automatic tool change and multi-axis linkage.
Core Scenario:
Automotive parts: rough and finish machining of brake discs, wheel hubs, brake drums, flywheel housings, clutch housings and other disk parts.
Industrial field: aerospace (e.g. engine parts), rail transportation (e.g. wheel rims), construction machinery (e.g. slewing bearings), etc.
Machining capability:
It can complete the machining of internal and external cylindrical surfaces, taper surfaces, end face grooving, chamfering, threads and complex rotary surfaces (such as hyperbolic surfaces), and supports automatic tool change and multi-axis linkage.
We offer comprehensive after-sales services, including installation, commissioning, and operation training; providing hydraulic press user manuals to facilitate user learning on how to operate and maintain the hydraulic press.
We provide a full set of hydraulic press equipment and CNC vertical lathe, with many mature design solutions and successful customer cases. We can also provide customized service, provide molding tooling and corresponding production line equipment, providing one-stop service for customers. Welcome to call us for consultation.
