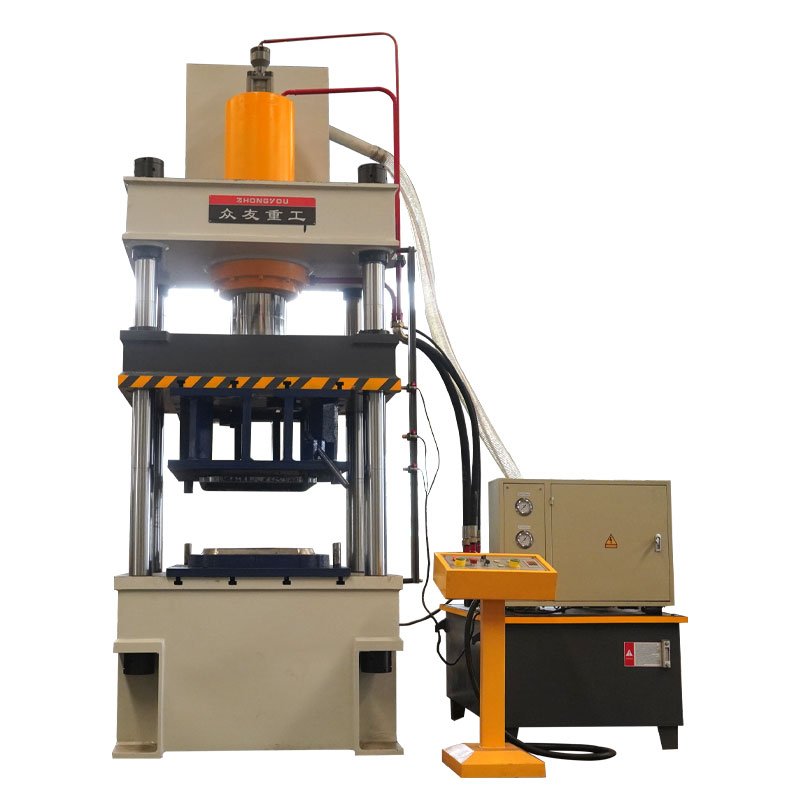

Deep Drawing Hydraulic Press for Dump Cart Body Hydraulic Press for Wheelbarrow Production Line Supplier

Place of Origin:	Tengzhou China
Brand Name:	Zhongyou
Model Number:	YQ32-200T
Certification:	CE ISO
Minimum Order Quantity:	1
Packaging Details:	The sample includes a hydraulic press and mold. Please contact us for more details.
Delivery Time:	15-45 day
Payment Terms:	L/C D/P D/A T/T
Supply Ability:	50set/m

Get a Quote Contact Us

Is there a problem? Please contact us to serve you!

+86-13563258817

zhongyoupress@foxmail.com

Inquiry

Description

The ash hopper cart hydraulic press is a type of **three-beam, four-column deep-drawing hydraulic press**, specifically designed for stamping and forming the metal hoppers of hand-pushed carts (ash hopper carts). Common capacities range from 315 to 500 metric tons, and it is equipped with a hydraulic pad to enable deep drawing of sheet metal.

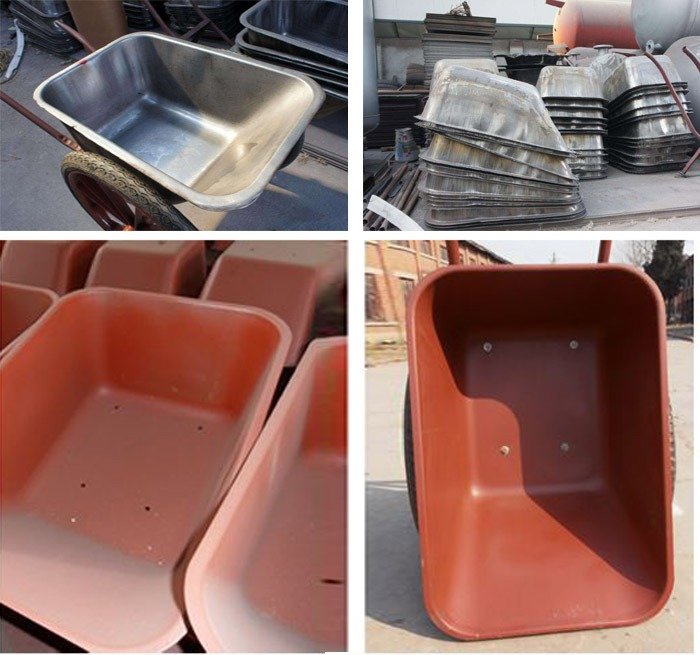

Processed Products

Applications

1. Mass Production of Ash Hopper Buckets for Hand Carts: Deep-draw forming of metal hopper shells made from sheet iron, galvanized sheet metal, and steel plate for ash hoppers, as well as for construction site hand carts, agricultural hand carts, and landscaping hand carts—this is the core equipment for hand cart manufacturers. 2. Similar Sheet Metal Deep Drawing Processing: In addition to ash hoppers, the machine can also process various types of metal drawn parts such as basins, housings, and shallow containers, as well as perform drawing, profiling, and straightening of hardware sheet metal. 3. Supporting Post-Processing Operations: After the main machine completes the deep drawing process, the workpiece is transferred to a hydraulic trimming press to remove excess burrs, followed by flanging to produce the finished ash hopper, thereby completing the entire hopper manufacturing process. 4. Expanded Applications: By changing the dies, the machine can be used for metal profiling, press fitting, and simple stamping and blanking processes.

Application Cases

Process Flow

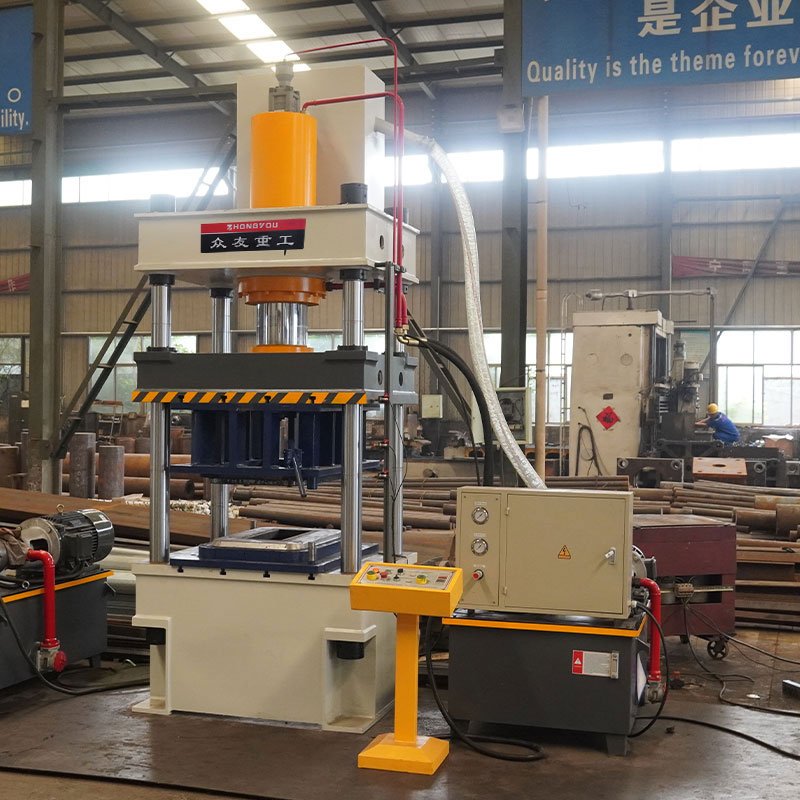

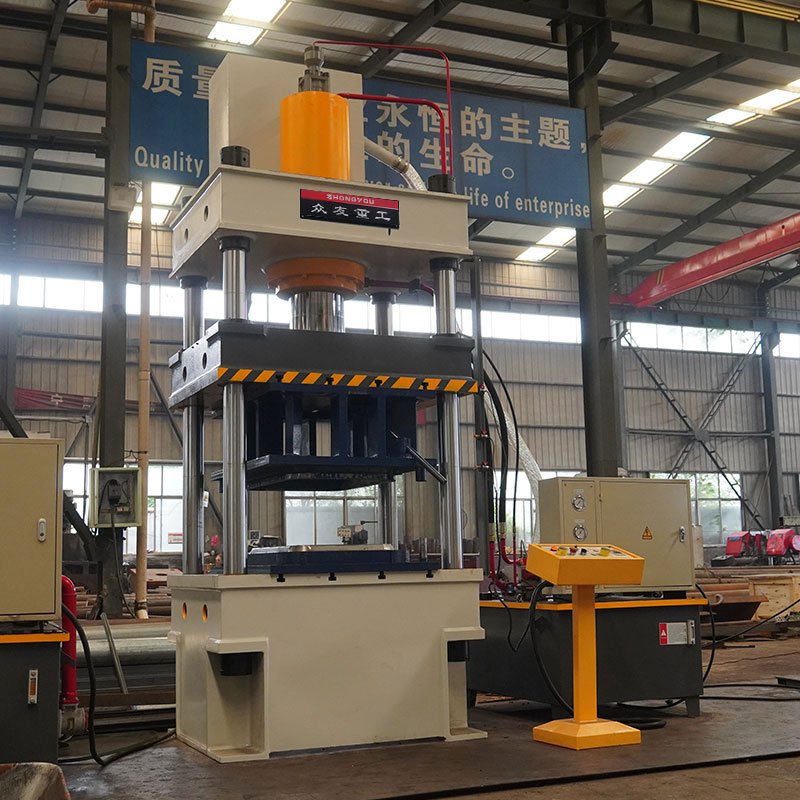

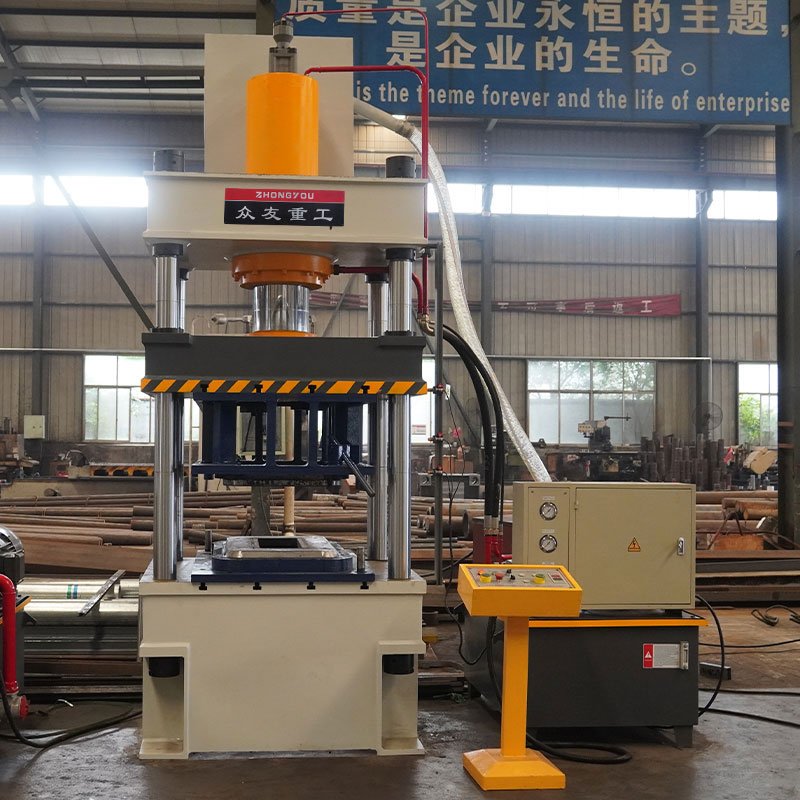

Detailed Pictures

Optional Configurations

Performance Characteristics

Three-beam, four-column rigid frame: upper crossbeam, slide block, worktable, and four columns; cast steel welded frame; high rigidity, resistance to off-center loads, high guiding accuracy, and resistance to deformation under high tensile forces. Built-in hydraulic pad (flanging cylinder): Clamps the edges of the sheet metal during stretching to prevent wrinkling of the hopper sidewalls and ensure a smooth, flat inner surface of the hopper body; this is a core component for ash hopper forming. Large worktable with a T-slot layout facilitates the installation and replacement of different hopper molds and accommodates ash hoppers of various specifications.

Packing & Shipping

After Sales Service

We offer comprehensive after-sales services, including installation, commissioning, and operation training; providing hydraulic press user manuals to facilitate user learning on how to operate and maintain the hydraulic press

About The Company

We offer a full range of hydraulic press equipment, with numerous mature design solutions and successful customer cases. Custom services are also available, providing forming molds and corresponding production line equipment, offering one-stop service. Welcome to consult with us.
