Home / Wheelbarrow making press machine / Metal cutting edge hydraulic press for the production of wheelbarrow
|
Place of Origin: |
Tengzhou China |
|
Brand Name: |
Zhongyou |
|
Model Number: |
YQ32-200T |
|
Certification: |
CE ISO |
|
Minimum Order Quantity: |
1 |
|
Packaging Details: |
The sample includes a hydraulic press and mold. Please contact us for more details. |
|
Delivery Time: |
15-45 day |
|
Payment Terms: |
L/C D/P D/A T/T |
|
Supply Ability: |
50set/m |

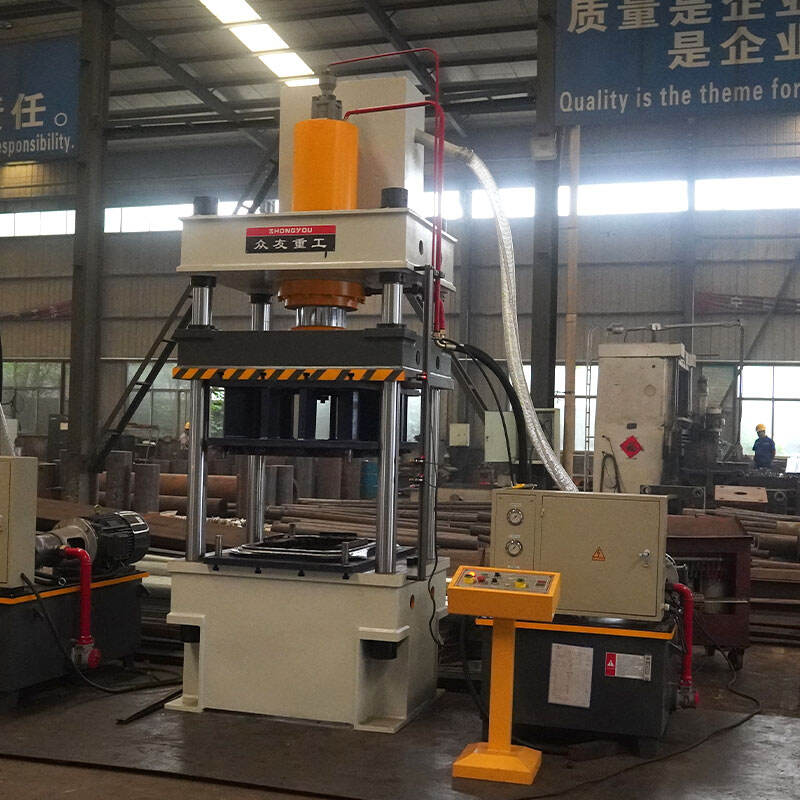

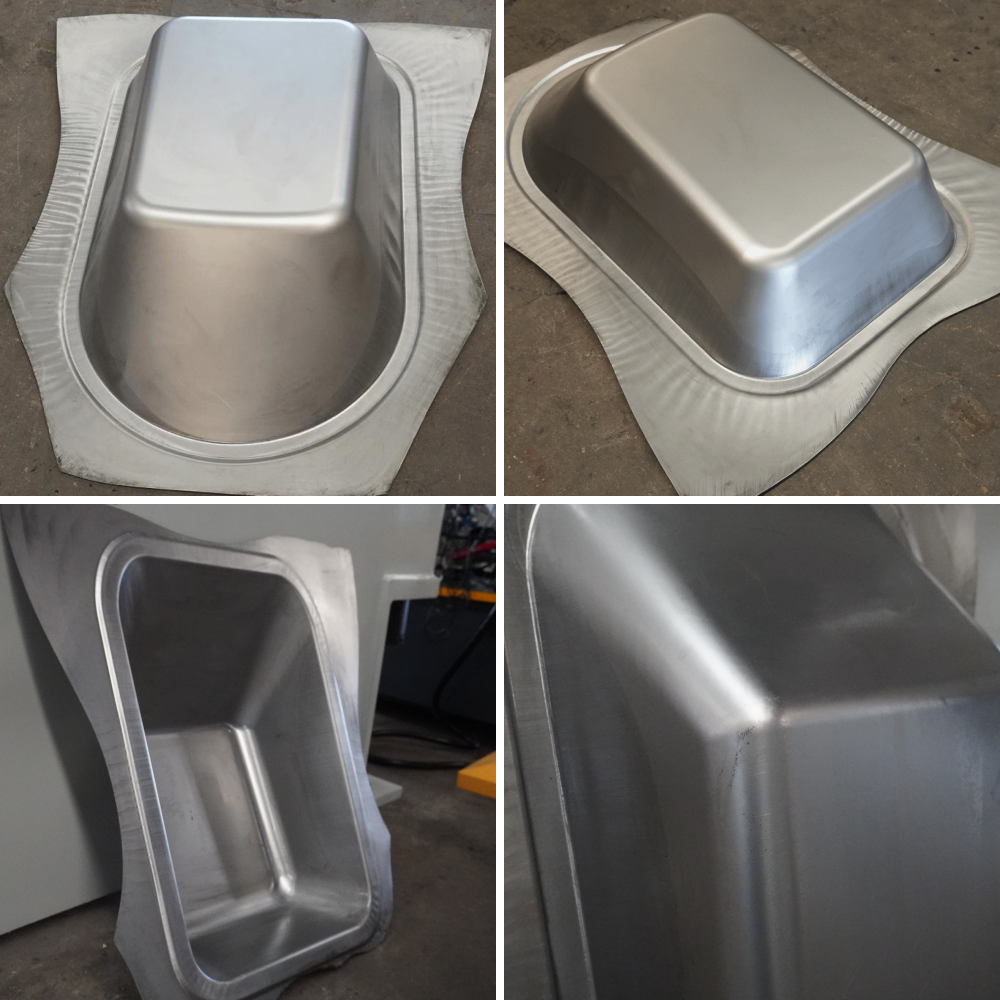

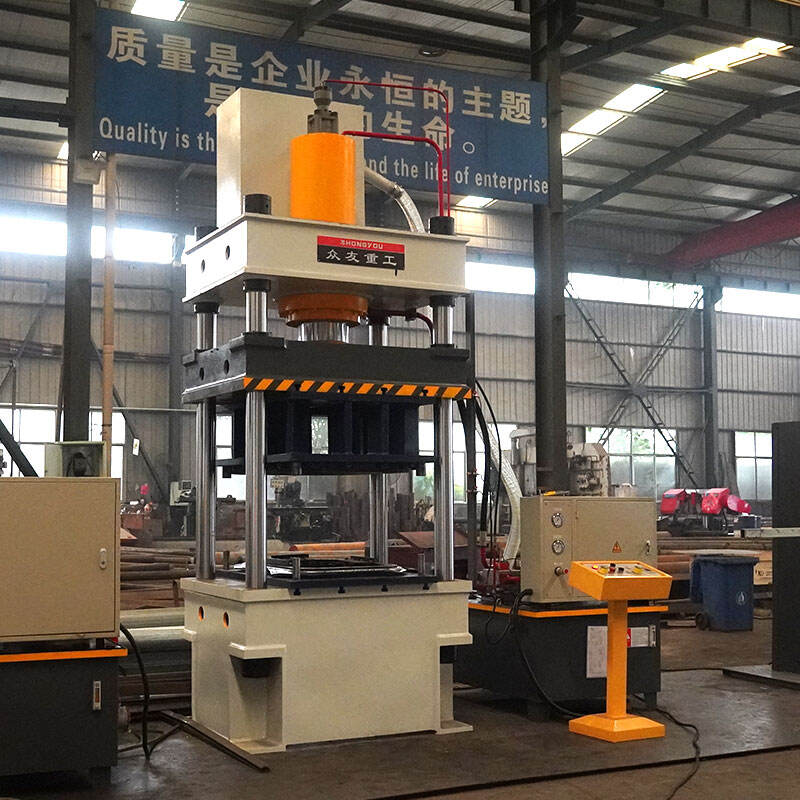

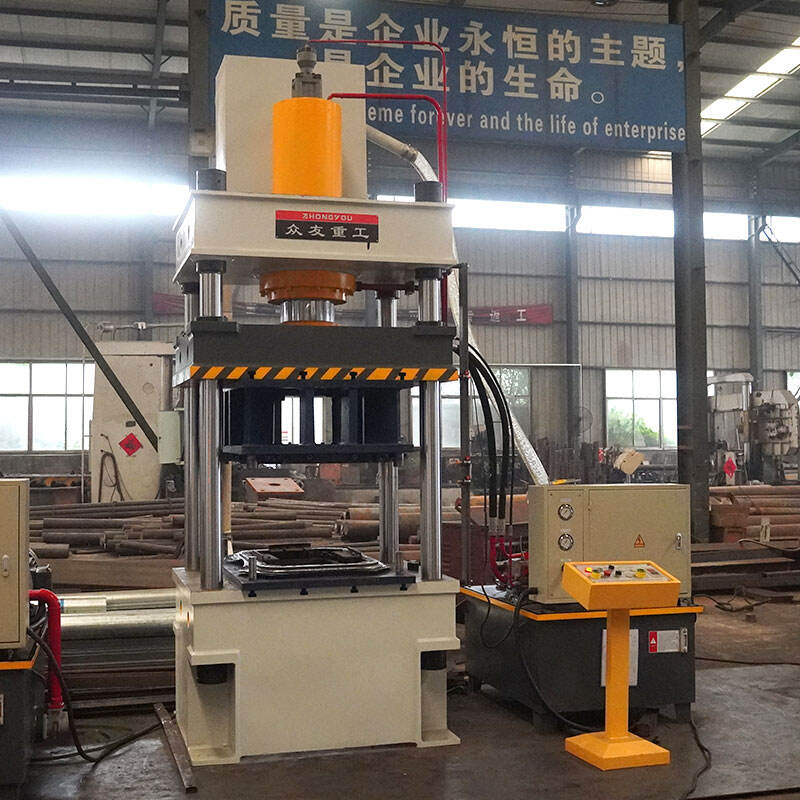

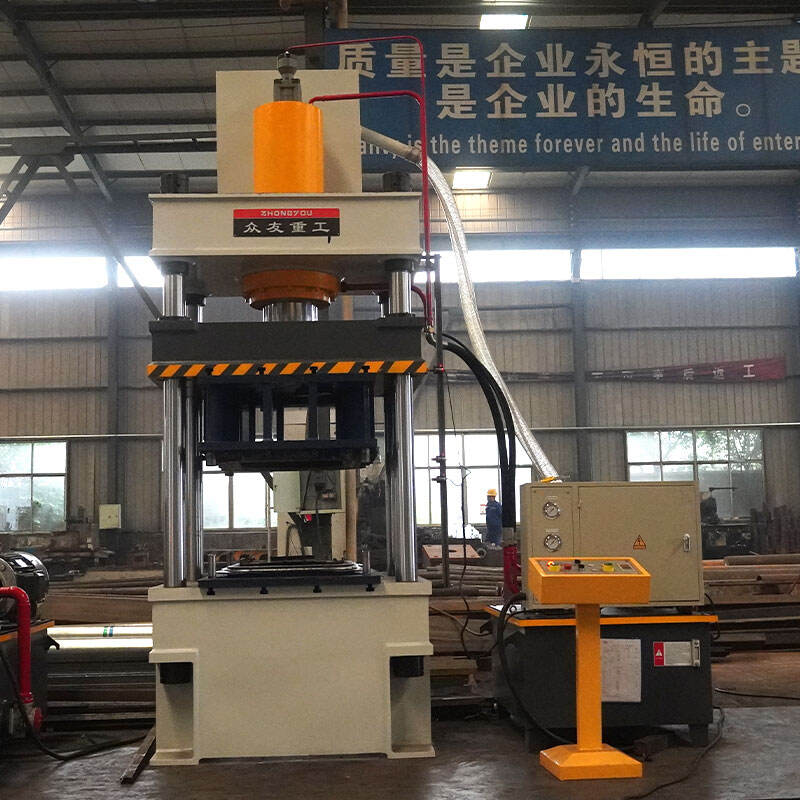

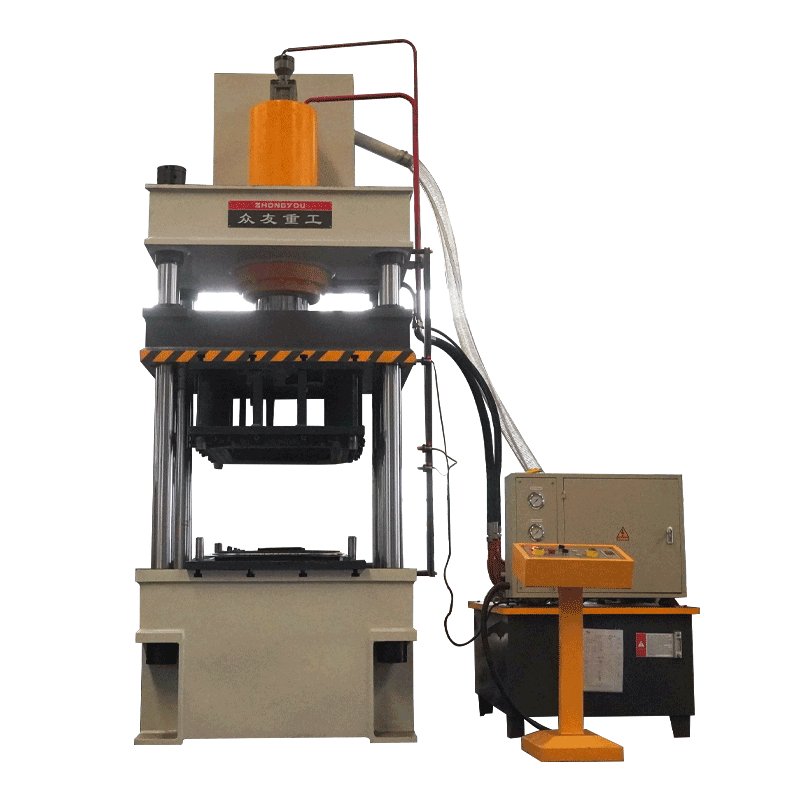

Gray hopper truck hydraulic press is suitable for a variety of processes such as stretching, bending, forming, punching, calibrating, press fitting of metal plates.By changing the molds, it can realize the production of different shapes and sizes of ashtray truck buckets.
YQ32 Technical Parameters | ||||||||
| Unit | YQ32—63 | YQ32—100A | YQ32—100B | YQ32—200A | YQ32—200B | YQ32—315A | YQ32—315B |
Nominal force | KN | 630 | 1000 | 1000 | 2000 | 2000 | 3150 | 3150 |
Maximun system pressure | Mpa | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
Max.open height | mm | 700 | 800 | 900 | 900 | 1100 | 1000 | 1250 |
Max Stroke of Slider | mm | 400 | 500 | 600 | 600 | 700 | 600 | 800 |
Effective table size | mm | 610×500 | 630×550 | 750×700 | 800×800 | 1000×1000 | 800×800 | 1260×1160 |
Down speed | mm/s | 100 | 100 | 100 | 100 | 100 | 100 | 100 |
Pressing speed | mm/s | 11～22 | 7～15 | 7～15 | 7～18 | 7～18 | 7～12 | 7～12 |
Return speed | mm/s | 80 | 90 | 90 | 90 | 90 | 90 | 100 |
Ejection cylinder force | KN | 100 | 200 | 200 | 400 | 400 | 630 | 630 |
Stroke of ejection cylinder | mm | 160 | 200 | 200 | 200 | 200 | 300 | 300 |
|
|
|
|
|
|
|
|
|
| Unit | YQ32—400 | YQ32—500 | YQ32—630 | YQ32—800 | YQ32—1000 | YQ32—1250 | YQ32—1600 |
Nominal force | KN | 4000 | 5000 | 6300 | 8000 | 10000 | 12500 | 16000 |
Maximun system pressure | Mpa | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
Max.open height | mm | 1250 | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 |
Max Stroke of Slider | mm | 800 | 900 | 900 | 900 | 900 | 900 | 900 |
Effective table size | mm | 1260×1160 | 1400×1400 | 1500×1500 | 1600×1600 | 1600×1600 | 1600×1600 | 1600×1600 |
Down speed | mm/s | 100 | 150 | 150 | 180 | 180 | 180 | 190 |
Pressing speed | mm/s | 5～11 | 10～18 | 9～18 | 9～18 | 10～18 | 6～15 | 6～14 |
Return speed | mm/s | 100 | 180 | 200 | 180 | 220 | 200 | 220 |
Ejection cylinder force | KN | 630 | 1000 | 1000 | 1000 | 1000 | 1000 | 1600 |
Stroke of ejection cylinder | mm | 300 | 300 | 300 | 300 | 300 | 300 | 300 |
Gray Bucket Truck Hydraulic Press is widely used in the production of gray bucket trucks, metal processing, automobile manufacturing, aerospace and other fields.In the production of hand trucks for construction sites, the hydraulic press for ashtray trucks can realize the mechanical automation of the production of ashtray truck buckets, which greatly improves the quantity and quality of production.At the same time, the equipment can also be used for the production of other metal products, such as automobile parts, home appliance shells and so on.
Body structure: Gray bucket truck hydraulic press mostly adopts three-beam and four-column structure or four-column guided structure.Three-beam four-column structure consists of upper crossbeam, lower crossbeam and four columns, which has the advantages of simple structure, good rigidity and strong lateral force resistance.The four-column guided structure ensures the smoothness and precision of the slider movement through four guiding columns.

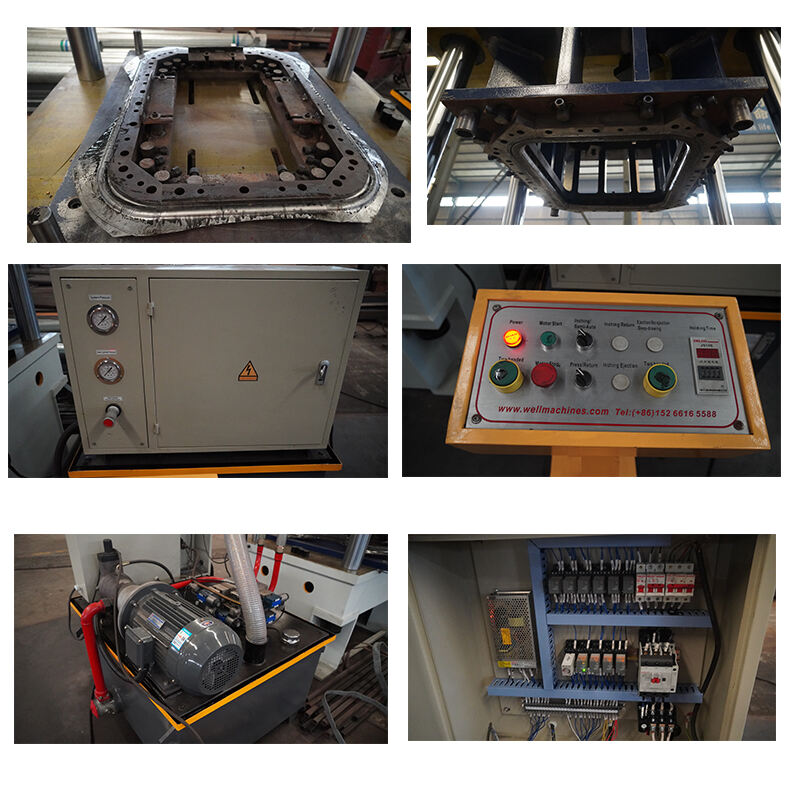

Hydraulic system: The hydraulic system adopts cartridge valve integrated system, which has the advantages of reliable action, long service life and small hydraulic shock.At the same time, the hydraulic system is also equipped with oil temperature and oil level display, air filtering and other devices to ensure the normal operation of the oil circuit.
Electrical system: the electrical system adopts PLC automatic control or button centralized control, with point action and semi-automatic function.The stroke, pressure and speed of each running part can be self-adjustable within a certain range to meet the needs of metal products molded parts.
We offer comprehensive after-sales services, including installation, commissioning, and operation training; providing hydraulic press user manuals to facilitate user learning on how to operate and maintain the hydraulic press.
We offer a full range of hydraulic press equipment, with numerous mature design solutions and successful customer cases. Custom services are also available, providing forming molds and corresponding production line equipment, offering one-stop service. Welcome to consult with us.
