Building Hardware Industry: Specialised manufacturers of construction site trolleys and mortar wheelbarrows; Agricultural and Forestry Machinery Industry: Production of sheet metal components for agricultural transport vehicles and horticultural tools; Waste Management Equipment Manufacturing: Small-scale waste management hoppers and refuse collection housings; General Sheet Metal Fabrication Workshops: Contract manufacturing of various metal deep-drawn parts; Kitchenware and Stainless Steel Products Industry: Stainless steel deep-drawn containers; Processing of components for the mining and construction machinery sectors.

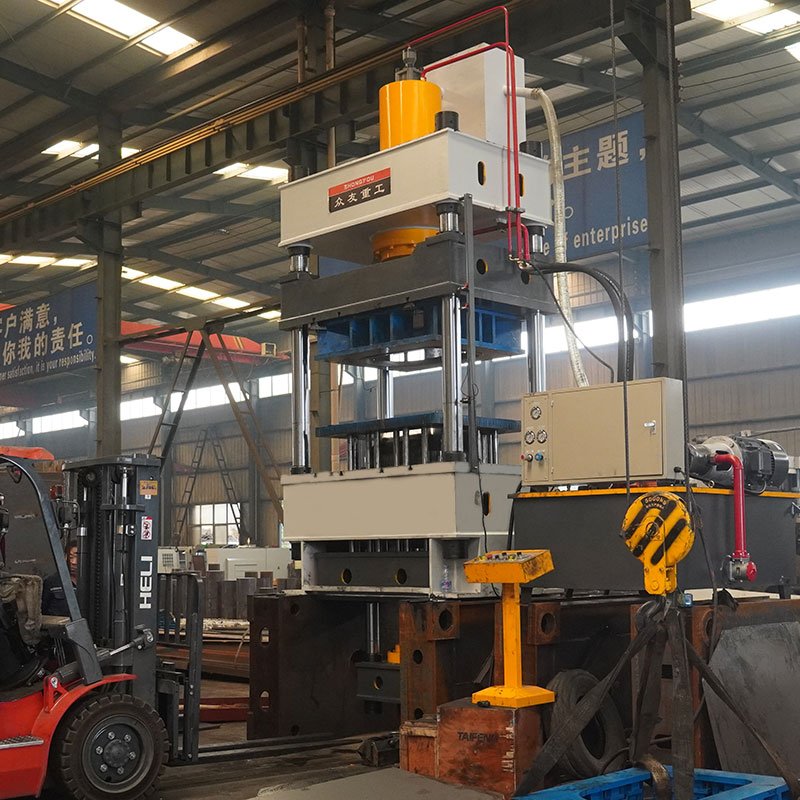

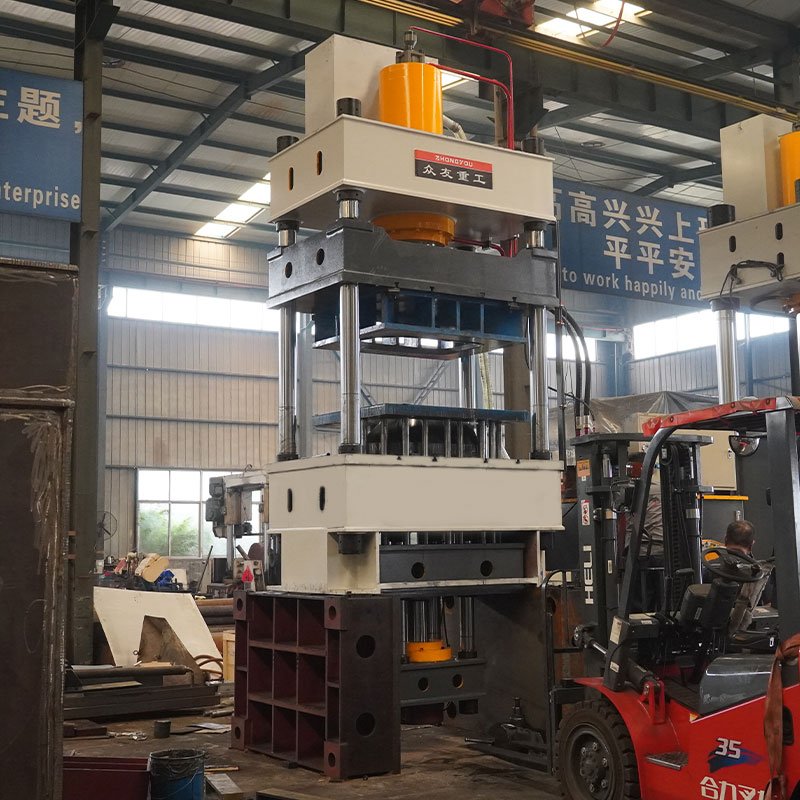

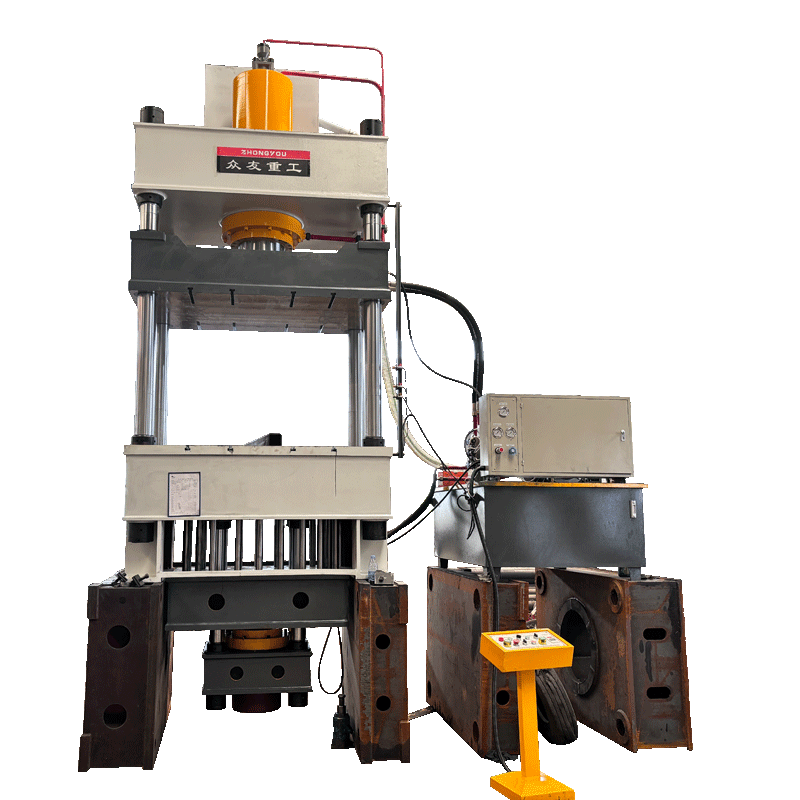

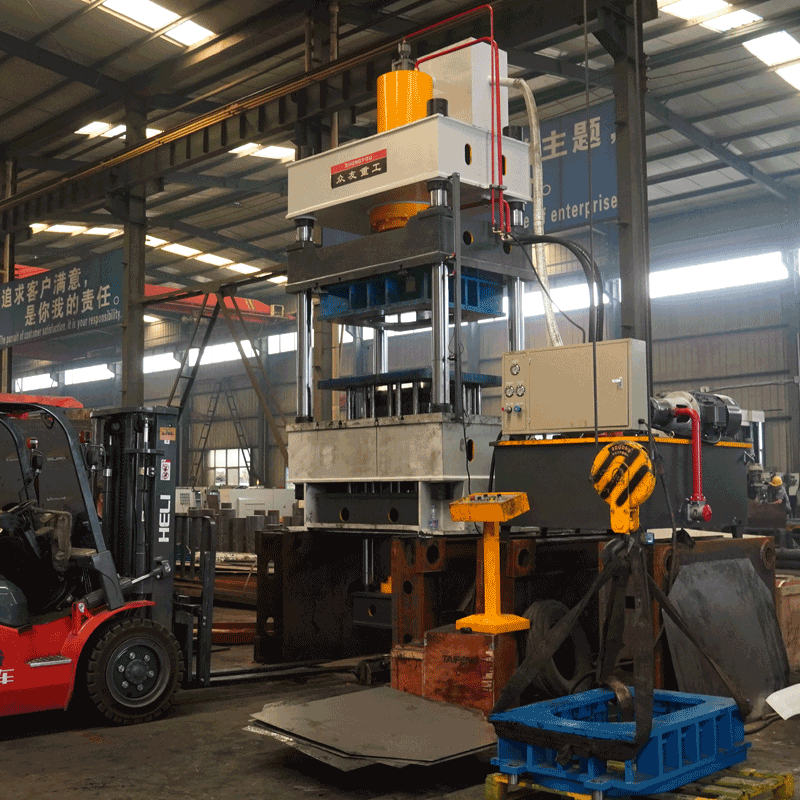

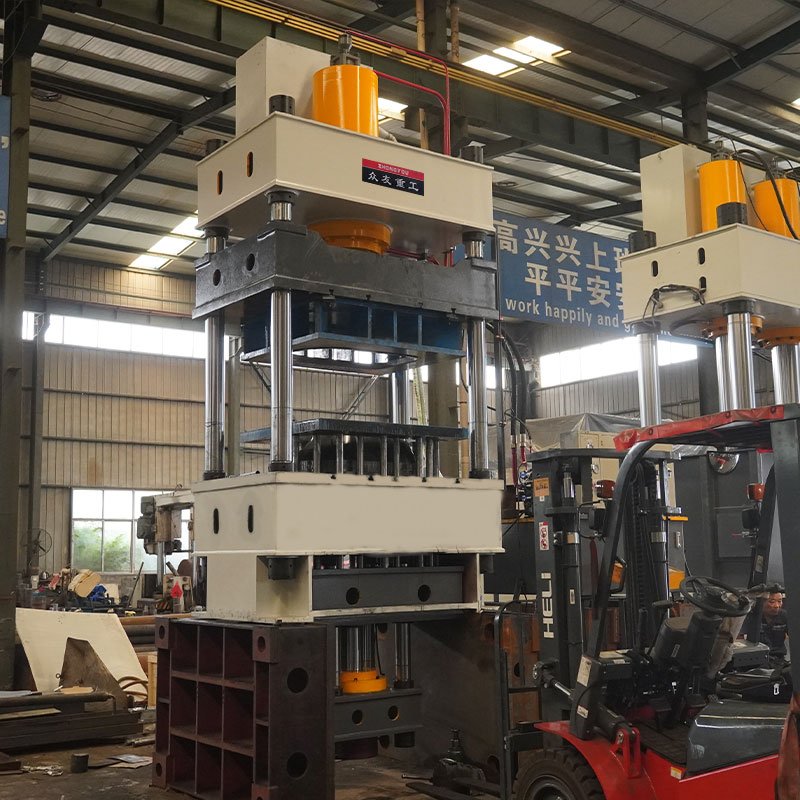

Three-beam, Four-column / Frame: Hopper presses typically use a three-beam, four-column design, featuring welded steel plates and stress-relief aging treatment, which provides sufficient rigidity and resistance to off-center loads; if the hopper is large or off-center loads are significant, a frame-type design may be used. Hydraulic System: Integrated cartridge valves or dedicated stretching circuits minimize leakage points and reduce impact; they enable a fully automatic cycle: rapid descent—fluid filling—working stroke—pressure holding—depressurization—return stroke—ejection. Flange Forming Methods: Single-action + hydraulic cushion / multiple ejectors: Suitable for shallow to medium-depth drawing; allows for flexible die changes; the table surface features ejector holes to accommodate different hopper shapes; Double-action (internal drawing beam + external flange forming beam): Flange forming begins first, followed by edge locking and pressure holding, then drawing; this provides better wrinkle prevention and is suitable for deep hoppers and high draw ratios.

We offer comprehensive after-sales services, including installation, commissioning, and operation training; providing hydraulic press user manuals to facilitate user learning on how to operate and maintain the hydraulic press

We offer a full range of hydraulic press equipment, with numerous mature design solutions and successful customer cases. Custom services are also available, providing forming molds and corresponding production line equipment, offering one-stop service. Welcome to consult with us.
