Home / SMC/BMC/FRP making press machine / Glass fiber reinforced plastic cable bridge hot press molding hydraulic machine
|
Place of Origin: |
Tengzhou China |
|
Brand Name: |
Zhongyou |
|
Model Number: |
YQ32-1200T |
|
Certification: |
CE ISO |
|
Minimum Order Quantity: |
1 |
|
Packaging Details: |
The sample includes a hydraulic press and mold. Please contact us for more details. |
|
Delivery Time: |
15-45 day |
|
Payment Terms: |
L/C D/P D/A T/T |
|
Supply Ability: |
50set/m |
Cable Bridge Hydraulic Press” is specially used for cable bridge forming, pressing, calibration or assembly of hydraulic equipment, its core function is to produce high-pressure power through the hydraulic system, drive the mold on the metal plate (such as) The core function is to drive the mold to process the metal plate (such as steel plate, aluminum alloy plate) or profile through the high-pressure power generated by the hydraulic system to meet the structural size, strength and appearance requirements of the cable tray.
YQ32 Technical Parameters | ||||||||
| Unit | YQ32—63 | YQ32—100A | YQ32—100B | YQ32—200A | YQ32—200B | YQ32—315A | YQ32—315B |
Nominal force | KN | 630 | 1000 | 1000 | 2000 | 2000 | 3150 | 3150 |
Maximun system pressure | Mpa | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
Max.open height | mm | 700 | 800 | 900 | 900 | 1100 | 1000 | 1250 |
Max Stroke of Slider | mm | 400 | 500 | 600 | 600 | 700 | 600 | 800 |
Effective table size | mm | 610×500 | 630×550 | 750×700 | 800×800 | 1000×1000 | 800×800 | 1260×1160 |
Down speed | mm/s | 100 | 100 | 100 | 100 | 100 | 100 | 100 |
Pressing speed | mm/s | 11～22 | 7～15 | 7～15 | 7～18 | 7～18 | 7～12 | 7～12 |
Return speed | mm/s | 80 | 90 | 90 | 90 | 90 | 90 | 100 |
Ejection cylinder force | KN | 100 | 200 | 200 | 400 | 400 | 630 | 630 |
Stroke of ejection cylinder | mm | 160 | 200 | 200 | 200 | 200 | 300 | 300 |
|
|
|
|
|
|
|
|
|
| Unit | YQ32—400 | YQ32—500 | YQ32—630 | YQ32—800 | YQ32—1000 | YQ32—1250 | YQ32—1600 |
Nominal force | KN | 4000 | 5000 | 6300 | 8000 | 10000 | 12500 | 16000 |
Maximun system pressure | Mpa | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
Max.open height | mm | 1250 | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 |
Max Stroke of Slider | mm | 800 | 900 | 900 | 900 | 900 | 900 | 900 |
Effective table size | mm | 1260×1160 | 1400×1400 | 1500×1500 | 1600×1600 | 1600×1600 | 1600×1600 | 1600×1600 |
Down speed | mm/s | 100 | 150 | 150 | 180 | 180 | 180 | 190 |
Pressing speed | mm/s | 5～11 | 10～18 | 9～18 | 9～18 | 10～18 | 6～15 | 6～14 |
Return speed | mm/s | 100 | 180 | 200 | 180 | 220 | 200 | 220 |
Ejection cylinder force | KN | 630 | 1000 | 1000 | 1000 | 1000 | 1000 | 1600 |
Stroke of ejection cylinder | mm | 300 | 300 | 300 | 300 | 300 | 300 | 300 |

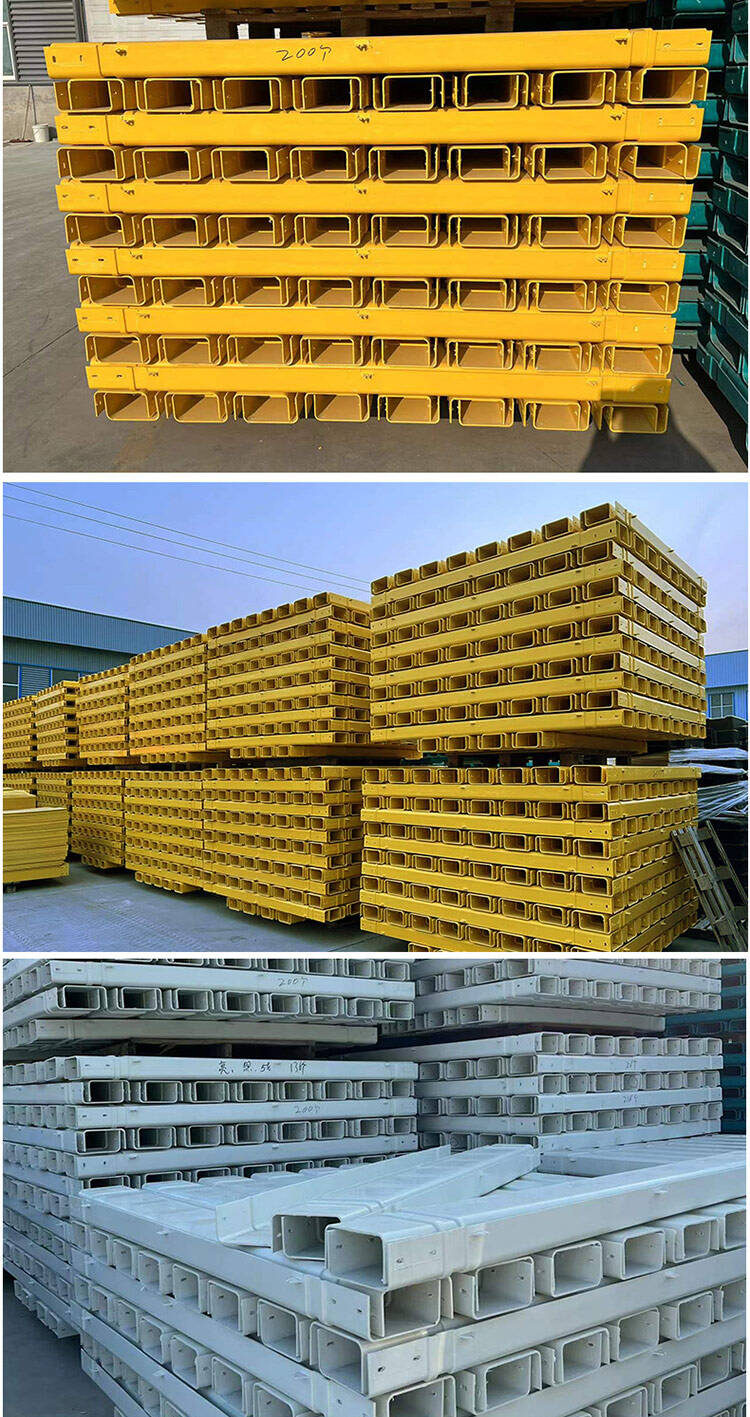

The cable bridge hydraulic press is mainly used for professional manufacturers of cable bridges, and is also suitable for power engineering supporting enterprises, steel structure processing plants and other scenes that require customized bridges:
Power industry: production of substations, power plants, cable trench / tunnel with large span bridge
Construction field: processing tray type bridge for strong and weak power wells inside the building;
Industrial equipment: customized shaped bridges for automated production lines;
Export trade: high-precision hydraulic presses can produce bridges in line with international standards to meet the needs of overseas customers.
Ultra High Pressure Output: It can generate more than 100MPa pressure to press metal or composite materials easily.

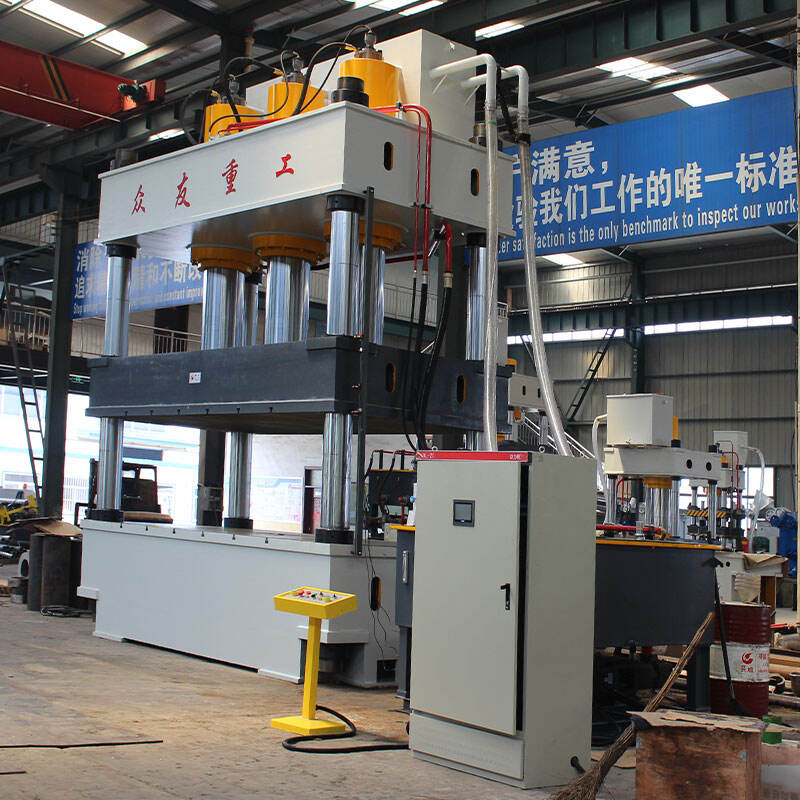

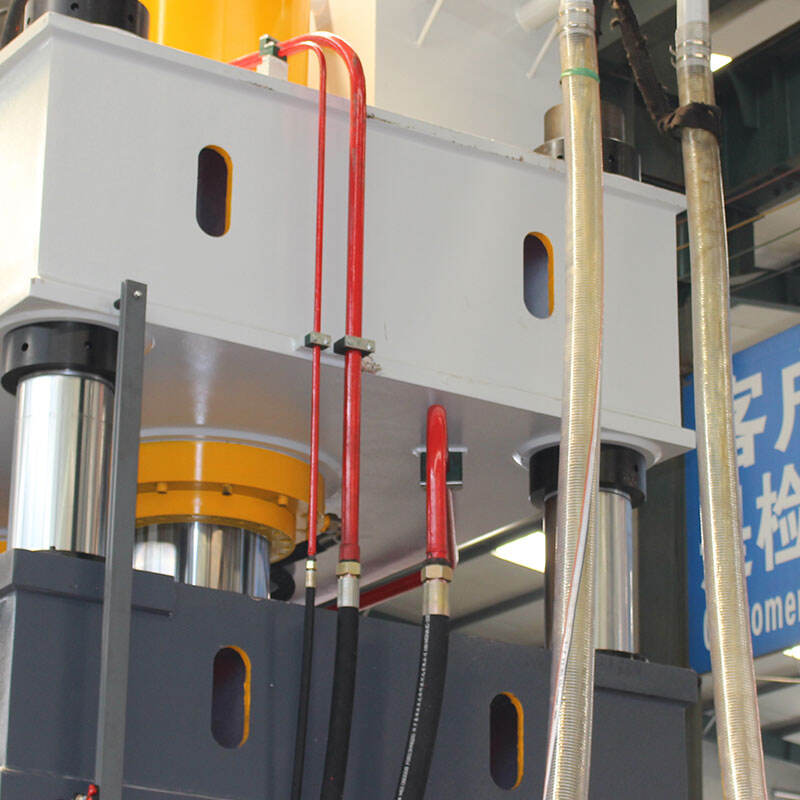

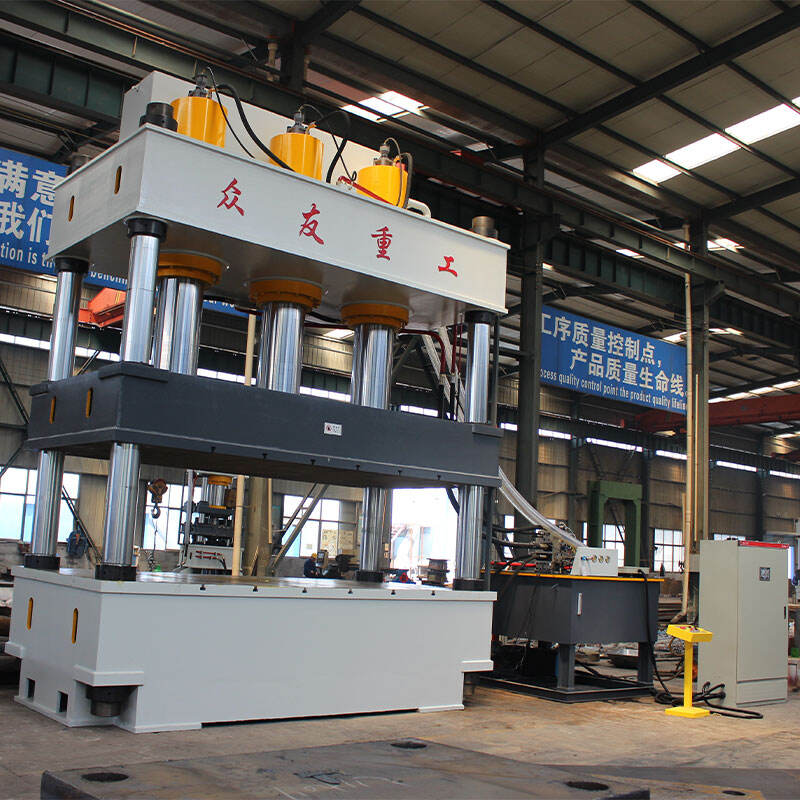

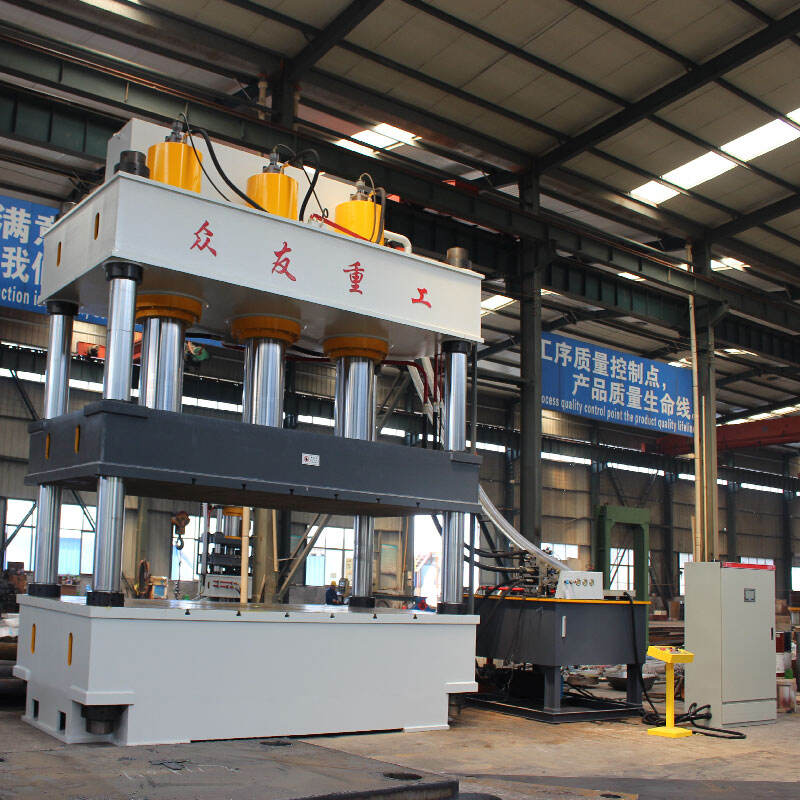

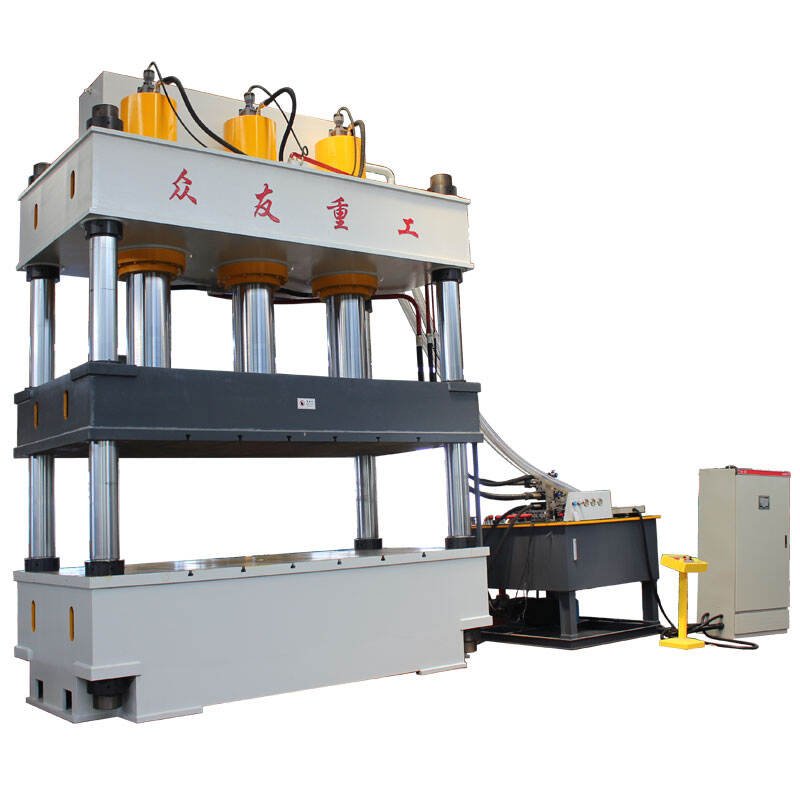

Compact structure: Four-column design (three-beam, four-column structure) provides high rigidity and ensures no deformation of the machine body during the pressing process.
Precise control: through hydraulic pump, control valve and PLC system, it realizes precise adjustment of pressure, stroke and holding time.
We offer comprehensive after-sales services, including installation, commissioning, and operation training; providing hydraulic press user manuals to facilitate user learning on how to operate and maintain the hydraulic press.
We offer a full range of hydraulic press equipment, with numerous mature design solutions and successful customer cases. Custom services are also available, providing forming molds and corresponding production line equipment, offering one-stop service. Welcome to consult with us.
