Large Hydraulic Press Used for Refractory Material Forming Presses

Place of Origin:

 Tengzhou China

Brand Name:

Zhongyou

Model Number:

YQ32-1500T

Certification:

CE ISO

Minimum Order Quantity:

1

Packaging Details:

The sample includes a hydraulic press and mold. Please contact us for more details.

Delivery Time:

15-45 day

Payment Terms:

L/C D/P D/A T/T

Supply Ability:

50set/m

Is there a problem? Please contact us to serve you!

Is there a problem? Please contact us to serve you!

Inquiry

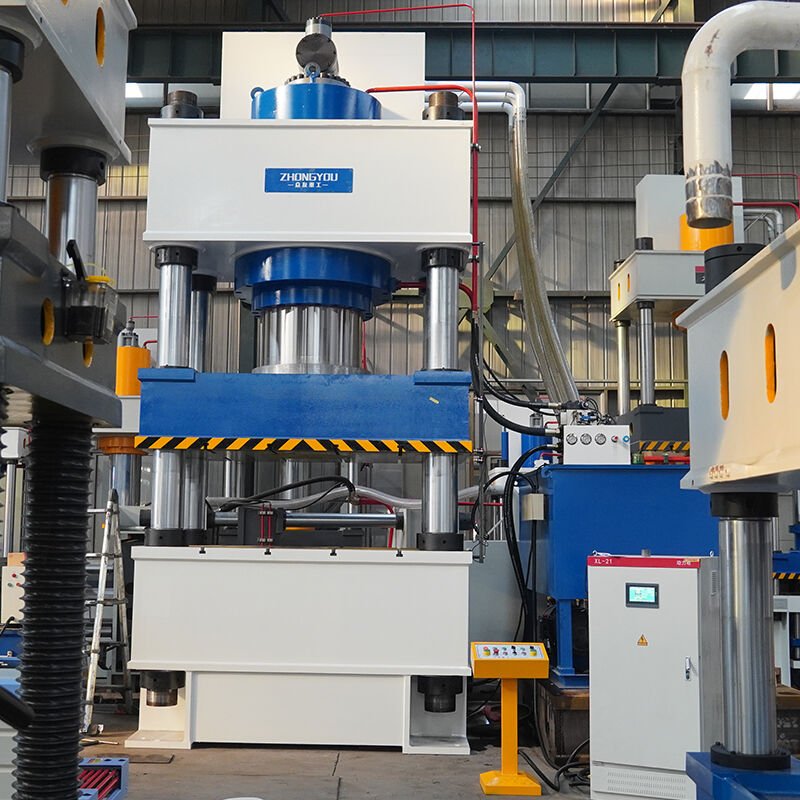

1500-ton Refractory Brick Forming Hydraulic Press (6).jpg

Refractory forming hydraulic presses are high-tonnage hydraulic equipment designed for refractory materials such as magnesia bricks, bauxite bricks, and silica bricks. They are widely used in the production of shaped refractories including fired bricks, unfired bricks, fused bricks, and refractory insulating bricks.

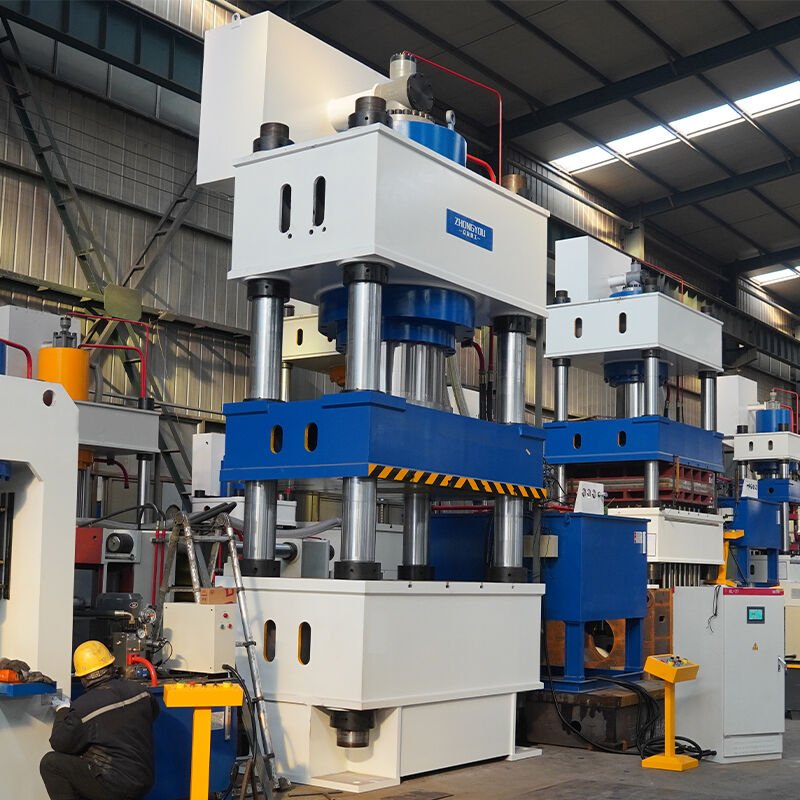

1500-ton Refractory Brick Forming Hydraulic Press (1).jpg

Refractory Production: Standard Bricks and Special-Shaped Bricks: Capable of pressing standard bricks, common bricks, and special-shaped bricks to meet the demands of thermal equipment such as blast furnaces, hot blast stoves, soaking hearths, and annealing furnaces. Composite Material Molding SMC/BMC Compression Molding: Suitable for large-scale SMC automotive roof panels, engine hoods, battery compartment covers, and other compression-molded parts, as well as fiberglass products like railway car interior components and electrical cabinet housings. Carbon Fiber/Aramid Composites: Supports prepreg compression molding for aerospace windshield frames, ship structural bulkheads, and other applications, achieving high-strength interfacial bonding. Metal Deep Drawing & Stamping: Enables sheet metal forming for headstocks, deep-drawn components, automotive parts, and integrated high-strength steel frame forming with punching composite processes. Powder Metallurgy: Facilitates rapid forming of iron, copper, stainless steel powders into products like crucibles, crucible liners, and grinding wheels.

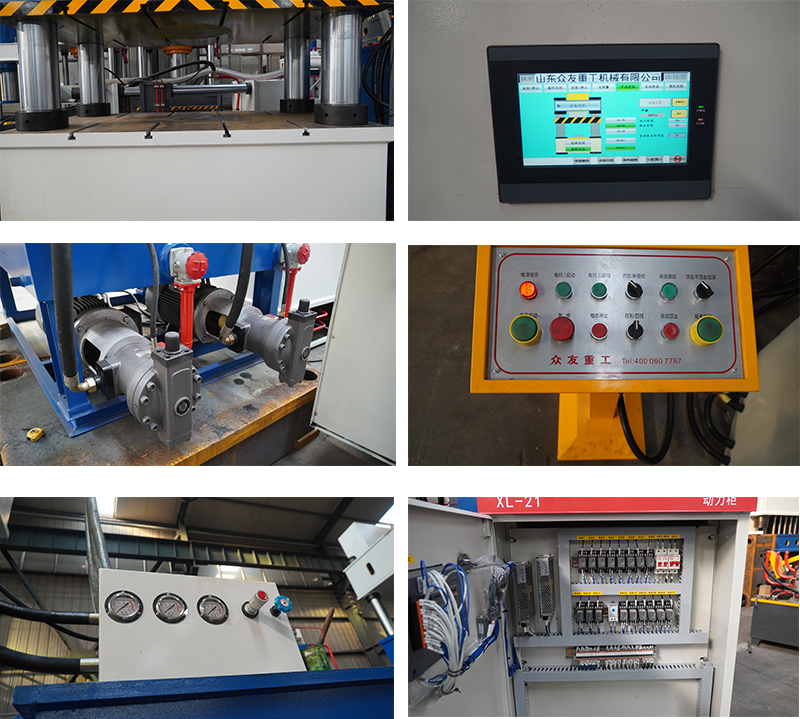

1500-ton Refractory Brick Forming Hydraulic Press (2).png

Four-column bidirectional pressing: Utilizes a four-column guide structure for precise positioning and strong resistance to off-center loads, ensuring smooth ram movement during pressing and stable, adjustable product dimensions. Bidirectional Equal-Pressure Compaction: Synchronized upper and lower mold pressure ensures uniform density throughout the refractory brick, eliminating layering defects. PLC Control: Utilizes imported PLC systems to achieve fully automated production, encompassing automatic feeding, material distribution, compaction, demolding, and stacking.


We offer comprehensive after-sales services, including installation, commissioning, and operation training; providing hydraulic press user manuals to facilitate user learning on how to operate and maintain the hydraulic press.

We offer a full range of hydraulic press equipment, with numerous mature design solutions and successful customer cases. Custom services are also available, providing forming molds and corresponding production line equipment, offering one-stop service. Welcome to consult with us.
