Home / Custom hydraulic press / Rubber press machine rubber compression hydraulic press
|
Place of Origin: |
Tengzhou China |
|
Brand Name: |
Zhongyou |
|
Model Number: |
YQ32-150T |
|
Certification: |
CE ISO |
|
Minimum Order Quantity: |
1 |
|
Packaging Details: |
The sample includes a hydraulic press and mold. Please contact us for more details. |
|
Delivery Time: |
15-45 day |
|
Payment Terms: |
L/C D/P D/A T/T |
|
Supply Ability: |
50set/m |

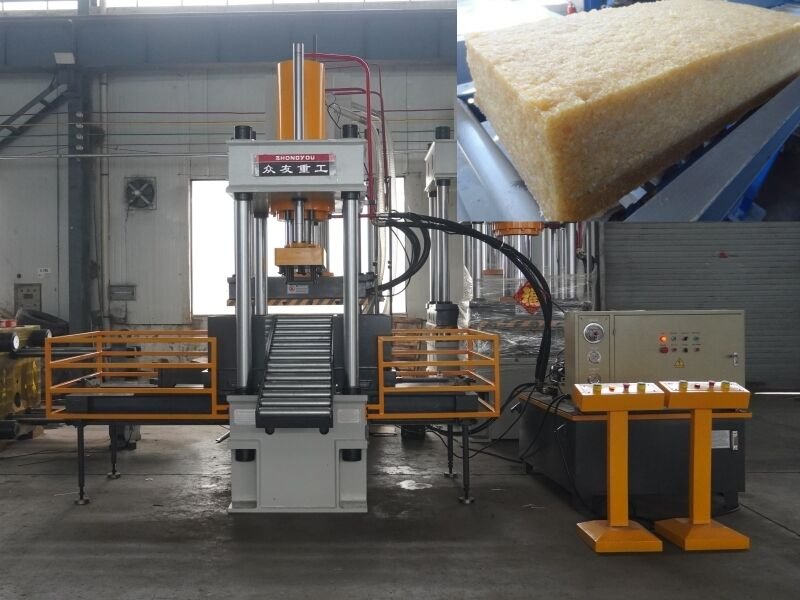

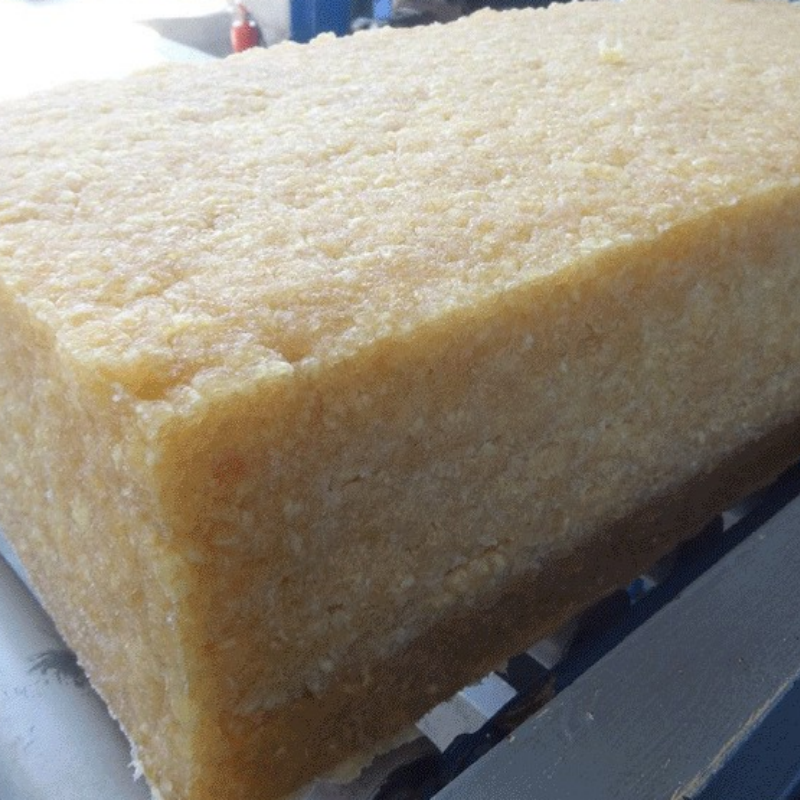

This is a customised 150 tonne four column hydraulic press for rubber compression, which is the latest type of rubber press machine.The machine has a removable stuffing box that allows for automated pressing and automatic removal of the pressed rubber blocks.It has strong pressure, sensitive and reliable movements, and strikes a perfect balance between productivity and product quality.
Parameter list of regular models for reference only.
YQ32 Technical Parameters | ||||||||
| Unit | YQ32—63 | YQ32—100A | YQ32—100B | YQ32—200A | YQ32—200B | YQ32—315A | YQ32—315B |
Nominal force | KN | 630 | 1000 | 1000 | 2000 | 2000 | 3150 | 3150 |
Maximun system pressure | Mpa | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
Max.open height | mm | 700 | 800 | 900 | 900 | 1100 | 1000 | 1250 |
Max Stroke of Slider | mm | 400 | 500 | 600 | 600 | 700 | 600 | 800 |
Effective table size | mm | 610×500 | 630×550 | 750×700 | 800×800 | 1000×1000 | 800×800 | 1260×1160 |
Down speed | mm/s | 100 | 100 | 100 | 100 | 100 | 100 | 100 |
Pressing speed | mm/s | 11～22 | 7～15 | 7～15 | 7～18 | 7～18 | 7～12 | 7～12 |
Return speed | mm/s | 80 | 90 | 90 | 90 | 90 | 90 | 100 |
Ejection cylinder force | KN | 100 | 200 | 200 | 400 | 400 | 630 | 630 |
Stroke of ejection cylinder | mm | 160 | 200 | 200 | 200 | 200 | 300 | 300 |
|
|
|
|
|
|
|
|
|
| Unit | YQ32—400 | YQ32—500 | YQ32—630 | YQ32—800 | YQ32—1000 | YQ32—1250 | YQ32—1600 |
Nominal force | KN | 4000 | 5000 | 6300 | 8000 | 10000 | 12500 | 16000 |
Maximun system pressure | Mpa | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
Max.open height | mm | 1250 | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 |
Max Stroke of Slider | mm | 800 | 900 | 900 | 900 | 900 | 900 | 900 |
Effective table size | mm | 1260×1160 | 1400×1400 | 1500×1500 | 1600×1600 | 1600×1600 | 1600×1600 | 1600×1600 |
Down speed | mm/s | 100 | 150 | 150 | 180 | 180 | 180 | 190 |
Pressing speed | mm/s | 5～11 | 10～18 | 9～18 | 9～18 | 10～18 | 6～15 | 6～14 |
Return speed | mm/s | 100 | 180 | 200 | 180 | 220 | 200 | 220 |
Ejection cylinder force | KN | 630 | 1000 | 1000 | 1000 | 1000 | 1000 | 1600 |

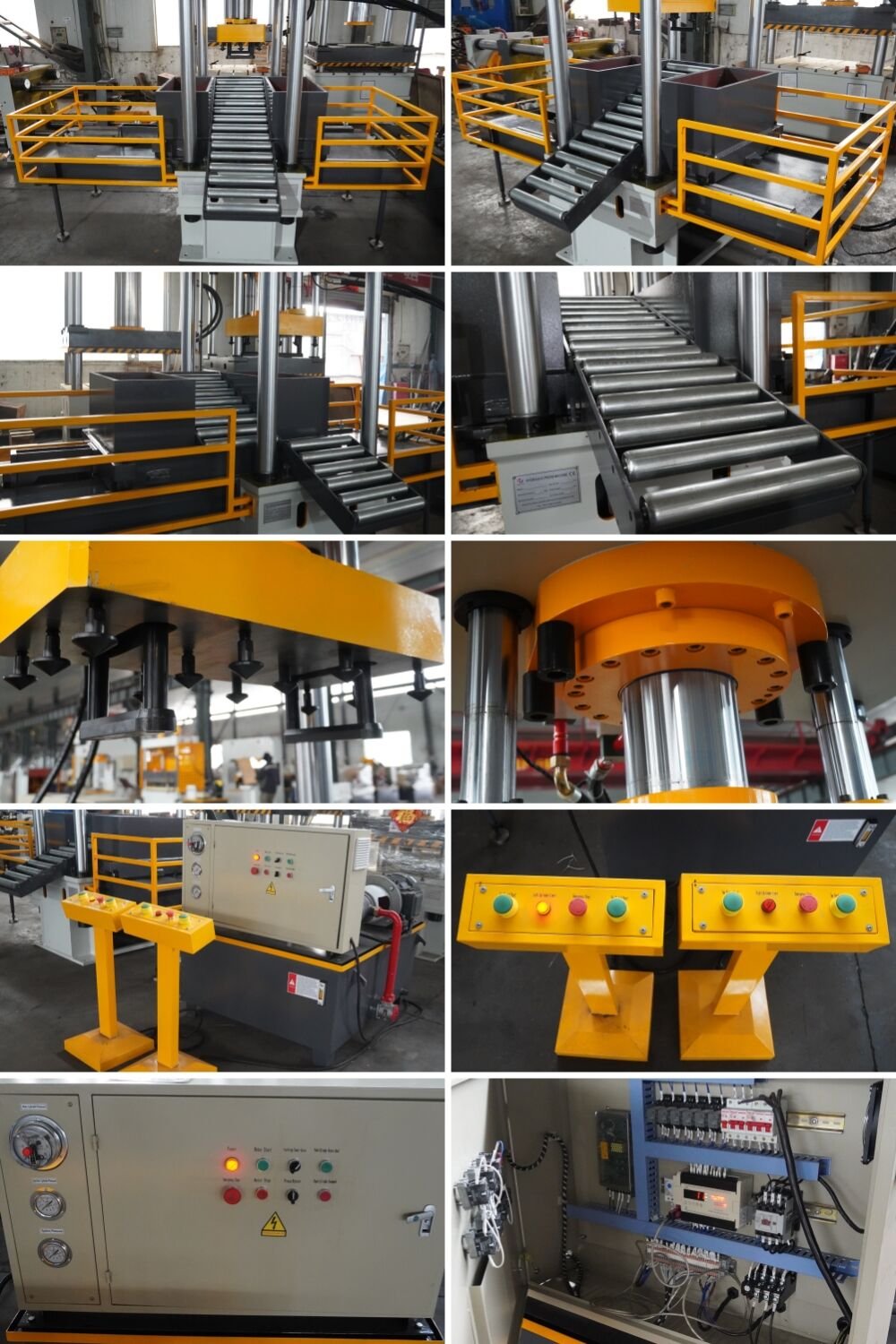

1. Stable three-beam and four-column structure
2. With PLC programmable controller, it can set more different pressing moulding and adapt to more pressing process.

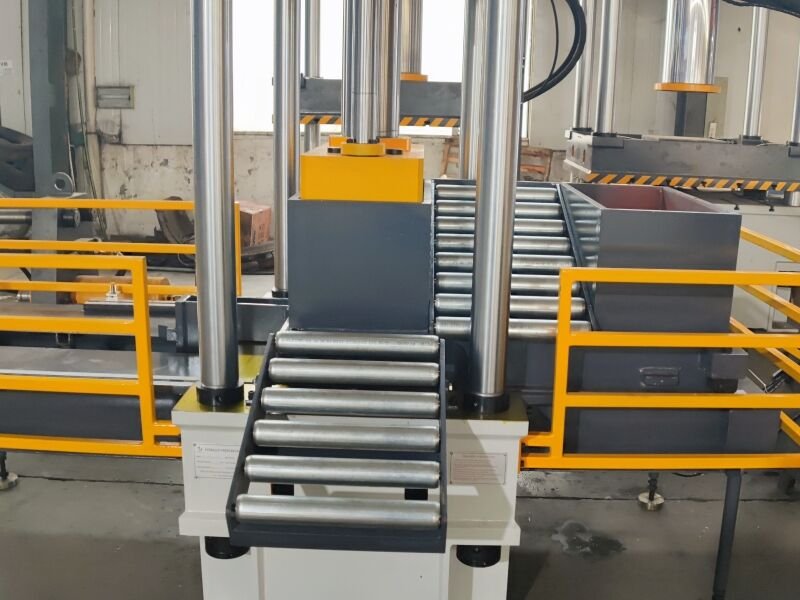

3. Mobile stuffing box and automatic pick-up design, greatly improve the production efficiency.
