Home / CNC Vertical lathe / VTC65 CNC Vertical Lathe
|
Place of Origin: |
Tengzhou China |
|
Brand Name: |
Zhongyou |
|
Model Number: |
VTC65 |
|
Certification: |
CE ISO |
|
Minimum Order Quantity: |
1 |
|
Packaging Details: |
The sample includes a hydraulic press and mold. Please contact us for more details. |
|
Delivery Time: |
15-45 day |
|
Payment Terms: |
L/C D/P D/A T/T |
|
Supply Ability: |
50set/m |

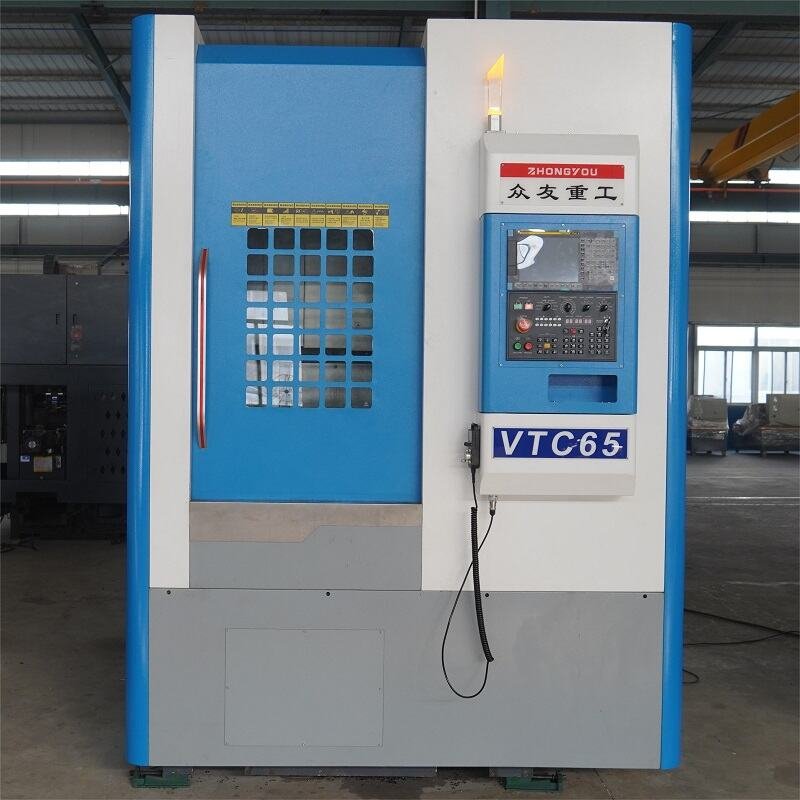

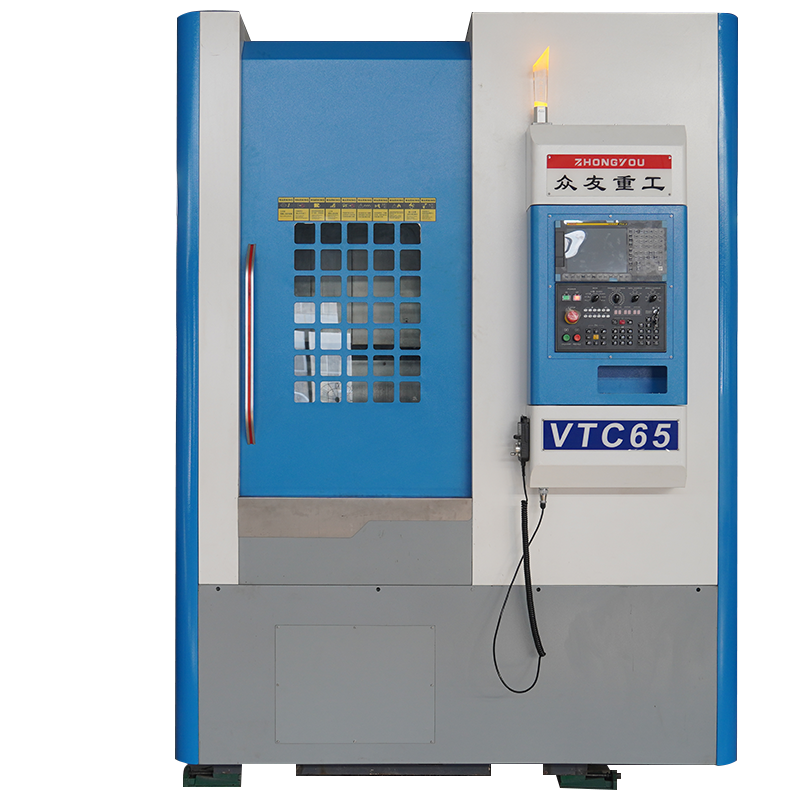

The VTC series CNC vertical lathes are built on a foundation of high-rigidity structures combined with precision linear guides. Equipped with a hydraulic tool turret and a high-torque spindle, this series of machines delivers robust cutting performance with superior quality.
| Vertical Lathe Parameters | |||||
| Item | Specification | Unit | VT45 | VT65 | VT75 |
| Machining Capacity | Maximum Swing Diameter | mm | ∮560 | ∮650 | ∮750 |
| Maximum Cutting Diameter | mm | ∮450 | ∮600 | ∮700 | |
| Spindle | Spindle End Face Type | Plain | Plain | Plain | |
| Spindle Speed | rpm | 100-2000 | 100-1000 | 100-1000 | |
| Chuck Outer Diameter | mm | 500 | 500 | 610 | |
| Tool Turret | Tool Capacity | pc | Horizontal Eight-Position | Horizontal Eight-Position | Horizontal Eight-Position |
| Travel | X-Axis Travel | mm | 400 | 420 | 700 |
| Z-Axis Travel | mm | 500 | 500 | 700 | |
| Hydraulic Unit | Oil Tank Capacity | L | 40 | 40 | 40 |
| Hydraulic Motor | kw | 2.2 | 2.2 | 2.2 | |
| Motor | Spindle Servo Motor | kw | 15 | 18.5 | 22 |
| Accuracy | Repetition Accuracy | mm | ±0.008 | ±0.005 | ±0.005 |
| Positioning Accuracy | mm | ±0.008 | ±0.008 | ±0.008 | |
| Machine Dimensions (LWH) | Length Width Height | mm | 2200*2300*2600 | 2150*2210*2970 | 2700*2100*3200 |
| Weight (Including Accessories) | kg | 5000 | 7000 | 9500 | |
| Power Requirements | Power Supply | 3￠-AC 380V 50HZ±5% | |||
| The machine has leakage protection and power-off protection | √ | ||||
| Machine Work Status Indicator (Three-Color Light) | √ | ||||
| The machine operates stably under the following conditions | Ambient Temperature 5～38° | ||||
| bient Humidity＜85% | |||||
| Machine Noise Complies with National Standards | √ | ||||
| Remarks | ☆The equipment uses fully enclosed protection; the protective devices are safe and reliable, and should comply with GB15760-1995 General Technical Regulations for Safety Protection of Metal Cutting Machine Tools. ☆Various hydraulic, pneumatic, and water pipe directions are marked, along with the working range of various instruments and the medium type. ☆The diameter of the hydraulic chuck and the tool turret positions can be selected according to machining requirements. | ||||

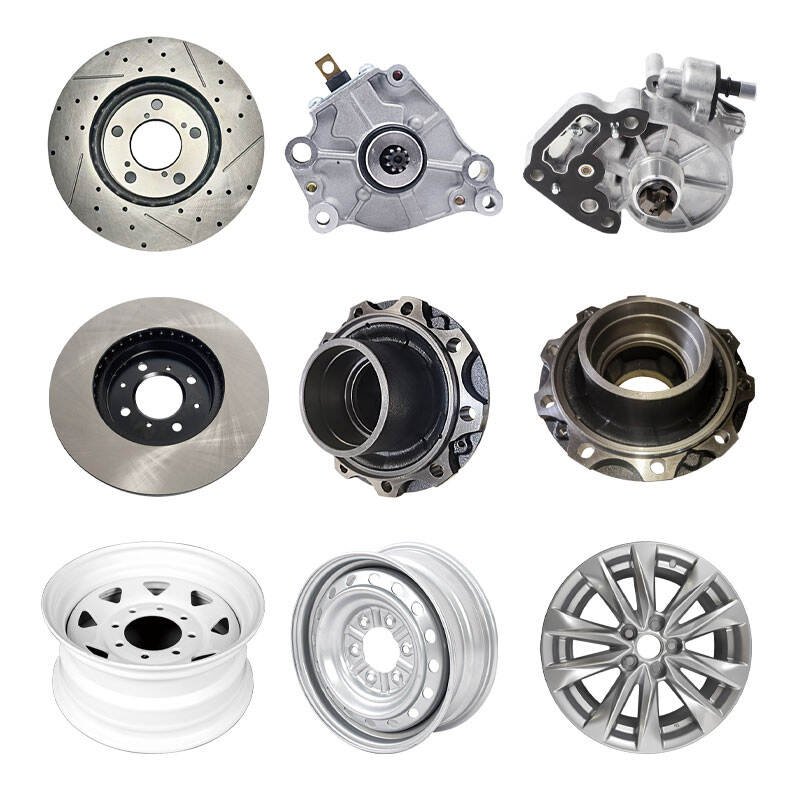

Vertical lathes are primarily used for machining large, short, heavy workpieces' external cylindrical surfaces, end faces, conical surfaces, cylindrical holes, or conical holes. They can also be equipped with auxiliary devices for threading, spherical turning, profiling, milling, and grinding. The primary characteristic of vertical lathes is that the spindle is upright, with the worktable positioned in a horizontal plane. The workpiece is clamped on a large worktable driven by the spindle's rotational motion. Due to the workpiece being mounted on a horizontal worktable, clamping is relatively convenient. The quality of the workpiece and cutting forces are supported by the rotational guide rails between the worktable and base, reducing the load on the spindle and bearings, ensuring stable operation and maintaining machining accuracy over extended periods.
Brand Spindle: The spindle can be equipped with either a disk-type worktable or a hydraulic chuck, based on user requirements. It operates with high efficiency, low noise, and minimal vibration to meet various cutting demands such as low-speed, high-torque, and high-speed, high-power conditions.
Wide Span Mid-Drive Design: The ball screw ends are fixed using integral casting with the machine body, and the support bearings are secured with a unit-type structure. Despite the complexity of the machining and assembly process, this design improves rigidity and bearing lifespan by 20% and 25%, respectively. The screw is centered on the motion axis, providing high precision and heavy load axial feeding force, while avoiding uneven force due to offset drive.
We offer comprehensive after-sales services, including installation, commissioning, and operation training; providing hydraulic press user manuals to facilitate user learning on how to operate and maintain the hydraulic press.
We provide a full set of hydraulic press equipment and CNC vertical lathe, with many mature design solutions and successful customer cases. We can also provide customized service, provide molding tooling and corresponding production line equipment, providing one-stop service for customers. Welcome to call us for consultation.
