400T Four-column Hydraulic Press 630T 800T

Place of Origin:	Tengzhou China
Brand Name:	Zhongyou
Model Number:	YQ32-400T
Certification:	CE ISO
Minimum Order Quantity:	1
Packaging Details:	The sample includes a hydraulic press and mold. Please contact us for more details.
Delivery Time:	15-45 day
Payment Terms:	L/C D/P D/A T/T
Supply Ability:	50set/m

Get a Quote Contact Us

Is there a problem? Please contact us to serve you!

+86-13563258817

zhongyoupress@foxmail.com

Inquiry

Description

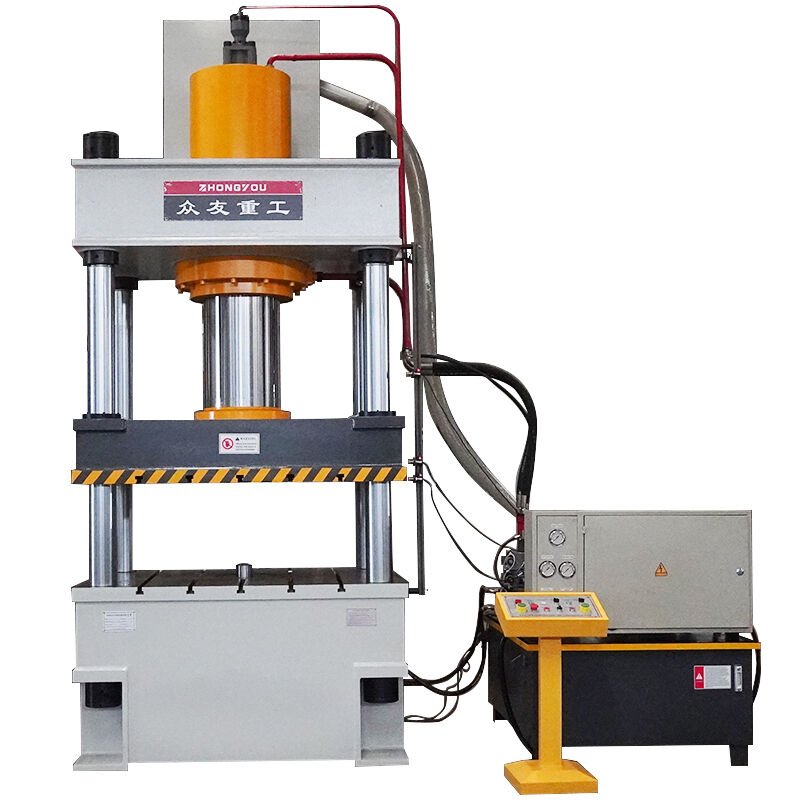

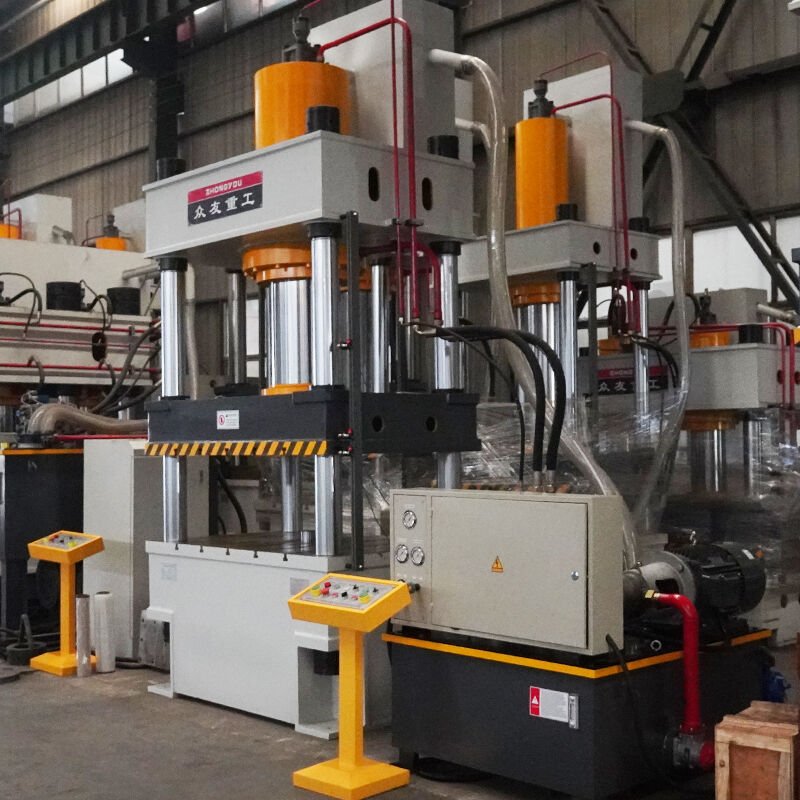

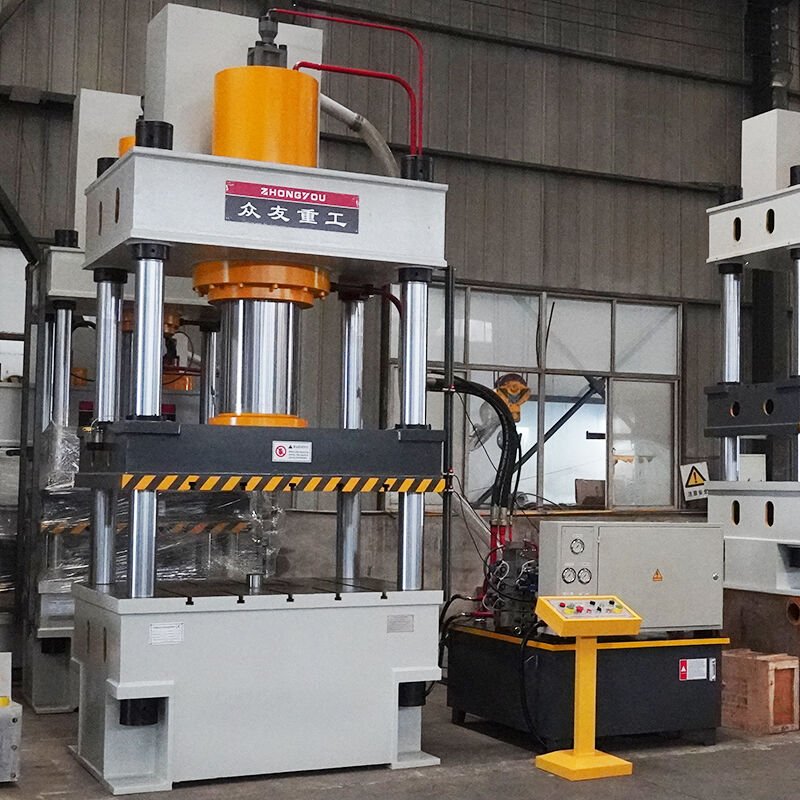

This machine is a four-column hydraulic press with a three-beam structure, featuring precision, stability, high efficiency, and broad applicability. All systems use branded components, ensuring reliability and ease of maintenance. Button control simplifies operation. The four-column hydraulic press is highly versatile, suitable for various plastic materials molding.

Parameters

Description /Specificati on	Unit	YQ32—63	YQ32—100A	YQ32—100B	YQ32—200A	YQ32—200B	YQ32—315A	YQ32—315B	YQ32—400
Nominal force	KN	630	1000	1000	2000	2000	3150	3150	4000
Maximun system pressure	Mpa	25	25	25	25	25	25	25	25
Max.open height	mm	700	800	900	900	1100	1000	1250	1250
Max Stroke of Slider	mm	400	500	600	600	700	600	800	800
Effective table size	mm	610×500	630×550	750×700	800×800	1000×1000	800×800	1260×1160	1260×1160
Down speed	mm/s	100	100	100	100	100	100	100	100
Pressing speed	mm/s	11～22	7～15	7～15	7～18	7～18	7～12	7～12	5～11
Return speed	mm/s	80	90	90	90	90	90	100	100
Ejection cylinder force	KN	100	200	200	400	400	630	630	630
Stroke of ejection cylinder	mm	160	200	200	200	200	300	300	300

Description /Specificati on	Unit	YQ32—500	YQ32—630	YQ32—800	YQ32—1000	YQ32—1250	YQ32—1600
Nominal force	KN	5000	6300	8000	10000	12500	16000
Maximun system pressure	Mpa	25	25	25	25	25	25
Max.open height	mm	1500	1500	1500	1500	1500	1500
Max Stroke of Slider	mm	900	900	900	900	900	900
Effective table size	mm	1400×1400	1500×1500	1600×1600	1600×1600	1600×1600	1600×1600
Down speed	mm/s	150	150	180	180	180	190
Pressing speed	mm/s	10～18	9～18	9～18	10～18	6～15	6～14
Return speed	mm/s	180	200	180	220	200	220
Ejection cylinder force	KN	1000	1000	1000	1000	1000	1600
Stroke of ejection cylinder	mm	300	300	300	300	300	300

Applications

Suitable for metal cold extrusion, stretching, hot forging, composite material hot pressing, powder molding, and more. It can perform various processes such as extrusion, bending, stretching, forging, pressing, disassembly, and forming. Custom hydraulic presses are also available upon request.

Performance Characteristics

Three-beam, Four-column Structure: Stable structure, high precision, and large operating space.
Advanced Hydraulic System: Features integrated cartridge valves, while the electrical system uses branded components for high-precision pressing. Reliable quality and convenient maintenance.
Simple Operation: Button control system for ease of use.
Adjustable Parameters: Pressure, stroke, and holding pressure time are adjustable.
Scientific Design: Simple structure for easy maintenance.

After Sales Service

We provide comprehensive after-sales service, including equipment installation, commissioning, and operation training. Hydraulic press operation manuals are provided to facilitate user learning and maintenance.
