630 ton Four-column Hydraulic Press Machine

Place of Origin:	Tengzhou China
Brand Name:	Zhongyou
Model Number:	YQ32-630T
Certification:	CE ISO
Minimum Order Quantity:	1
Packaging Details:	The sample includes a hydraulic press and mold. Please contact us for more details.
Delivery Time:	15-45 day
Payment Terms:	L/C D/P D/A T/T
Supply Ability:	50set/m

Get a Quote Contact Us

Is there a problem? Please contact us to serve you!

+86-13563258817

[email protected]

Inquiry

Description

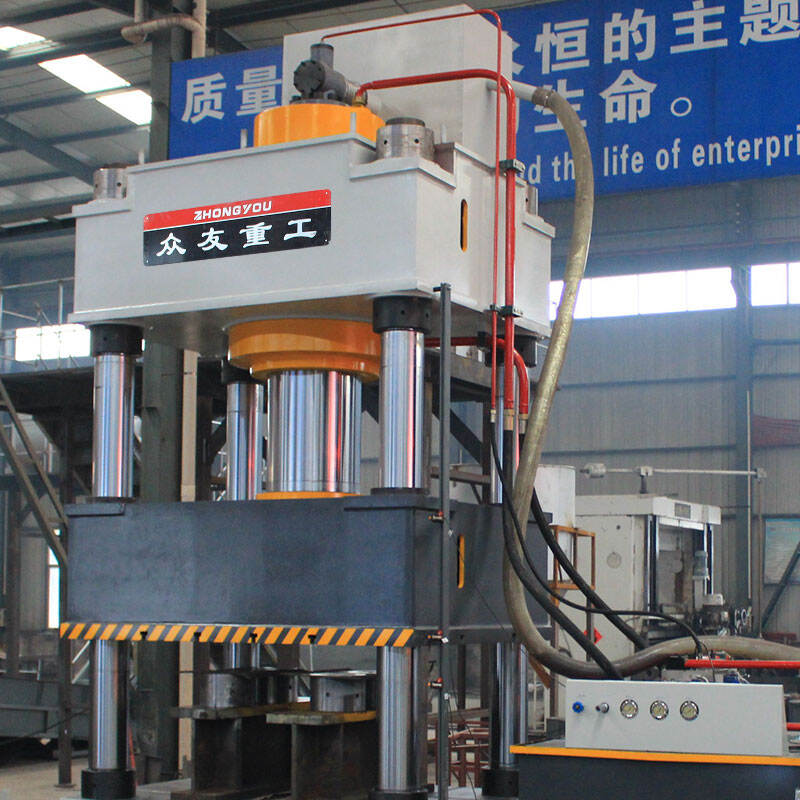

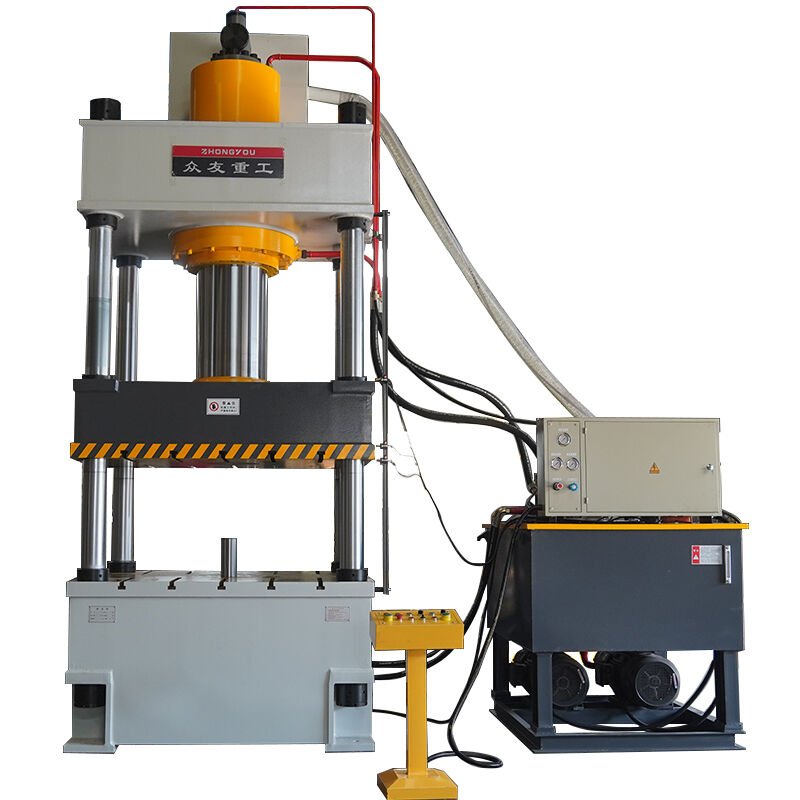

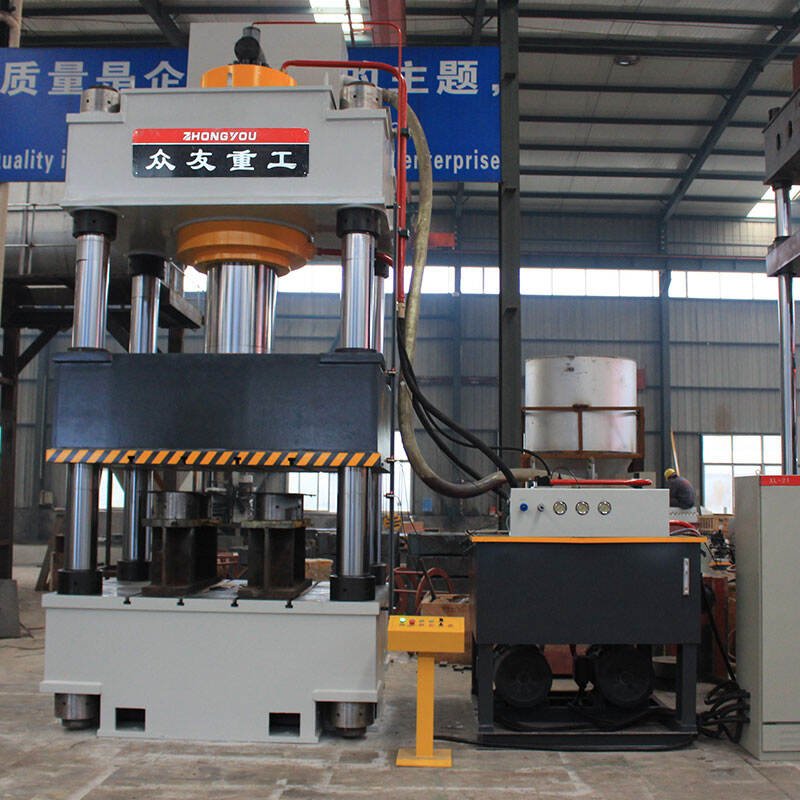

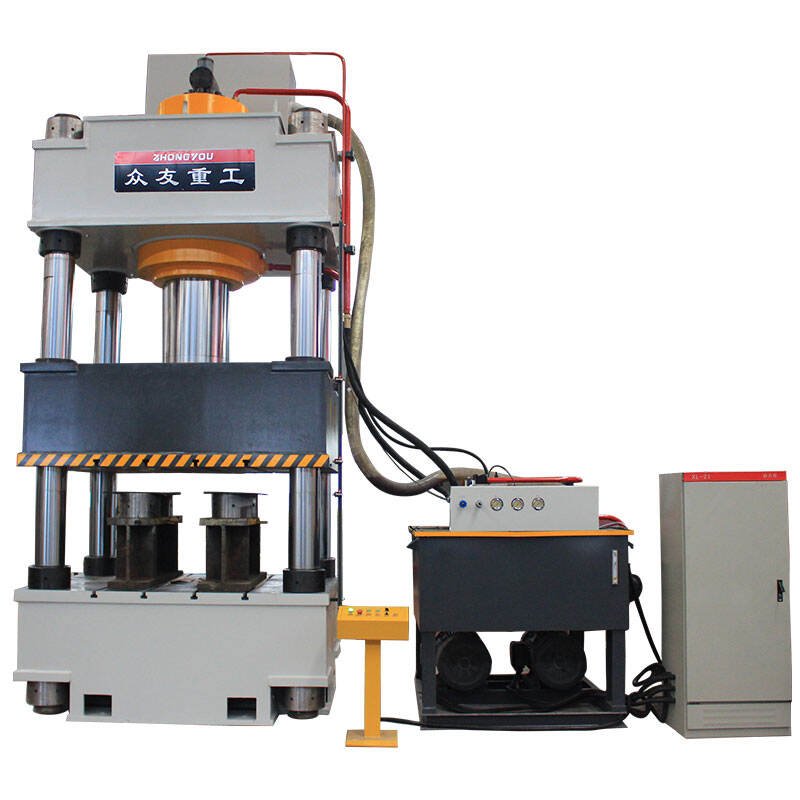

This machine is a three-beam four-column hydraulic press, characterized by its precision, stability, efficiency, and wide applicability. All systems use branded components, ensuring reliable quality and easy maintenance. It features button controls for simple operation. The four-column hydraulic press has broad versatility, suitable for pressing and various plastic materials forming.

Parameters

Description /Specificati on	Unit	YQ32—63	YQ32—100A	YQ32—100B	YQ32—200A	YQ32—200B	YQ32—315A	YQ32—315B	YQ32—400
Nominal force	KN	630	1000	1000	2000	2000	3150	3150	4000
Maximun system pressure	Mpa	25	25	25	25	25	25	25	25
Max.open height	mm	700	800	900	900	1100	1000	1250	1250
Max Stroke of Slider	mm	400	500	600	600	700	600	800	800
Effective table size	mm	610×500	630×550	750×700	800×800	1000×1000	800×800	1260×1160	1260×1160
Down speed	mm/s	100	100	100	100	100	100	100	100
Pressing speed	mm/s	11～22	7～15	7～15	7～18	7～18	7～12	7～12	5～11
Return speed	mm/s	80	90	90	90	90	90	100	100
Ejection cylinder force	KN	100	200	200	400	400	630	630	630
Stroke of ejection cylinder	mm	160	200	200	200	200	300	300	300

Description /Specificati on	Unit	YQ32—500	YQ32—630	YQ32—800	YQ32—1000	YQ32—1250	YQ32—1600
Nominal force	KN	5000	6300	8000	10000	12500	16000
Maximun system pressure	Mpa	25	25	25	25	25	25
Max.open height	mm	1500	1500	1500	1500	1500	1500
Max Stroke of Slider	mm	900	900	900	900	900	900
Effective table size	mm	1400×1400	1500×1500	1600×1600	1600×1600	1600×1600	1600×1600
Down speed	mm/s	150	150	180	180	180	190
Pressing speed	mm/s	10～18	9～18	9～18	10～18	6～15	6～14
Return speed	mm/s	180	200	180	220	200	220
Ejection cylinder force	KN	1000	1000	1000	1000	1000	1600
Stroke of ejection cylinder	mm	300	300	300	300	300	300

Applications

Metal cold extrusion forming, stretching forming, hot forging, composite material hot pressing, powder forming, and more. It supports a variety of processes including extrusion, bending, stretching, forging, pressing, disassembly, and shaping. We also offer customized hydraulic presses to meet specific needs.

Optional Configurations

Utilizes a three-beam four-column structure for stable construction, high precision, and ample operating space.
The hydraulic system employs advanced cartridge integrated valves, and the electrical system uses branded components, enabling high-precision pressing, reliable quality, and easy maintenance.
Simple button control for easy operation.
Adjustable parameters including pressure, stroke, and holdingpressure time.
Scientific design with a simple structure for ease of maintenance.

After Sales Service

We provide comprehensive after-sales service including equipment installation, debugging, and operation training. We offer a hydraulic press user manual for convenient operation and maintenance.

About The Company

We offer a full range of hydraulic press equipment with numerous mature design solutions and successful customer cases. We also support custom services, providing forming molds and corresponding production line equipment for a one-stop service. Feel free to consult us.
